ビデオサーバー

Moxaの産業用ビデオサーバーは、過酷な環境でも確実に機能するように設計されており、遠隔監視や監視ソリューションの中核として理想的な機能を提供します。当社のビデオサーバーでは効率的なMPEG-4による動画圧縮を使用でき、CCTVカメラをIP監視ソリューションに簡単に統合できます。

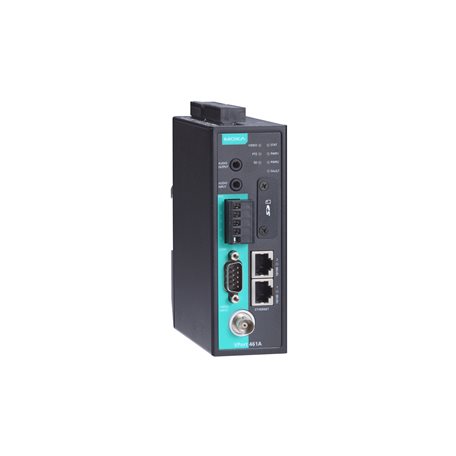

VPort 461A
VPort 461Aシリーズ

Full Motion, 1-ch industrial video encoder, 2 10/100BaseT(X) Ethernet ports, -25 to 60°C

Memory

  • SD Slot

    • SDXC
Input/Output Interface

  • Digital Input Channels

    • 2

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +1 V for state 0
      Max. input current: 8 mA

  • Relay Channels

    • 2

  • Contact Current Rating

    • Resistive load: 1 A @ 24 VDC

  • Connector

    • Terminal block
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
Ethernet Software Features

  • Protocols

    • TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, Modbus TCP, HTTPS, 802.1X, NTCIP
Security Functions

  • Password

    • User-level password protection

  • Filter

    • IP address

  • Authentication

    • 802.1X

  • Encryption

    • HTTPS
LED Interface

  • LED Indicators

    • STAT: Indicates if system is booted up properly or not
      Power 1: Power 1 on/off
      Power 2: Power 2 on/off
      FAULT: Can be configured to correspond to system alarm, power failure, or disconnected network
      Video: Video input signal
      PTZ: Indicates if PTZ or COM port data has been transmitted
      SD: Indicates if SD card was mounted successfully
      Network: 10 Mbps or 100 Mbps
Serial Interface

  • PTZ Port

    • 1, RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps

  • COM Port

    • 1, RS-232 or RS-485 port, DB9 male connector, 115.2 kbps

  • Console Port

    • 1 RS-232 port, 10-pin RJ45 (115200, n, 8, 1)
Power Parameters

  • No. of Power Inputs

    • 2

  • Input Voltage

    • Redundant dual inputs

  • Operating Voltage

    • 12 to 32 VDC, 18 to 30 VAC

  • Input Current

    • 0.85 A @ 12 VDC, 0.3 A @ 32 VDC
      0.56/0.85 A @ 30/18 VAC

  • Power Connector

    • 2-pin terminal block
Video Interface

  • Video Compression

    • H.264 (ISO/IEC 14496-10) or MJPEG

  • Video Input

    • 1, BNC connector (1.0 Vpp, 75 ohm)

  • Video Output

    • via Ethernet

  • Video Streams

    • 4 independent H.264 or MJPEG video streams

  • NTSC/PAL

    • Auto-sensing or manual

  • Video Resolution and FPS (frames per second)

    •

  • Video Resolution and FPS (frames per second)

    •   NTSC PAL
      Size Max. FPS Size Max. FPS
      QCIF 176 x 112 30 176 x 144 25
      CIF 352 x 240 30 352 x 288 25
      VGA 640 x 480 30 640 x 480 25
      4CIF 704 x 480 30 704 x 576 25
      Full D1 720 x 480 30 720 x 576 25

  • Video Viewing

    • DynaStream™ support for changing the video frame rate automatically
      CBR Pro™ for good image quality in limited bandwidth transmissions
      Adjustable image size and quality
      Timestamp and text overlay
      OSD (On Screen Display) position adjustable
      Image manipulation: 180° rotation
      Image tuning: control brightness, contrast, saturation
      Maximum of 10 simultaneous unicast connections, 50 multicast clients
Audio Interface

  • Audio Inputs

    • 1 Line-in or MIC-in with 3.5 mm phone jack

  • Audio Outputs

    • 1 Line-out, with 3.5 mm phone jack

  • Audio Format

    • Mono, PCM (G.711)
Camera Software Development

  • VPort SDK PLUS

    • Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers

  • Video Standards

    • ONVIF Profile S
Camera PAN/TILT/ZOOM

  • PTZ Camera Control

    • Via PTZ port or COM port

  • PTZ Control Functions

    • Pan, tilt, zoom, focus, move speed, preset position (max. 128 positions)

  • PTZ Function Updates

    • Driver upload supported

  • Protocols

    • Pelco D, Pelco P, Custom Camera
Camera Alarm Software Features

  • Intelligent Video

    • Camera tampering detection

  • Video Motion Detection

    • 3 independently configurable areas

  • Scheduling

    • Daily repeat timing schedule

  • Imaging

    • JPEG snapshots for pre/trigger/post alarm images

  • Custom Alarms

    • HTTP event servers for setting customized alarm actions

  • Email/FTP Messaging

    • Automatic transfer of stored images via email or FTP as event-triggered actions

  • Pre-Alarm Buffer

    • 50 MB video buffer for JPEG snapshot images

  • Video Recording

    • Event recordings stored on the SD card
Software Requirements

  • Memory Size

    • 1 GB

  • Operating System

    • Windows 7 or above

  • Browser

    • Internet Explorer 9.x or above

  • Multimedia

    • DirectX 9.0C or above
Physical Characteristics

  • Housing

    • Metal

  • Dimensions

    • 46 x 134 x 105 mm (1.81 x 5.31 x 4.13 in)

  • Weight

    • 710 g (1.57 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -25 to 60°C (-13 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Altitude

    • 2000 m
Standards and Certifications

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs

  • Freefall

    • IEC 60068-2-31

  • Safety

    • UL 60950-1

  • Shock

    • IEC 60068-2-27

  • Traffic Control

    • NEMA TS2

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 647,088 hrs

  • Standards

    • Telcordia SR332
Warranty
