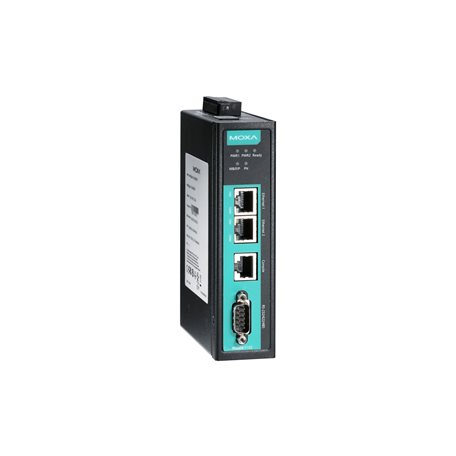

MGate 5103-T
MGate 5103シリーズ

1-port Modbus/EtherNet/IP-to-PROFINET gateway, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
      Auto MDI/MDI-X connection
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Industrial Protocols

    • PROFINET IO Device, Modbus TCP Client (Master), Modbus TCP Server (Slave), EtherNet/IP Adapter
  • Configuration Options

    • Web Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console
  • Management

    • ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
  • MIB

    • RFC1213, RFC1317
  • Time Management

    • NTP Client
Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
  • No. of Ports

    • 1
  • Connector

    • DB9 male
  • Serial Standards

    • RS-232/422/485
  • Baudrate

    • 50 bps to 921.6 kbps
  • Data Bits

    • 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 2
  • Flow Control

    • RTS Toggle (RS-232 only), RTS/CTS
  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485

    • 120 ohms
  • Isolation

    • 2 kV (built-in)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
  • Configuration Options

    • Serial Console
  • Industrial Protocols

    • Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave
Modbus RTU/ASCII
  • Mode

    • Master, Slave
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Commands

    • 128
  • Input Data Size

    • 512 bytes
  • Output Data Size

    • 512 bytes
Modbus TCP
  • Mode

    • Client (Master), Server (Slave)
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Client Connections

    • 16
  • Max. No. of Server Connections

    • 32
  • Max. No. of Commands

    • 128
  • Input Data Size

    • 512 bytes
  • Output Data Size

    • 512 bytes
PROFINET
  • Mode

    • IO Device
  • Max. No. of IO Controller Connections

    • 1 (for read/write)
  • Input Data Size

    • 512 bytes
  • Output Data Size

    • 512 bytes
EtherNet/IP
  • Mode

    • Adapter
  • CIP Objects Supported

    • Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port
  • Max. No. of Scanner Connections

    • 1 (for read-only), 1 (for read/write)
  • Input Data Size

    • 496 bytes
  • Output Data Size

    • 496 bytes
Memory
  • microSD Slot

    • Up to 32 GB (SD 2.0 compatible)
Power Parameters
  • Input Voltage

    • 12 to 48 VDC
  • Input Current

    • 455 mA @ 12 VDC
  • Power Connector

    • Screw-fastened Euroblock terminal
Relays
  • Contact Current Rating

    • Resistive load: 2 A @ 30 VDC
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
  • Weight

    • 507 g (1.12 lb)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • EN 60950-1, UL 508
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class B
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
  • Hazardous Locations

    • ATEX, Class I Division 2, IECEx
  • Freefall

    • IEC 60068-2-32
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6, IEC 60068-2-64
MTBF
  • Time

    • 859,422 hrs
  • Standards

    • Telcordia SR332
Warranty
