Modbus TCPゲートウェイ

MoxaのModbus TCPゲートウェイソリューションは、有線または無線、単一シリアルポートまたは複数シリアルポートのいずれにおいても、Modbus RTU、DNP3、J1939、およびPROFIBUSデバイスをModbus TCPネットワークに接続して、構成、トラブルシューティング、変換を迅速かつ簡単に行えるようにします。

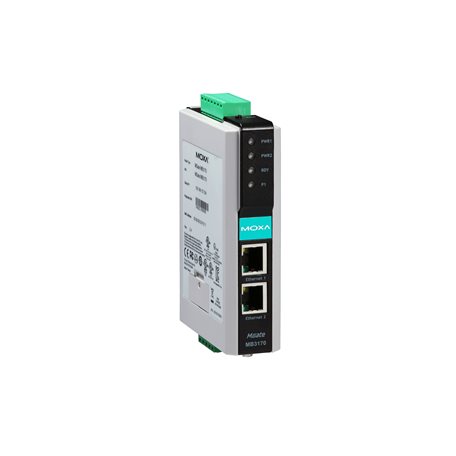

MGate MB3170
MGate MB3170/MB3270シリーズ

1-port advanced Modbus gateway, 0 to 60°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2 (1 IP, Ethernet cascade)
      Auto MDI/MDI-X connection
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • Optical Fiber

  • Optical Fiber

Ethernet Software Features
  • Industrial Protocols

    • Modbus TCP Client (Master), Modbus TCP Server (Slave)
  • Configuration Options

    • Web Console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, Telnet Console
  • Management

    • ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client
  • MIB

    • RFC1213, RFC1317
  • Time Management

    • NTP Client
Serial Interface
  • No. of Ports

    • 1
  • Connector

    • DB9 male for RS-232
  • Serial Standards

    • RS-232/422/485 (software selectable)
  • Baudrate

    • 50 bps to 921.6 kbps
  • Data Bits

    • 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 2
  • Flow Control

    • DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS
  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485

    • 120 ohms
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
  • Industrial Protocols

    • Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave
Modbus (Transparent)
  • Max. No. of Client Connections

    • 32
  • Max. No. of Server Connections

    • 32
Power Parameters
  • Input Voltage

    • 12 to 48 VDC
  • Input Current

    • 435 mA @ 12 VDC
  • Power Connector

    • 7-pin terminal block
Relays
  • Contact Current Rating

    • Resistive load: 1 A @ 30 VDC
Physical Characteristics
  • Housing

    • Plastic
  • IP Rating

    • IP30
  • Dimensions (with ears)

    • 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)
  • Dimensions (without ears)

    • 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
  • Weight

    • 360 g (0.79 lb)
Environmental Limits
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs
  • Hazardous Locations

    • ATEX, Class I Division 2, IECEx
  • Maritime

    • DNV-GL
  • Freefall

    • IEC 60068-2-32
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6, IEC 60068-2-64
  • Safety

    • EN 60950-1, IEC 60950-1, IEC 62368-1, UL 62368-1
MTBF
  • Time

    • 1,349,710 hrs
  • Standards

    • Telcordia SR332
Warranty
