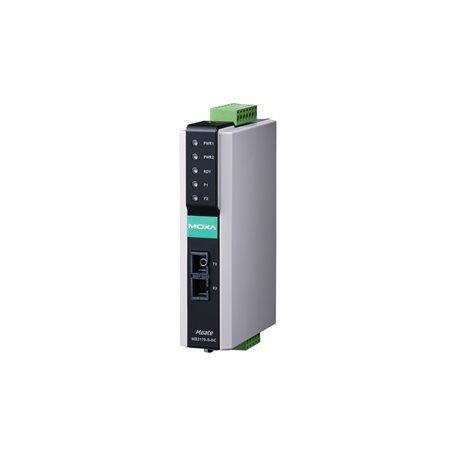

MGate MB3170/MB3270シリーズ

1ポートおよび2ポートの高度のシリアル - イーサネットModbusゲートウェイ

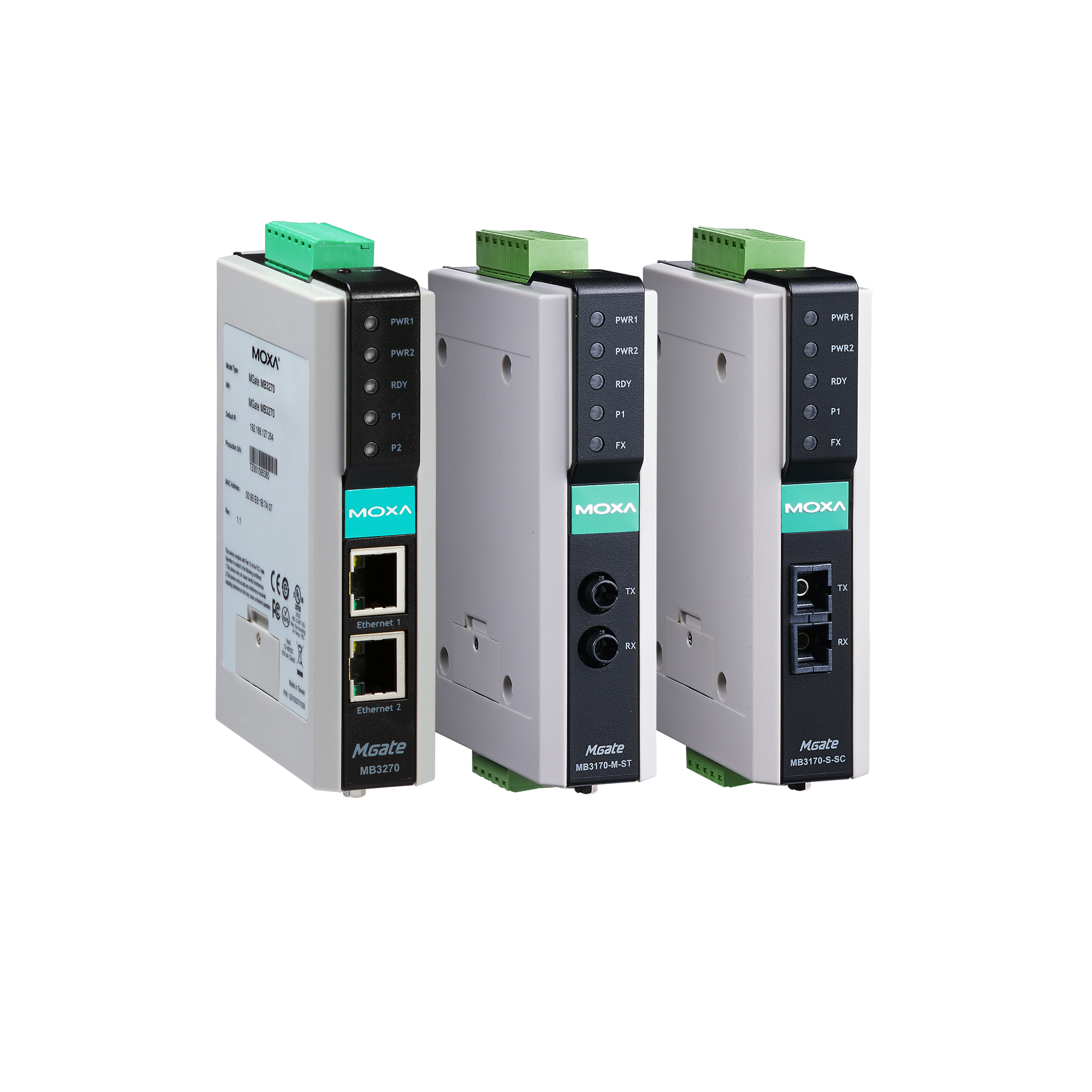

moxa-mgate-mb3170-mb3270-series-image-1-(1).jpg | Moxa

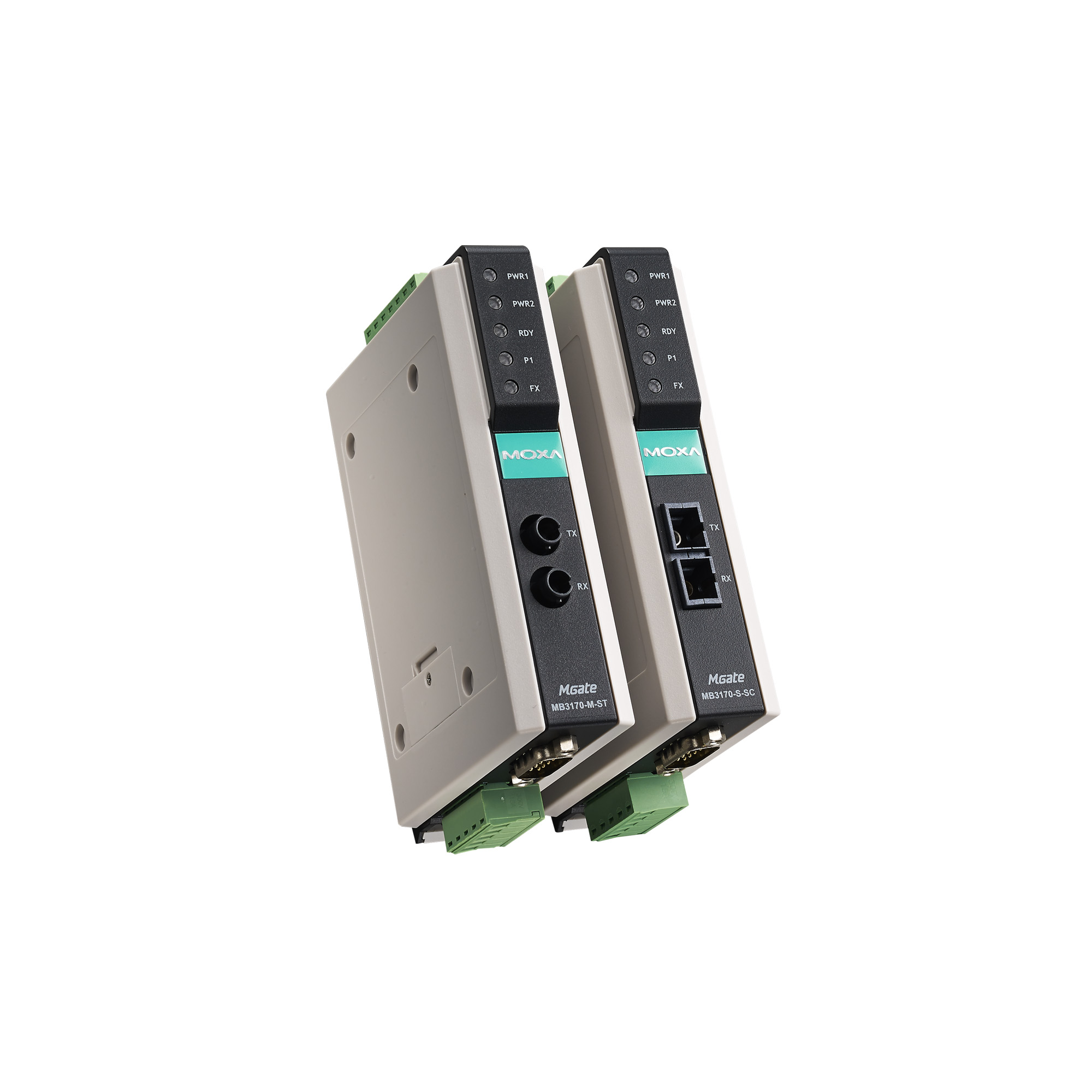

moxa-mgate-mb3170-mb3270-series-image-2-(1).jpg | Moxa

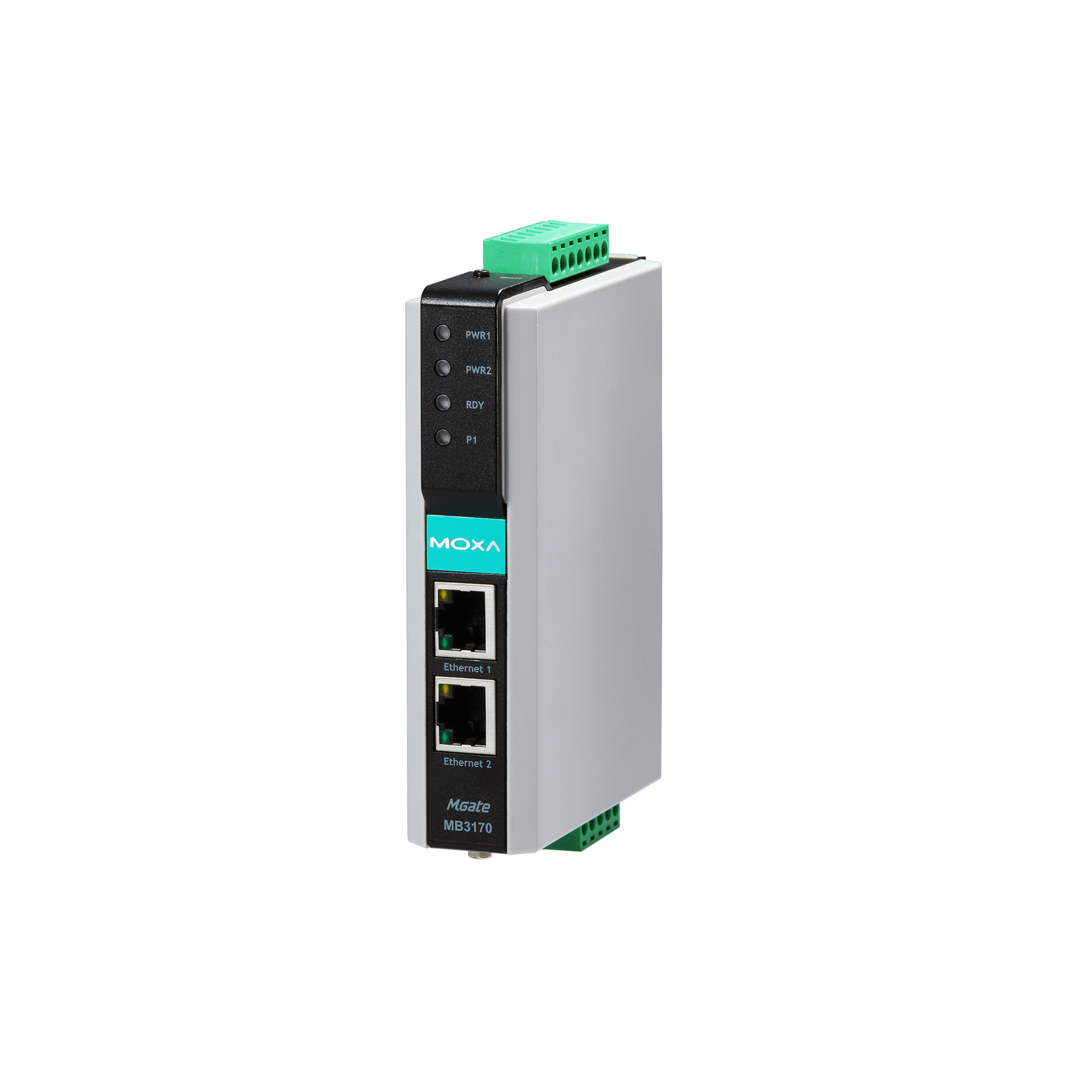

moxa-mgate-mb3170-mb3270-series-image-3-(1).jpg | Moxa
moxa-mgate-mb3170-mb3270-series-image-4-(1).jpg | Moxa

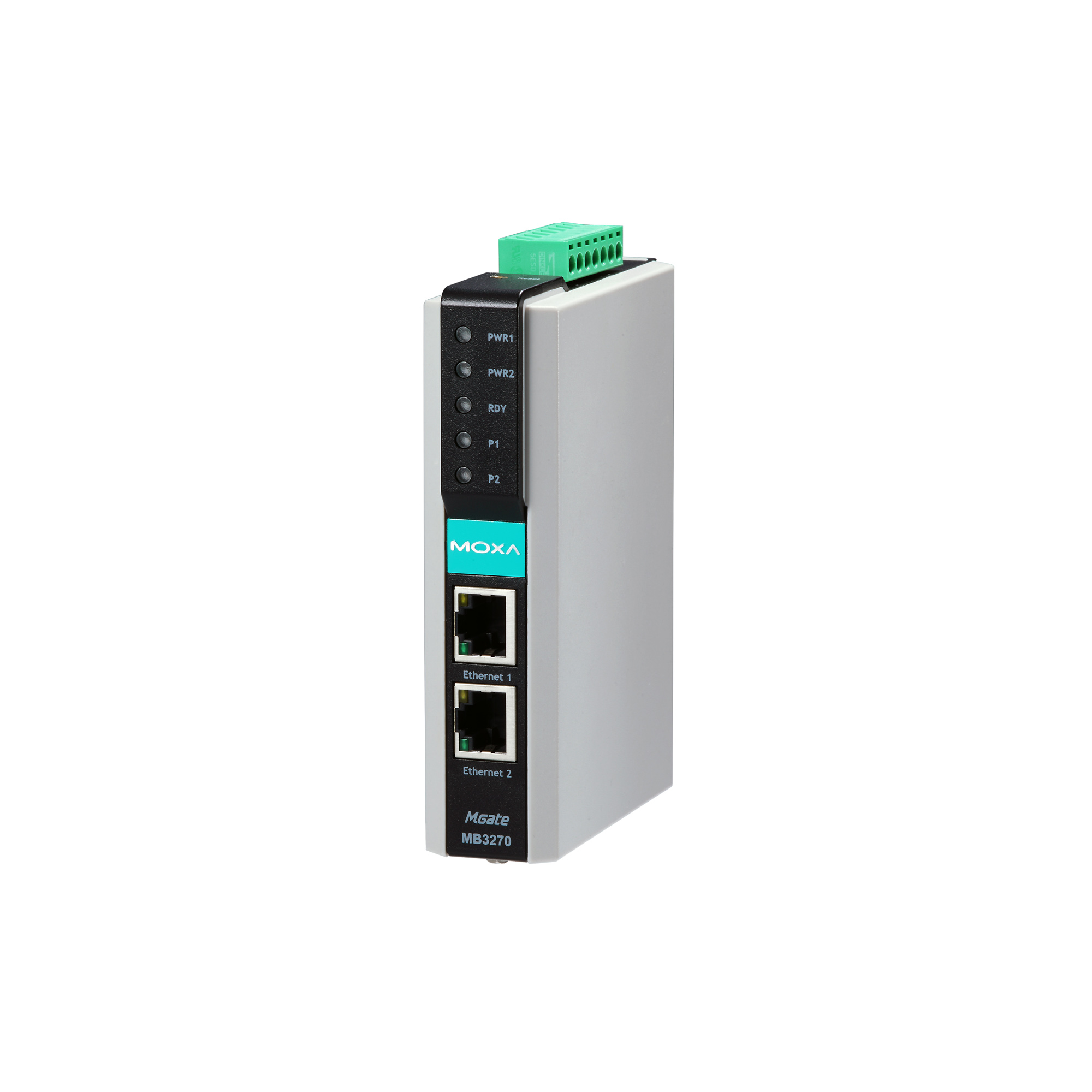

moxa-mgate-mb3170-mb3270-series-image-5-(1).jpg | Moxa

機能と特長

  • 自動デバイスルーティングによる簡単設定
  • 柔軟な導入のためにTCPポートまたはIPアドレスによるルートをサポート
  • 最大32個のModbusTCPサーバーに接続
  • 最大31または62のModbus RTU/ASCIIスレーブに接続
  • 最大32個のModbus TCPクライアントがアクセス可能(マスターごとに32個のModbus要求を保持)
  • ModbusシリアルマスターからModbusシリアルスレーブへの通信をサポート
  • イーサネットカスケードで配線が容易に
  • 10/100BaseTX(RJ45)または100BaseFX(シングルモードまたはSC/STコネクタ付きマルチモード)
  • 緊急リクエストトンネルはQoS制御を確実にします
  • Modbusのトラフィック監視のための組み込み型Modbusのトラフィック監視
  • 2 kV絶縁保護付きシリアルポート(「-I」モデル)
  • -40~75°Cの広い動作温度モデルを使用可能
  • 冗長デュアルDC電源入力および1つのリレー出力をサポート

認証

  • moxa-dnv-certification-logo-image.png | Moxa
  • moxa-iecex-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

MGateMB3170とMB3270は、それぞれ1ポートと2ポートのModbusゲートウェイであり、ModbusTCP、ASCII、およびRTU通信プロトコル間の変換を行います。ゲートウェイは、シリアルからイーサネットへの通信と、シリアル(マスター)からシリアル(スレーブ)への通信の両方を提供します。さらに、ゲートウェイは、シリアルマスターとイーサネットマスターをシリアルModbusデバイスに同時に接続することをサポートします。MGateMB3170およびMB3270シリーズゲートウェイには、最大32個のTCPマスター/クライアントからアクセスでき、最大32個のTCPスレーブ/サーバーに接続できます。シリアルポート経由のルーティングは、IPアドレス、TCPポート番号、またはIDマッピングによって制御できます。TCPポートとIPアドレスによるシリアルポートルーティングでは最大4つのTCPクライアント/マスター(MB3270モデル)へのアクセスが可能になり、IDマッピングによるルーティングでは最大32のTCPクライアント/マスター(MB3170/MB3270)へのアクセスが可能になります。優先制御機能(QoS制御)を搭載しており、緊急のコマンドに対して即時の応答を得ることができます。すべてのモデルは堅牢で、DINレールに取り付け可能であり、オプションでシリアル信号向けの光絶縁機能も提供しています。



Modbus RTU/ASCIIネットワークやソフトウェアを変更せずにTCPマスターを統合

MB3270は、既存のModbus RTU/ASCIIアーキテクチャやソフトウェアを変更することなく、Modbus TCPとModbus RTU/ASCIIを統合できます。シリアルリダイレクタ機能を使用すると、シリアルマスターは特別にマッピングされたシリアルポートを介してシリアルスレーブデバイスへの直接アクセスを維持できます。これにより、シリアルマスターとTCPマスターがシリアルスレーブに同時にアクセスできるようになります。



イーサネット通信用光ファイバ

MGate MB3170シリーズには、マルチモードモデルで最大4 キロメートル、シングルモードモデルで最大40 kmの伝送距離をサポートする100BaseFXファイバモデルが含まれています。光ファイバは電磁ノイズや干渉の影響を受けないため、産業用アプリケーションに適しています。接地ループ電圧が高い環境では、ファイバが最高の絶縁保護を提供し、スパークの危険がないため、過酷な環境で使用する場合には光ファイバは銅線よりも安全です。



簡単な設定のための自動デバイスルーティング

Moxaの自動デバイスルーティング機能は、多数のModbusデバイスを構成する必要があるエンジニアが遭遇する多くの問題や不便を解消するのに役立ちます。マウスを1回クリックするだけで、スレーブIDルーティングテーブルを設定し、監視制御およびデータ収集(SCADA)システムからのModbus要求を自動的に検出するようにModbusゲートウェイを構成できます。自動デバイスルーティング機能により、スレーブIDルーティングテーブルを手動で作成する必要がなくなるため、エンジニアは時間とコストを大幅に節約できます。



緊急コマンドの優先制御

Modbusネットワークの規模と複雑さが増すにつれて、コマンドと応答間の遅延時間が大きな懸念事項になります。MB3000シリーズの上級モデルには、緊急コマンドに対する優先制御機能が用意されており、ユーザーは特定のコマンドを強制的に実行して即時応答を得ることができます。システムの要件に応じて、どのコマンドに優先権を与えるかを定義するためのさまざまな方法が利用可能です。



  • 10/100BaseT(X) Ports (RJ45 connector)

    2 (1 IP, Ethernet cascade)
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Optical Fiber

  • Industrial Protocols

    Modbus TCP Client (Master)
    Modbus TCP Server (Slave)

  • Configuration Options

    Web Console (HTTP/HTTPS)
    Device Search Utility (DSU)
    MGate Manager
    MCC Tool
    Telnet Console

  • Management

    ARP
    DHCP Client
    DNS
    HTTP
    HTTPS
    SMTP
    SNMP Trap
    SNMPv1/v2c/v3
    TCP/IP
    Telnet
    UDP
    NTP Client

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client

  • Authentication

    Local database

  • Encryption

    HTTPS
    AES-128
    AES-256
    SHA-256

  • Security Protocols

    SNMPv3
    HTTPS (TLS 1.2)

  • No. of Ports

    MGate MB3170 models: 1
    MGate MB3270 models: 2

  • Connector

    MGate MB3170 models: DB9 male for RS-232, Terminal block for RS-422/485
    MGate MB3270 models: 2 x DB9 male

  • Serial Standards

    RS-232/422/485 (software selectable)

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    None
    Even
    Odd
    Space
    Mark

  • Stop Bits

    1, 2

  • Flow Control

    DTR/DSR
    RTS Toggle (RS-232 only)
    RTS/CTS

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Isolation

    I models: 2 kV

  • RS-485 Data Direction Control

    ADDC (automatic data direction control)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Industrial Protocols

    Modbus RTU/ASCII Master
    Modbus RTU/ASCII Slave

  • Max. No. of Client Connections

    32

  • Max. No. of Server Connections

    32

  • Input Voltage

    12 to 48 VDC

  • Input Current

    MGate MB3170/MB3270: 435 mA @ 12 VDC
    MGate MB3170I/MB3170-S-SC/MB3170I-M-SC/MB3170I-S-SC: 555 mA @ 12 VDC
    MGate MB3270I/MB3170-M-SC/MB3170-M-ST: 510 mA @ 12 VDC

  • Power Connector

    7-pin terminal block

  • Contact Current Rating

    Resistive load: 1 A @ 30 VDC

  • Housing

    Plastic

  • IP Rating

    IP30

  • Dimensions (with ears)

    29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)

  • Dimensions (without ears)

    29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)

  • Weight

    MGate MB3170 models: 360 g (0.79 lb)
    MGate MB3270 models: 380 g (0.84 lb)

  • Operating Temperature

    Standard models: 0 to 60°C (32 to 140°F)
    Wide temp. models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Hazardous Locations

    ATEX
    Class I Division 2
    IECEx

  • Maritime

    DNV

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • Safety

    UL 60950-1
    IEC 60950-1
    EN 62368-1
    UL 508

  • Time

    MGate MB3170 models: 1,662,526 hrs
    MGate MB3170I models: 1,484,777 hrs
    MGate MB3270 models: 1,477,768 hrs
    MGate MB3270I models: 1,144,837 hrs
    MGate MB3170-M/-S models: 1,580,051 hrs
    MGate MB3170I-M/-S models: 1,385,414 hrs

  • Standards

    Telcordia SR332

ソフトウェア、ファームウェア、ドライバー

フィルター

名前 種類 チェックサム バージョン オペレーティングシステム リリース日
Software Package for MXview One Series (Linux version)
508.2 MB
ソフトウェアパッケージ
SHA-512
v1.5.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2025年1月22日 2025年1月22日 リリースノート
Software Package for MXview One Series (Windows version)
284.5 MB
ソフトウェアパッケージ
SHA-512
v1.5.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2025年1月22日 2025年1月22日 リリースノート
MXview One plugin (Windows)
18.7 MB
ソフトウェアパッケージ
SHA-512
v1.6
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年11月11日 2024年11月11日 リリースノート
MXconfig Plugin
3.6 MB
ソフトウェアパッケージ
SHA-512
v1.7
  • Windows 10
  • Windows 7
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2024年11月11日 2024年11月11日 リリースノート
MXconfig plugin (non-Java version)
1.8 MB
ソフトウェアパッケージ
SHA-512
v1.6
  • Windows 10
  • Windows 7
  • Windows Server 2016
  • Windows Server 2019
2024年11月11日 2024年11月11日 リリースノート
Moxa CLI Configuration Tool for Linux
11.6 MB
ユーティリティ
SHA-512
v1.4
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
  • Linux Kernel 5.x
  • Linux Kernel 6.x
2024年11月7日 2024年11月7日 リリースノート
Moxa CLI Configuration Tool for Windows
2.0 MB
ユーティリティ
SHA-512
v1.4
  • Windows
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年11月7日 2024年11月7日 リリースノート
MXview One plugin (Linux)
18.7 MB
ソフトウェアパッケージ
SHA-512
v1.6
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2024年11月4日 2024年11月4日 リリースノート
Device Search Utility
428.1 MB
ユーティリティ
SHA-512
v3.0
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年10月31日 2024年10月31日 リリースノート
MXview Plugin
41.7 MB
ソフトウェアパッケージ
SHA-512
v1.6
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2024年10月4日 2024年10月4日 リリースノート
Firmware for MGate MB3270
940.2 KB
ファームウェア
SHA-512
v4.6
2024年6月28日 2024年6月28日 リリースノート
Firmware for MGate MB3170
925.2 KB
ファームウェア
SHA-512
v4.6
2024年6月28日 2024年6月28日 リリースノート
MXview Plugin
40.8 MB
ソフトウェアパッケージ
SHA-512
v1.5
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2024年6月12日 2024年6月12日 リリースノート
MGate Manager Utility
5.4 MB
ユーティリティ
SHA-512
v1.19
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年12月12日 2023年12月12日 リリースノート
MGate Manager Utility
5.4 MB
ユーティリティ
SHA-512
v1.18
  • Windows
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年9月25日 2023年9月25日 リリースノート
Device Search Utility
2.2 MB
ユーティリティ
SHA-512
v2.7
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
2023年6月28日 2023年6月28日 リリースノート
Moxa CLI Configuration Tool for Linux
8.1 MB
ユーティリティ
SHA-512
v1.2
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
2021年3月31日 2021年3月31日 リリースノート
Moxa CLI Configuration Tool for Windows
2.1 MB
ユーティリティ
SHA-512
v1.2
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2021年3月31日 2021年3月31日 リリースノート

サポートドキュメント

名前 種類 言語 バージョン リリース日
FOSS Statement for MGate Manager
214.8 KB
宣言書 英語 v1.0 2025年3月21日 2025年3月21日
FOSS Statement for Moxa CLI Configuration Tool
114.6 KB
宣言書 英語 v1.0 2024年12月10日 2024年12月10日
Moxa CLI Configuration Tool User Manual
1.0 MB
マニュアル 英語 v2.4 2024年11月18日 2024年11月18日
Device Search Utility v3.x User Manual
6.6 MB
マニュアル 英語 v1.0 2024年10月31日 2024年10月31日
FOSS Statement for MGate MB3000 Series and MGate EIP3000 Series
176.4 KB
宣言書 英語 v2.0 2024年10月28日 2024年10月28日
FOSS Statement for Device Search Utility
161.8 KB
宣言書 英語 v1.0 2024年6月24日 2024年6月24日
Manual for MGate MB3000 Series
15.3 MB
マニュアル 英語 v13.3 2024年5月31日 2024年5月31日
Tech Note: Configuring and Monitoring with MXview One/MXview and MXconfig (non-java and java) Plugins
2.1 MB
テクニカルノート 英語 v1.0 2024年5月7日 2024年5月7日
MGate MB3170/MB3270 シリーズデータシート
4.0 MB
データシート 日本語 v2.1 2024年4月9日 2024年4月9日
Declaration of Conformity for MGate MB3170/MB3270/EIP3170/EIP3270/NPort IA5000 Series
313.9 KB
宣言書 英語 v1.0 2024年4月3日 2024年4月3日
Declaration of Conformity for MGate MB3170I/EIP3170I/MB3270I/EIP3270I/NPort IA5000I Series
308.9 KB
宣言書 英語 v1.0 2024年4月3日 2024年4月3日
QIG for MGate MB3170/MB3270 Series
1.0 MB
QIG (クイックインストールガイド) 英語 v8.4 2023年5月19日 2023年5月19日
Tech Note: The Security Hardening Guide for MGate MB3000 Series
922.4 KB
テクニカルノート 英語 v1.1 2022年1月12日 2022年1月12日
Moxa CLI Configuration Tool User's Manual
1.1 MB
マニュアル 英語 v2.0 2019年3月5日 2019年3月5日
2D CAD for MGate MB3170
425.7 KB
2D CAD 英語 2015年1月7日 2015年1月7日
2D CAD for MGate MB3170-SC
241.1 KB
2D CAD 英語 2015年1月7日 2015年1月7日
2D CAD for MGate MB3170-ST
241.8 KB
2D CAD 英語 2015年1月7日 2015年1月7日
2D CAD for MGate MB3270 TOP
145.2 KB
2D CAD 英語 2015年1月7日 2015年1月7日
Tech Note: How to Configure KingSCADA with MGate MB3000
2.7 MB
テクニカルノート 英語 v1.0 2015年1月6日 2015年1月6日
Tech Note: How to Configure WinCC with MGate MB3000
3.5 MB
テクニカルノート 英語 v1.0 2015年1月6日 2015年1月6日

利用可能なモデル (18)

画像を表示

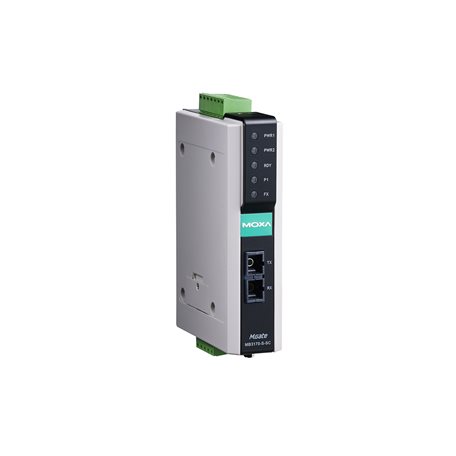

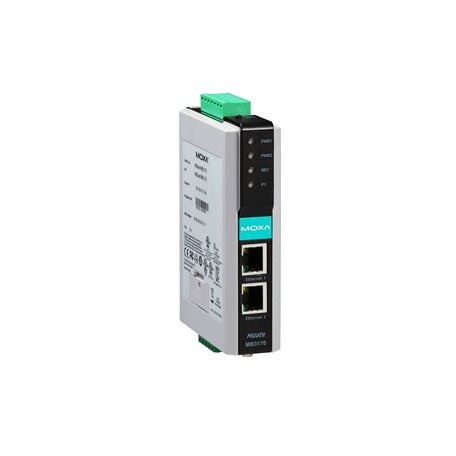

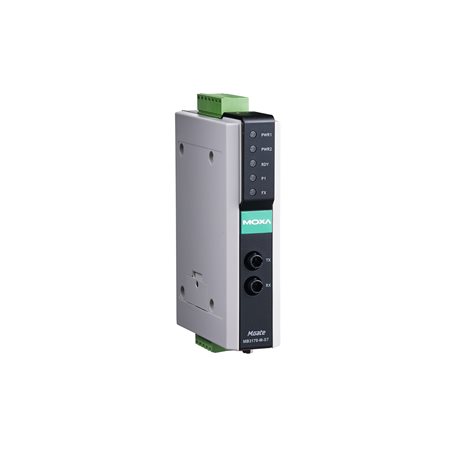

moxa-mgate-mb3170i-t-image.jpg | MoxaMGate MB3170I-Tmoxa-mgate-mb3170-m-sc-t-image.jpg | MoxaMGate MB3170-M-SC-Tmoxa-mgate-mb3170i-image.jpg | MoxaMGate MB3170Imoxa-mgate-mb3170-m-st-image.jpg | MoxaMGate MB3170-M-ST
Ethernet2 x RJ45 1 x Multi-Mode SC2 x RJ45 1 x Multi-Mode ST
No. of Serial Ports1111
Serial StandardsRS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
Serial Isolation2 kV2 kV
Operating Temp.-40 to 75°C-40 to 75°C0 to 60°C0 to 60°C
見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る
moxa-mgate-mb3170-t-image.jpg | MoxaMGate MB3170-Tmoxa-mgate-mb3170i-s-sc-image.jpg | MoxaMGate MB3170I-S-SCmoxa-mgate-mb3170-image.jpg | MoxaMGate MB3170moxa-mgate-mb3170-m-sc-image.jpg | MoxaMGate MB3170-M-SC
Ethernet2 x RJ45 1 x Single-Mode SC2 x RJ45 1 x Multi-Mode SC
No. of Serial Ports1111
Serial StandardsRS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
Serial Isolation2 kV
Operating Temp.-40 to 75°C0 to 60°C0 to 60°C0 to 60°C
見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る
moxa-mgate-mb3170i-s-sc-t-image.jpg | MoxaMGate MB3170I-S-SC-Tmoxa-mgate-mb3270i-image.jpg | MoxaMGate MB3270Imoxa-mgate-mb3170i-m-sc-image.jpg | MoxaMGate MB3170I-M-SCmoxa-mgate-mb3170i-m-sc-t-image.jpg | MoxaMGate MB3170I-M-SC-T
Ethernet1 x Single-Mode SC2 x RJ45 1 x Multi-Mode SC1 x Multi-mode SC
No. of Serial Ports1211
Serial StandardsRS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
Serial Isolation2 kV2 kV2 kV2 kV
Operating Temp.-40 to 75°C0 to 60°C0 to 60°C-40 to 75°C
見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る
moxa-mgate-mb3270-t-image.jpg | MoxaMGate MB3270-Tmoxa-mgate-mb3170-m-st-t-image.jpg | MoxaMGate MB3170-M-ST-Tmoxa-mgate-mb3270-image.jpg | MoxaMGate MB3270moxa-mgate-mb3170-s-sc-image.jpg | MoxaMGate MB3170-S-SC
Ethernet2 x RJ45 1 x Multi-Mode ST2 x RJ45 1 x Single-Mode SC
No. of Serial Ports2121
Serial StandardsRS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
Serial Isolation
Operating Temp.-40 to 75°C-40 to 75°C0 to 60°C0 to 60°C
見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る

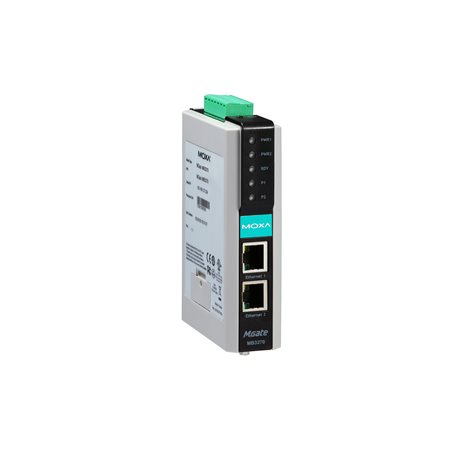

moxa-mgate-mb3270i-t-image.jpg | MoxaMGate MB3270I-Tmoxa-mgate-mb3170-s-sc-t-image.jpg | MoxaMGate MB3170-S-SC-T
Ethernet2 x RJ45 1 x Single-Mode SC
No. of Serial Ports21
Serial StandardsRS-232/422/485RS-232/422/485
Serial Isolation2 kV
Operating Temp.-40 to 75°C-40 to 75°C
見積りに追加バッグを見る見積りに追加バッグを見る

product image

Buy online from distributors

バッグに追加
