NPort 5200Aシリーズ

2ポートRS-232/422/485シリアルデバイスサーバー

moxa-nport-5200a-series-image-1-(1).jpg | Moxa

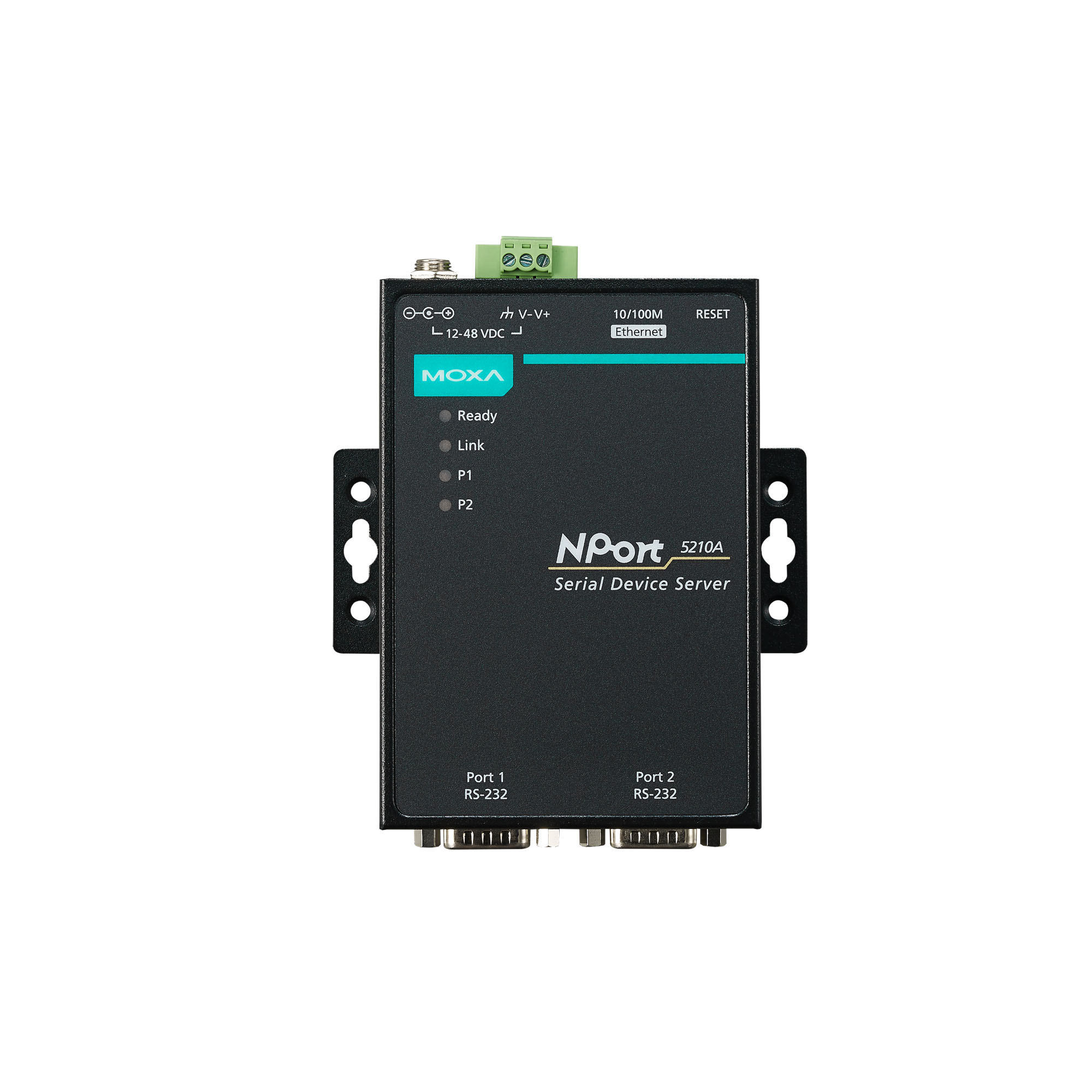

moxa-nport-5200a-series-image-2-(1).jpg | Moxa

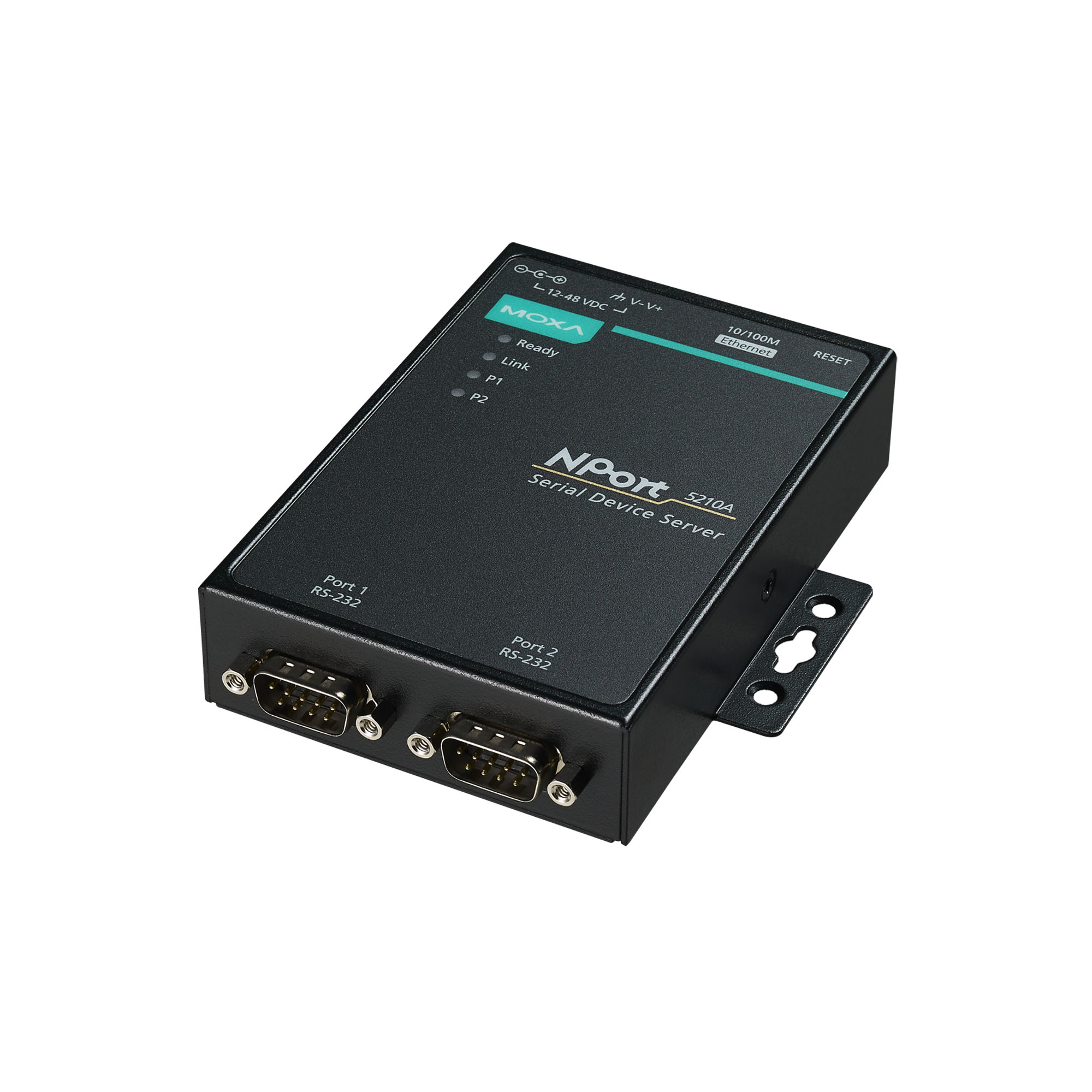

moxa-nport-5200a-series-image-3-(1).jpg | Moxa

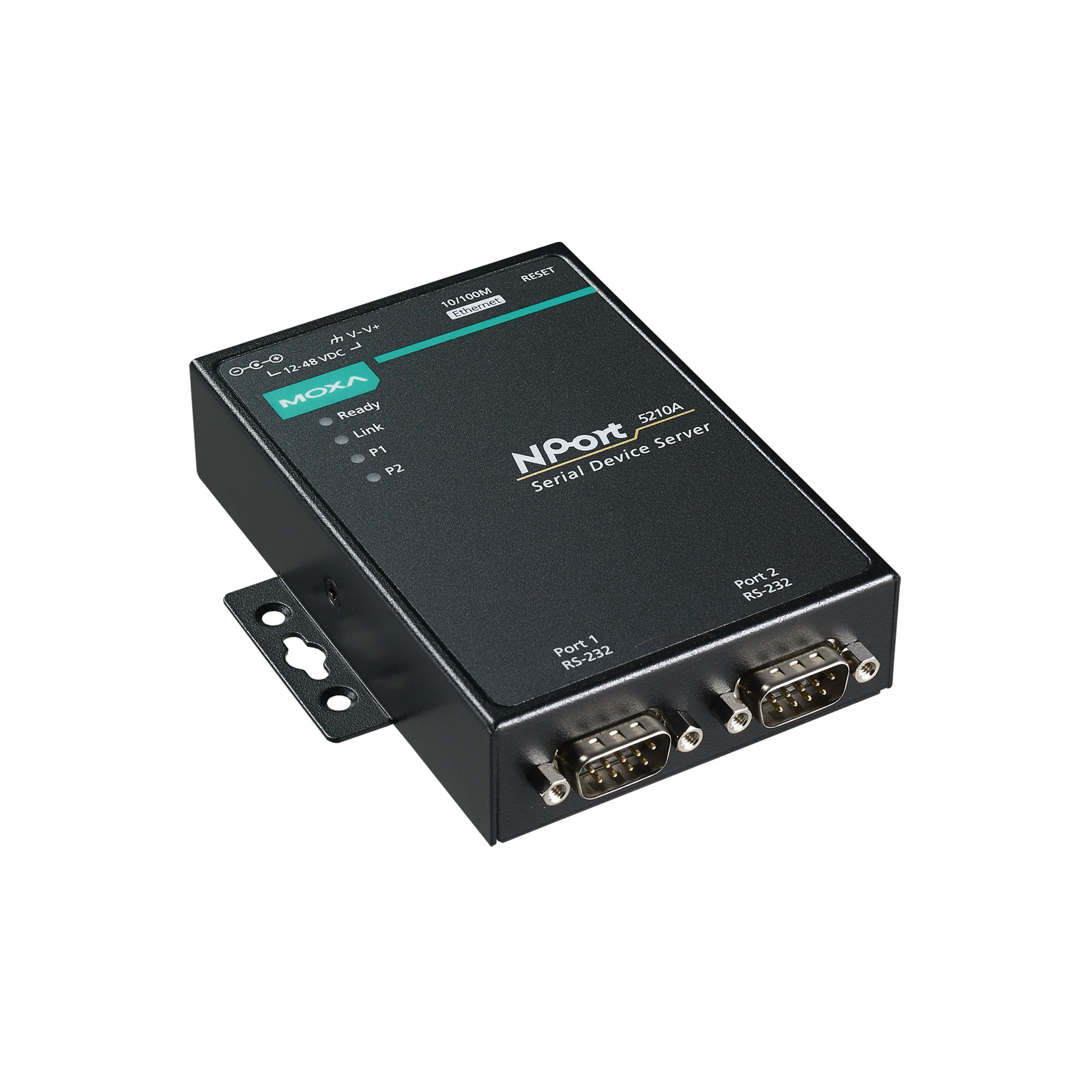

moxa-nport-5200a-series-image-4-(1).jpg | Moxa

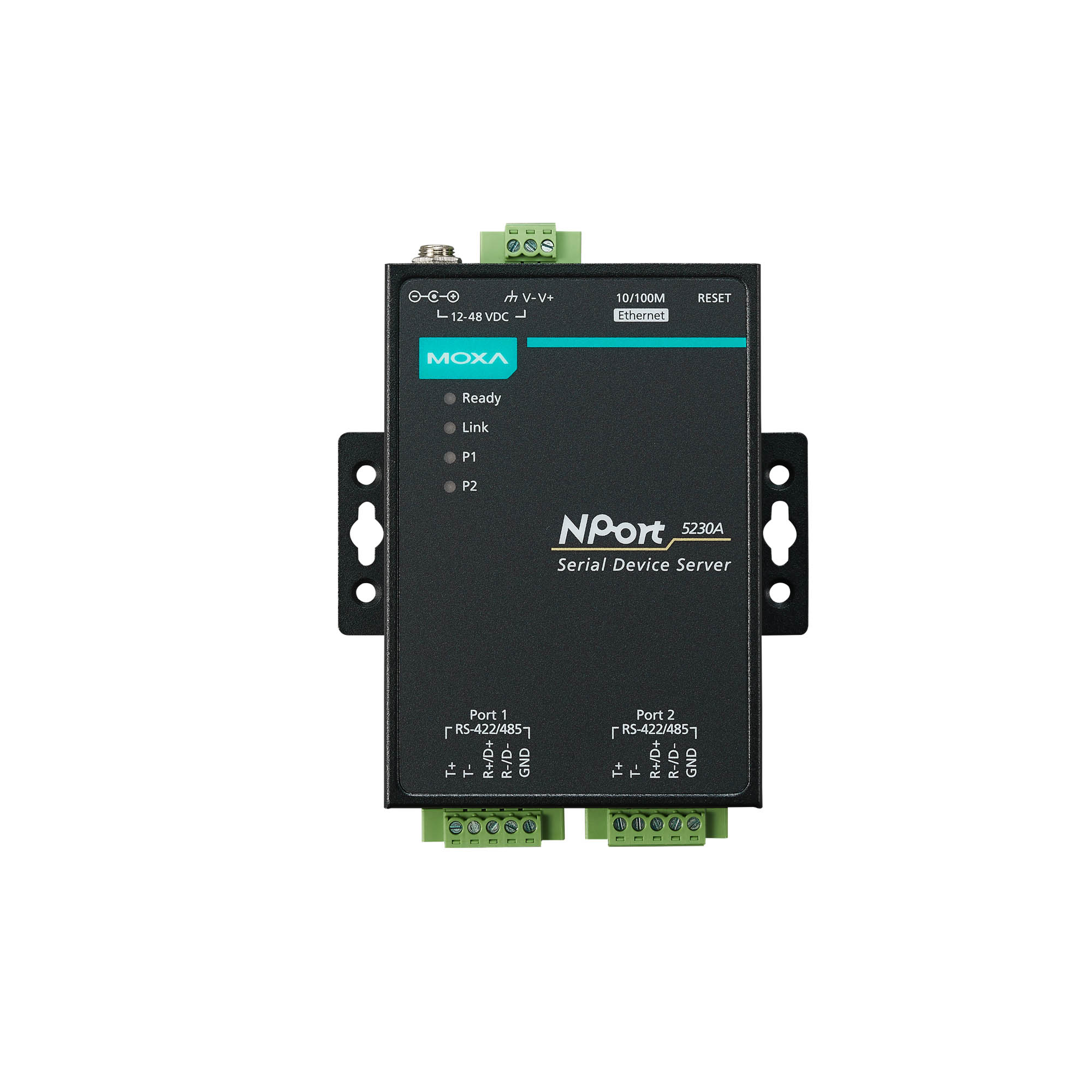

moxa-nport-5200a-series-image-5-(1).jpg | Moxa

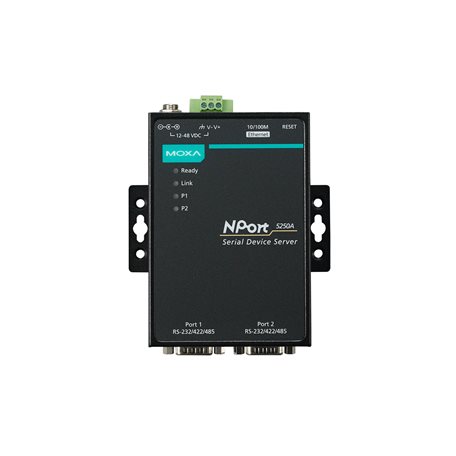

moxa-nport-5200a-series-image-6-(1).jpg | Moxa

機能と特長

  • 3ステップの迅速なWebベース設定
  • シリアル、イーサネット、電源のサージ保護
  • COMポートグルーピングとUDPマルチキャストのアプリケーション
  • 安全に設置できるネジ式電源コネクタ
  • デュアルDC電源入力(電源ジャックとターミナルブロック付き)
  • 多様なTCPとUDPの動作モード

認証

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

NPort® 5200Aデバイスサーバーは、シリアルデバイスを瞬時にネットワークに適応させ、ネットワーク上のどこからでもシリアルデバイスにPCソフトウェアから直接アクセスできるように設計されています。NPort® 5200Aデバイスサーバーは、非常にスリムで耐久性に優れ、使いやすく、シンプルで信頼性の高いシリアル-イーサネットソリューションを実現します。

よりグリーンなシリアル-イーサネットソリューション

MiiNeは、RAMとFlashを内蔵し、小型ながらも強力なARMベースのシリアル-イーサネットSoCです。MiiNeを内蔵したNPort® 5200Aシリーズは、市場の既存のソリューションと比較して消費電力を少なくとも50%削減します。現代の産業環境の厳しい環境コンプライアンスの課題にエンジニアが対応できるよう支援します。

シリアル、イーサネット、電源のサージ保護

サージは、通常、スイッチングや雷の過渡現象に起因する高電圧によって引き起こされ、すべての電気機器にとって共通の脅威となります。NPort® 5200Aのシリアル、電源、およびイーサネット回線に適用されるMoxaの最先端の耐サージ性ソリューションは、IEC 61000-4-5に準拠していることが検証および証明されています。この最先端のサージ保護は、電圧スパイクから電気デバイスを保護し、電気的にノイズの多い環境条件に耐えることができる堅牢なシリアル-イーサネットソリューションを提供します。

3ステップのWebベースの設定

NPort® 5200Aは、わかりやすく、使いやすい3ステップのWebベースの設定ツールを備えています。NPort® 5200AのWebコンソールは、シリアル-イーサネットアプリケーションをアクティブにするために必要な3つの簡単な設定ステップを示します。3ステップのスピーディなWebベースの設定で、ユーザーは平均30秒でNPort®の設定を完了し、アプリケーションを有効にすることができ、時間と労力を大幅に節約できます。

COMポートグルーピング

NPort ® 5200AのCOMグルーピング機能を使用すると、COMグループを作成し、そのCOMグループからNPortデバイスサーバー上の複数の物理COMポートにデータをリダイレクトすることができます。COMポートグルーピングでは、1つのCOMポートのみを操作することで、複数の物理シリアルポートを同時に制御することが可能になります。

外観

  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Windows Utility, Serial Console, Telnet Console, Web Console (HTTP/HTTPS)

  • Management

    ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, Telnet, TCP/IP, UDP

  • Filter

    IGMP v1/v2

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    Android 3.1.x and later

  • MIB

    RFC1213, RFC1317

  • Connector

    NPort 5210A/5250A Series: DB9 male
    NPort 5230A Series: 5-pin terminal block

  • No. of Ports

    2

  • Serial Standards

    NPort 5210A Series: RS-232
    NPort 5230A Series: RS-422, RS-485
    NPort 5250A Series: RS-232, RS-422, RS-485

  • Operation Modes

    Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP

  • Baudrate

    Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • Terminator for RS-485

    120 ohms

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    119 mA @ 12 VDC

  • Input Voltage

    12 to 48 VDC

  • No. of Power Inputs

    2

  • Power Connector

    1 removable 3-contact terminal block(s)
    Power input jack

  • Automatic Reboot Trigger

    Built-in WDT

  • Housing

    Metal

  • Dimensions (with ears)

    100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)

  • Dimensions (without ears)

    77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)

  • Weight

    340 g (0.75 lb)

  • Installation

    Desktop, DIN-rail mounting (with optional kit), Wall mounting

  • Operating Temperature

    Standard Models: 0 to 60°C (32 to 140°F)
    Wide Temp.Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • EMI

    CISPR 32, FCC Part 15B Class A

  • Safety

    UL 60950-1

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    847,750 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

ソフトウェア、ファームウェア、ドライバー

フィルター

名前 種類 チェックサム バージョン オペレーティングシステム リリース日
Software Package for MXview One Series (Windows version)
374.0 MB
ソフトウェアパッケージ
SHA-512
v1.3.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年1月31日 2024年1月31日 リリースノート
Windows Driver Manager (Windows 11 and Server 2022 and later, WHQL certified)
7.4 MB
ドライバー
SHA-512
v4.2
  • Windows 11
  • Windows Server 2022
2023年12月11日 2023年12月11日 リリースノート
Serial Device Server Driver for macOS (macOS 10.1x to 14)
689.8 KB
ドライバー
SHA-512
v1.2
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
  • macOS 11
  • macOS 12
  • macOS 13
  • macOS 14
2023年11月10日 2023年11月10日 リリースノート
Real TTY Linux driver v5.3 (kernel 5.x)
113.3 KB
ドライバー
SHA-512
v5.3
  • Linux Kernel 5.x
2023年10月18日 2023年10月18日 リリースノート
MXview One plugin (Linux)
15.4 MB
ソフトウェアパッケージ
SHA-512
v1.3
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2023年10月2日 2023年10月2日 リリースノート
MXconfig plugin (non-Java version)
839.5 KB
ソフトウェアパッケージ
SHA-512
v1.2
  • Windows 10
  • Windows 7
  • Windows Server 2016
  • Windows Server 2019
2023年8月31日 2023年8月31日 リリースノート
MXview One plugin (Windows)
12.8 MB
ソフトウェアパッケージ
SHA-512
v1.2
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年8月2日 2023年8月2日 リリースノート
MXconfig Plugin
3.3 MB
ソフトウェアパッケージ
SHA-512
v1.4
  • Windows 10
  • Windows 7
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2023年7月17日 2023年7月17日 リリースノート
Moxa CLI Configuration Tool for Windows
2.0 MB
ユーティリティ
SHA-512
v1.3
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年6月29日 2023年6月29日 リリースノート
Moxa CLI Configuration Tool for Linux
11.6 MB
ユーティリティ
SHA-512
v1.3
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
  • Linux Kernel 5.x
2023年6月29日 2023年6月29日 リリースノート
Device Search Utility
2.2 MB
ユーティリティ
SHA-512
v2.7
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
2023年6月28日 2023年6月28日 リリースノート
Real TTY Linux kernel 6.x
113.7 KB
ドライバー
SHA-512
v6.0
  • Linux Kernel 6.x
2023年5月4日 2023年5月4日 リリースノート
MXview plugin
32.8 MB
ソフトウェアパッケージ
SHA-512
v1.4
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2023年5月2日 2023年5月2日 リリースノート
Real TTY Linux drivers v4.2 (kernel 4.x)
114.9 KB
ドライバー
SHA-512
v4.2
  • Linux Kernel 4.x
2023年1月17日 2023年1月17日 リリースノート
NPort Administrator Suite v3.2 (Windows 7 to 8.1 and Windows Server 2008 R2 to 2016, WHQL certified)
4.1 MB
ドライバー
SHA-512
v3.2
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2023年1月17日 2023年1月17日 リリースノート
NPort Administrator Suite (Windows 10 and Server 2019 and later, WHQL certified)
7.7 MB
ドライバー
SHA-512
v4.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年1月17日 2023年1月17日 リリースノート
Device Server Android API
18.0 MB
ライブラリー
SHA-512
v1.1
  • Android
2022年12月22日 2022年12月22日 リリースノート
Windows Driver Manager v3.5 (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.8 MB
ドライバー
SHA-512
v3.5
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2022年12月1日 2022年12月1日 リリースノート
Serial Device Server Driver for macOS (macOS 10.12 to 10.15)
611.6 KB
ドライバー
SHA-512
v1.1
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
2022年9月26日 2022年9月26日 リリースノート
Firmware for NPort 5200A Series
828.7 KB
ファームウェア
SHA-512
v1.6
2020年10月15日 2020年10月15日 リリースノート
Real TTY drivers for Linux 2.x.x
92.2 KB
ドライバー
SHA-512
v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
2019年10月24日 2019年10月24日 リリースノート
Real TTY drivers for Linux 3.x.x
95.0 KB
ドライバー
SHA-512
v3.0
  • Linux Kernel 3.x
2019年10月24日 2019年10月24日 リリースノート
Windows Driver Manager (Windows Vista, Server 2008, and prior)
2.6 MB
ドライバー
SHA-512
v2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2019年8月1日 2019年8月1日 リリースノート
NPort Administration Suite for Windows Vista, Server 2008 or prior
4.1 MB
ドライバー
SHA-512
v2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2019年2月11日 2019年2月11日 リリースノート
Driver for NPort 5200A Series (WinCE 5)
230.5 KB
ドライバー
SHA-512
v1.6
  • Windows CE 5.0
  • Windows CE 6.0
2012年11月14日 2012年11月14日 リリースノート
PComm Lite - Serial Communication Tool for Windows
1.6 MB
ユーティリティ
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
2012年5月13日 2012年5月13日 リリースノート
Driver for NPort 5200A Series (WinXP Embedded)
1.2 MB
ドライバー
SHA-512
v1.14
  • Windows XP Embedded
2012年4月4日 2012年4月4日 リリースノート
Driver for NPort 5200A Series (UNIX)
73.0 KB
ドライバー
SHA-512
v3.5
  • FreeBSD 5.x
  • FreeBSD 6.x
  • FreeBSD 7.x
  • FreeBSD 8.x
  • HP-UX
  • IBM AIX 5.3
  • Mac OS X
  • QNX 4.x
  • QNX 6.x
  • SCO OpenServer 5
  • SCO OpenServer 6
  • SCO UnixWare 7
  • Solaris 10
2012年3月19日 2012年3月19日 リリースノート

サポートドキュメント

名前 種類 言語 バージョン リリース日
Moxa CLI Configuration Tool User Manual
1.0 MB
マニュアル 英語 v2.2 2024年1月26日 2024年1月26日
Manual for NPort 5000 Series
20.0 MB
マニュアル 英語 v7.0 2023年6月13日 2023年6月13日
Tech Note: Real COM mode for NPort
479.5 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: TCP Client Mode for NPort
394.5 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: TCP Server Mode for NPort
395.0 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Reverse Telnet Mode for NPort
364.5 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: UDP Mode for NPort
397.2 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Pair Connection Mode
544.0 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Ethernet Modem Mode
429.4 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Accessing Multiple NPorts Behind NAT
497.2 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Fixed TTY Driver for NPort
389.7 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Real TTY Driver for NPort
379.2 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms
372.3 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: The Security Hardening Guide for NPort 5000 Series
1.7 MB
テクニカルノート 英語 v2.1 2023年5月30日 2023年5月30日
EULA for NPort Administrator Suite
100.3 KB
テクニカルノート 英語 v1.0 2023年5月18日 2023年5月18日
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms
372.3 KB
テクニカルノート 英語 v1.0 2021年8月5日 2021年8月5日
QIG for NPort 5200A Series
385.9 KB
QIG (クイックインストールガイド) 英語 v2.3 2021年4月28日 2021年4月28日
NPort 5200Aシリーズデータシート
6.3 MB
データシート 日本語 v1.5 2020年5月6日 2020年5月6日
Tech Note: Real COM mode for NPort
423.5 KB
テクニカルノート 英語 v1.1 2020年4月30日 2020年4月30日
Tech Note: NPort Real COM Mode for DNP3 Applications
1.9 MB
テクニカルノート 英語 v1.0 2014年11月17日 2014年11月17日
Tech Note: TCP Server Mode for NPort
311.3 KB
テクニカルノート 英語 v1.0 2013年6月29日 2013年6月29日
Tech Note: Using DNP3 with the NPort Series
1.0 MB
テクニカルノート 英語 v1.0 2012年3月29日 2012年3月29日
2D CAD for NPort 5210A/5250A PCBA
273.4 KB
2D CAD 英語 2010年3月22日 2010年3月22日
2D CAD for NPort 5210A/5250A TOP
222.8 KB
2D CAD 英語 2010年3月22日 2010年3月22日
2D CAD for NPort 5230A PCBA
259.2 KB
2D CAD 英語 2010年3月22日 2010年3月22日
2D CAD for NPort 5230A TOP
220.4 KB
2D CAD 英語 2010年3月22日 2010年3月22日
Tech Note: Accessing Multiple NPorts Behind NAT
482.6 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: NPort's Ethernet Modem Mode
116.6 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: NPort's Pair Connection Mode
211.4 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: Real COM Mode for NPort
253.0 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: UDP Mode for NPort
173.2 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: Reverse Telnet Mode for NPort
204.6 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: TCP Client Mode for NPort
224.4 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: Real TTY Driver for NPort
204.2 KB
テクニカルノート 英語 v1.0 2009年5月21日 2009年5月21日
Tech Note: Fixed TTY Driver for NPort
207.6 KB
テクニカルノート 英語 v1.0 2009年5月21日 2009年5月21日

利用可能なモデル (6)

画像を表示
moxa-nport-5230a-image.jpg | MoxaNPort 5230Amoxa-nport-5210a-t-image.jpg | MoxaNPort 5210A-Tmoxa-nport-5250a-t-image.jpg | MoxaNPort 5250A-Tmoxa-nport-5210a-image.jpg | MoxaNPort 5210A
Operating Temp.0 to 55°C-40 to 75°C-40 to 75°C0 to 55°C
Baudrate50 bps to 921.6 kbps50 bps to 921.6 kbps50 bps to 921.6 kbps50 bps to 921.6 kbps
Serial StandardsRS-422/485RS-232RS-232/422/485RS-232
No. of Serial Ports2222
Input Current119 mA @ 12 VDC119 mA @ 12 VDC119 mA @ 12 VDC119 mA @ 12 VDC
Input Voltage12-48 VDC12-48 VDC12-48 VDC12-48 VDC
見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る

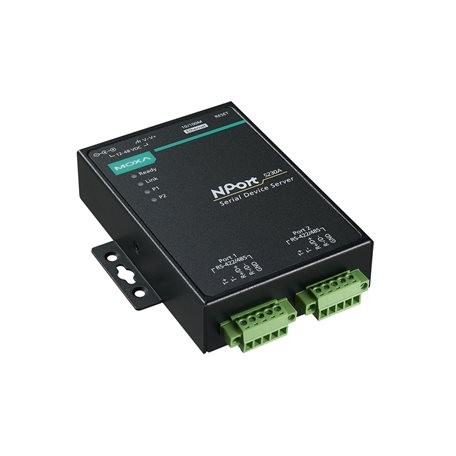

moxa-nport-5250a-image.jpg | MoxaNPort 5250Amoxa-nport-5230a-t-image.jpg | MoxaNPort 5230A-T
Operating Temp.0 to 55°C-40 to 75°C
Baudrate50 bps to 921.6 kbps50 bps to 921.6 kbps
Serial StandardsRS-232/422/485RS-422/485
No. of Serial Ports22
Input Current119 mA @ 12 VDC119 mA @ 12 VDC
Input Voltage12-48 VDC12-48 VDC
見積りに追加バッグを見る見積りに追加バッグを見る

product image

Buy online from distributors

バッグに追加
