汎用デバイスサーバー

当社のNPortデバイスサーバーは、シリアルデバイスを瞬時にネットワーク対応にします。コンパクトサイズのため、カードリーダーや決済端末などのデバイスをIPベースのイーサネットLANに接続するのに最適です。

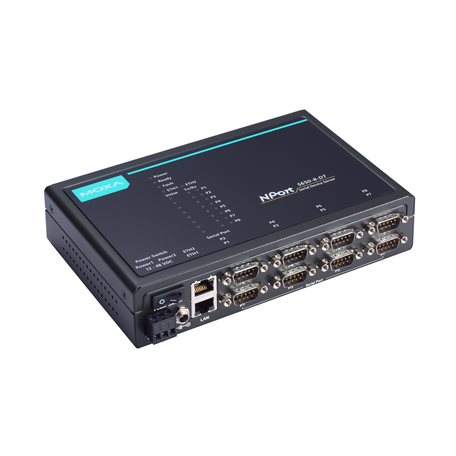

NPort 5650I-8-DT-T
NPort 5600-DTシリーズ

8-port RS-232/422/485 desktop device server with DB9 male connectors and 2 KV isolation, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility
  • Management

    • ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
  • Filter

    • IGMP v1/v2
  • MIB

    • RFC1213, RFC1317
  • Time Management

    • SNTP
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Android API

    • Android 3.1.x and later
Serial Interface
  • Connector

    • 8-pin RJ45:
      NPort 5610-8-DT-J/5650-8-DT-J
      DB9 male:
      NPort 5610-8-DT models/NPort 5650-8-DT models/NPort 5650I-8-DT models
  • No. of Ports

    • 8
  • Serial Standards

    • NPort 5610-8-DT Series: RS-232
      NPort 5650-8-DT Series: RS-232/422/485
  • Baudrate

    • Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • RTS/CTS, DTR/DSR, XON/XOFF
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485

    • 120 ohms
  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)
  • Isolation

    • -I models: 2 kV
  • Surge

    • 0.5 kV
  • Console Port

    • RS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Current

    • NPort 5610-8-DT/NPort 5610-8-DT-J/NPort 5610-8-DT-T: 611 mA @ 12 VDC
      NPort 5650-8-DT/NPort 5650-8-DT-J/NPort 5650-8-DT-T: 615 mA @ 12 VDC
      NPort 5650I-8-DT/NPort 5650I-8-DT-T: 1066 mA @ 12 VDC
  • No. of Power Inputs

    • 2
  • Input Voltage

    • 12 to 48 VDC
  • Reverse Polarity Protection

    • Supported
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics
  • Housing

    • Metal
  • Dimensions (with ears)

    • 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)
  • Dimensions (without ears)

    • 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)
  • Dimensions (with DIN-rail kit on bottom panel)

    • 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)
  • Weight

    • 1,410 g (3.11 lb)
  • Installation

    • Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit)
  • Interactive Interface

    • LCD panel display
      Push buttons for configuration
Environmental Limits
  • Operating Temperature

    • Standard Models: 0 to 60°C (32 to 140°F)
      Wide Temp. Models: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11
  • Safety

    • UL 60950-1, IEC 62368-1
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 836,374 hrs
  • Standards

    • Telcordia (Bellcore) Standard
Warranty
