NPort Expressシリーズ

1ポートエントリーレベルRS-232/422/485シリアルデバイスサーバー

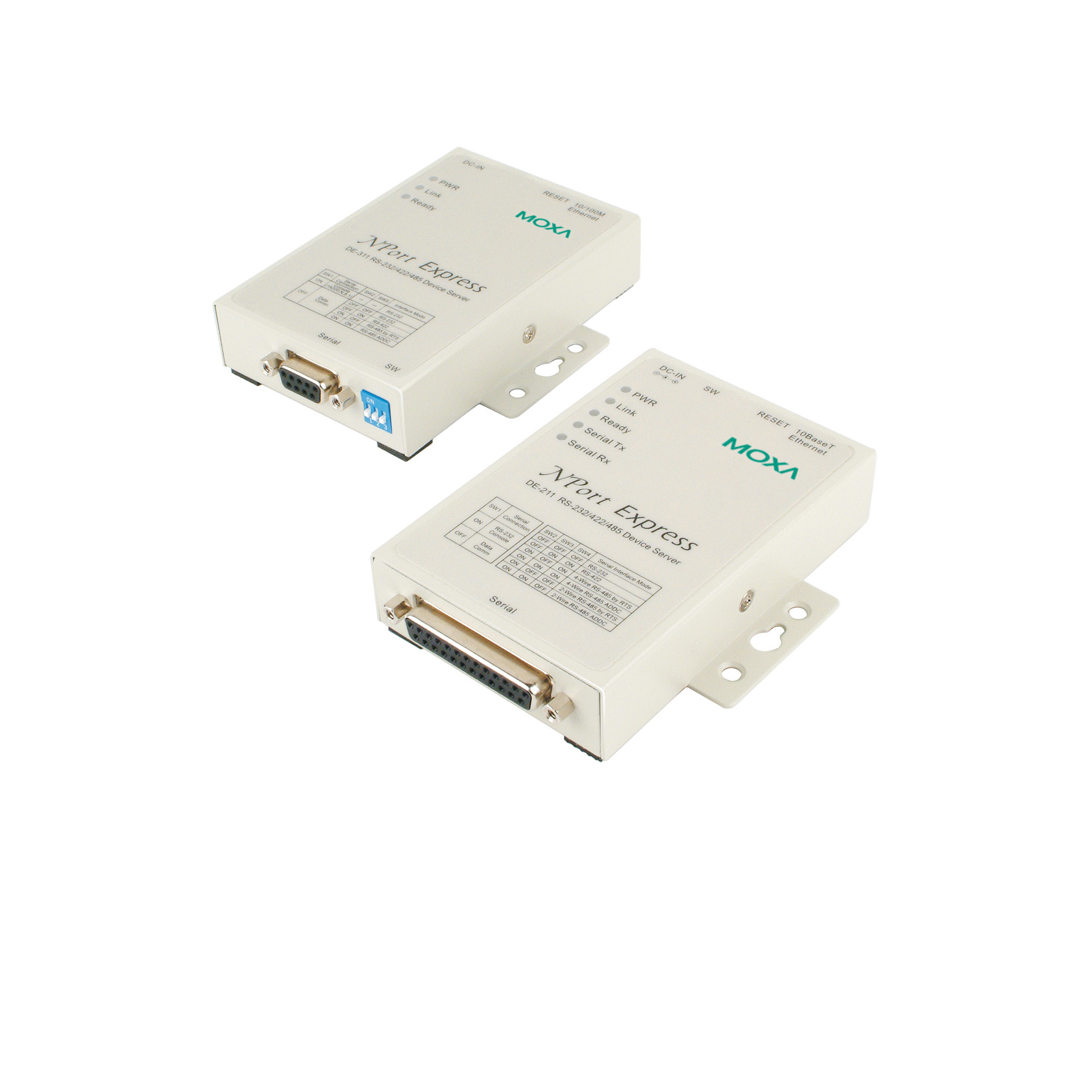

moxa-nport-express-series-image-1-(1).jpg | Moxa
moxa-nport-express-series-image-2-(1).jpg | Moxa

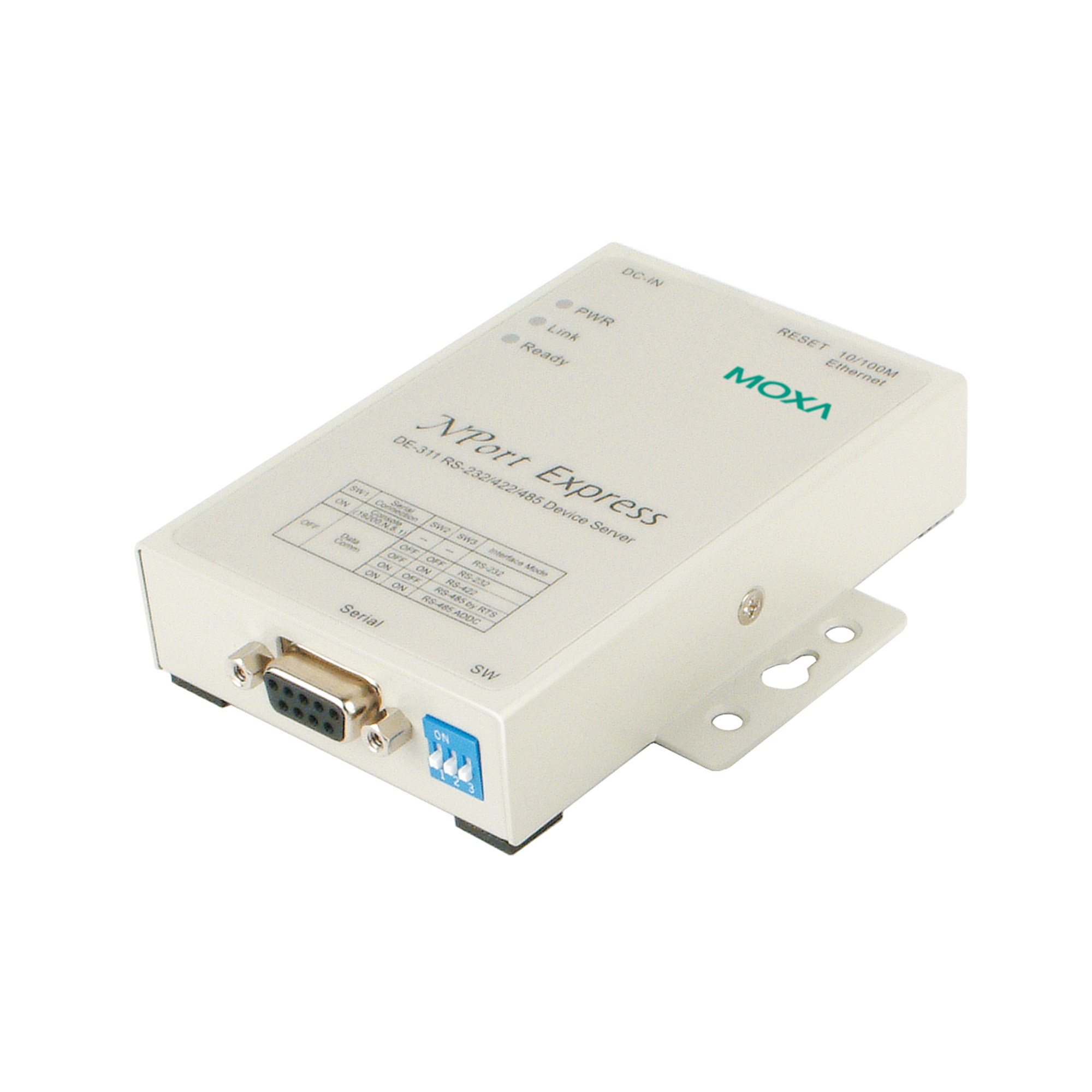

moxa-nport-express-series-image-3-(1).jpg | Moxa

機能と特長

  • 3-in-1シリアルポート:RS-232、RS-422、またはRS-485
  • さまざまな動作モード(TCPサーバー、TCPクライアント、UDP、イーサネットモデム、ペア接続など)
  • WindowsおよびLinux用のReal COM/TTYドライバー
  • 2ワイヤ式RS-485(自動データ方向制御(ADDC)を装備)

認証

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

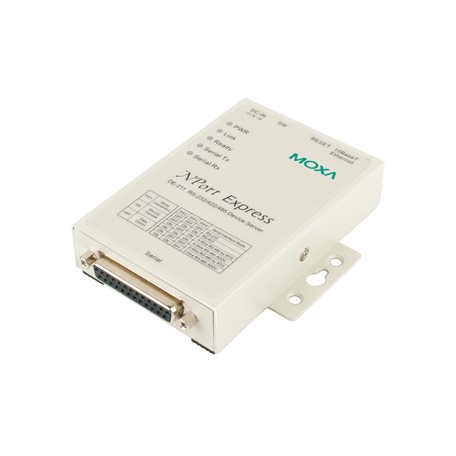

NPort® DE-211およびDE-311は、RS-232、RS-422、および2線式RS-485をサポートする1ポートシリアルデバイスサーバーです。DE-211は10 Mbpsイーサネット接続をサポートし、シリアルポート用のDB25メスコネクタを備えています。DE-311は10/100 Mbpsイーサネット接続をサポートし、シリアルポート用のDB9メスコネクタを備えています。どちらのデバイスサーバーも、情報表示ボード、PLC、フローメーター、ガスメーター、CNCマシン、生体認証カードリーダーを含むアプリケーションに最適です。



  • No. of Ports

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • 10/100BaseT(X) Ports (RJ45 connector)

    DE-311: Auto MDI/MDI-X connection

  • 10BaseT(X) Ports, RJ45 Connector

    DE-211: Auto MDI/MDI-X connection

  • Configuration Options

    Windows Utility, Telnet Console, Serial Console

  • Management

    ARP, BOOTP, DHCP Client, IPv4, TCP/IP, Telnet, UDP, ICMP

  • Linux Real TTY Drivers

    Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    Android 3.1.x and later

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Connector

    DE-211: DB25 female
    DE-311: DB9 female

  • Serial Standards

    RS-232, RS-422, RS-485

  • No. of Ports

    1

  • Baudrate

    Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • RS-485 Data Direction Control

    ADDC (automatic data direction control)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    DE-211: 180 mA @ 12 VDC, 100 mA @ 24 VDC
    DE-311: 300 mA @ 9 VDC, 150 mA @ 24 VDC

  • Input Voltage

    DE-211: 12 to 30 VDC
    DE-311: 9 to 30 VDC

  • Alert Tools

    Built-in buzzer and RTC (real-time clock)

  • Housing

    Metal

  • Dimensions (with ears)

    90.2 x 100.4 x 22 mm (3.55 x 3.95 x 0.87 in)

  • Dimensions (without ears)

    67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)

  • Weight

    480 g (1.06 lb)

  • Operating Temperature

    0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-11

  • Safety

    UL 60950-1

  • Medical

    DE-311: EN 55011: 2007+A2: 2007 Class A (Group 1) compliant
    DE-311: EN 60601-1-2: 2007 compliant

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    DE-211: 347,822 hrs
    DE-311: 225,529 hrs

  • Standards

    MIL-HDBK-217F
