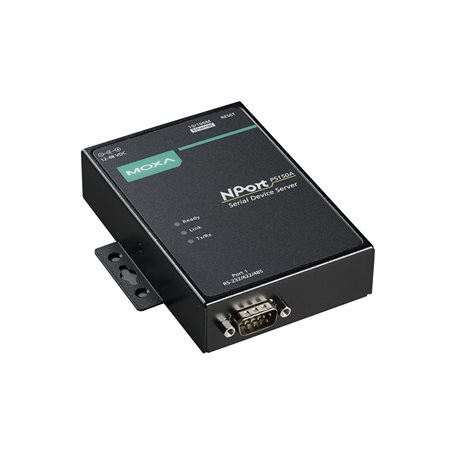

NPort P5150Aシリーズ

1ポートRS-232/422/485 PoEシリアルデバイスサーバー

moxa-nport-p5150a-series-image-1-(1).jpg | Moxa
moxa-nport-p5150a-series-image-2-(1).jpg | Moxa
moxa-nport-p5150a-series-image-3-(1).jpg | Moxa

機能と特長

  • IEEE 802.3af準拠のPoE電源デバイス機器
  • Web GUIベースで簡単な3ステップ設定
  • シリアル、イーサネット、電源のサージ保護
  • COMポートグルーピングとUDPマルチキャストのアプリケーション
  • 安全に設置できるネジ式電源コネクタ
  • Windows、LinuxおよびmacOS用のReal COMとTTYドライバー
  • 標準のTCP/IPインターフェースと多様なTCPとUDPの操作モード

認証

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

NPort® P5150Aデバイスサーバーは、シリアルデバイスが迅速にネットワーク接続可能な設計です。これは電源デバイスであり、IEEE 802.3afに準拠しているため、追加の電源なしでPoE PSEデバイスから電力を供給可能です。NPort® P5150Aデバイスサーバーを使用すると、PCソフトウェアからネットワーク上のどこからでもシリアルデバイスに直接アクセスできます。NPort® P5150Aデバイスサーバーは、スリムで耐久性に優れ、信頼性の高いシリアル-イーサネット接続を提供します。



シリアル、イーサネット、電源のサージ保護

サージは、通常、スイッチングや雷の過渡現象に起因する高電圧によって引き起こされ、すべての電気機器にとって共通の脅威となります。NPort® P5150Aのシリアル、電源、およびイーサネット回線に適用されるMoxaの高度なサージイミュニティソリューションは、IEC 61000-4-5に準拠していることが検証および証明されています。この最先端のサージ保護は、電圧スパイクから電気デバイスを保護し、ノイズの多い環境でも使用可能な堅牢なシリアル-イーサネット接続を提供します。



3ステップのWebベースの設定

NPort® P5150Aは、わかりやすく、使いやすい3ステップのWebベースの設定ツールを備えています。NPort® P5150AのWebコンソールは、シリアル - イーサネットアプリケーションをアクティブにするために必要な3つの簡単な設定ステップを示します。3ステップのスピーディなWebベースの設定で、ユーザーは平均30秒でNPort®の設定を完了し、アプリケーションを有効にすることができ、時間と労力を大幅に節約できます。



トラブルシューティングが簡単

NPort® P5150Aデバイスサーバーは、イーサネットを介してすべてのユニットを監視するために使用できるSNMPに対応しています。各ユニットは、ユーザー定義のエラーが発生するときに、SNMPマネージャーにトラップメッセージを自動的に送信するように、構成できます。SNMPマネージャーを使用しない場合は、電子メール通知が可能です。ユーザーは、MoxaのWindowsユーティリティかWebコンソールを使用して、アラートのトリガーを定義できます。例えば、ウォームスタート、コールドスタート、パスワード変更によりアラートをトリガーできます。



外観



  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Standards

    PoE (IEEE 802.3af)

  • Configuration Options

    Web Console (HTTP/HTTPS)
    Windows Utility
    Device Search Utility (DSU)
    Telnet Console
    Serial Console
    MCC Tool

  • Management

    ARP
    BOOTP
    DHCP Client
    DNS
    HTTP
    HTTPS
    ICMP
    IPv4
    LLDP
    SMTP
    SNMPv1/v2c
    TCP/IP
    Telnet
    UDP

  • Filter

    IGMP v1/v2

  • Windows Real COM Drivers

    Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
    Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
    Windows Embedded CE 5.0 and 6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

  • Fixed TTY Drivers

    macOS versions: 14, 13, 12, 11, and 10.1x
    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Arm®-based Platform Support

    Windows 11
    Linux Kernel 6.x, 5.x, and 4.x
    macOS 14, 13, 12, and 11

  • Virtual Machine

    VMWare ESXi (Windows 11/10)
    VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)
    Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)

  • Android API

    Android 3.1.x and later

  • MIB

    RFC1213, RFC1317

  • Connector

    DB9 male

  • No. of Ports

    1

  • Serial Standards

    RS-232
    RS-422
    RS-485

  • Operation Modes

    Disabled
    Ethernet Modem
    Pair Connection
    Real COM
    Reverse Telnet
    RFC2217
    TCP Client
    TCP Server
    UDP

  • Baudrate

    Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS
    DTR/DSR
    XON/XOFF

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    Automatic Data Direction Control (ADDC)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    DC Jack I/P: 125 mA @ 12 VDC
    PoE I/P: 180 mA @ 48 VDC

  • Input Voltage

    12 to 48 VDC (supplied by power adapter)
    48 VDC (supplied by PoE)

  • No. of Power Inputs

    1

  • Source of Input Power

    Power input jack
    PoE

  • Automatic Reboot Trigger

    Built-in WDT

  • Housing

    Metal

  • Dimensions (with ears)

    100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)

  • Dimensions (without ears)

    77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)

  • Weight

    300 g (0.66 lb)

  • Operating Temperature

    NPort P5150A: 0 to 60°C (32 to 140°F)
    NPort P5150A-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Safety

    EN 62368-1
    UL 60950-1

  • Time

    2,231,530 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

ソフトウェア、ファームウェア、ドライバー

フィルター

名前 種類 チェックサム バージョン オペレーティングシステム リリース日
Software Package for MXview One Series (Linux version)
508.2 MB
ソフトウェアパッケージ
SHA-512
v1.5.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2025年1月22日 2025年1月22日 リリースノート
Software Package for MXview One Series (Windows version)
284.5 MB
ソフトウェアパッケージ
SHA-512
v1.5.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2025年1月22日 2025年1月22日 リリースノート
Firmware for NPort P5150A Series
820.6 KB
ファームウェア
SHA-512
v1.7
2024年11月20日 2024年11月20日 リリースノート
Moxa CLI Configuration Tool for Linux
11.6 MB
ユーティリティ
SHA-512
v1.4
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
  • Linux Kernel 5.x
  • Linux Kernel 6.x
2024年11月7日 2024年11月7日 リリースノート
Moxa CLI Configuration Tool for Windows
2.0 MB
ユーティリティ
SHA-512
v1.4
  • Windows
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年11月7日 2024年11月7日 リリースノート
Device Search Utility
428.1 MB
ユーティリティ
SHA-512
v3.0
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年10月31日 2024年10月31日 リリースノート
Windows Driver Manager (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
8.9 MB
ドライバー
SHA-512
v3.6
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2024年9月22日 2024年9月22日 リリースノート
Windows Driver Manager (Windows 11 and Server 2022 and later, WHQL certified)
9.4 MB
ドライバー
SHA-512
v4.3
  • Windows 11
  • Windows Server 2022
2024年9月22日 2024年9月22日 リリースノート
Real TTY Linux Kernel 6.x Driver
590.0 KB
ドライバー
SHA-512
v6.1
  • Linux Kernel 6.x
2024年9月5日 2024年9月5日 リリースノート
Serial Device Server Driver for macOS (macOS 11.x to 14)
6.3 MB
ドライバー
SHA-512
v1.3
  • macOS 11
  • macOS 12
  • macOS 13
  • macOS 14
2024年9月2日 2024年9月2日 リリースノート
Real TTY Linux Kernel 4.x Driver
600.0 KB
ドライバー
SHA-512
v4.3
  • Linux Kernel 4.x
2024年8月7日 2024年8月7日 リリースノート
Real TTY Linux Kernel 5.x Driver
590.0 KB
ドライバー
SHA-512
v5.4
  • Linux Kernel 5.x
2024年8月7日 2024年8月7日 リリースノート
Real TTY drivers for Linux 3.x.x
94.6 KB
ドライバー
SHA-512
v3.0
  • Linux Kernel 3.x
2024年7月4日 2024年7月4日 リリースノート
MXview Plugin
40.8 MB
ソフトウェアパッケージ
SHA-512
v1.5
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2024年6月12日 2024年6月12日 リリースノート
Serial Device Server Driver for macOS (macOS 10.1x to 14)
689.8 KB
ドライバー
SHA-512
v1.2
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
  • macOS 11
  • macOS 12
  • macOS 13
  • macOS 14
2023年11月10日 2023年11月10日 リリースノート
Device Search Utility
2.2 MB
ユーティリティ
SHA-512
v2.7
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
2023年6月28日 2023年6月28日 リリースノート
PComm Lite Suite - Serial Communication Tool for Windows
3.5 MB
ユーティリティ
SHA-512
v1.7
  • Windows
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
2023年6月19日 2023年6月19日 リリースノート
NPort Administrator Suite v3.2 (Windows 7 to 8.1 and Windows Server 2008 R2 to 2016, WHQL certified)
4.1 MB
ドライバー
SHA-512
v3.2
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2023年1月17日 2023年1月17日 リリースノート
NPort Administrator Suite (Windows 10 and Server 2019 and later, WHQL certified)
7.7 MB
ドライバー
SHA-512
v4.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年1月17日 2023年1月17日 リリースノート
Device Server Android API
18.0 MB
ライブラリー
SHA-512
v1.1
  • Android
2022年12月22日 2022年12月22日 リリースノート
Serial Device Server Driver for macOS (macOS 10.12 to 10.15)
611.6 KB
ドライバー
SHA-512
v1.1
  • macOS 10.12
  • macOS 10.13
  • macOS 10.14
  • macOS 10.15
2022年9月26日 2022年9月26日 リリースノート
MXconfig plugin
2.2 MB
ソフトウェアパッケージ
SHA-512
v1.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2021年3月31日 2021年3月31日 リリースノート
Real TTY drivers for Linux 2.x.x
92.2 KB
ドライバー
SHA-512
v2.0
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
2019年10月24日 2019年10月24日 リリースノート
NPort Administration Suite for Windows Vista, Server 2008 or prior
4.1 MB
ドライバー
SHA-512
v2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2019年2月11日 2019年2月11日 リリースノート
Windows Driver Manager (Windows Vista, Server 2008, and prior)
2.6 MB
ドライバー
SHA-512
v2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
2018年8月23日 2018年8月23日 リリースノート
Driver for NPort P5150A Series (WinCE 5)
230.5 KB
ドライバー
SHA-512
v1.6
  • Windows CE 5.0
  • Windows CE 6.0
2012年11月14日 2012年11月14日 リリースノート
PComm Lite - Serial Communication Tool for Windows
1.6 MB
ユーティリティ
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
2012年5月13日 2012年5月13日 リリースノート
Driver for NPort P5150A Series (WinXP Embedded)
1.2 MB
ドライバー
SHA-512
v1.14
  • Windows XP Embedded
2012年4月4日 2012年4月4日 リリースノート
Driver for NPort P5150A Series (UNIX)
73.0 KB
ドライバー
SHA-512
v3.5
  • FreeBSD 5.x
  • FreeBSD 6.x
  • FreeBSD 7.x
  • FreeBSD 8.x
  • HP-UX
  • IBM AIX 5.3
  • Mac OS X
  • QNX 4.x
  • QNX 6.x
  • SCO OpenServer 5
  • SCO OpenServer 6
  • SCO UnixWare 7
  • Solaris 10
2012年3月19日 2012年3月19日 リリースノート

サポートドキュメント

名前 種類 言語 バージョン リリース日
FOSS Statement for Moxa PComm Lite Suite for Windows
108.5 KB
宣言書 英語 v1.0 2025年2月7日 2025年2月7日
Tech Note: The Security Hardening Guide for NPort 5000 Series
1.6 MB
テクニカルノート 英語 v2.2 2025年1月13日 2025年1月13日
FOSS Statement for Moxa CLI Configuration Tool
114.6 KB
宣言書 英語 v1.0 2024年12月10日 2024年12月10日
Moxa CLI Configuration Tool User Manual
1.0 MB
マニュアル 英語 v2.4 2024年11月18日 2024年11月18日
Device Search Utility v3.x User Manual
6.6 MB
マニュアル 英語 v1.0 2024年10月31日 2024年10月31日
FOSS Statement for NPort macOS driver
108.4 KB
宣言書 英語 v1.0 2024年10月29日 2024年10月29日
FOSS Statement for Device Search Utility
161.8 KB
宣言書 英語 v1.0 2024年6月24日 2024年6月24日
NPort P5150A シリーズデータシート
4.2 MB
データシート 日本語 v1.6 2024年3月29日 2024年3月29日
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms
372.3 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Real COM mode for NPort
479.5 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: TCP Client Mode for NPort
394.5 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: TCP Server Mode for NPort
395.0 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Reverse Telnet Mode for NPort
364.5 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: UDP Mode for NPort
397.2 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Pair Connection Mode
544.0 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Ethernet Modem Mode
429.4 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Accessing Multiple NPorts Behind NAT
497.2 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Fixed TTY Driver for NPort
389.7 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: Real TTY Driver for NPort
379.2 KB
テクニカルノート 英語 v2.0 2023年6月8日 2023年6月8日
Tech Note: The Security Hardening Guide for NPort 5000 Series
1.7 MB
テクニカルノート 英語 v2.1 2023年5月30日 2023年5月30日
EULA for NPort Administrator Suite
100.3 KB
テクニカルノート 英語 v1.0 2023年5月18日 2023年5月18日
FOSS Statement for NPort 5000 Series
230.0 KB
宣言書 英語 v1.0 2023年2月24日 2023年2月24日
Manual for NPort 5000 Series
18.7 MB
マニュアル 英語 v6.8 2022年9月5日 2022年9月5日
FOSS Statement for NPort Administration Suite
237.3 KB
宣言書 英語 v1.0 2022年8月1日 2022年8月1日
FOSS Statement for NPort Windows Driver Manager
255.8 KB
宣言書 英語 v1.0 2022年8月1日 2022年8月1日
Tech Note: Moxa Real TTY Driver Porting Guide for Arm-based Platforms
372.3 KB
テクニカルノート 英語 v1.0 2021年8月5日 2021年8月5日
QIG for NPort P5150A Series
541.3 KB
QIG (クイックインストールガイド) 英語 v2.3 2021年4月28日 2021年4月28日
Tech Note: Real COM mode for NPort
423.5 KB
テクニカルノート 英語 v1.1 2020年4月30日 2020年4月30日
Tech Note: NPort Real COM Mode for DNP3 Applications
1.9 MB
テクニカルノート 英語 v1.0 2014年11月17日 2014年11月17日
Tech Note: TCP Server Mode for NPort
311.3 KB
テクニカルノート 英語 v1.0 2013年6月29日 2013年6月29日
2D CAD for NPort P5150A TOP
114.9 KB
2D CAD 英語 2012年4月5日 2012年4月5日
Tech Note: Using DNP3 with the NPort Series
1.0 MB
テクニカルノート 英語 v1.0 2012年3月29日 2012年3月29日
Tech Note: UDP Mode for NPort
173.2 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: Accessing Multiple NPorts Behind NAT
482.6 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: Reverse Telnet Mode for NPort
204.6 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: TCP Client Mode for NPort
224.4 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: NPort's Ethernet Modem Mode
116.6 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: NPort's Pair Connection Mode
211.4 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: Real COM Mode for NPort
253.0 KB
テクニカルノート 英語 v1.0 2009年11月3日 2009年11月3日
Tech Note: Real TTY Driver for NPort
204.2 KB
テクニカルノート 英語 v1.0 2009年5月21日 2009年5月21日
Tech Note: Fixed TTY Driver for NPort
207.6 KB
テクニカルノート 英語 v1.0 2009年5月21日 2009年5月21日

利用可能なモデル (2)

画像を表示
moxa-nport-p5150a-t-image.jpg | MoxaNPort P5150A-Tmoxa-nport-p5150a-image.jpg | MoxaNPort P5150A
Operating Temp.-40 to 75°C0 to 60°C
Baudrate50 bps to 921.6 kbps50 bps to 921.6 kbps
Serial StandardsRS-232/422/485RS-232/422/485
No. of Serial Ports11
Input Voltage12-48 VDC by power adapter or 48 VDC by PoE12-48 VDC by power adapter or 48 VDC by PoE
見積りに追加バッグを見る見積りに追加バッグを見る

product image

Buy online from distributors

バッグに追加
