産業用デバイスサーバー

産業用デバイスサーバーは、サージ保護が強化されており、鉄道車両や沿線をはじめとする危険な場所での使用に対する認証を取得しています。また、すべてのデバイスは、石油やガス、電力のオートメーションなどを過酷な環境で運用する際に、信頼性の高いシリアル to イーサネットコネクティビティを確保できるように設計されています。

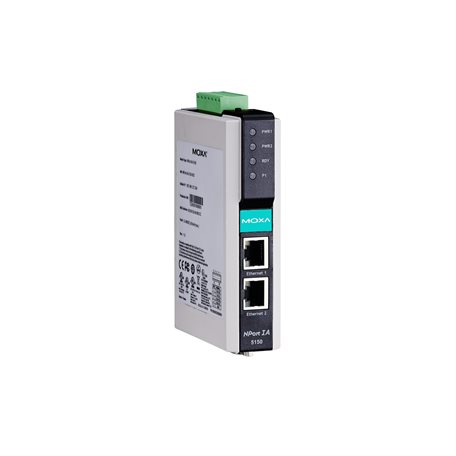

NPort IA-5150I-T
NPort IA5000シリーズ

1-port RS-232/422/485 device server with 2 10/100BaseT(X) ports (RJ45 connectors, single IP) and 2 kV optical isolation, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2 (NPort IA-5150/5150I/5250)
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • Optical Fiber

    •
  • Optical Fiber

Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP), Windows Utility, Telnet Console, Serial Console
  • Management

    • DHCP Client, IPv4, SMTP, SNMPv1, Telnet, ARP, BOOTP, DNS, HTTP, TCP/IP, UDP, ICMP, Rtelnet
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Android API

    • Android 3.1.x and later
  • Time Management

    • SNTP
  • MIB

    • RFC1213, RFC1317
Serial Interface
  • Connector

    • NPort IA-5150: DB9 male for RS-232, terminal block for RS-422/485
      NPort IA-5250: DB9 male for RS-232/422/485
  • No. of Ports

    • NPort IA-5150 Series: 1
      NPort IA-5250 Series: 2
  • Serial Standards

    • RS-232, RS-422, RS-485
  • Baudrate

    • Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
  • Data Bits

    • 5, 6, 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
  • Flow Control

    • RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
  • Isolation

    • 2 kV isolation protection (NPort IA-5150I, NPort IA-5150I-M-SC, NPort IA-5150I-S-SC)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Current

    • NPort IA-5150 Series: 238 mA @ 12 VDC
      NPort IA-5150I Series: 257 mA @ 12 VDC
      NPort IA-5150-M-SC Series: 315 mA @ 12 VDC
      NPort IA-5150I-M-SC Series: 339 mA @ 12 VDC
      NPort IA-5150-S-SC Series: 328 mA @ 12 VDC
      NPort IA-5150I-S-SC Series: 333 mA @ 12 VDC
      NPort IA-5250 Series: 238 mA @ 12 VDC
  • Input Voltage

    • 12 to 48 VDC
  • No. of Power Inputs

    • 2
  • Power Connector

    • Terminal block
Physical Characteristics
  • Housing

    • Plastic
  • IP Rating

    • IP30
  • Dimensions

    • 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in)
  • Weight

    • NPort IA-5150: 360 g (0.79 lb)
      NPort IA-5250: 380 g (0.84 lb)
  • Installation

    • DIN-rail mounting
Environmental Limits
  • Operating Temperature

    • Standard Models: 0 to 55°C (32 to 131°F)
      Wide Temp. Models: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
Standards and Certifications
  • Freefall

    • IEC 60068-2-32
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs
  • Hazardous Locations

    • ATEX, Class I Division 2, IECEx (for -IEX models)
  • Safety

    • UL 508, UL 60950-1
  • Vibration

    • IEC 60068-2-6
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • NPort IA-5150 Series: 183,747 hrs
      NPort IA-5150I Series: 195,614 hrs
      NPort IA-5250 Series: 194,765 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
