産業用デバイスサーバー

産業用デバイスサーバーは、サージ保護が強化されており、鉄道車両や沿線をはじめとする危険な場所での使用に対する認証を取得しています。また、すべてのデバイスは、石油やガス、電力のオートメーションなどを過酷な環境で運用する際に、信頼性の高いシリアル to イーサネットコネクティビティを確保できるように設計されています。

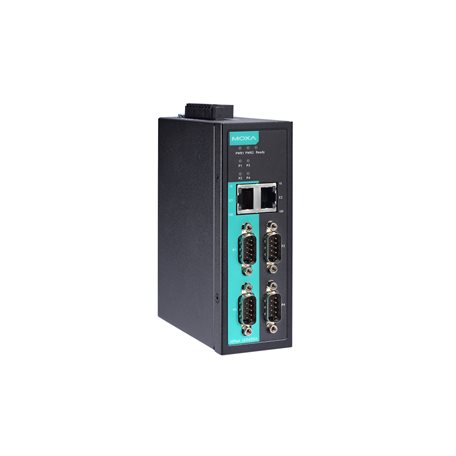

NPort IA5450A
NPort IA5000Aシリーズ

4-port RS-232/422/485 industrial automation device server with serial/LAN/power surge protection, 2 10/100BaseT(X) ports with single IP, 0 to 60°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • Supports 2 IP addresses
      Auto MDI/MDI-X connection
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility
  • Management

    • ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
  • Filter

    • IGMP v1/v2
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Android API

    • Android 3.1.x and later
  • Time Management

    • SNTP
Serial Interface
  • Connector

    • DB9 male
  • No. of Ports

    • 4
  • Serial Standards

    • RS-232, RS-422, RS-485
  • Operation Modes

    • Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
  • Baudrate

    • Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485

    • 120 ohms
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Current

    • 374 mA @ 12 VDC
  • Input Voltage

    • 12 to 48 VDC
  • No. of Power Inputs

    • 2
  • Power Connector

    • Terminal block
Physical Characteristics
  • Housing

    • Metal
  • Dimensions

    • 45.8 x 134 x 105 mm (1.8 x 5.28 x 4.13 in)
  • Weight

    • 560 g (1.23 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs
  • Hazardous Locations

    • IECEx
  • Safety

    • UL 508
  • Vibration

    • IEC 60068-2-6
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 262,805 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
