EN 50155スイッチ

MoxaはIRIS認証企業であり、EN 50155規格の必須セクションに準拠した堅牢なイーサネットスイッチの大規模なポートフォリオを用意しています。こうした製品は、世界中の多くの鉄道や地下鉄のシステムに展開されています。当社は革新的なソリューションとテクノロジーにより、鉄道の建設業者が交通全体の安全性、効率、および鉄道の運用とメンテナンスにかかるコストと時間を大幅に節約できるよう支援します。

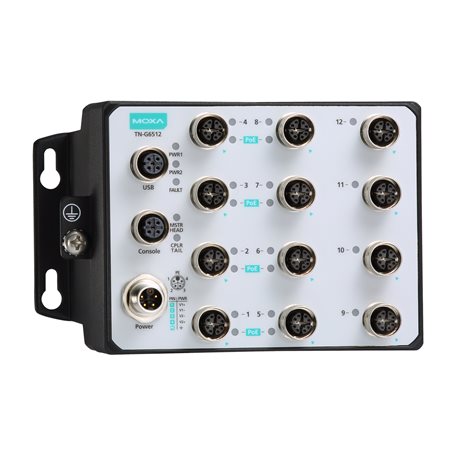

TN-G6512-8GPoE-WV-CT-T
TN-G6500シリーズ

L2 Managed Ethernet switch, 8 * 10/100/1000BaseT(X) with 802.3at PoE+ and 4 * 10/100/1000BaseT(X) M12 connectors, power input 24 - 110 VDC, -40 to 70°C operating temperature, conformal coating model

Ethernet Interface
  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

    • 4
  • PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)

    • 8
  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3af/at for PoE/PoE+ output
      IEEE 802.3x for flow control
      IEEE 802.3u for 100BaseT(X)
Ethernet Software Features
  • Broadcast Forwarding

    • IP directed broadcast, broadcast forwarding
  • Configuration Options

    • Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
  • Filter

    • 802.1Q, GMRP, GVRP, IGMP v1/v2, Port-based VLAN, Static Multicast
  • Industrial Protocols

    • SNMPv1/v2c/v3
  • Management

    • Account Management, Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, SNMP Trap
  • MIB

    • Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC
  • Security

    • TACACS+, Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, Port Lock, RADIUS, Rate Limit, SSH
  • Time Management

    • NTP Server/Client, SNTP
Switch Properties
  • IGMP Groups

    • 256
  • Max. No. of VLANs

    • 256
  • Priority Queues

    • 4
  • VLAN ID Range

    • VID 1 to 4094
LED Interface
  • LED Indicators

    • PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100/1000M, PoE
Serial Interface
  • Console Port

    • RS-232 (M12 B-coded 5-pin female connector)
Power Parameters
  • Input Voltage

    • 24/36/48/72/96/110 VDC
  • No. of Power Inputs

    • 2
  • Operating Voltage

    • 16.8 to 137.5 VDC
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
  • Total PoE Power Budget

    • 96 W
  • Input Current

    • 5.8 A @ 24 VDC
  • Power Connector

    • M12 K-coded 5-pin male connector
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP67
  • Dimensions

    • 159 x 97 x 100 mm (6.26 x 3.82 x 3.94 in)
  • Weight

    • 1,750 g (3.86 lb)
  • Installation

    • Wall mounting
  • Protection

    • PCB conformal coating
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 6 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Freefall

    • IEC 60068-2-31
  • Radio Frequency

    • FCC
  • Railway

    • EN 50121-4, EN 50155, IEC 60571
  • Railway Fire Protection

    • EN 45545-2
  • Safety

    • UL 61010-2-201, IEC 60950-1
  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155
  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 471,356 hrs
  • Standards

    • Telcordia SR332
