レイヤ2マネージドスイッチ

Moxaのレイヤ2マネージドスイッチは、IEC 62443規格に基づく産業用グレードの信頼性、ネットワーク冗長性、およびセキュリティ機能を備えています。当社は、鉄道アプリケーション向けのEN 50155規格、パワーオートメーションシステム向けのIEC 61850-3、インテリジェント交通システム向けのNEMA TS2など、複数の業界認証を受けた、業界固有の堅牢な製品を提供しています。

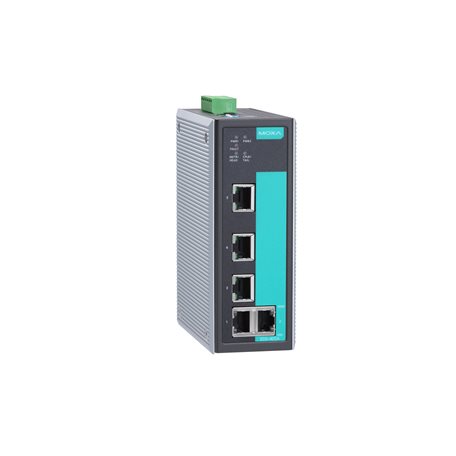

EDS-405A-EIP
EDS-405Aシリーズ

Entry-level managed Ethernet switch with 5 10/100BaseT(X) ports, EtherNet/IP enabled, 0 to 60°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 5
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • Optical Fiber

    •
  • Optical Fiber

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1w for Rapid Spanning Tree Protocol
Ethernet Software Features
  • Filter

    • 802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN
  • Industrial Protocols

    • EtherNet/IP (enabled by default)
      Modbus TCP
  • Management

    • Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
  • MIB

    • Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
  • Redundancy Protocols

    • RSTP, STP, Turbo Chain, Turbo Ring v1/v2
  • Time Management

    • NTP Server/Client
      SNTP
Switch Properties
  • IGMP Groups

    • 256
  • MAC Table Size

    • 2 K
  • Max. No. of VLANs

    • 64
  • Packet Buffer Size

    • 1 Mbits
  • Priority Queues

    • 4
  • VLAN ID Range

    • VID 1 to 4094
Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1)
DIP Switch Configuration
  • Ethernet Interface

    • Turbo Ring, Master, Coupler, Reserve
Input/Output Interface
  • Alarm Contact Channels

    • Relay output with current carrying capacity of 1 A @ 24 VDC
Power Parameters
  • Input Voltage

    • 12/24/48 VDC, Redundant dual inputs
  • Operating Voltage

    • 9.6 to 60 VDC
  • Input Current

    • 0.21 A @ 24 VDC
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
  • Connection

    • 1 removable 6-contact terminal block(s)
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
  • Weight

    • 650 g (1.44 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • UL 508
      UL 60950-1
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Hazardous Locations

    • ATEX
      Class I Division 2
  • Maritime

    • DNV-GL
  • Traffic Control

    • NEMA TS2
  • Freefall

    • IEC 60068-2-31
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 1,547,941 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
