レイヤ2マネージドスイッチ

Moxaのレイヤ2マネージドスイッチは、IEC 62443規格に基づく産業用グレードの信頼性、ネットワーク冗長性、およびセキュリティ機能を備えています。当社は、鉄道アプリケーション向けのEN 50155規格、パワーオートメーションシステム向けのIEC 61850-3、インテリジェント交通システム向けのNEMA TS2など、複数の業界認証を受けた、業界固有の堅牢な製品を提供しています。

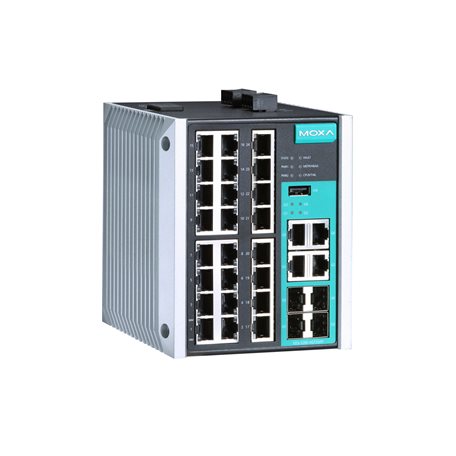

EDS-528E-4GTXSFP-HV
EDS-528Eシリーズ

Managed Gigabit Ethernet switch with 24 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, 110/220 VAC/VDC power input,-10 to 60°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • 1, Relay output with current carrying capacity of 1 A @ 24 VDC
  • Buttons

    • Reset button
  • Digital Input Channels

    • 1
  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 24
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    • 4
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
      IEEE 802.3x for flow control
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1X for authentication
      IEEE 802.3ad for Port Trunk with LACP
Ethernet Software Features
  • Filter

    • 802.1Q VLAN, GVRP, IGMP v1/v2/v3, GMRP, Port-based VLAN
  • Industrial Protocols

    • EtherNet/IP, Modbus TCP, PROFINET IO Device (Slave)
  • Management

    • LLDP, Back Pressure Flow Control, BOOTP, Port Mirror, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
  • MIB

    • Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
  • Security

    • Broadcast storm protection, HTTPS/SSL, TACACS+, SNMPv3, MAB authentication, Sticky MAC, NTP authentication, MAC ACL, Port Lock, RADIUS, SSH, SMTP with TLS
  • Time Management

    • NTP Server/Client, SNTP
Switch Properties
  • IGMP Groups

    • 2048
  • MAC Table Size

    • 16 K
  • Max. No. of VLANs

    • 64
  • Packet Buffer Size

    • 1 Mbits
  • Priority Queues

    • 4
  • VLAN ID Range

    • VID 1 to 4094
USB Interface
  • Storage Port

    • USB Type A
LED Interface
  • LED Indicators

    • PWR1, PWR2 (LV model), STATE, FAULT, 10/100M (TP port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL
Serial Interface
  • Console Port

    • USB-serial console (Type B connector)
DIP Switch Configuration
  • DIP Switches

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters
  • Connection

    • 1 removable 4-contact terminal block(s)
      1 removable 5-contact terminal block(s)
  • Input Current

    • 0.11/0.055 A @ 110/220 VDC
      0.21/0.13 A @ 110/220 VAC
  • Input Voltage

    • 110/220 VDC/VAC
  • Operating Voltage

    • 88 to 300 VDC, 85 to 264 VAC
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 115.4 x 135 x 137 mm (4.54 x 5.31 x 5.39 in)
  • Weight

    • 1850 g (4.08 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • UL 61010-2-201, EN 60950-1 (LVD)
  • EMC

    • EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Power Substation

    • IEC 61850-3, IEEE 1613
  • Railway

    • EN 50121-4
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 774,634 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
