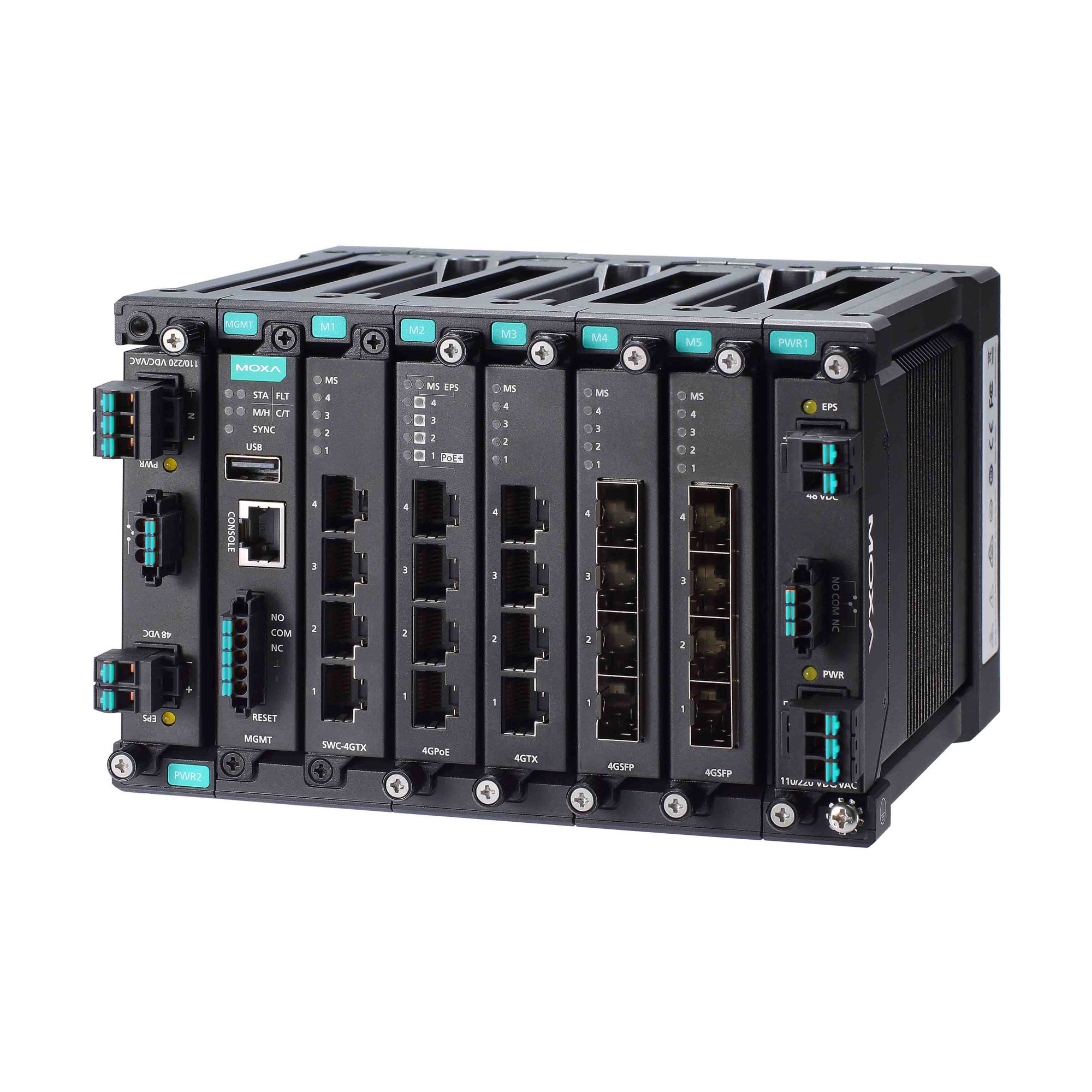

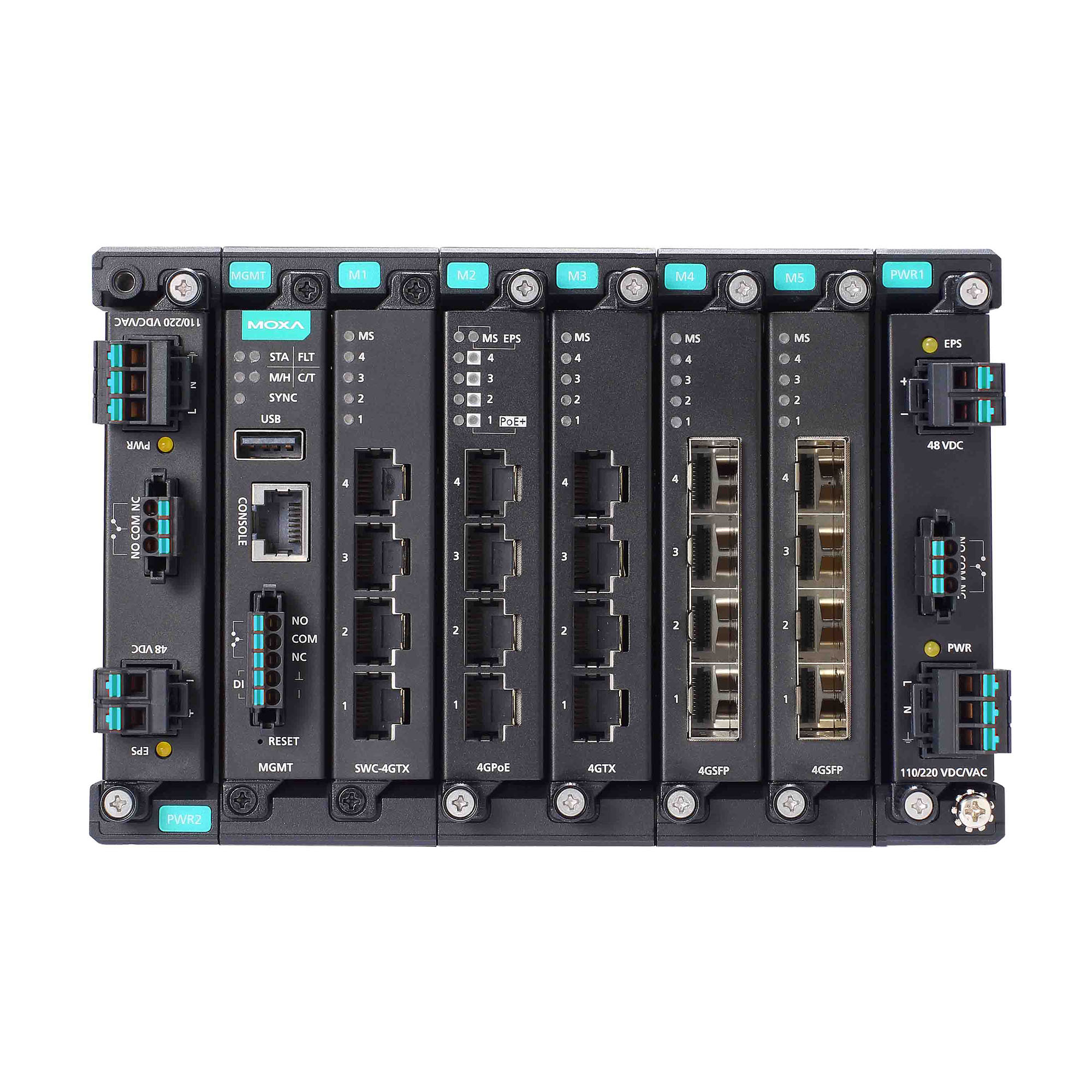

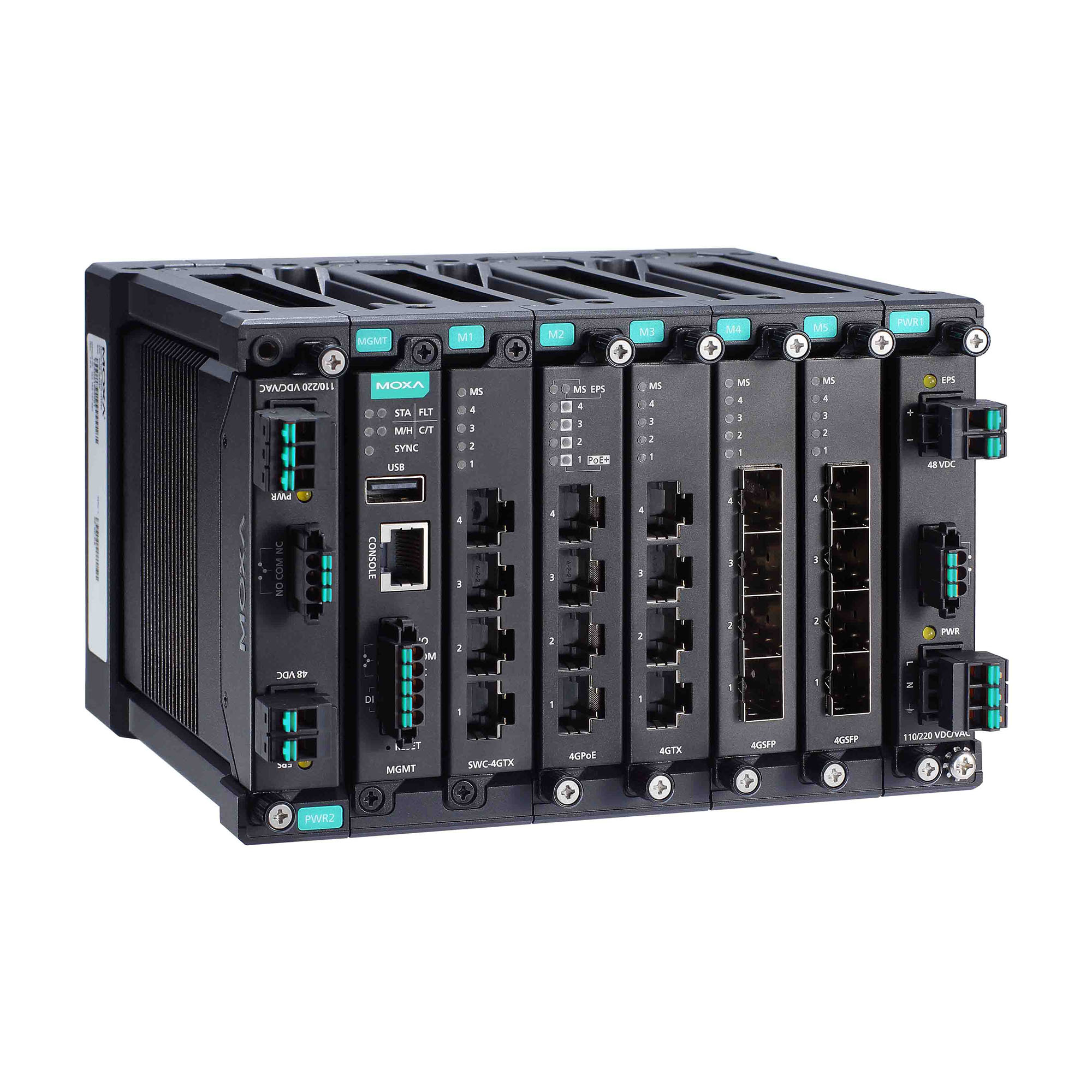

4 embedded Gigabit ports

4 slots for optional 4-port FE/GE modules

See the LM-7000H module series datasheet for more information.

Note: The required power module depends on the choice of LM-7000H module. Refer to the following power/module combination requirements.

LM-7000H non-PoE modules:
Any power module

LM-7000H PoE modules:
PWR-HV-P48, PWR-LV-P48 only

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication
IEEE 802.3af/at for PoE/PoE+ output

IPv4
Flow control
Back Pressure Flow Control
ARP
DHCP Relay Agent (Option 82)
Fiber check
RARP
LLDP
Port Mirroring (SPAN, RSPAN)
Linkup Delay
SMTP
SNMP Trap
SNMP Inform
SNMPv1/v2c/v3
RMON
TFTP
SFTP
HTTP
HTTPS
Telnet
Syslog
Private MIB
Loopback interface

GMRP
GVRP
GARP
802.1Q VLAN
IGMP Snooping v1/v2/v3
IGMP Querier

STP
RSTP
Turbo Ring v2
Turbo Chain
Ring Coupling
Dual-Homing
Link Aggregation
MRP
MSTP
Network Loop Protection

VRRP

Access control list
Broadcast storm protection
DHCP Snooping
Dynamic ARP Inspection
IP Source Guard
Rate Limit
Trust access control
Static Port Lock
MAC authentication bypass
MAC Sticky
HTTPS/SSL
SSH
RADIUS
TACACS+
Login and Password Policy

SNTP
NTP Server/Client
NTP Authentication

IPv4
TCP/IP
UDP
ICMP
ARP
RARP
TFTP
DNS
NTP Client
EtherNet/IP
802.1X
QoS
HTTPS
HTTP
Modbus TCP
Telnet
SMTP
SNMPv1/v2c/v3
RMON
Syslog

OSPF
Static Route

P-BRIDGE MIB
Q-BRIDGE MIB
IEEE8021-SPANNING-TREE-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
LLDP-EXT-DOT1-MIB
LLDP-EXT-DOT3-MIB
SNMPv2-MIB
RMON MIB Groups 1, 2, 3, 9

MMS

16 K

256

VID 1 to 4094

1024

9.216 KB

8

12 Mbits

RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Type A (Reserved)

1 (On MGMT Module)

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

3 (On MGMT, PWR1, PWR2 Module)
Relay output with current carrying capacity of 2 A @ 30 VDC

With PWR-HV-P48 installed:
110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC

With PWR-LV-P48 installed:
24/48 VDC, PoE: 48 VDC

With PWR-HV-NP installed:
110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz

With PWR-LV-NP installed:
24/48 VDC

With PWR-HV-P48 installed:
88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC

With PWR-LV-P48 installed:
18 to 72 VDC (24/48 VDC for hazardous location), PoE: 46 to 57 VDC (48 VDC for hazardous location)

With PWR-HV-NP installed:
88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz

With PWR-LV-NP installed:
18 to 72 VDC

With PWR-HV-P48/PWR-HV-NP installed:
Max. 0.30 A @ 110 VDC
Max. 0.15 A @ 220 VDC
Max. 0.60 A @ 110 VAC
Max. 0.40 A @ 220 VAC

With PWR-LV-P48/PWR-LV-NP installed:
Max. 1.5 A @ 24 VDC
Max. 0.75 A @ 48 VDC

EPS (PoE models only):
Max. 8.2 A @ 48 VDC

Note: These are the input current ratings for the device with the maximum number of modules installed.

With PWR-HV-P48/PWR-HV-NP installed:
Max. 33.0 W @ 110 VDC
Max. 34.0 W @ 220 VDC
Max. 35.8 W @ 110 VAC
Max. 38.0 W @ 220 VAC

With PWR-LV-P48/PWR-LV-NP installed:
Max. 36.0 W @ 24 VDC
Max. 36.0 W @ 48 VDC

Note: These are the maximum power consumption ratings for the device with the maximum number of modules installed.

36 W

Max. 360 W (with one power supply) for total PD consumption at 48 VDC input for PoE systems

Max. 360 W (with one power supply) for total PD consumption at 53 to 57 VDC input for PoE+ systems

Max. 720 W (with two power supplies) for total PD consumption at 48 VDC input for PoE systems

Max. 720 W (with two power supplies) for total PD consumption at 53 to 57 VDC input for PoE+ systems

Supported

Supported

IP40

176 x 115 x 163.25 mm (6.93 x 4.53 x 6.44 in)

2500 g (5.51 lb)

DIN-rail mounting
Wall mounting (with optional kit)
Rack mounting (with optional kit)

Standard Temp Models: -10 to 60°C (-14 to 140°F)
Wide Temp Models: -40 to 75°C (-40 to 167°F)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

EN 62368-1
IEC 62368-1
UL 62368-1
IEC 60950-1

EN 55032/35
EN 61000-6-2/-6-4

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
IEC 61000-4-11: Voltage Dips and Voltage Interruptions

EN 50121-4

NEMA TS2

IEC 60068-2-27

IEC 60068-2-31

IEC 60068-2-6

Class I Division 2
ATEX

IEEE 1613
IEC 61850-3

1,007,790 hrs

Telcordia SR332

5 years

See www.moxa.com/jp/warranty
