2 removable 4-contact terminal block(s)

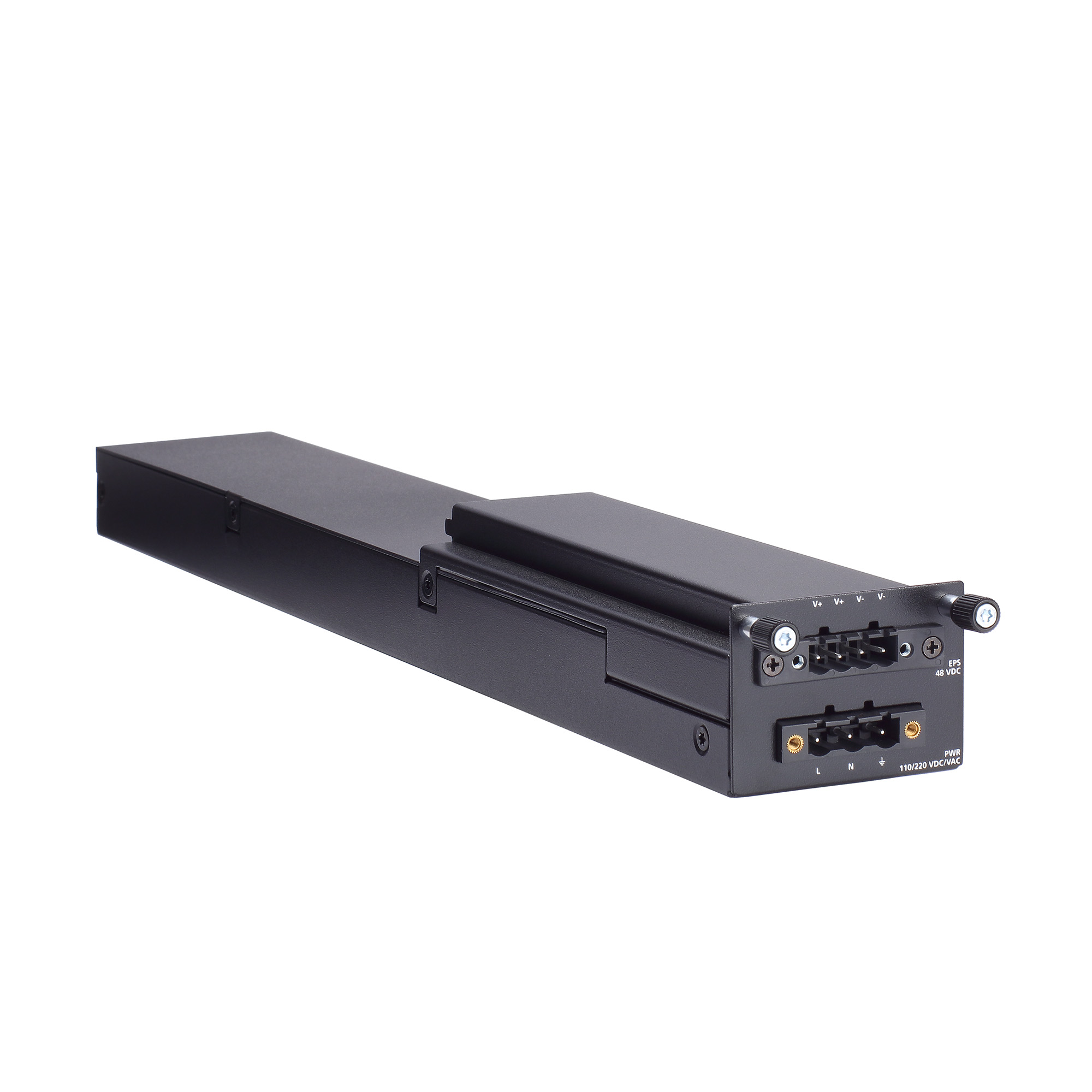

PWR-310-HV-P:
110/220 VDC/VAC for the switch system
48 VDC for PoE systems (53 to 57 VDC is recommended for PoE+ devices)

PWR-310-LV-P:
12/24/48 VDC for the switch system
48 VDC for PoE systems (53 to 57 VDC is recommended for PoE+ devices)

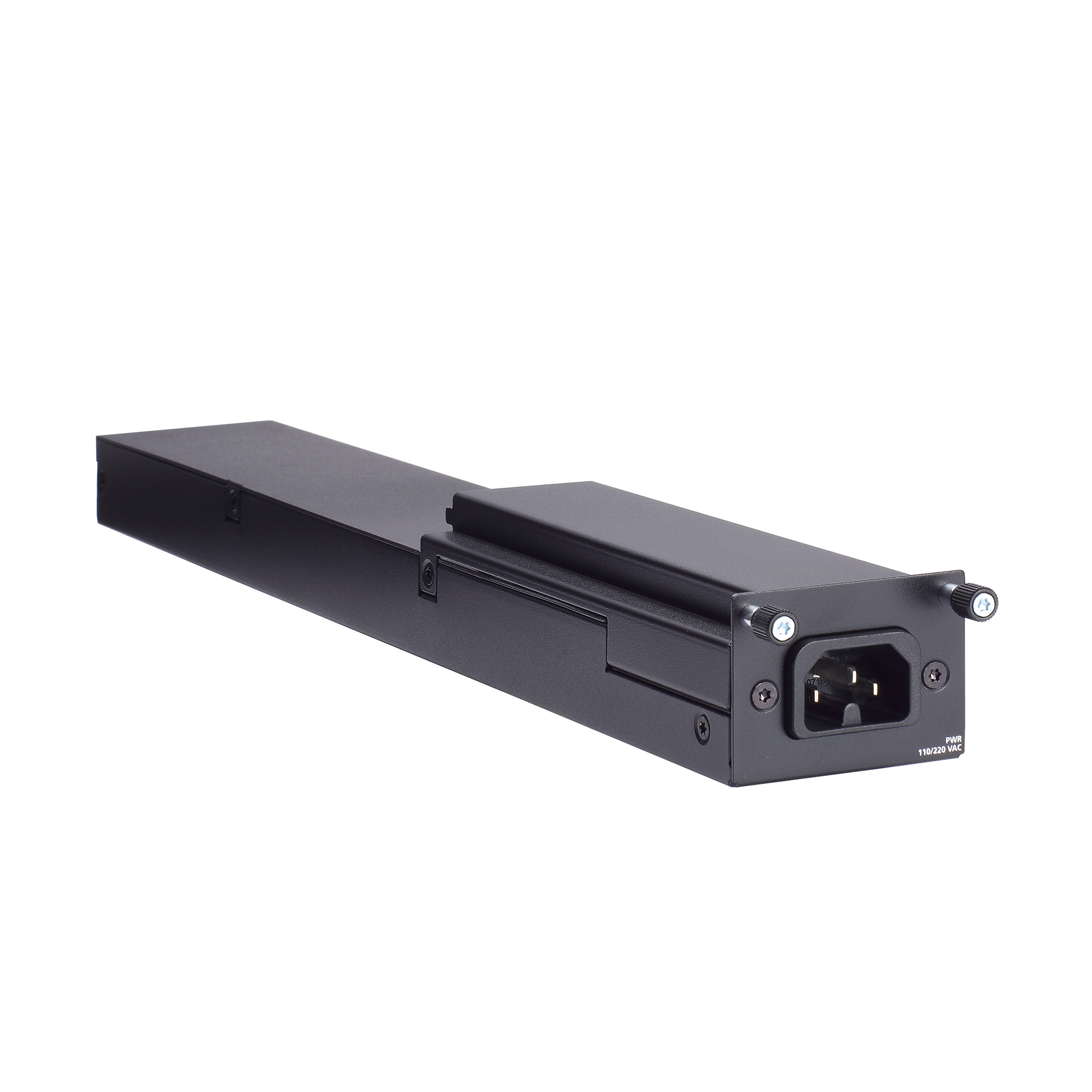

PWR-310-HVA:
110/220 VAC for the switch system

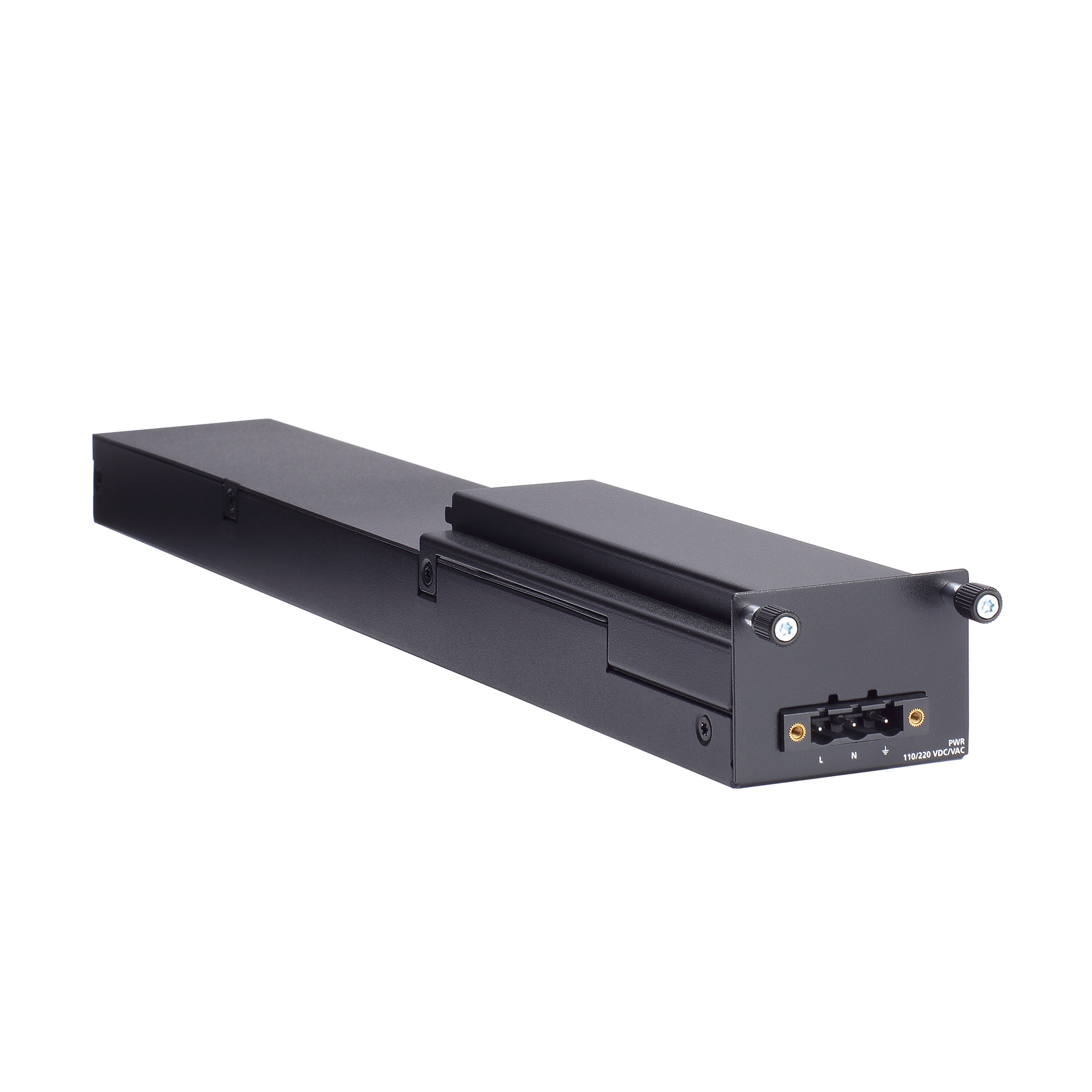

PWR-310-HV:
110/220 VDC/VAC for the switch system

PWR-310-LV:
12/24/48 VDC for the switch system

PWR-310-LV/PWR-310-LV-P models: 10.8 to 72 VDC
PWR-310-HV: 88 to 300 VDC, 85 to 264 VAC
PWR-310-HVA: 85 to 264 VAC
PWR-310-HV-P models: 88 to 300 VDC, 85 to 264 VAC
PoE models: 46 to 57 VDC (for the PoE system)

PWR-310-LV/PWR-310-LV-P models:
Max.7.28A@12VDC
Max.3.08A@24VDC
Max.1.52A@48VDC

PWR-310-HV/PWR-310-HV-P models:
Max.0.67A@110VDC
Max.0.33A@220VDC
Max.0.79A@110VAC
Max.0.35A@220VAC

PWR-310-HVA models:
Max.0.8A@110VAC
Max.0.35A@220VAC

EPS (PoE models only):
Max.12A@48 to 57 VDC
48 to 57 VDC, 12 A (max.)

Supported

Supported

PWR-310-HV-P: 377.8 x 54.5 x 40.5 mm (14.87 x 2.15 x 1.59 in)
PWR-310-LV-P: 377.8 x 54.5 x 40.5 mm (14.87 x 2.15 x 1.59 in)
PWR-310-HVA: 377.8 x 54.5 x 40.5 mm (14.87 x 2.15 x 1.59 in)
PWR-310-HV: 377.8 x 54.5 x 40.5 mm (14.87 x 2.15 x 1.59 in)
PWR-310-LV: 377.8 x 54.5 x 40.5 mm (14.87 * 2.15 x 1.59 in)

PWR-310-HV-P: 845 g (1.86 lb)
PWR-310-LV-P: 830 g (1.83 lb)
PWR-310-HVA: 861 g (1.90 lb)
PWR-310-HV: 854 g (1.88 lb)
PWR-310-LV: 854 g (1.88 lb)

PWR-310-HV-P: 5,480,917 hrs
PWR-310-LV-P: 12,412,949 hrs
PWR-310-HVA: 5,536,383 hrs
PWR-310-HV: 5,536,383 hrs
PWR-310-LV: 12,700,198 hrs

Telcordia (Bellcore), GB

The operating temperature is dependent on the RKS-G4000-PL switch the module is installed in. Please refer to the respective RKS-G4000-PL Series datasheet/QIG for more information.

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

5 years

See www.moxa.com/jp/warranty
