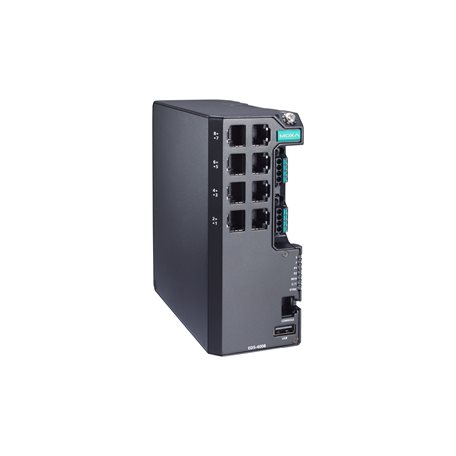

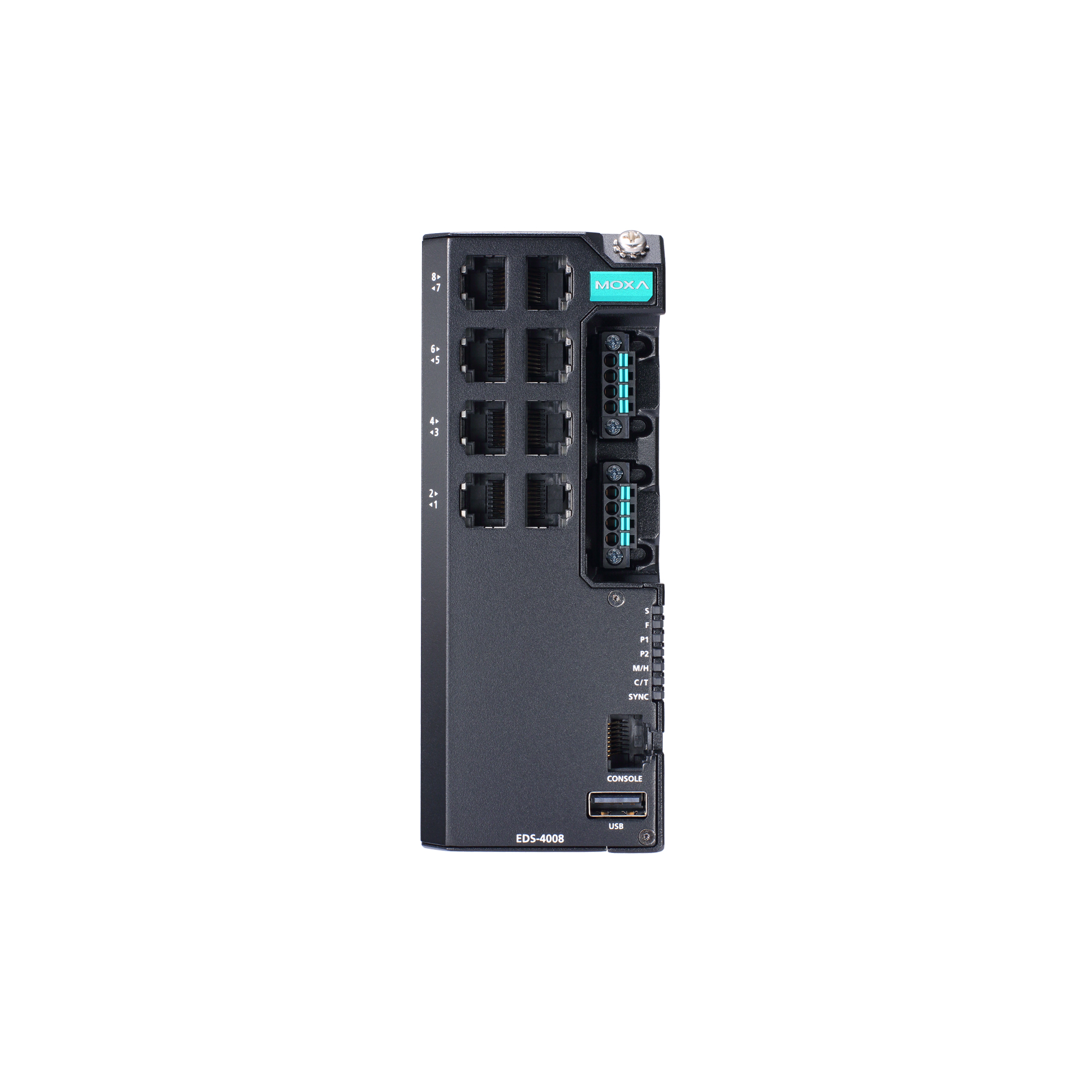

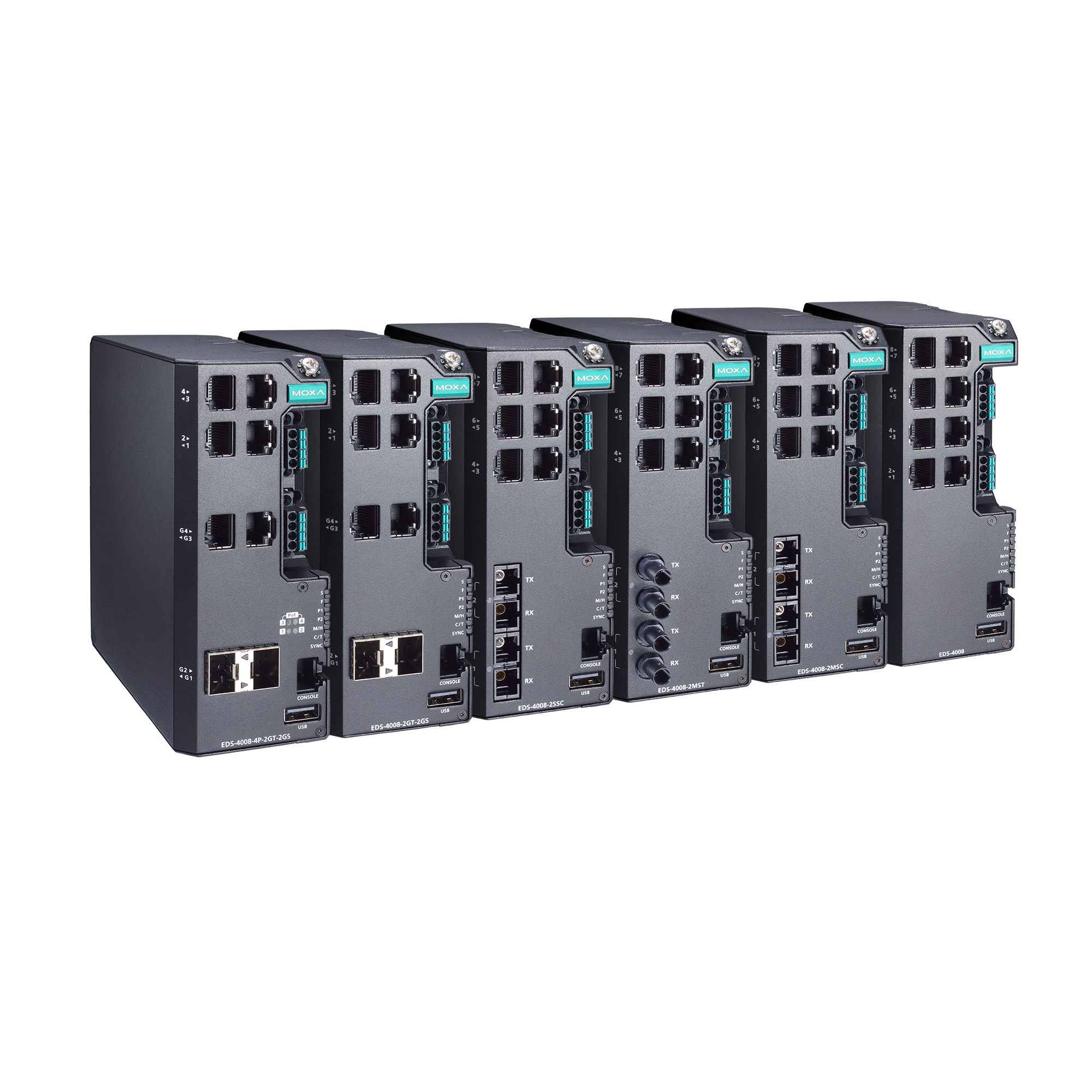

EDS-4008-LV/-HV/-T models: 8

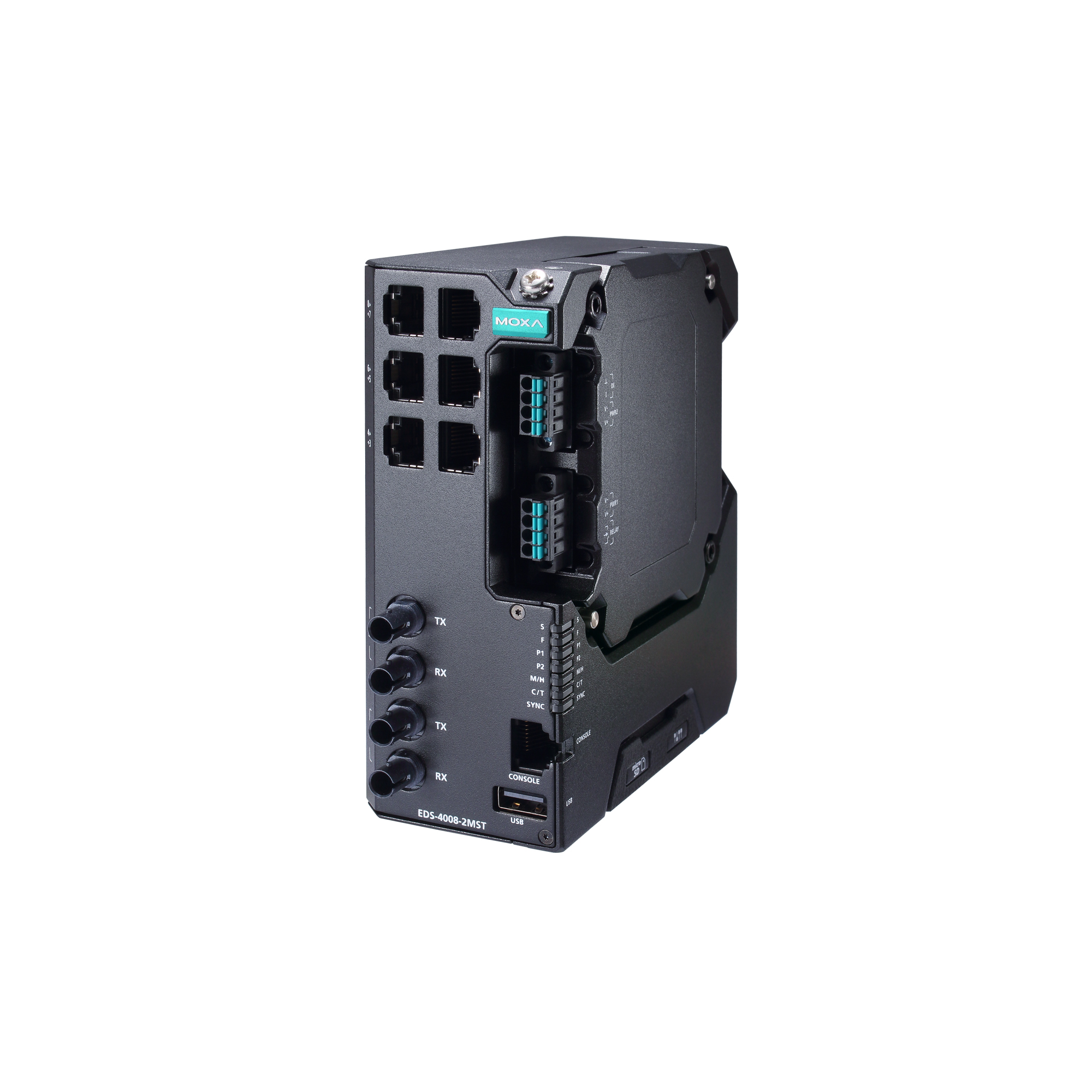

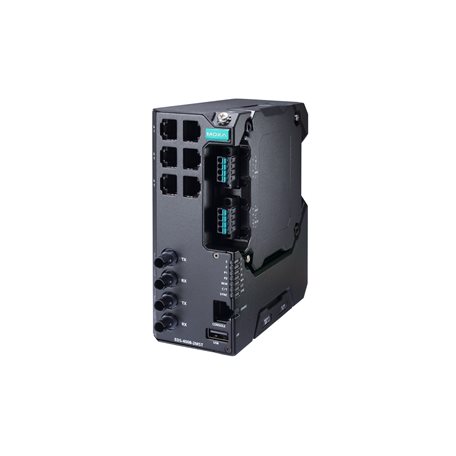

EDS-4008-2MST-LV/-HV/-T models: 6

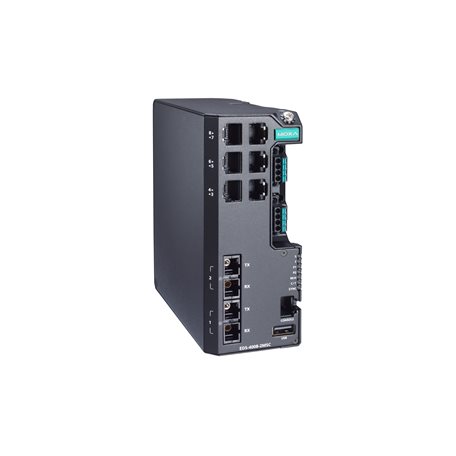

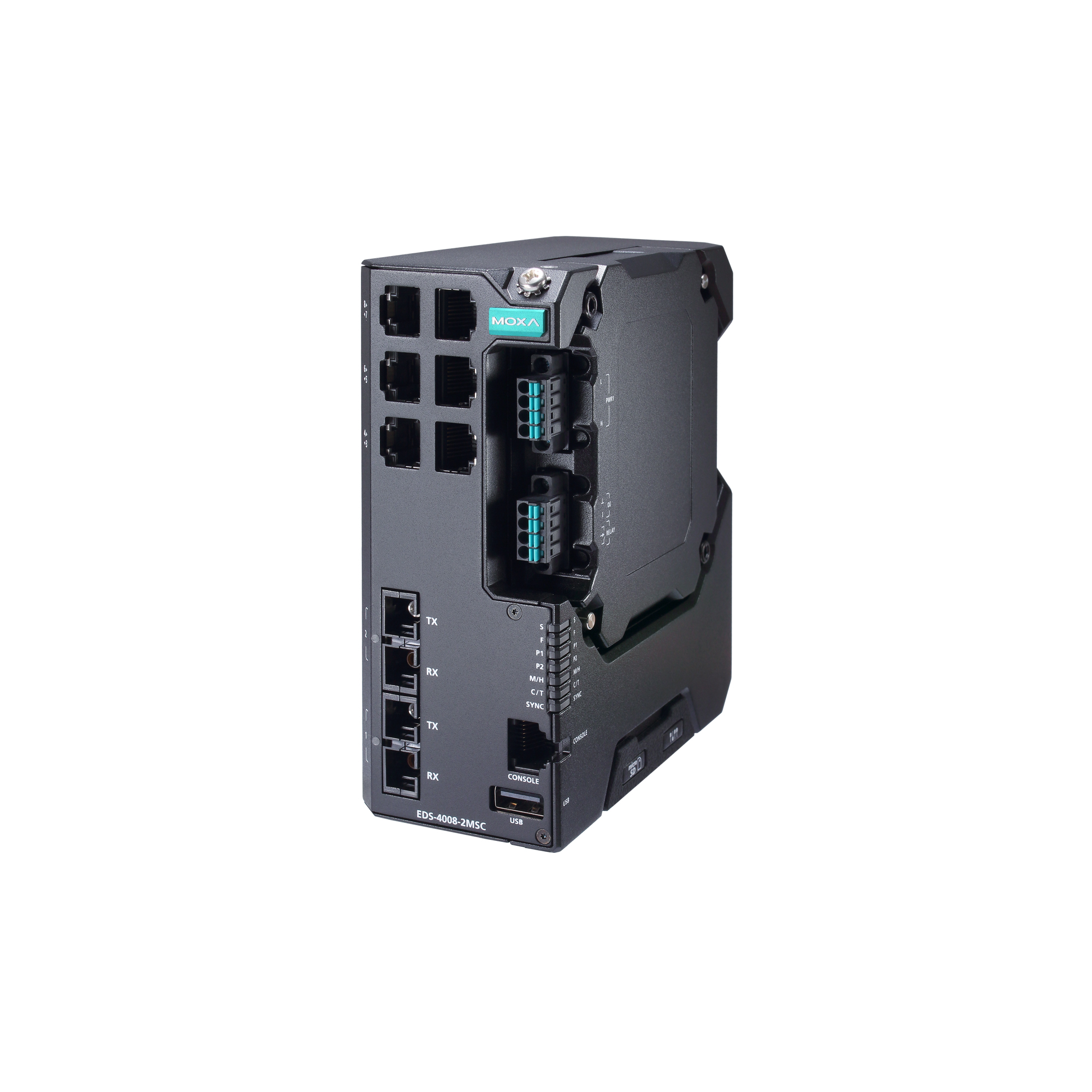

EDS-4008-2MSC-LV/-HV/-T models: 6
EDS-4008-2SSC-LV/-HV/-T models: 6

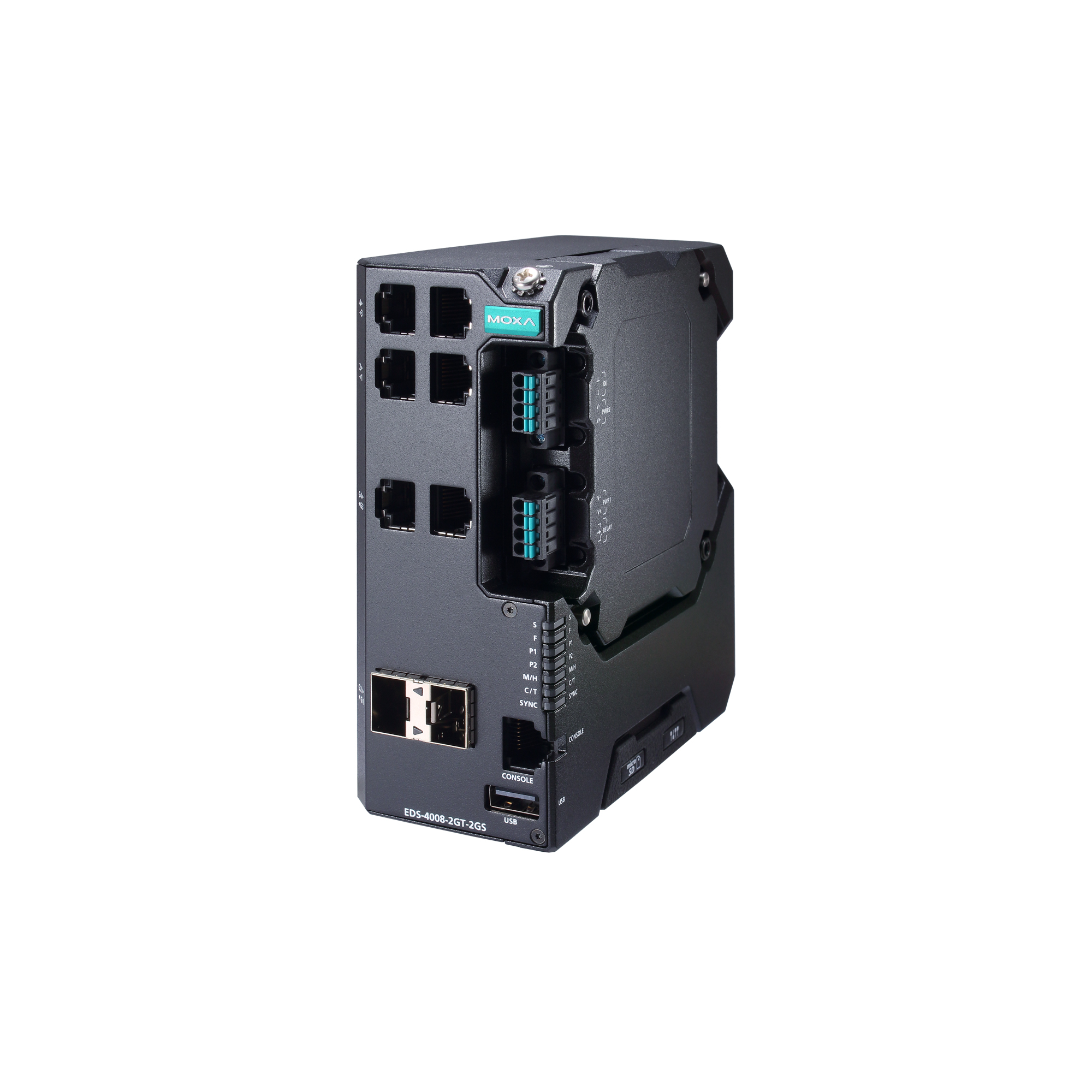

EDS-4008-2GT-2GS-LV/-HV/-T models: 4
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

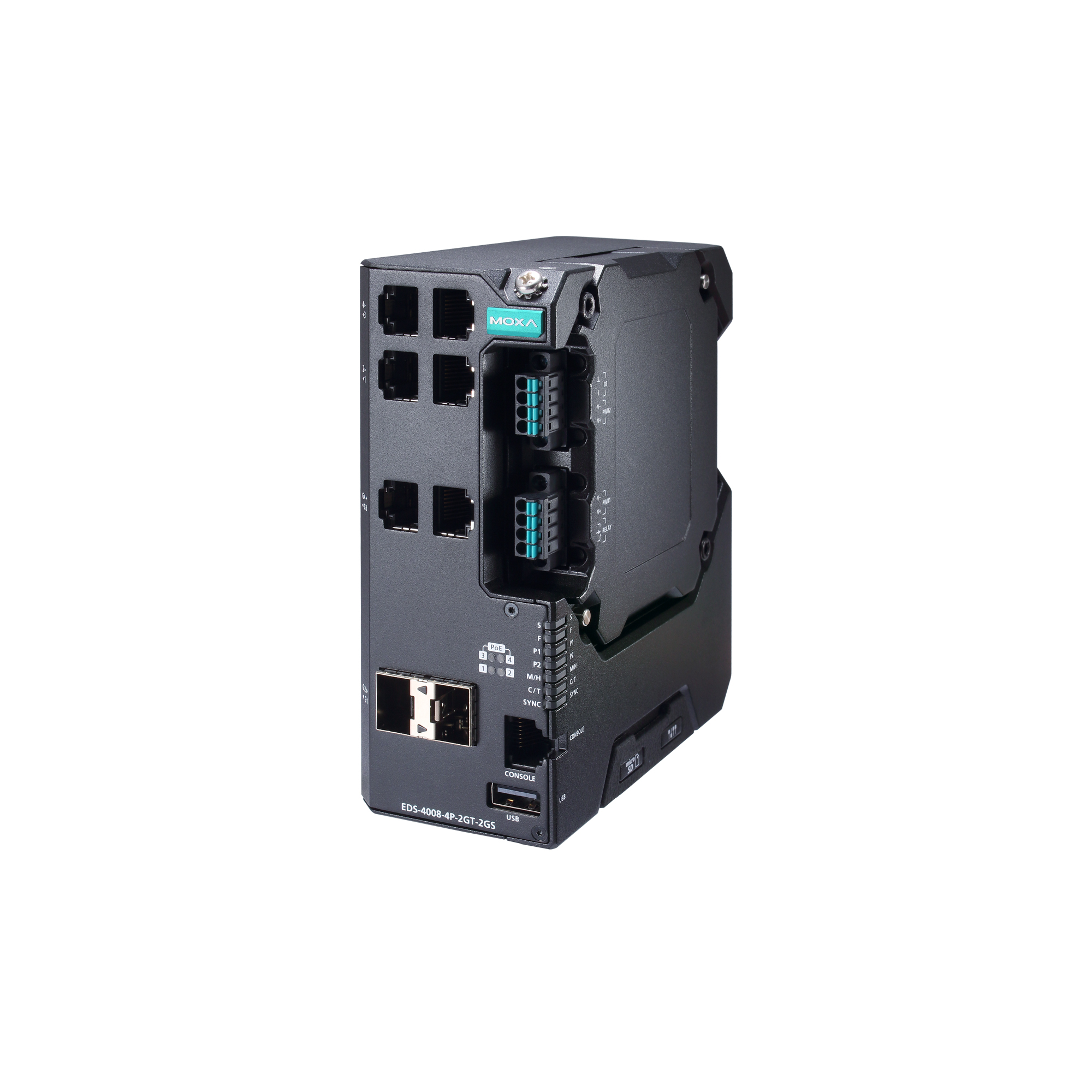

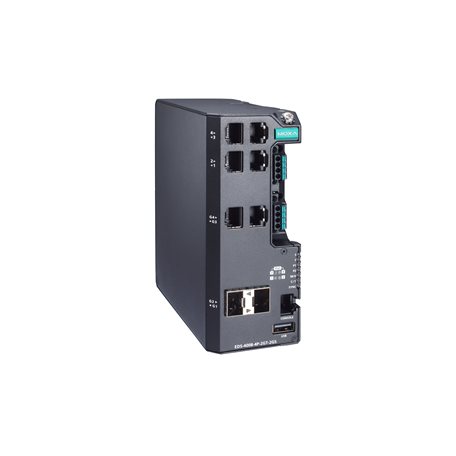

EDS-4008-4P-2GT-2GS-LVA/-LVB/-T models: 4

EDS-4008-2MSC-LV/-HV/-T models: 2

EDS-4008-2MST-LV/-HV/-T models: 2

EDS-4008-SSC-LV/-HV/-T models: 2

EDS-4008-2GT-2GS-LV/-HV-T models: 2
EDS-4008-4P-2GS-2GT-LVA/-LVB/-T models: 2

EDS-4008-2GT-2GS-LV/-HV/-T models 2
EDS-4008-4P-2GT-2GS-LVA/-LVB/-T models: 2

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1X for authentication

GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier

IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB

P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9

STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation

Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy

SNTP, NTP Server/Client, NTP Authentication

IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog

16 K

9.216 KB

256

VID 1 to 4094

512

4

1 MB

PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC

RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Type A (Reserved)

1, Relay output with current carrying capacity of 1 A @ 24 VDC

1

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

Reset button

Turbo Ring, Master, Coupler, Reserve

2 removable 4-contact terminal block(s)

-LV/-LV-T models: PWR-100–LV
-HV/-HV-T models: PWR-105-HV-I
-LVA/-LVA-T models: PWR-101-LV-BP-I
-LVB/-LVB-T models: PWR-103-LV-VB-I

The EDS-4008 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.

For example:
EDS-4008-T + PWR-100–LV = EDS-4008-LV-T
EDS-4008-T + PWR-105-HV-I = EDS-4008-HV-T

If you install a different power module, refer to the specifications of the corresponding
model. For example, if you replace the power module of the EDS-4008–LV-T
with the PWR-105–HV-I, refer to the specifications of the EDS-4008–HV-T.

-LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs
-HV/-HV-T models: 110/220 VDC/VAC, Single input
-LVA/-LVA-T models: 48 VDC, Redundant dual inputs
-LVB/-LVB-T models: 12/24/48 VDC, Redundant dual inputs

-LV/-LV-T models: 9.6 to 60 VDC
-HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC
-LVA/-LVA-T models: 44 to 57 VDC (> 52 VDC for PoE+ output recommended)
-LVB/-LVB-T models: 12 to 57 VDC (> 52 VDC for PoE+ output recommended)

-LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
-HV/-HV-T models: 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A
-LVA/-LVA-T models: 48 VDC, 5.42 A
-LVB/-LVB-T models: 12/48 VDC, 7.46/4.27 A or 24 VDC, 7.26 A

EDS-4008-LV(-T) models: 7.20 W
EDS-4008-HV(-T) models: 8.13 W
EDS-4008-2MST-LV(-T) models: 8.45 W
EDS-4008-2MST-HV(-T) models: 11.13 W
EDS-4008-2MSC-LV(-T) models: 8.45 W
EDS-4008-2MSC-HV(-T) models: 11.09 W
EDS-4008-2SSC-LV(-T) models: 8.98 W
EDS-4008-2SSC-HV(-T) models: 11.37 W
EDS-4008-2GT-2GS-LV(-T) models: 9.41 W
EDS-4008-2GT-2GS-HV(-T) models: 11.17 W

EDS-4008-4P-2GT-2GS-LVA(-T) models:
Without PoE: 11.22 W
With PoE: Max. 240 W for total PD power consumption @ 48 VDC input

EDS-4008-4P-2GT-2GS-LVB(-T) models:
Without PoE: 15.84 W
With PoE:
Max. 180 W for total PD power consumption @ 48 VDC input;
Max. 150 W for total PD power consumption @ 24 VDC input;
Max. 62 W for total PD power consumption @ 12 VDC input

PoE models: 90 W

Supported

Supported

IP40

EDS-4008(-T), EDS-4008-2MSC(-T), EDS-4008-2SSC(-T) models:
55 x 140 x 120 mm (2.2 x 5.51 x 4.72 in)
EDS-4008-2MST(-T) models:
55 x 140 x 132 mm (2.2 x 5.51 x 5.2 in)
EDS-4008-2GT-2GS(-T), EDS-4008-4P-2GT-2GS(-T) models:
55 x 140 x 122.5 mm (2.2 x 5.51 x 4.82 in)

EDS-4008(-T) models: 857 g (1.89 lb)
EDS-4008-2MSC(-T) models: 886 g (1.95 lb)
EDS-4008-2MST(-T) models: 810 g (1.79 lb)
EDS-4008-2SSC(-T) models: 882 g (1.94 lb)
EDS-4008-2GT-2GS(-T) models: 795 g (1.75 lb)
EDS-4008-4P-2GT-2GS(-T) models: 840 g (1.85 lb)

DIN-rail mounting, Wall mounting (with optional kit)

Metal

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

IEC 62443-4-1
IEC 62443-4-2

UL 61010-2-201, EN 62368-1 (LVD)

EN 55032/35, EN 61000-6-2/-6-4

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

IEC 60068-2-6

IEC 60068-2-27

IEC 60068-2-32

EN 50121-4

NEMA TS2

EDS-4008-LV/-LV-T models: 1,121,399 hrs
EDS-4008-HV/-HV-T models: 513,575 hrs
EDS-4008-2MSC-LV/-LV-T models: 1,014,299 hrs
EDS-4008-2MSC-HV/-HV-T models: 492,582 hrs
EDS-4008-2MST-LV/-LV-T models: 1,015,718 hrs
EDS-4008-2MST-HV/-HV-T models: 492,582 hrs
EDS-4008-2SSC-LV/-LV-T models: 1,015,718 hrs
EDS-4008-2SSC-HV/-HV-T models: 492,582 hrs
EDS-4008-2GT-2GS-LV/-LV-T models: 1,074,099 hrs
EDS-4008-2GT-2GS-HV/-HV-T models: 505,936 hrs
EDS-4008-4P-2GT-2GS-LVA/-LVA-T models: 923,670 hrs
EDS-4008-4P-2GT-2GS-LVB/-LVB-T models: 870,865 hrs hrs

Telcordia SR332

5 years
