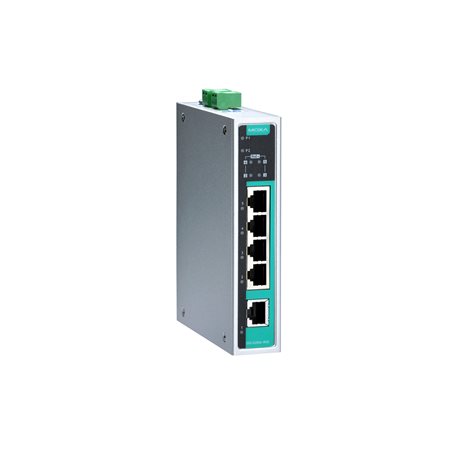

EDS-G205A-4PoE Series: 5

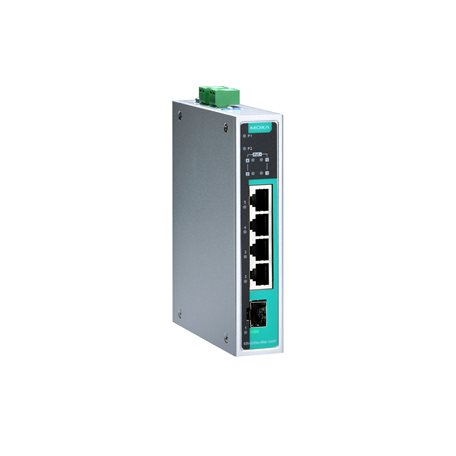

EDS-G205A-4PoE-1GSFP Series: 4

All models support:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

EDS-G205A-4PoE-1GSFP Series: 1

4

IEEE 802.3 for 10BaseT
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3af/at for PoE/PoE+ output
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseX

V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A)

8 K

1 Mbits

Store and Forward

10 KB

2 removable 2-contact terminal block(s)

12/24/48 VDC, Redundant dual inputs

12 to 57 VDC

Supported

Max. 11.73 W full loading without PDs’ consumption

Supported

5.65 A @ 24 VDC

62 W (max.) @ 12 VDC for total PD consumption; 36 W (max.) for each PoE port
120 W (max.) @ 24 VDC for total PD consumption; 36 W (max.) for each PoE port
144 W (max.) @ 48 VDC for total PD consumption; 36 W (max.) for each PoE port

Metal

IP30

29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)

300 g (0.66 lb)

DIN-rail mounting, Wall mounting (with optional kit)

Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp.Models: -40 to 75°C (-40 to 167°F)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

IEC 60068-2-32

EN 61000-6-2/-6-4

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

EN 50121-4

UL 508

IEC 60068-2-27

IEC 60068-2-6

1,257,910 hrs

Telcordia (Bellcore), GB

5 years

See www.moxa.com/jp/warranty
