MDS-G4028-4XGSシリーズ

4 10GbEポートレイヤー2モジュール式マネージド・イーサネット・スイッチ

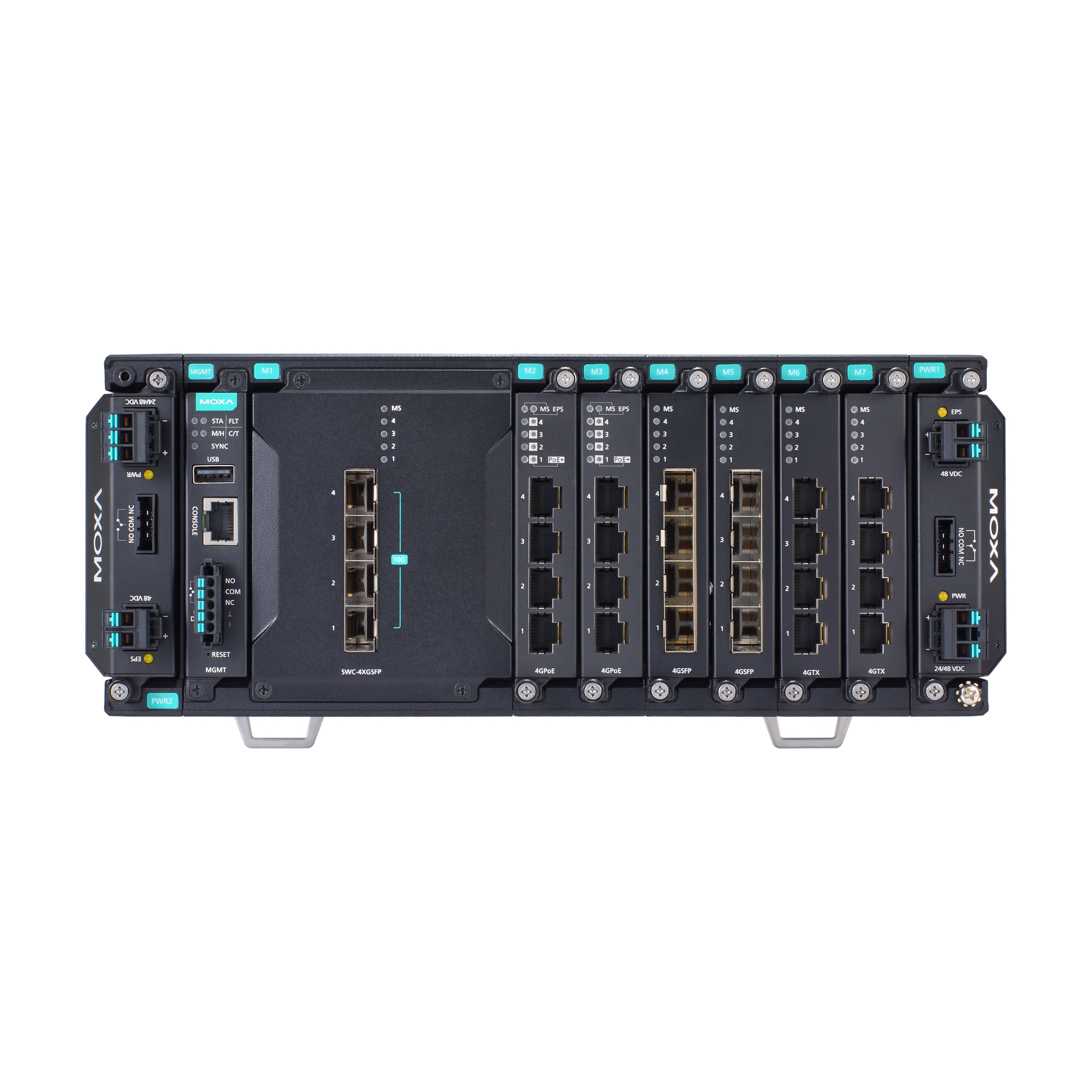

moxa-mds-g4028-4xgs-series-image-(1).jpg | Moxa

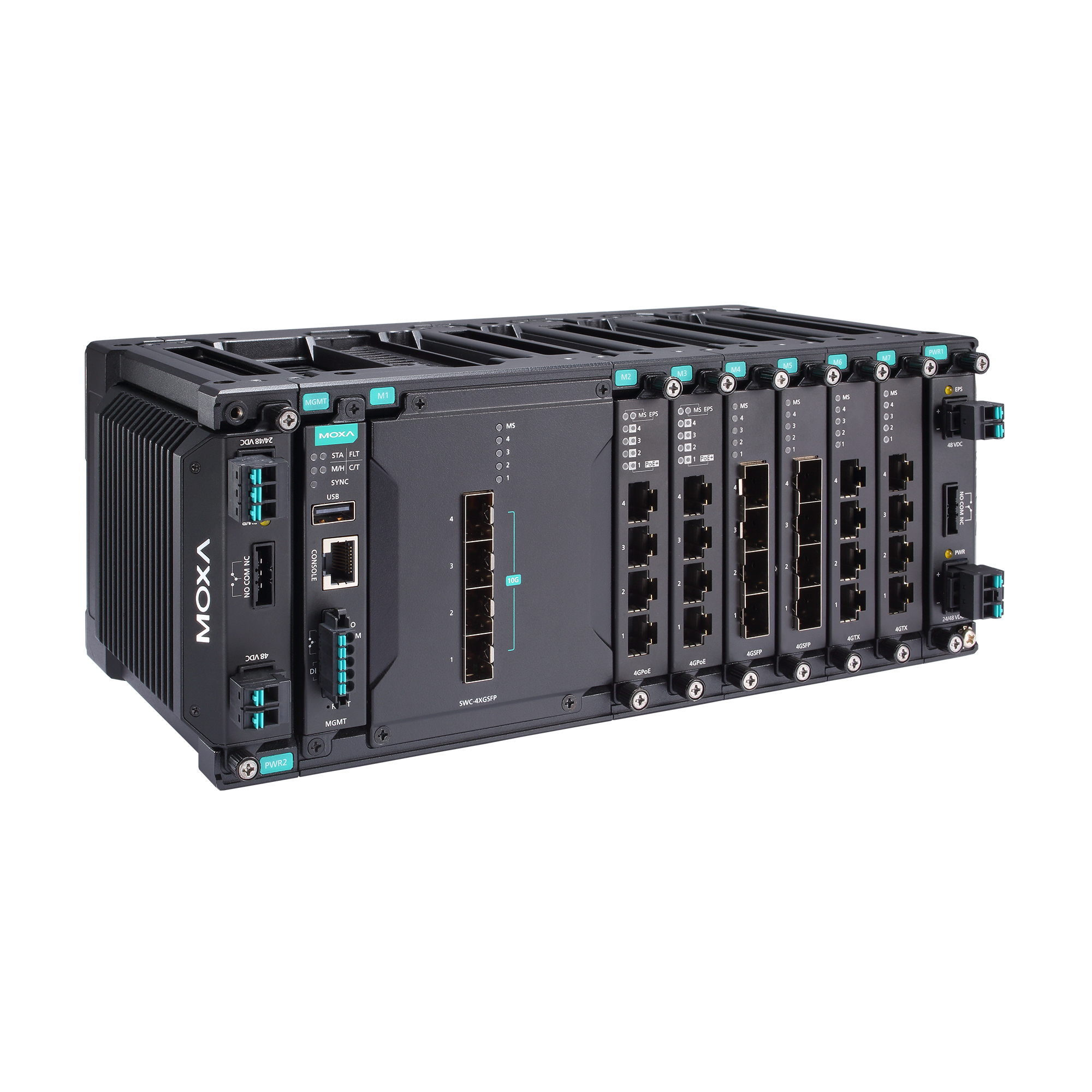

moxa-mds-g4028-4xgs-series-image-1-(1).jpg | Moxa

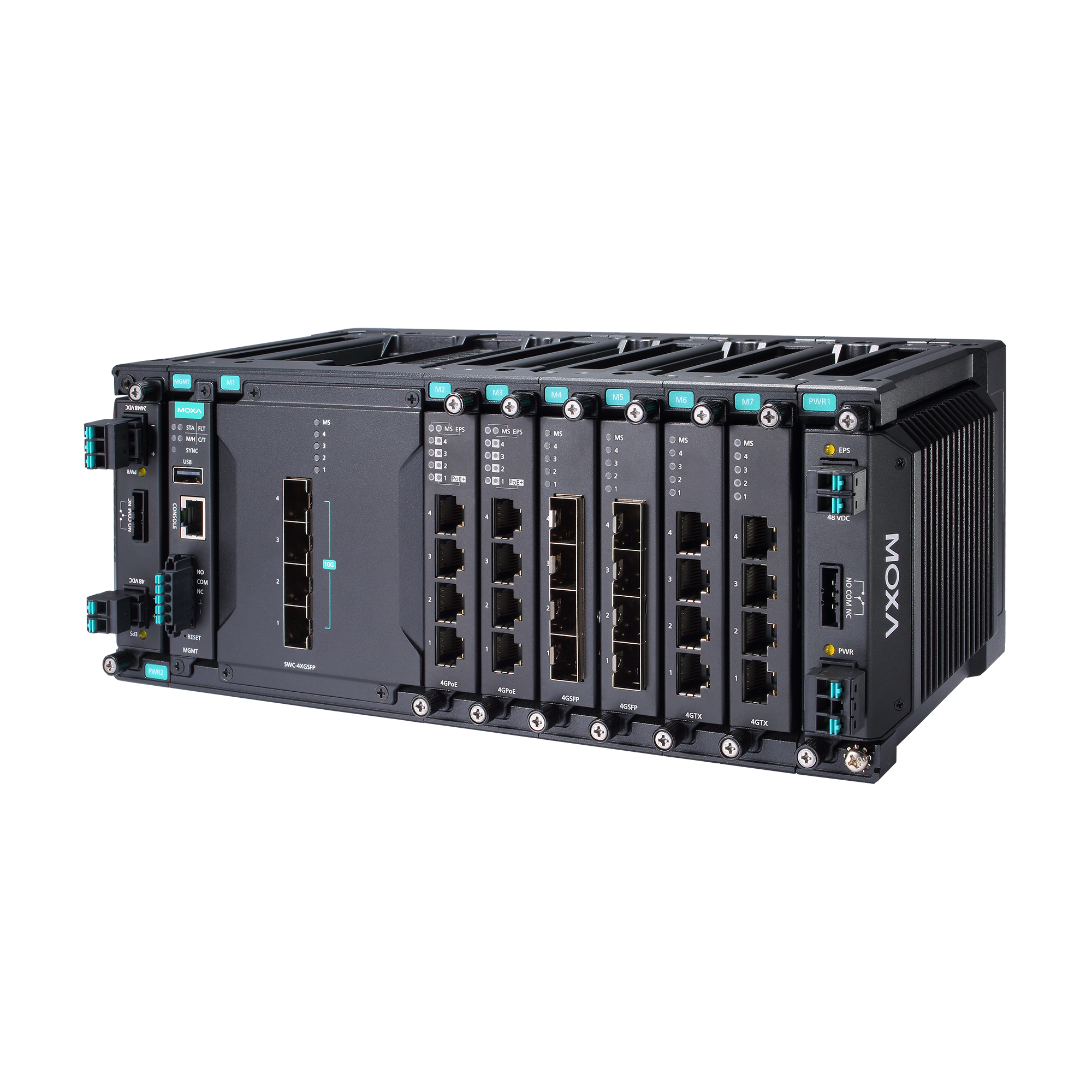

moxa-mds-g4028-4xgs-series-image-2-(1).jpg | Moxa

機能と特長

  • 汎用性を高めるマルチインターフェース型4ポートモジュール
  • 最大24個のギガビットイーサネットポートまたはSPFスロットならびに4つの組み込み10Gイーサネットポート
  • スイッチをシャットダウンすることなく、楽にモジュールを追加、交換するためのツールフリーのデザイン
  • 超小型サイズ、複数の取り付け方法により柔軟に設置可能
  • メンテナンスの労力を最小限に抑えるパッシブバックプレーン
  • 過酷な環境で使用できる堅牢なダイキャスト設計
  • 直感的なHTML-5ベースのウェブインターフェース

認証

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-nema-ts2-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

MDS-G4028-4XGSシリーズは、4つの10GbE + 24ギガビットポート、6つのインタフェースモジュール拡張スロット、2つの電源モジュールスロットをサポートし、さまざまなアプリケーションに十分な柔軟性を確保します。非常にコンパクトなMDS-G4028-4XGSシリーズは、進化するネットワーク要件を満たすように設計されており、設置やメンテナンスを簡単に行うことができます。ホットスワップ対応のモジュール設計により、スイッチをシャットダウンしたりネットワーク運用を中断することなく、簡単にモジュールを交換、追加することができます。

複数のイーサネットモジュール(RJ45およびSFP)と電源ユニット(24/48 VDCおよび110/220 VAC/VDC)は、より高い柔軟性と、さまざまな動作条件に対応し、イーサネットアグリゲーション/エッジスイッチとして機能するために必要な汎用性と帯域幅を備えた適応性の高いフルギガビットプラットフォームを提供します。MDS-G4028-4XGSシリーズは、狭小スペースにも収まるコンパクトなデザイン、複数の取り付け方法、便利な工具不要のモジュール取り付けを特長とし、専門的なエンジニアを必要とせずに多用途で簡単な導入を実現します。複数の業界認証と耐久性に優れた筐体により、MDS-G4028-4XGSシリーズは、変電所、採掘現場、ITS、石油/ガスアプリケーションなどの過酷で危険な環境下でも信頼性の高い動作を実現します。デュアルLV/HV電源モジュール対応により、高い信頼性と可用性のための冗長性を提供し、多様なアプリケーションの電源要件に対応する柔軟性も備えています。

さらに、MDS-G4028-4XGSシリーズは、HTML5ベースの使いやすいウェブインターフェースを備えており、さまざまなプラットフォームやブラウザで応答性に優れたスムーズなユーザーエクスペリエンスを提供します。



  • Pre-installed Modules

    4 embedded 10Gigabit ports

  • Module

    6 slots for optional 4-port FE/GE modules

  • Slot Combination

    See the LM-7000H module series datasheet for more information.

    Note: The required power module depends on the choice of LM-7000H module. Refer to the following power/module combination requirements.

    LM-7000H non-PoE modules:
    Any power module

    LM-7000H PoE modules:
    PWR-HV-P48-A, PWR-LV-P48-A only

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3z for 1000BaseX
    IEEE 802.3x for flow control
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1X for authentication

  • Management

    IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB

  • Filter

    GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier

  • Redundancy Protocols

    STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, Loop Protection, MSTP

  • Security

    Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy, Secure Boot, MAC Authentication Bypass, Access control list

  • Time Management

    SNTP, IEEE 1588v2 PTP (hardware-based), NTP Server/Client, NTP Authentication

  • Protocols

    IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog

  • MIB

    P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9

  • Power Substation

    MMS

  • MAC Table Size

    16 K

  • Max. No. of VLANs

    256

  • VLAN ID Range

    VID 1 to 4094

  • IGMP Groups

    1024

  • Priority Queues

    8

  • Packet Buffer Size

    12 Mbits

  • Console Port

    RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

  • USB Connector

    USB Type A

  • Digital Input Channels

    1 (On MGMT Module)

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • Alarm Contact Channels

    3 (On MGMT, PWR1, PWR2 Module)
    Relay output with current carrying capacity of 2 A @ 30 VDC

  • Input Voltage

    With PWR-HV-P48–A installed:
    110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC

    With PWR-LV-P48–A installed:
    24/48 VDC, PoE: 48 VDC

    With PWR-HV-NP installed
    110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz

    With PWR-LV-NP installed:
    24/48 VDC

  • Operating Voltage

    With PWR-HV-P48–A installed:
    88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC

    With PWR-LV-P48–A installed:
    18 to 72 VDC, PoE: 46 to 57 VDC

    With PWR-HV-NP installed:
    88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz

    With PWR-LV-NP installed:
    18 to 72 VDC

  • Input Current

    With PWR-HV-P48-A/PWR-HV-NP installed:
    Max. 0.11 A @ 110 VDC
    Max. 0.06 A @ 220 VDC
    Max. 0.29 A @ 110 VAC
    Max. 0.18 A @ 220 VAC

    With PWR-LV-P48-A/PWR-LV-NP installed:
    Max. 0.53 A @ 24 VDC
    Max. 0.28 A @ 48 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Max. PoE Power Output per Port

    36 W

  • Total PoE Power Budget

    Max. 360 W (with one power supply) for total PD consumption at 48 VDC input for PoE systems

    Max. 360 W (with one power supply) for total PD consumption at 53 to 57 VDC input for PoE+ systems

    Max. 720 W (with two power supplies) for total PD consumption at 48 VDC input for PoE systems

    Max. 720 W (with two power supplies) for total PD consumption at 53 to 57 VDC input for PoE+ systems

  • IP Rating

    IP40

  • Dimensions

    281 x 115 x 163.25 mm (11.06 x 4.53 x 6.43 in)
    296 x 115 x 163.25 mm (11.65 x 4.53 x 6.43 in) with dual PWR-HV-P48-A/PWR-LV-P48-A power modules installed

  • Weight

    3,790 g (8.36 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit), Rack mounting (with optional kit)

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 62368-1, IEC 62368-1, UL 62368-1, IEC 60950-1, UL 61010-2-201, EN 61010-2-201

  • EMC

    EN 55032/35, EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Railway

    EN 50121-4

  • Traffic Control

    NEMA TS2

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-31

  • Vibration

    IEC 60068-2-6

  • Power Substation

    IEC 61850-3, IEEE 1613

  • Time

    794,073 hrs

  • Standards

    Telcordia SR332
