ラックマウントスイッチ

Moxaの産業用ラックマウントスイッチは、24ポートから52ポートのルーティングおよびスイッチング機能、IEC 62443規格に基づくセキュリティ機能、およびミリセカンドレベルの高速マルチキャストトラフィック冗長性を備えたモジュール式による柔軟性を備え、都市、交通、製造、監視アプリケーションなどのIIoTインフラを強化します。

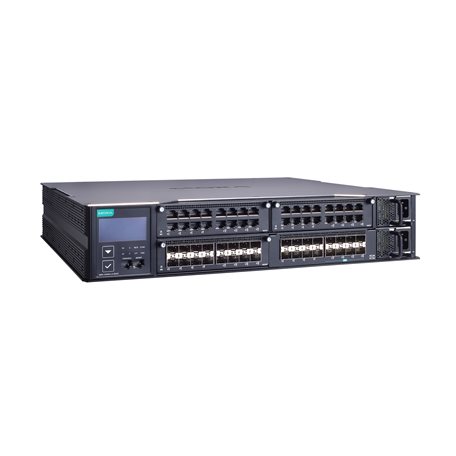

MRX-G4064-L3-8XGS
MRX-G4064シリーズ

Layer 3 modular managed Gigabit Ethernet switch with 3 slots for 16-port Gigabit Ethernet modules, 8 10GbE SFP+ slots, 2 isolated power supplies (90 to 264 VAC), -10 to 60°C operating temperature

Ethernet Interface
  • 1000/2500/10000BaseSFP Ports

    • 8
  • 1000BaseSFP Slots

    • 8
  • Out-of-band Management (OOBM)

    • 1 x 8-pin RJ45 1GbE Ethernet port (MGMT)
  • Module

    • There are 3 module slots on the switch. Users can select different types of modules to insert into the switch. The modules that can be selected include 16-port modules with 1000BaseT(X) or 1000BaseSFP interfaces.

      Refer to Expansion Modules in the Accessories section for a full list of supported interface modules.
  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for Authentication
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3x for Flow Control
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
      IEEE 802.3ae for 10 Gigabit Ethernet
      IEEE 802.3az for Energy-Efficient Ethernet
      ITU-T G.8032 Ethernet Ring Protection Switching
Ethernet Software Features
  • Management

    • IPv4
      Flow control
      Back Pressure Flow Control
      DHCP Client
      ARP
      RARP
      LLDP
      Linkup Delay
      SMTP
      SNMP Trap
      SNMP Inform
      SNMPv1/v2c/v3
      RMON
      TFTP
      SFTP
      HTTP
      HTTPS
      Telnet
      Syslog
      Private MIB
      Port Mirroring (SPAN, RSPAN)
  • Filter

    • GMRP
      GVRP
      GARP
      802.1Q
      IGMP Snooping v1/v2/v3
      IGMP Querier
  • Redundancy Protocols

    • STP
      RSTP
      Turbo Ring v2
      Ring Coupling
      Multiple Dual-Homing
      Link Aggregation
      Network Loop Protection
      MSTP
  • Routing Redundancy

    • VRRP
  • Security

    • Broadcast storm protection
      Rate Limit
      Access control list
      Static port lock
      Sticky MAC
      HTTPS/SSL
      SSH
      RADIUS
      TACACS+
      Login and password policy
      Secure Boot
  • Time Management

    • SNTP
      IEEE 1588v2 PTP (hardware-based)
      NTP Server/Client
      NTP Authentication
  • Protocols

    • TCP/IP
      UDP
      ICMP
      ARP
      RARP
      TFTP
      DNS
      NTP Client
      DHCP Client
      802.1X
      QoS
      HTTPS
      HTTP
      Telnet
      SMTP
      SNMPv1/v2c/v3
      IPv4
      RMON
      Syslog
  • Unicast Routing

    • OSPF
      Static Route
  • MIB

    • P-BRIDGE MIB
      Q-BRIDGE MIB
      IEEE8021-SPANNING-TREE-MIB
      IEEE8021-PAE-MIB
      IEEE8023-LAG-MIB
      LLDP-EXT-DOT1-MIB
      LLDP-EXT-DOT3-MIB
      SNMPv2-MIB
      RMON MIB Groups 1, 2, 3, 9
Switch Properties
  • MAC Table Size

    • 32 K
  • Max. No. of VLANs

    • 512
  • IGMP Groups

    • 1500
  • Jumbo Frame Size

    • 9.6 KB
  • Packet Buffer Size

    • 6 MB
  • Priority Queues

    • 8
  • VLAN ID Range

    • VID 1 to 4094
USB Interface
  • Storage Port

    • USB Type A
MicroSD Interface
  • Storage Port

    • microSD card
Serial Interface
  • Console Port

    • RS-232 (RJ45)
Input/Output Interface
  • Alarm Contact Channels

    • 1 relay output with current carrying capacity of 2 A @ 30 VDC
Power Parameters
  • Input Voltage

    • 100-240 VAC, 50-60 Hz or 230-240 VDC (for each power supply)
  • Operating Voltage

    • 90-264 VAC, 47-63 Hz or 180-300 VDC (for each power supply)
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
  • Input Current

    • Max. 1.236 A @ 110 VAC
      Max. 0.675 A @ 220 VAC
      Max. 0.74 A @ 180 VDC
      Max. 0.439 A @ 300 VDC
  • Power Consumption (Max.)

    • Max. 134.2 W @ 110 VAC
      Max. 132.3 W @ 220 VAC
      Max. 133.2 W @ 180 VDC
      Max. 131.8 W @ 300 VDC

      Note: These are the maximum power consumption ratings for the device with the maximum number of modules installed.
  • Power Module

    • 2 x slots (2 x PWR-300-HVA-IF power modules included)
Physical Characteristics
  • IP Rating

    • IP30
  • Dimensions

    • 440 x 88 x 420 mm (17.32 x 3.46 x 16.54 in)
  • Weight

    • 12 kg (26 lb)
  • Fan Module

    • 8 x slots (8 x XM-4000-FAN-R preinstalled)
  • Installation

    • Rack mounting
  • Interactive Interface

    • Onboard LCM display
      Push buttons for configuration
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (-14 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • UL 62368-1
      UL 61010-2-201
      IEC 62368-1
  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 Voltage Dips & Interruptions
  • Railway

    • EN 50121-4
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
  • Package Drop Test

    • ISTA 1A
  • Package Vibration Test

    • ISTA 1A
MTBF
  • Time

    • 1,337,959 hrs
  • Standards

    • Telcordia (Bellcore), GB
