16
Auto MDI/MDI-X connection
Full/Half duplex mode
Auto negotiation speed

2
Auto negotiation speed
Auto MDI/MDI-X connection
Full/Half duplex mode

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service

Quality of Service (QoS), Broadcast storm protection, Port break alarm

Relay output with current carrying capacity of 1 A @ 24 VDC

8 K

4 Mbits

Store and Forward

1 removable 6-contact terminal block(s)

0.277 A @ 24 VDC

12/24/48 VDC, Redundant dual inputs

9.6 to 60 VDC

Supported

Supported

Metal

IP30

58 x 135 x 95 mm (2.28 x 5.31 x 3.74 in)

683 g (1.51 lb)

DIN-rail mounting, Wall mounting (with optional kit)

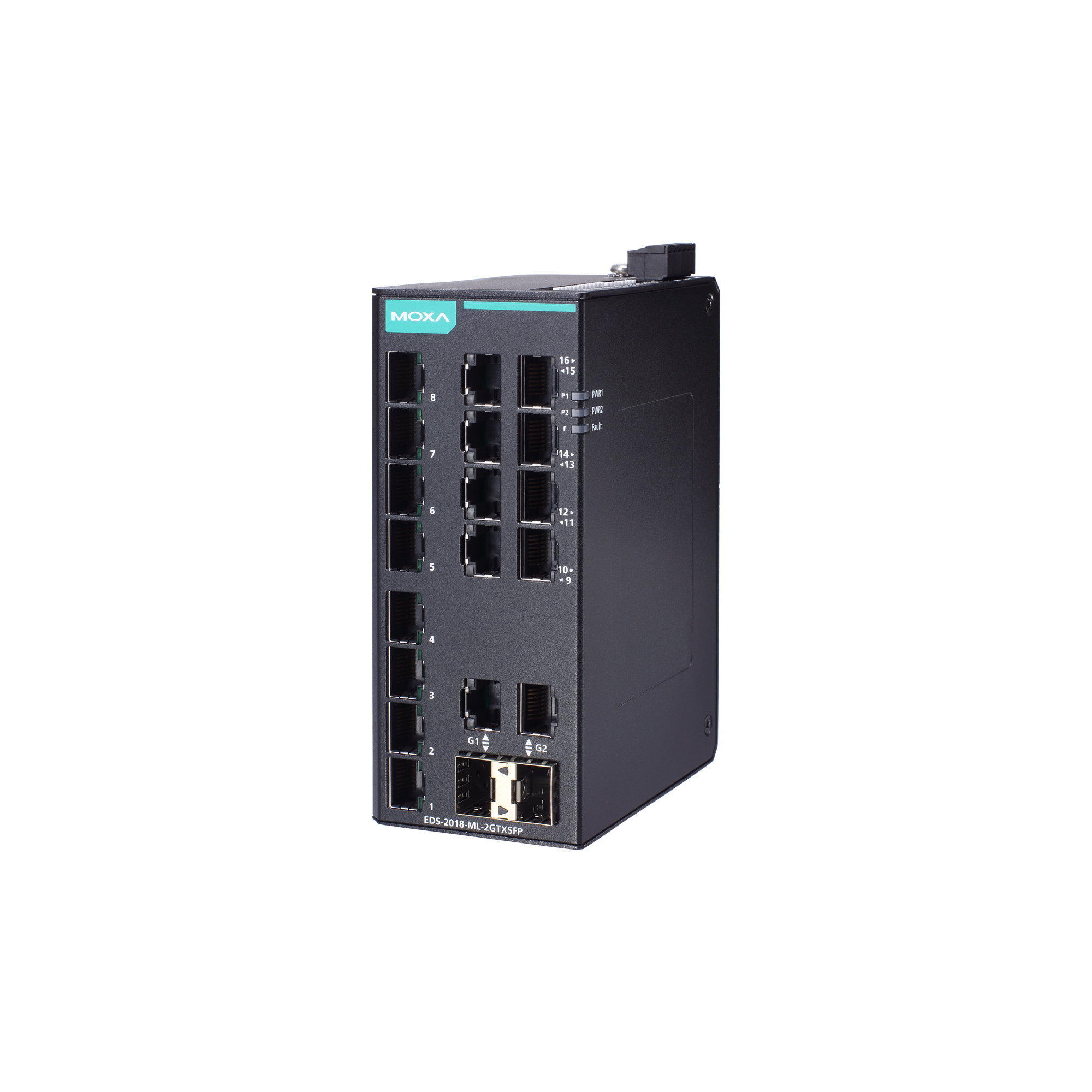

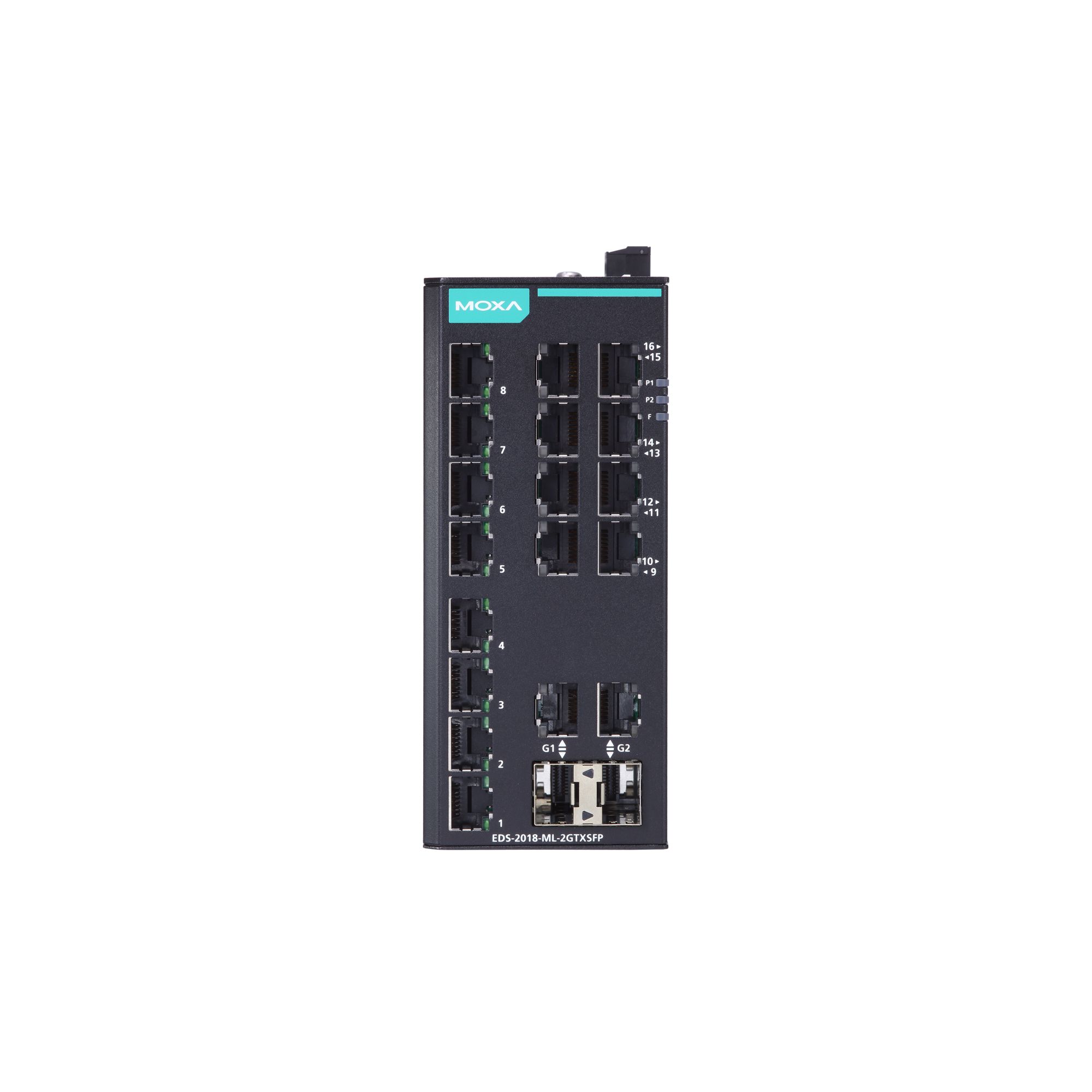

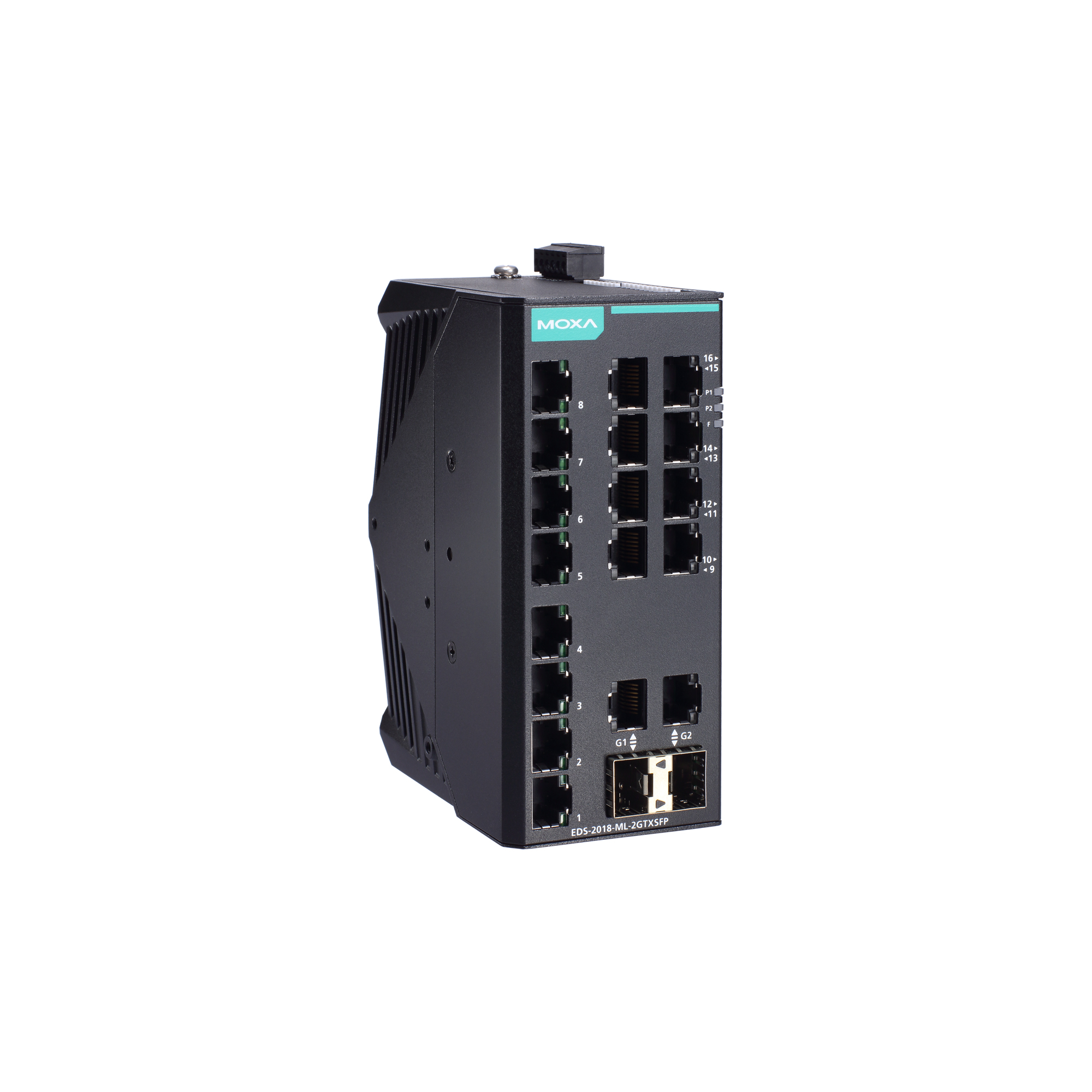

EDS-2018-ML-2GTXSFP: -10 to 60°C (14 to 140°F)
EDS-2018-ML-2GTXSFP-T: -40 to 75°C (-40 to 167°F)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

UL 61010-2-201, EN 62368-1(LVD)

EN 55032/35

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

EN 50121-4

NEMA TS2

IEC 60068-2-6

IEC 60068-2-27

IEC 60068-2-32

1,776,132 hrs

Telcordia (Bellcore), GB

5 years

See www.moxa.com/jp/warranty
