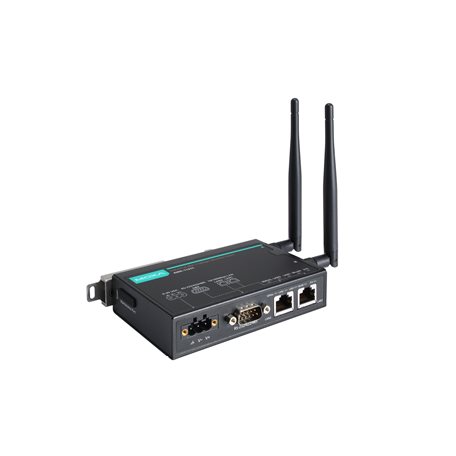

AWK-1137C-JP
AWK-1137Cシリーズ

802.11a/b/g/n wireless client, JP band, 0 to 60°C operating temperature

WLAN Interface
  • WLAN Standards

    • 802.11a/b/g/n
      802.11i Wireless Security
  • Modulation Type

    • DSSS
      OFDM
      MIMO-OFDM
  • Frequency Band for JP (20 MHz operating channels)

    • 2.412 to 2.484 GHz (14 channels)
      5.180 to 5.240 GHz (4 channels)
      5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
  • Wireless Security

    • WEP encryption (64-bit and 128-bit)
      WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
      WPA/WPA2-Personal
  • Transmission Rate

    • 802.11b: 1 to 11 Mbps
      802.11a/g: 6 to 54 Mbps
      802.11n: 6.5 to 300 Mbps
  • Transmitter Power for 802.11a

    • 23±1.5 dBm @ 6 to 24 Mbps
      21±1.5 dBm @ 36 Mbps
      20±1.5 dBm @ 48 Mbps
      18±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11n (5 GHz)

    • 23±1.5 dBm @ MCS0/8 20 MHz
      18±1.5 dBm @ MCS7/15 20 MHz
      23±1.5 dBm @ MCS0/8 40 MHz
      18±1.5 dBm @ MCS7/15 40 MHz
  • Transmitter Power for 802.11b

    • 26±1.5 dBm @ 1 Mbps
      26±1.5 dBm @ 2 Mbps
      26±1.5 dBm @ 5.5 Mbps
      25±1.5 dBm @ 11 Mbps
  • Transmitter Power for 802.11g

    • 23±1.5 dBm @ 6 to 24 Mbps
      22±1.5 dBm @ 36 Mbps
      20±1.5 dBm @ 48 Mbps
      19±1.5 dBm @ 54 Mbps
  • Transmitter Power for 802.11n (2.4 GHz)

    • 23±1.5 dBm @ MCS0/8 20 MHz
      17±1.5 dBm @ MCS7/15 20 MHz
      23±1.5 dBm @ MCS0/8 40 MHz
      17±1.5 dBm @ MCS7/15 40 MHz
  • Transmitter Power

    •
  • Transmitter Power

  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    • Typ. -90 @ 6 Mbps
      Typ. -88 @ 9 Mbps
      Typ. -87 @ 12 Mbps
      Typ. -85 @ 18 Mbps
      Typ. -81 @ 24 Mbps
      Typ. -78 @ 36 Mbps
      Typ. -74 @ 48 Mbps
      Typ. -73 @ 54 Mbps
      Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    • Typ. -69 dBm @ MCS7 20 MHz
      Typ. -70 dBm @ MCS15 20 MHz
      Typ. -64 dBm @ MCS7 40 MHz
      Typ. -66 dBm @ MCS15 40 MHz
      Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.
  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    • Typ. -89 dBm @ 1 Mbps
      Typ. -89 dBm @ 2 Mbps
      Typ. -89 dBm @ 5.5 Mbps
      Typ. -88 dBm @ 11 Mbps
  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    • Typ. -88 dBm @ 6 Mbps
      Typ. -88 dBm @ 9 Mbps
      Typ. -88 dBm @ 12 Mbps
      Typ. -87 dBm @ 18 Mbps
      Typ. -84 dBm @ 24 Mbps
      Typ. -81 dBm @ 36 Mbps
      Typ. -77 dBm @ 48 Mbps
      Typ. -75 dBm @ 54 Mbps
  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    • Typ. -70 dBm @ MCS7 20 MHz
      Typ. -70 dBm @ MCS15 20 MHz
      Typ. -64 dBm @ MCS7 40 MHz
      Typ. -65 dBm @ MCS15 40 MHz
  • WLAN Operation Mode

    • Client, Client-Router, Slave, Sniffer
  • Antenna

    • External, 2/2 dBi, Omni-directional
  • Antenna Connectors

    • 2 RP-SMA female
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.1Q for VLAN Tagging
Ethernet Software Features
  • Management

    • DHCP Server/Client, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Proxy ARP, VLAN, Wireless Search Utility, MXview, MXconfig
  • Routing

    • Port forwarding, Static Route, NAT
  • Security

    • HTTPS/SSL, RADIUS, SSH
  • Time Management

    • NTP Client, SNTP Client
Firewall
  • Filter

    • ICMP, MAC address, IP protocol, Port-based
Serial Interface
  • Connector

    • DB9 male
  • Serial Standards

    • RS-232, RS-422/485, RS-232/422/485
  • Operation Modes

    • Disabled, Real COM, RFC2217, TCP Client, TCP Server, UDP
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • None, RTS/CTS, XON/XOFF
  • Baudrate

    • 75 bps to 921.6 kbps
  • Serial Data Log

    • 256 KB
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DCD, GND, DTR, DSR
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
LED Interface
  • LED Indicators

    • SYS, LAN1, LAN2, WLAN, Serial
Input/Output Interface
  • Buttons

    • Reset button
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 77.1 x 115.5 x 26 mm (3.04 x 4.55 x 1.02 in)
  • Weight

    • 470 g (1.03 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Power Parameters
  • Input Voltage

    • 9 to 30 VDC
  • Power Connector

    • 1 removable 3-contact terminal block(s)
  • Power Consumption

    • 11.7 W (max.)
  • Reverse Polarity Protection

    • Supported
Environmental Limits
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 61000-6-2/-6-4, EN 55032/24
  • EMI

    • CISPR 22, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Radio

    • EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-1137C, ANATEL, MIC, NCC, SRRC, WPC, KC, RCM
  • Road Vehicles

    • E mark E1
  • Safety

    • EN 60950-1, UL 60950-1
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 1,125,942 hrs
  • Standards

    • Telcordia SR332
Warranty
