MGate MB3170/MB3270 系列

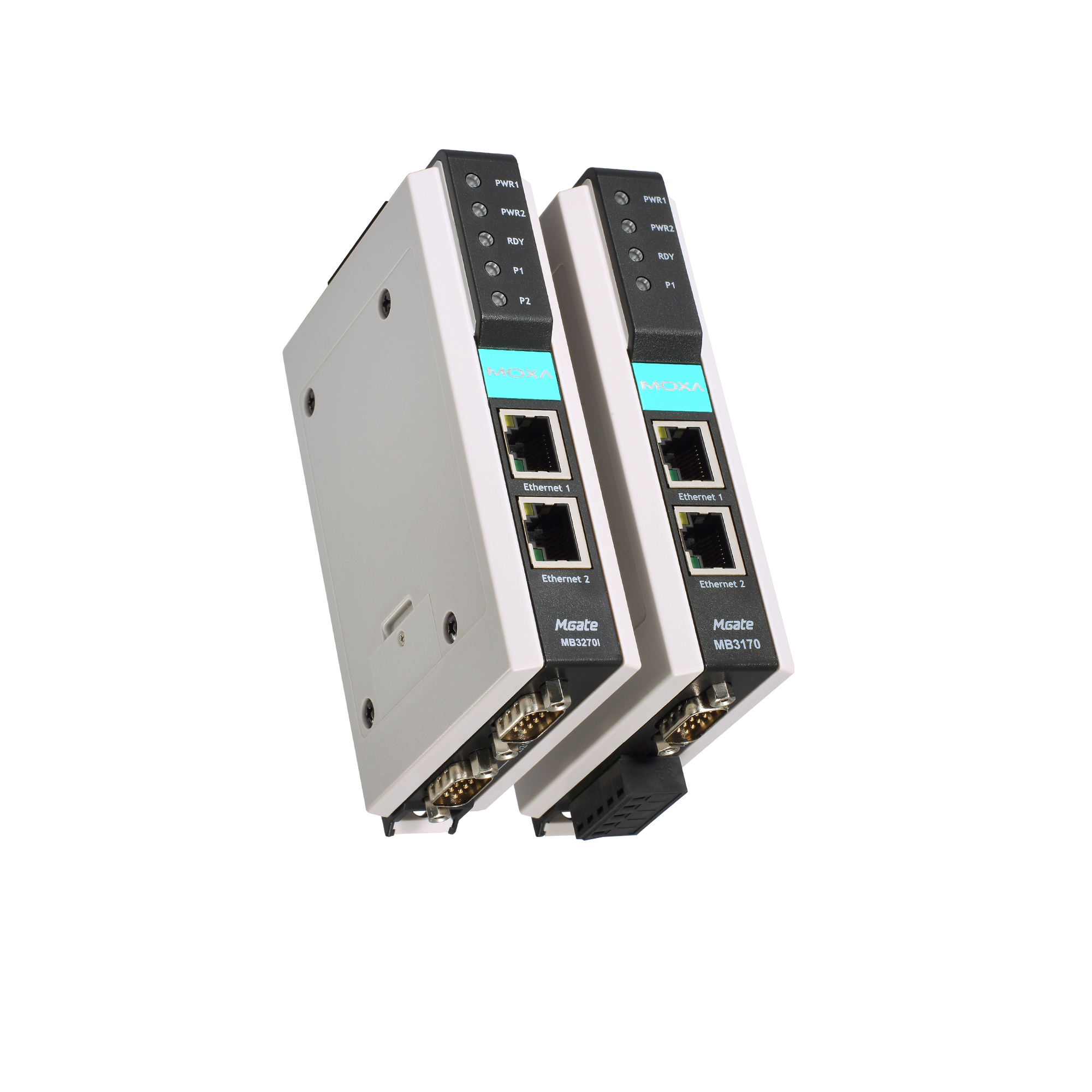

1 與 2 埠進階串列轉 Ethernet Modbus 閘道器

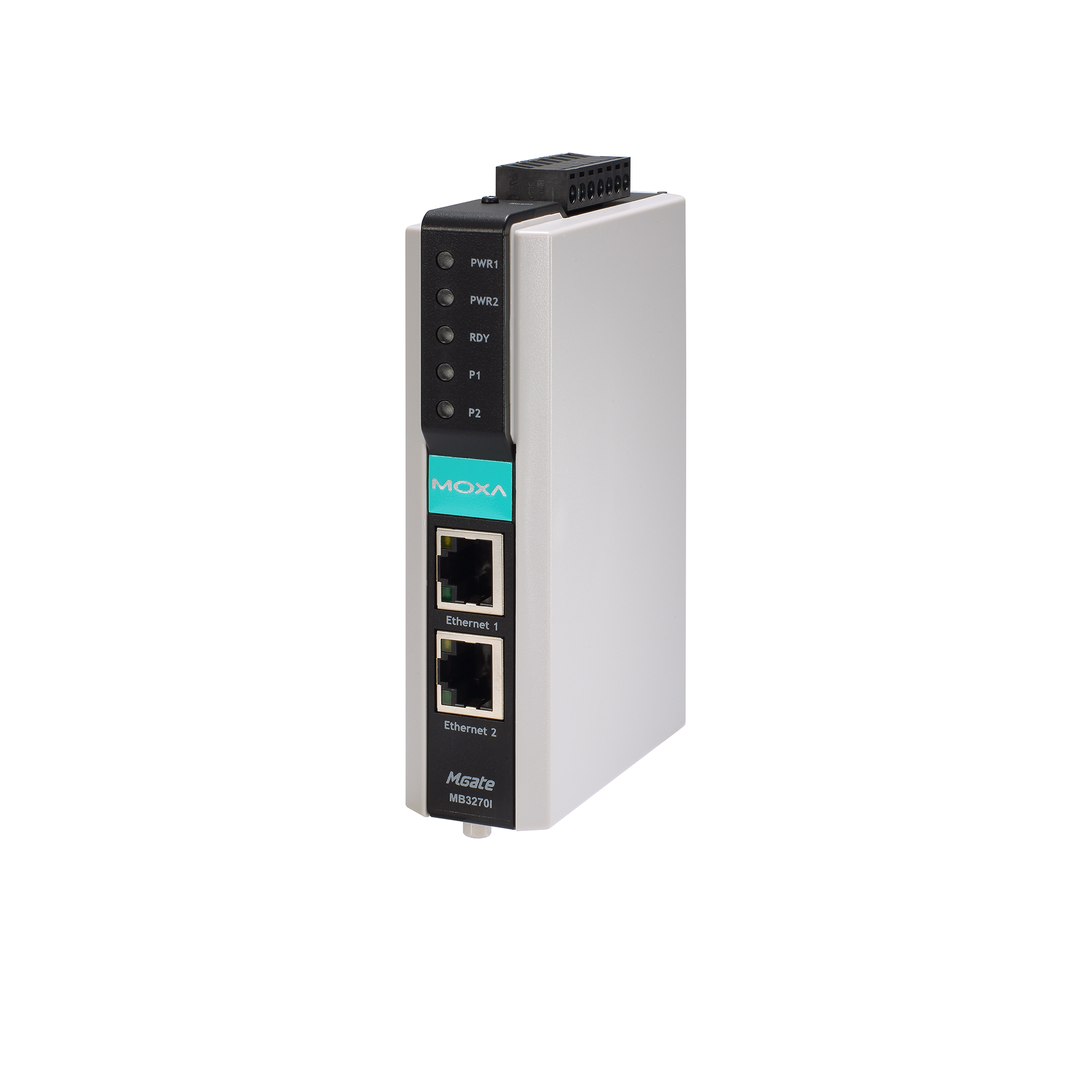

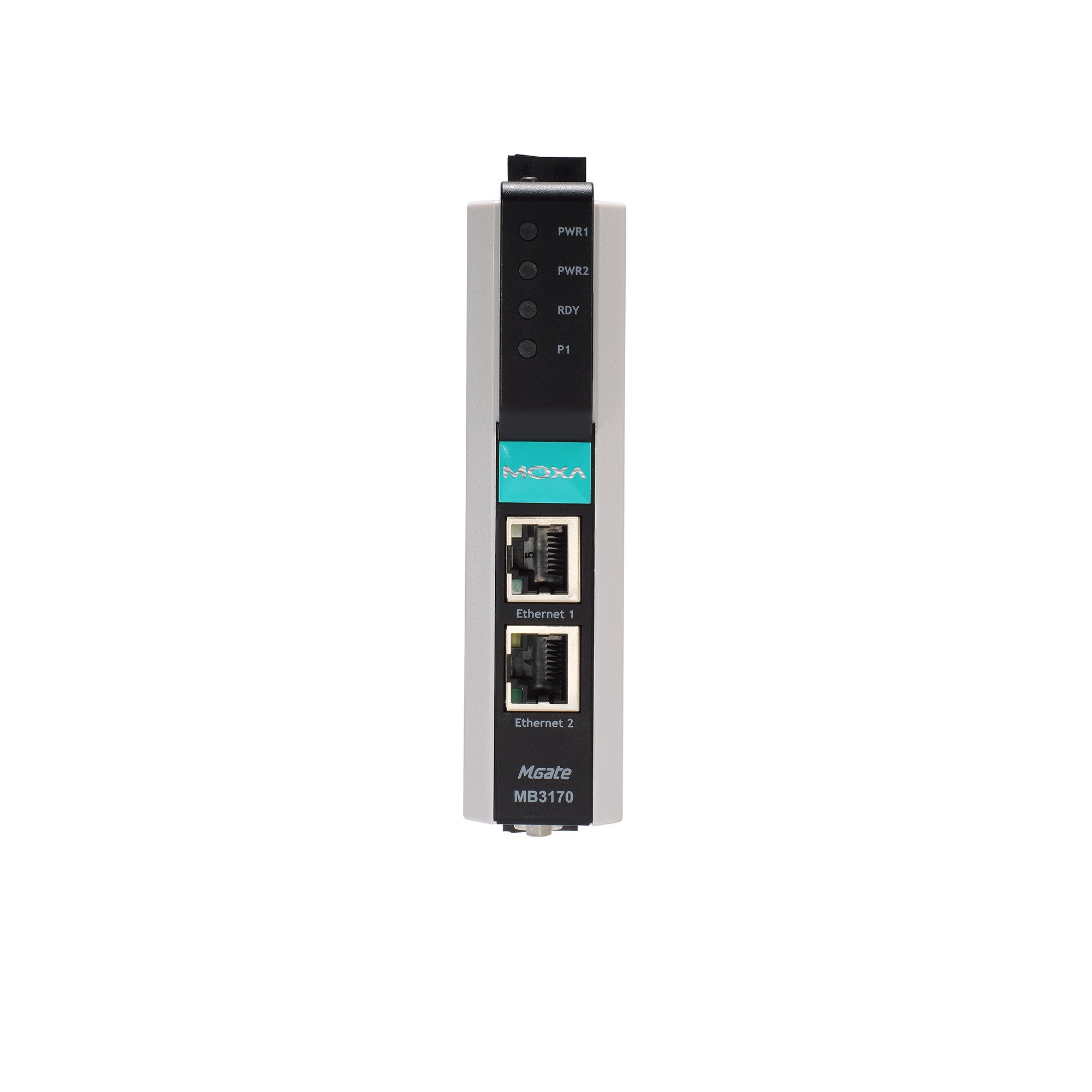

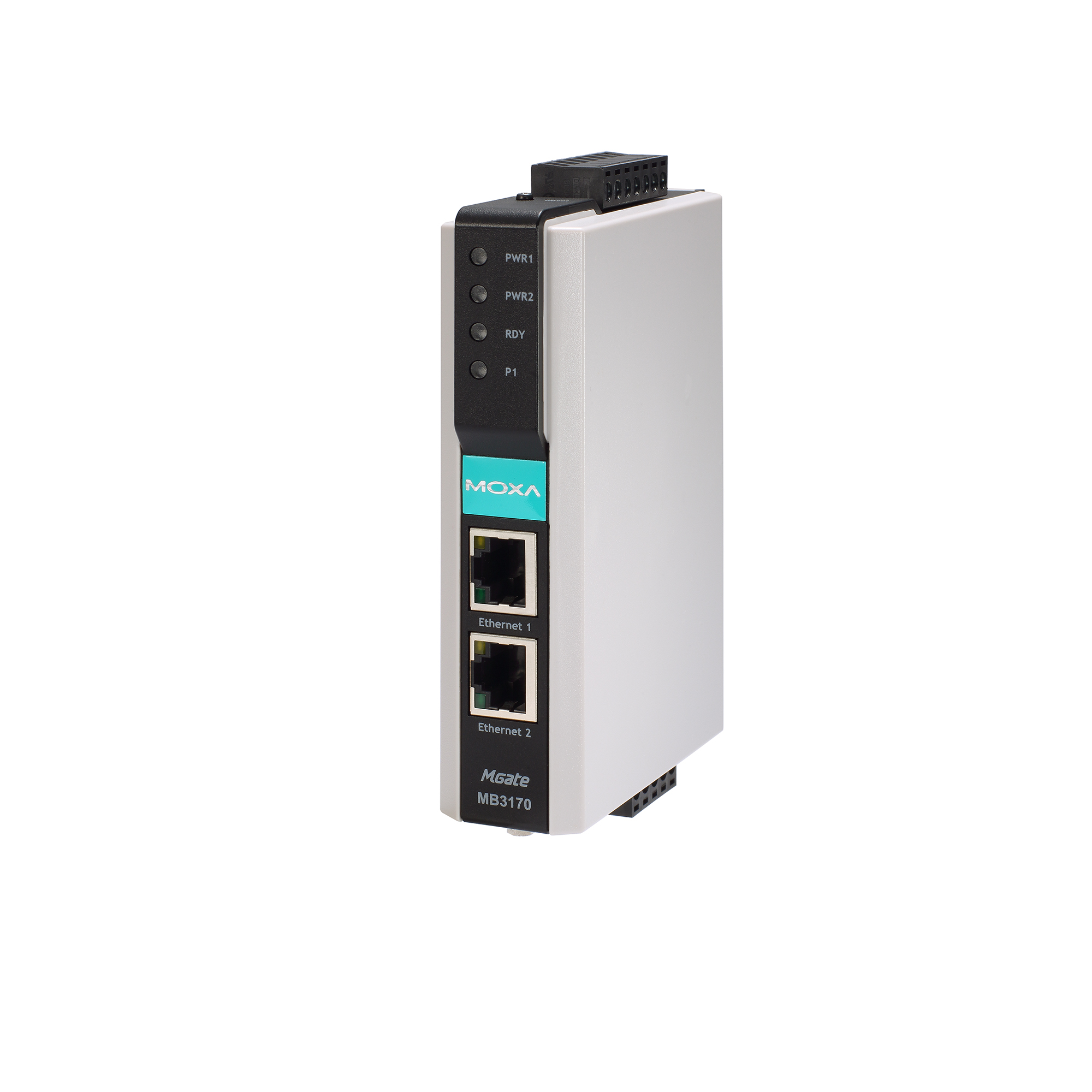

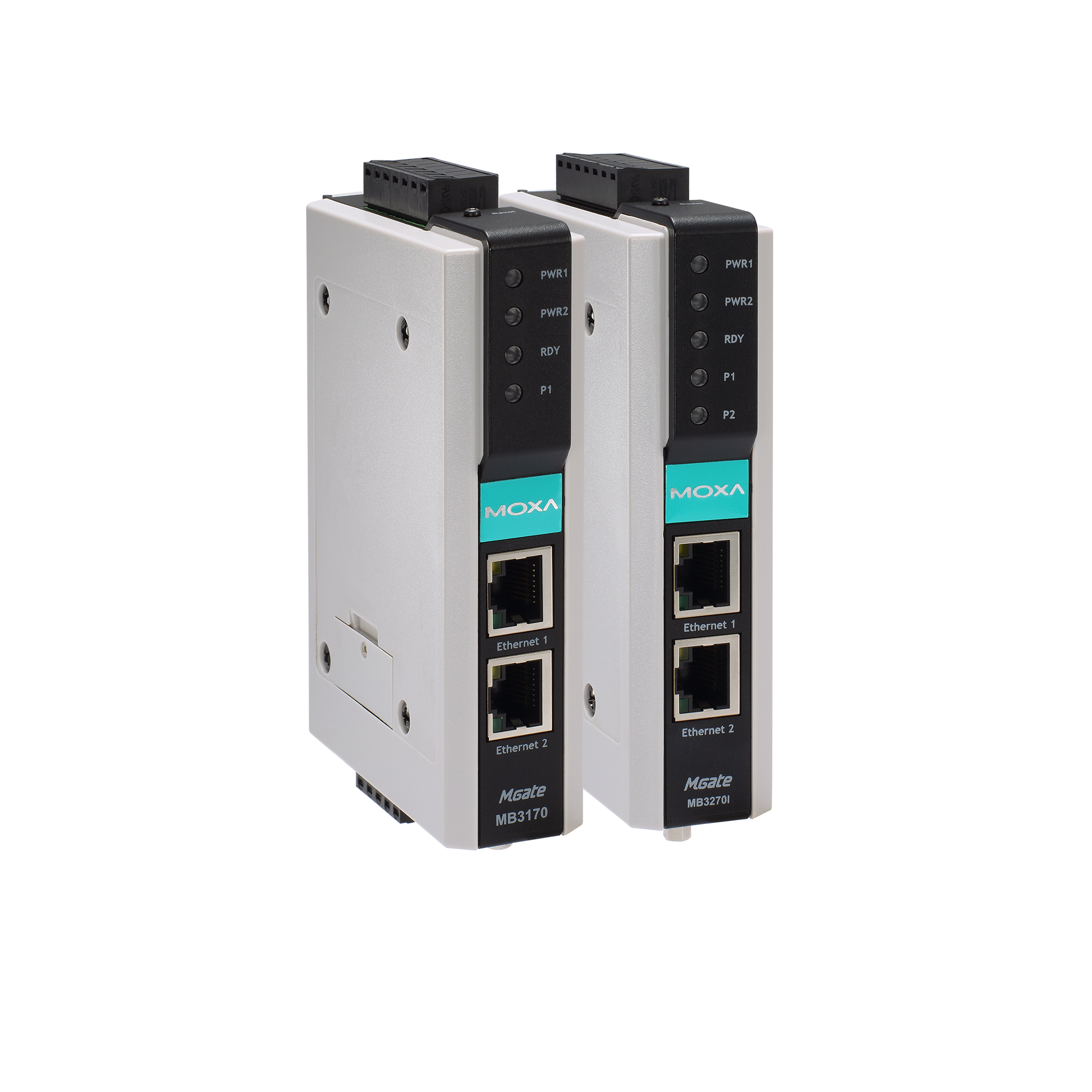

moxa-mgate-mb3170-mb3270-series-image-(1).jpg | Moxa
moxa-mgate-mb3170-mb3270-series-image-1-(1).jpg | Moxa
moxa-mgate-mb3170-mb3270-series-image-2-(1).jpg | Moxa
moxa-mgate-mb3170-mb3270-series-image-3-(1).jpg | Moxa
moxa-mgate-mb3170-mb3270-series-image-4-(1).jpg | Moxa

特色與優點

  • 支援自動裝置路由功能,可輕鬆配置
  • 支援按 TCP 埠或 IP 位址路由以進行彈性部署
  • 最多連接 32 個 Modbus TCP 伺服器
  • 最多連接 31 或 62 個 Modbus RTU/ASCII 從屬裝置
  • 可由最多 32 個 Modbus TCP 用戶端存取(為每個主控裝置保留 32 個 Modbus 要求)
  • 支援 Modbus 串列從屬裝置對 Modbus 串列從屬裝置的通訊
  • 輕鬆佈線的內建乙太網路串接
  • 10/100BaseTX (RJ45) 或 100BaseFX(單一模式或多重模式,使用 SC/ST 接頭)
  • 緊急要求通道可確保 QoS 控制
  • 內嵌 Modbus 流量監控可輕鬆排除故障
  • 內建 2 kV 光電隔離保護的串列埠(適用於「-I」型號)
  • 提供 -40 至 75°C 寬溫度操作型號可供選用
  • 支援備援 DC 電源輸入與 1 點 relay 輸出

認證

  • moxa-dnv-certification-logo-image.png | Moxa
  • moxa-iecex-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

MGate MB3170 與 MB3270 分別是 1 與 2 埠 Modbus 閘道器,可在 Modbus TCP、ASCII 與 RTU 通訊協定之間轉換。閘道器提供串列對乙太網路通訊與串列(主控裝置)對串列(從屬裝置)的通訊。此外,閘道器還支援同時連接串列和乙太網路主控裝置與串列 Modbus 裝置。MGate MB3170 與 MB3270 系列 閘道器最多可由 32 個 TCP 主控裝置/用戶端存取,或連接最多 32 個 TCP 從屬裝置/伺服器。透過串列埠路由可由 IP 位址、TCP 埠號或 ID 對應控制。按 TCP 埠與 IP 位址進行串列埠路由可允許存取最多 4 個 TCP 用戶端/主控裝置(MB3270 型號),而按 ID 對應進行路由則允許存取最多 32 個 TCP 用戶端/主控裝置 (MB3170/MB3270)。特色優先控制功能可允許緊急命令立即獲得回應。所有型號都堅固耐用,可安裝在 DIN 軌道上,並為串列訊號提供選配內建光學隔離。



整合 TCP 主控裝置而無需更改 Modbus RTU/ASCII 網路或軟體

MB3270 可以整合 Modbus TCP 與 Modbus RTU/ASCII,而無需修改現有 Modbus RTU/ASCII 架構或軟體。有了串列轉接器功能,串列主控裝置可以保持透過特別對應的串列埠直接存取串列從屬裝置。這可讓串列與 TCP 主控裝置同時存取串列從屬裝置。



乙太網路通訊專用光纖

MGate MB3170 系列包含 100BaseFX 光纖型號,支援多模式型號最遠達 4 公里的傳輸距離,以及單一模式型號最遠達 40 公里的傳輸距離。光纖非常適合用於工業應用,因為它不受電磁雜訊及干擾影響。對於可能出現高接地環路電壓的環境,光纖能提供最佳的隔離保護,而且由於不存在火花風險,光纖在危險環境中使用比銅線更安全。



輕鬆配置自動裝置路由功能

對於需要配置大量 Modbus 裝置的工程師而言,Moxa 的自動裝置路由功能可協助消除他們遇到的許多問題與不便。只需要按一下滑鼠鍵,即可設定從屬 ID 路由表並配置使 Modbus 閘道自動偵測來自監督控制與資料擷取 (SCADA) 系統的 Modbus 要求。自動裝置路由功能消除了手動建立從屬 ID 路由表的需要,為工程師節省了大量的時間與成本。



優先控制緊急命令

Modbus 網路提升了規模與複雜度,命令與回應之間的延遲時間成了主要的關切事項。MB3000 系列 的進階型號提供了緊急命令的優先控制功能,可讓使用者強制某些命令取得立即回應。根據您系統的需求,可透過不同的方法定義哪些命令可以獲得優先處理。



  • 10/100BaseT(X) Ports (RJ45 connector)

    2 (1 IP, Ethernet cascade)
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Optical Fiber

  • Industrial Protocols

    Modbus TCP Client (Master)
    Modbus TCP Server (Slave)

  • Configuration Options

    Web Console (HTTP/HTTPS)
    Device Search Utility (DSU)
    MGate Manager
    MCC Tool
    Telnet Console

  • Management

    ARP
    DHCP Client
    DNS
    HTTP
    HTTPS
    SMTP
    SNMP Trap
    SNMPv1/v2c/v3
    TCP/IP
    Telnet
    UDP
    NTP Client

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client

  • Authentication

    Local database

  • Encryption

    HTTPS
    AES-128
    AES-256
    SHA-256

  • Security Protocols

    SNMPv3
    HTTPS (TLS 1.2)

  • No. of Ports

    MGate MB3170 models: 1
    MGate MB3270 models: 2

  • Connector

    MGate MB3170 models: DB9 male for RS-232, Terminal block for RS-422/485
    MGate MB3270 models: 2 x DB9 male

  • Serial Standards

    RS-232/422/485 (software selectable)

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    None
    Even
    Odd
    Space
    Mark

  • Stop Bits

    1, 2

  • Flow Control

    DTR/DSR
    RTS Toggle (RS-232 only)
    RTS/CTS

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Isolation

    I models: 2 kV

  • RS-485 Data Direction Control

    ADDC (automatic data direction control)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Industrial Protocols

    Modbus RTU/ASCII Master
    Modbus RTU/ASCII Slave

  • Max. No. of Client Connections

    32

  • Max. No. of Server Connections

    32

  • Input Voltage

    12 to 48 VDC

  • Input Current

    MGate MB3170/MB3270: 435 mA @ 12 VDC
    MGate MB3170I/MB3170-S-SC/MB3170I-M-SC/MB3170I-S-SC: 555 mA @ 12 VDC
    MGate MB3270I/MB3170-M-SC/MB3170-M-ST: 510 mA @ 12 VDC

  • Power Connector

    7-pin terminal block

  • Contact Current Rating

    Resistive load: 1 A @ 30 VDC

  • Housing

    Plastic

  • IP Rating

    IP30

  • Dimensions (with ears)

    29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)

  • Dimensions (without ears)

    29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)

  • Weight

    MGate MB3170 models: 360 g (0.79 lb)
    MGate MB3270 models: 380 g (0.84 lb)

  • Operating Temperature

    Standard models: 0 to 60°C (32 to 140°F)
    Wide temp. models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Hazardous Locations

    ATEX
    Class I Division 2
    IECEx

  • Maritime

    DNV

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • Safety

    UL 60950-1
    IEC 60950-1
    EN 62368-1
    UL 508

  • Time

    MGate MB3170 models: 1,662,526 hrs
    MGate MB3170I models: 1,484,777 hrs
    MGate MB3270 models: 1,477,768 hrs
    MGate MB3270I models: 1,144,837 hrs
    MGate MB3170-M/-S models: 1,580,051 hrs
    MGate MB3170I-M/-S models: 1,385,414 hrs

  • Standards

    Telcordia SR332

軟體、韌體和驅動程式

篩選

名稱 類型 檔案校驗碼 版本 作業系統 發布日期
Software Package for MXview One Series (Windows version)
238.9 MB
軟體套件
SHA-512
v1.6.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2025年7月31日 2025年7月31日 版本說明
Software Package for MXview One Series (Linux version)
336.8 MB
軟體套件
SHA-512
v1.6.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2025年7月31日 2025年7月31日 版本說明
Firmware for MGate MB3270
947.8 KB
韌體
SHA-512
v4.7
2025年7月3日 2025年7月3日 版本說明
Firmware for MGate MB3170
932.7 KB
韌體
SHA-512
v4.7
2025年7月3日 2025年7月3日 版本說明
MXconfig Plugin
3.6 MB
軟體套件
SHA-512
v1.7
  • Windows 10
  • Windows 7
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
2024年11月11日 2024年11月11日 版本說明
MXconfig plugin (non-Java version)
1.8 MB
軟體套件
SHA-512
v1.6
  • Windows 10
  • Windows 7
  • Windows Server 2016
  • Windows Server 2019
2024年11月11日 2024年11月11日 版本說明
MXview One plugin (Windows)
18.7 MB
軟體套件
SHA-512
v1.6
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年11月11日 2024年11月11日 版本說明
Moxa CLI Configuration Tool for Linux
11.6 MB
工具程式
SHA-512
v1.4
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
  • Linux Kernel 5.x
  • Linux Kernel 6.x
2024年11月7日 2024年11月7日 版本說明
Moxa CLI Configuration Tool for Windows
2.0 MB
工具程式
SHA-512
v1.4
  • Windows
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年11月7日 2024年11月7日 版本說明
MXview One plugin (Linux)
18.7 MB
軟體套件
SHA-512
v1.6
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
2024年11月4日 2024年11月4日 版本說明
Device Search Utility
428.1 MB
工具程式
SHA-512
v3.0
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2024年10月31日 2024年10月31日 版本說明
MXview Plugin
41.7 MB
軟體套件
SHA-512
v1.6
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2024年10月4日 2024年10月4日 版本說明
MXview Plugin
40.8 MB
軟體套件
SHA-512
v1.5
  • Windows 10
  • Windows 7
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2024年6月12日 2024年6月12日 版本說明
MGate Manager Utility
5.4 MB
工具程式
SHA-512
v1.19
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年12月12日 2023年12月12日 版本說明
MGate Manager Utility
5.4 MB
工具程式
SHA-512
v1.18
  • Windows
  • Windows 10
  • Windows 11
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
2023年9月25日 2023年9月25日 版本說明
Device Search Utility
2.2 MB
工具程式
SHA-512
v2.7
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
2023年6月28日 2023年6月28日 版本說明
Moxa CLI Configuration Tool for Linux
8.1 MB
工具程式
SHA-512
v1.2
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
2021年3月31日 2021年3月31日 版本說明
Moxa CLI Configuration Tool for Windows
2.1 MB
工具程式
SHA-512
v1.2
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
2021年3月31日 2021年3月31日 版本說明

支援文件

名稱 類型 語言 版本 發布日期
Manual for MGate MB3000 Series
15.1 MB
使用者手冊 英文 v13.4 2025年7月30日 2025年7月30日
FOSS Statement for MGate Manager
214.8 KB
聲明書 英文 v1.0 2025年3月21日 2025年3月21日
FOSS Statement for Moxa CLI Configuration Tool
114.6 KB
聲明書 英文 v1.0 2024年12月10日 2024年12月10日
Moxa CLI Configuration Tool User Manual
1.0 MB
使用者手冊 英文 v2.4 2024年11月18日 2024年11月18日
Device Search Utility v3.x User Manual
6.6 MB
使用者手冊 英文 v1.0 2024年10月31日 2024年10月31日
FOSS Statement for MGate MB3000 Series and MGate EIP3000 Series
176.4 KB
聲明書 英文 v2.0 2024年10月28日 2024年10月28日
FOSS Statement for Device Search Utility
161.8 KB
聲明書 英文 v1.0 2024年6月24日 2024年6月24日
Tech Note: Configuring and Monitoring with MXview One/MXview and MXconfig (non-java and java) Plugins
2.1 MB
技術說明 英文 v1.0 2024年5月7日 2024年5月7日
MGate MB3170/MB3270 系列產品資料表
4.1 MB
產品資料表 中文 v2.1 2024年4月9日 2024年4月9日
Declaration of Conformity for MGate MB3170/MB3270/EIP3170/EIP3270/NPort IA5000 Series
313.9 KB
聲明書 英文 v1.0 2024年4月3日 2024年4月3日
Declaration of Conformity for MGate MB3170I/EIP3170I/MB3270I/EIP3270I/NPort IA5000I Series
308.9 KB
聲明書 英文 v1.0 2024年4月3日 2024年4月3日
QIG for MGate MB3170/MB3270 Series
1.0 MB
QIG 英文 v8.4 2023年5月19日 2023年5月19日
Tech Note: The Security Hardening Guide for MGate MB3000 Series
922.4 KB
技術說明 英文 v1.1 2022年1月12日 2022年1月12日
Moxa CLI Configuration Tool User's Manual
1.1 MB
使用者手冊 英文 v2.0 2019年3月5日 2019年3月5日
2D CAD for MGate MB3170
425.7 KB
2D CAD 英文 2015年1月7日 2015年1月7日
2D CAD for MGate MB3170-SC
241.1 KB
2D CAD 英文 2015年1月7日 2015年1月7日
2D CAD for MGate MB3170-ST
241.8 KB
2D CAD 英文 2015年1月7日 2015年1月7日
2D CAD for MGate MB3270 TOP
145.2 KB
2D CAD 英文 2015年1月7日 2015年1月7日
Tech Note: How to Configure KingSCADA with MGate MB3000
2.7 MB
技術說明 英文 v1.0 2015年1月6日 2015年1月6日
Tech Note: How to Configure WinCC with MGate MB3000
3.5 MB
技術說明 英文 v1.0 2015年1月6日 2015年1月6日

可供選擇的機型 (18)

顯示圖片

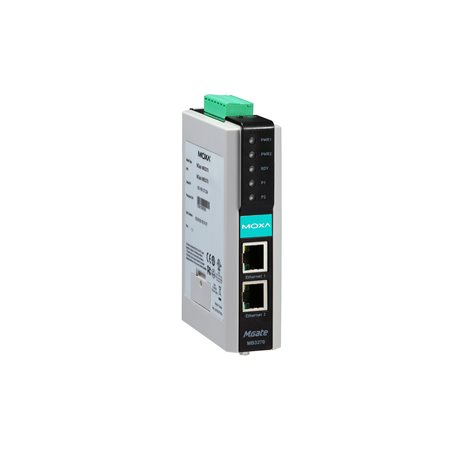

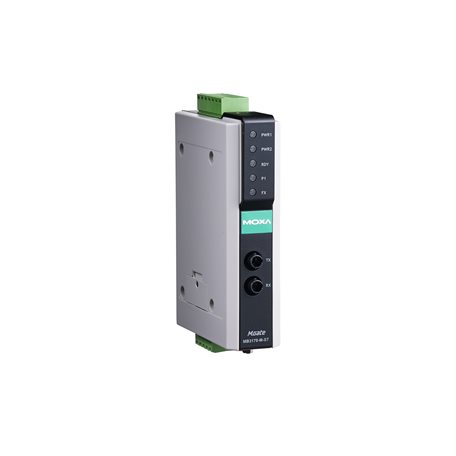

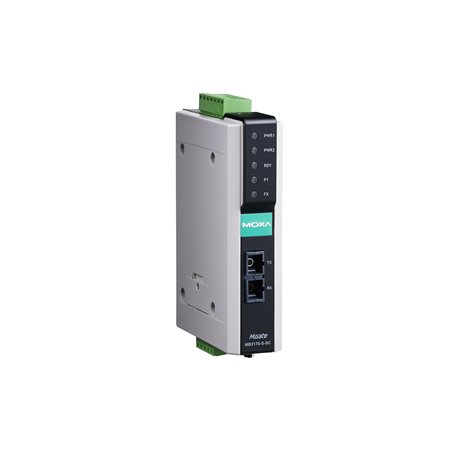

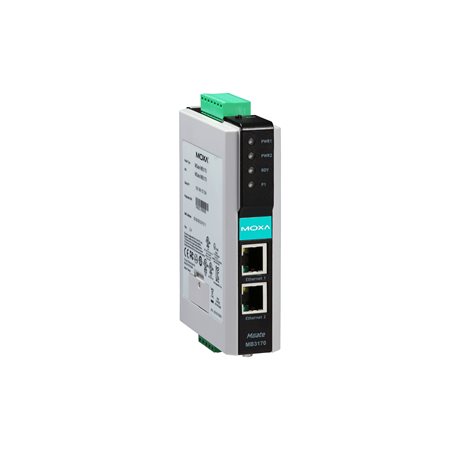

moxa-mgate-mb3270-image.jpg | MoxaMGate MB3270moxa-mgate-mb3170-m-st-t-image.jpg | MoxaMGate MB3170-M-ST-Tmoxa-mgate-mb3170i-image.jpg | MoxaMGate MB3170Imoxa-mgate-mb3170-m-sc-t-image.jpg | MoxaMGate MB3170-M-SC-T
Ethernet2 x RJ451 x Multi-Mode ST2 x RJ451 x Multi-Mode SC
No. of Serial Ports2111
Serial StandardsRS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
Serial Isolation2 kV
Operating Temp.0 to 60°C-40 to 75°C0 to 60°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-mgate-mb3170-image.jpg | MoxaMGate MB3170moxa-mgate-mb3170i-s-sc-image.jpg | MoxaMGate MB3170I-S-SCmoxa-mgate-mb3170i-t-image.jpg | MoxaMGate MB3170I-Tmoxa-mgate-mb3170i-s-sc-t-image.jpg | MoxaMGate MB3170I-S-SC-T
Ethernet2 x RJ451 x Single-Mode SC2 x RJ451 x Single-Mode SC
No. of Serial Ports1111
Serial StandardsRS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
Serial Isolation2 kV2 kV2 kV
Operating Temp.0 to 60°C0 to 60°C-40 to 75°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-mgate-mb3170-t-image.jpg | MoxaMGate MB3170-Tmoxa-mgate-mb3170i-m-sc-t-image.jpg | MoxaMGate MB3170I-M-SC-Tmoxa-mgate-mb3270i-image.jpg | MoxaMGate MB3270Imoxa-mgate-mb3170-s-sc-t-image.jpg | MoxaMGate MB3170-S-SC-T
Ethernet2 x RJ451 x Multi-mode SC2 x RJ451 x Single-Mode SC
No. of Serial Ports1121
Serial StandardsRS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
Serial Isolation2 kV2 kV
Operating Temp.-40 to 75°C-40 to 75°C0 to 60°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-mgate-mb3170-s-sc-image.jpg | MoxaMGate MB3170-S-SCmoxa-mgate-mb3170i-m-sc-image.jpg | MoxaMGate MB3170I-M-SCmoxa-mgate-mb3170-m-sc-image.jpg | MoxaMGate MB3170-M-SCmoxa-mgate-mb3270-t-image.jpg | MoxaMGate MB3270-T
Ethernet1 x Single-Mode SC1 x Multi-Mode SC1 x Multi-Mode SC2 x RJ45
No. of Serial Ports1112
Serial StandardsRS-232/422/485RS-232/422/485RS-232/422/485RS-232/422/485
Serial Isolation2 kV
Operating Temp.0 to 60°C0 to 60°C0 to 60°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-mgate-mb3270i-t-image.jpg | MoxaMGate MB3270I-Tmoxa-mgate-mb3170-m-st-image.jpg | MoxaMGate MB3170-M-ST
Ethernet2 x RJ451 x Multi-Mode ST
No. of Serial Ports21
Serial StandardsRS-232/422/485RS-232/422/485
Serial Isolation2 kV
Operating Temp.-40 to 75°C0 to 60°C
加入詢價查看詢價明細加入詢價查看詢價明細

product image

Buy online from distributors

已加入詢價列表
