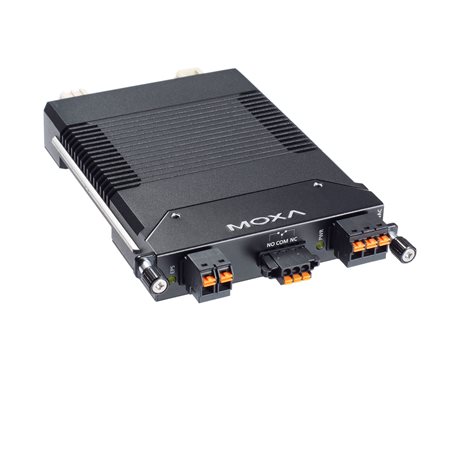

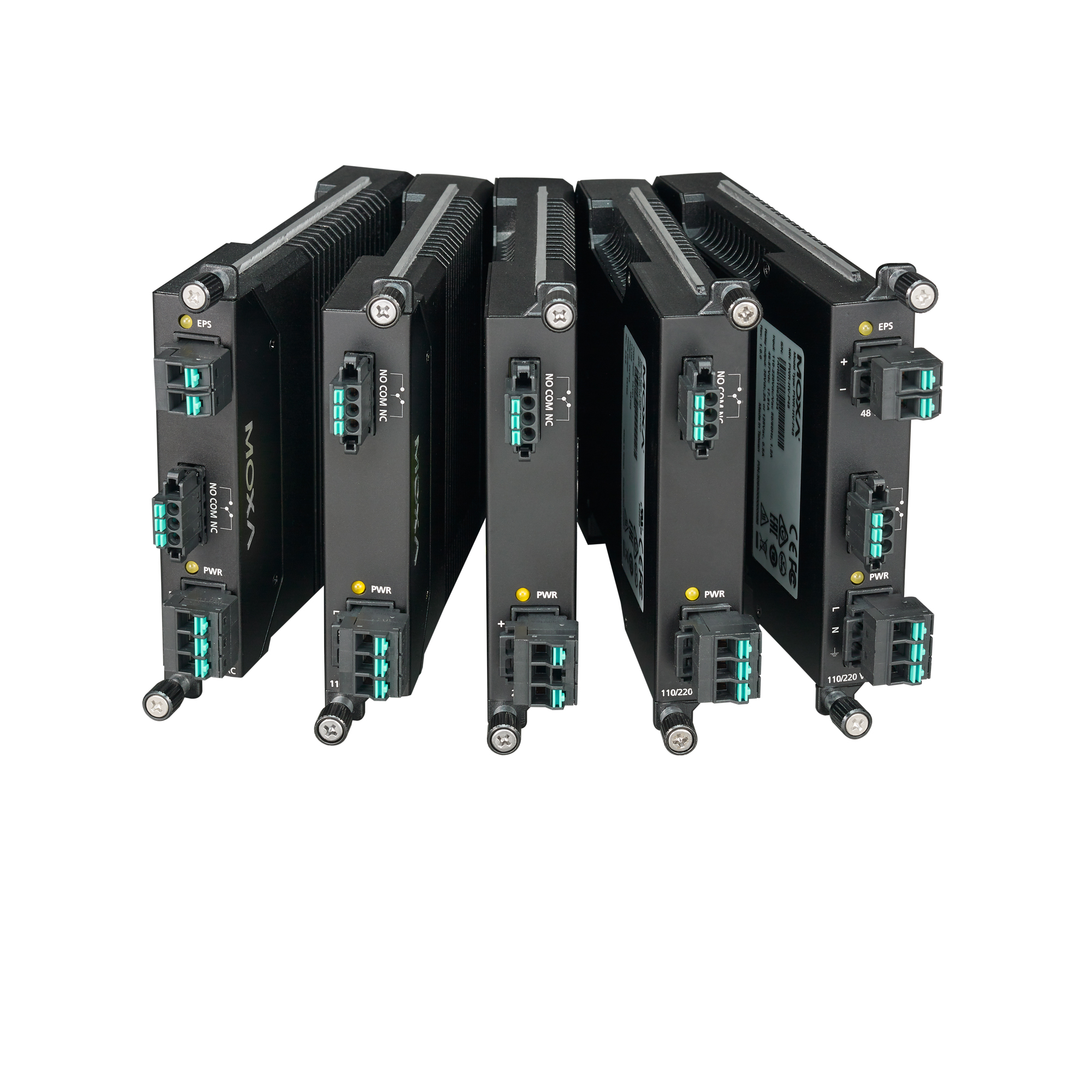

PWR 電源模組系列可熱插拔電源模組專為 PT-G7728/G7828 系列和 MDS-G4012/20/28 系列而設計。電源模組允許交換器使用 24/48 VDC 或 110/220 VAC/VDC。
儲存至 My Moxa
PWR-HV-P48:110/220 VDC/VAC for the switch system48 VDC for PoE systems(53 to 57 VDC is recommended for PoE+ devices)PWR-LV-P48:24/48 VDC for the switch system48 VDC for PoE systems(53 to 57 VDC is recommended for PoE+ devices)PWR-HV-NP:110/220 VDC/VAC for the switch systemPWR-LV-NP:24/48 VDC for the switch system
PWR-HV-P48:88 to 300 VDC, 90 to 264 VAC for the switch system46 to 57 VDC for PoE systemPWR-LV-P48:18 to 72 VDC for the switch system46 to 57 VDC for PoE systemsPWR-HV-NP:88 to 300 VDC, 90 to 264 VAC for the switch systemPWR-LV-NP:18 to 72 VDC for the switch system
Supported
1 relay output with current carrying capacity of 2 A @ 30 VDC or 0.5 A @ 125 VAC
PWR-HV-P48: 360 g (0.79 lb) PWR-LV-P48: 360 g (0.79 lb) PWR-HV-NP: 340 g (0.75 lb) PWR-LV-NP: 340 g (0.75 lb)
PWR-HV-P48: 1,401,713 hrs PWR-LV-P48: 1,372,587 hrs PWR-HV-NP: 2,556,214 hrs PWR-LV-NP: 2,710,293 hrs
Telcordia (Bellcore), GB
5 years
See www.moxa.com/tw/warranty
