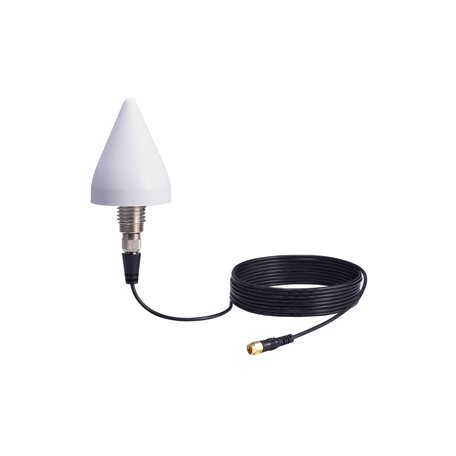

ANT-GNSS-CSM-02-3m
ANT-GNSS-CSM-02-3m シリーズ

2 dBic GNSS antenna with SMA (male) connector, 3 m cable

Antenna Characteristics
  • Frequency

    • 1561 to 1606 MHz
  • Antenna Type

    • Omni-directional
  • Typical Antenna Gain

    • Without low noise amplifier:
      -0.5 dBic @ 1561 MHz (BDS)
      2 dBic @ 1575.42 MHz (GPS)
      0.6 dBic @ 1598 to 1606 MHz (GLONASS)

      With low noise amplifier:
      35 dB
  • Connector

    • SMA (male)
  • Impedance

    • 50 ohms
  • Polarization

    • Vertical
      Linear
  • V.S.W.R.

    • < 2.0 (max.)
Physical Characteristics
  • Weight

    • Without cable and connector: 125 g (0.28 lb)
  • Dimensions

    • φ 60.5 (D) x 79.2 (H) mm
  • Radome Color

    • White
  • Radome Material

    • Plastic
  • Installation

    • Screw mount
  • Cable

    • RG-174
  • Cable Length

    • 3 m
  • IP Rating

    • IP67
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (30°C, non-condensing)
