Armベースコンピュータ

MoxaのArmベースのコンピューティングファミリーは、設置スペースが重要なオートメーションアプリケーション用に構築された、無線対応のコンパクトな産業用ファンレスコンピュータを提供します。これらのコンピュータは、長期間運用できるよう特別に設計されており、5年間のハードウェア保証とMoxa Industrial Linuxの10年間のサポートの両方が付いているため、遠隔監視やデータ収集アプリケーションに最適です。

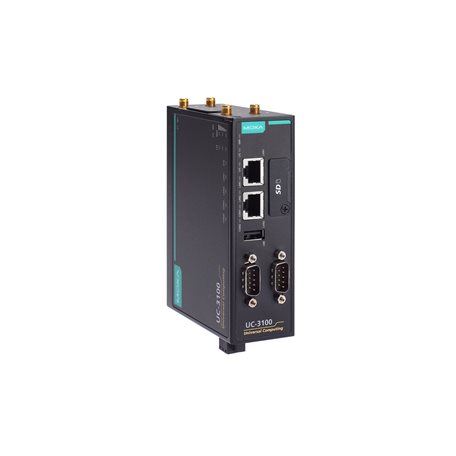

UC-3111-T-EU-LX
UC-3100シリーズ

Arm-based LTE Cat. 1 computer for EU, Wi-Fi a/b/g/n, 1 GHz CPU, 512 MB RAM, 4 GB eMMC, 2 Ethernet, 2 serial ports, 1 SD slot, 1 USB port and -30 to 70°C operating temperature

Computer
  • CPU

    • Armv7 Cortex-A8 1 GHz
  • DRAM

    • 512 MB DDR3
  • Supported OS

    • Linux Debian 9 kernel 4.4 (Moxa Industrial Linux)
  • Storage Pre-installed

    • 4 GB eMMC
  • Storage Slot

    • SD slots x 1 for UC-3111 Series only
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
  • Serial Ports

    • UC-3101/3121 Series: RS-232/422/485 ports x 1, software-selectable (DB9)
      UC-3111 Series: RS-232/422/485 ports x 2, software-selectable (DB9)
  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors
  • Cellular Antenna Connector

    • SMA x 2
  • Wi-Fi Antenna Connector

    • RP-SMA x 2 for UC-3111/UC-3121 Series only
  • SIM Format

    • Nano
  • Number of SIMs

    • 2
  • Console Port

    • RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
Ethernet Interface
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Cellular Interface
  • Band Options

    • US Models:
      LTE Bands: 2, 4, 5, 12 (700, 850, 1700/2100 (AWS) and 1900 MHz)
      UMTS Bands: 5, 4, 2 (WCDMA/FDD 850, 1700/2100 (AWS) and 1900 MHz)
      Carrier Approval: AT&T

      EU Models:
      LTE Bands: 1, 3, 8, 20, 28 (700, 800, 900, 1800, 2100 MHz) GSM Bands: 900 and 1800 MHz

      AU/NZ Models:
      LTE Bands 3, 5, 8, 28 (1800, 850, 900, 700 MHz) UMTS Bands 1, 5, 8 (WCDMA/FDD 2100, 850, 900 MHz)
WLAN Interface
  • WLAN Standards

    • 802.11a/b/g/n
  • Frequency Band

    • 2.4 GHz
      5 GHz
Serial Interface
  • Data Bits

    • 5, 6, 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
CAN Interface
  • Baudrate

    • 10 to 1000 kbps
  • Connector

    • DB9 male
  • Isolation

    • 2 kV (built-in)
  • Signals

    • CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
LED Indicators
  • System

    • Power x 1
  • CAN

    • 1 per port (Tx, Rx)
  • Serial

    • 1 per port (Tx, Rx)
  • LAN

    • 1 per port (10/100 Mbps)
  • Wireless Signal Strength

    • 3 for UC-3101 Series
      6 for UC-3111/UC-3121 Series
Power Parameters
  • Power Consumption

    • 6 W (max.)
  • Input Current

    • 500 mA @ 12 VDC
  • Input Voltage

    • 9 to 36 VDC
Physical Characteristics
  • Housing

    • Metal
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
  • Dimensions (without ears)

    • 128.5 x 89.1 x 26 mm (5.06 x 3.51 x 1.02 in) for UC-3101 Series
      128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in) for UC-3111/UC-3121 Series
  • Weight

    • Product only: 550 g (1.22 lb)
Environmental Limits
  • Operating Temperature

    • -30 to 70°C (-22 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Vibration

    • 5 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB devices attached)
  • Shock

    • IEC 60068-2-27
Standards and Certifications
  • EMC

    • EN 61000-6-2/-6-4
  • EMI

    • CISPR 22, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Cellular Standards

    • EN 301511
      EN 3011908-1
      MPE SAR
      EN 301489-1-1
      EN 301489-24
      AS/NZS S042
      AS/NZS 60950
  • Radio Frequency

    • PTCRB, FCC
  • Safety

    • UL 60950-1
  • WLAN Standards

    • EN 301489-1-17
      EN 300328
      EN 301893
  • Green Product

    • RoHS, CRoHS, WEEE
  • Hazardous Locations

    • Class I Division 2, IECEx, ATEX
MTBF
  • Time

    • 600,447 hrs
Warranty
