プログラミング可能なIIoTゲートウェイ

Moxaの先進的なIIoTゲートウェイは、過酷な動作環境にある分散型サイトおよび無人化サイト向けに設計されています。Azureなどの様々なクラウドアプリケーションとのシームレスな統合を実現し、産業用デバイスからのデータ収集と分析を容易にします。このIIoTゲートウェイはプログラミング可能で、さまざまな産業用アプリケーションの特定のニーズに適合する多用途のカスタマイズソリューションを実現します。

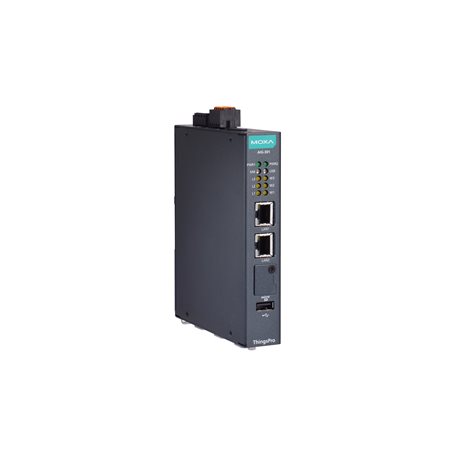

AIG-301-T-AZU-LX
AIG-301シリーズ

2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, -40 to 70°C operating temperature

Computer

  • CPU

    • Armv7 Cortex-A7 dual-core 1 GHz

  • DRAM

    • 2 GB DDR3L

  • Storage Pre-installed

    • 16 GB eMMC

  • Pre-installed OS

    • Moxa Industrial Linux (Debian 9, Kernel 4.4)

  • No. of Tags Supported

    • 2048
Computer Interface

  • TPM

    • TPM v2.0

  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors

  • Cellular Antenna Connector

    • SMA x 2
      (excluding AIG-301-AZU-LX/T-AZU-LX models)

  • GPS Antenna Connector

    • SMA x 1 (excluding AIG-301-AZU-LX/T-AZU-LX models)

  • Expansion Slots

    • AIG-301-CN-AZU-LX/T-CN-AZU-LX: mPCIe slot x 2
      All Other Models: mPCIe slot x 1

  • Buttons

    • Reset button
      Reset to factory default

  • Digital Input

    • DIs x 4

  • Digital Output

    • DOs x 4

  • Number of SIMs

    • 2

  • SIM Format

    • Nano
      (excluding AIG-301-AZU-LX/T-AZU-LX models)
Ethernet Interface

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2
Ethernet Software Features

  • Industrial Protocols

    • Modbus TCP Client (Master)
      Generic MQTT
      Azure IoT Device
      AWS IoT Core
      Azure IoT Edge
      OPC UA Server
      Sparkplug B Client

  • Configuration Options

    • Web Console (HTTP/HTTPS)
      ThingsPro Proxy Utility

  • Time Management

    • NTP Server/Client
      GPS
Serial Interface

  • Console Port

    • 1 x 4-pin header

  • No. of Ports

    • 2

  • Connector

    • DB9 male

  • Baudrate

    • 300 bps to 921.6 kbps

  • Data Bits

    • 7, 8

  • Flow Control

    • ADDC (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 2
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features

  • Industrial Protocols

    • Modbus RTU/ASCII Master
CAN Interface

  • No. of Ports

    • 1

  • Connector

    • DB9 male

  • Baudrate

    • 10 to 1000 kbps

  • Industrial Protocols

    • CAN 2.0A
      CAN 2.0B

  • Signals

    • CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND

  • Isolation

    • 2 kV (built-in)
Digital Inputs

  • Connector

    • Spring-type Euroblock terminal

  • Sensor Type

    • Wet contact (NPN)
      Dry contact

  • Dry Contact

    • Off: open
      On: short to GND

  • Wet Contact (DI to COM)

    • On: 10 to 30 VDC
      Off: 0 to 3 VDC

  • Isolation

    • 3K VDC
Digital Outputs

  • Connector

    • Spring-type Euroblock terminal

  • Current Rating

    • 200 mA per channel

  • I/O Type

    • Sink

  • Voltage

    • 24 VDC
      nominal, open collector to 30 VDC
Cellular Interface

  • Cellular Standards

    • LTE Cat. 4

  • Band Options (US)

    • LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 13
      (700 MHz) / LTE Band 17 (700 MHz)
      UMTS/HSPA 850 MHz / 1900 MHz
      Carrier Approval: Verizon, AT&T

  • Band Options (EU)

    • LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 7
      (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz)
      UMTS/HSPA 850 MHz / 900 MHz / 1900 MHz / 2100 MHz

  • Band Option (APAC)

    • LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 7
      (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz)
      UMTS/HSPA 850 MHz / 900 MHz / 1900 MHz / 2100 MHz
GPS Interface

  • Receiver Types

    • GPS/GLONASS/Galileo
      State-of-the-art GNSS solution

  • Accuracy

    • Position: 2.0 m @CEP50

  • Acquisition

    • Aided starts: 1.1 sec
      Cold starts: 29.94 sec

  • Sensitivity

    • Cold starts: -145 dBm
      Tracking: -160 dBm

  • Time Pulse

    • 0.25 Hz to 10 MHz
LED Indicators

  • System

    • Power x 2
      User x 1
      SIM card indicator x 1

  • LAN

    • 2 per port (10/100/1000 Mbps)

  • Wireless Signal Strength

    • Cellular/Wi-Fi x 6
Azure IoT Edge

  • Versions Supported

    • v1.4.10

  • Authentication Methods

    • Manual / Connection String
      DPS / TPM
      DPS / Symmetric Encryption
      DPS / X.509 Certificate

  • Azure Direct Methods

    • Reboot
      Software Upgrade
      Remote API Invocation

  • Azure Module Twin

    • Device Configuration

  • Moxa Functions

    • Custom Payload
      Message Group
Sparkplug B Client

  • Versions Supported

    • v2.2

  • Node Commands (NCMD)

    • Next Broker
      Reboot
      Rebirth

  • Moxa Functions

    • Store and Forward
      Custom Payload
OPC UA Server

  • No. of Client Connections

    • 10

  • Security

    • Sign and encrypt with policies Basic128Rsa15, Basic256, and Basic256Sha256

  • User Authentication and Authorization

    • Username/password

  • Supported Profiles

    • OPC UA v1.02

  • No. of Supported Tags

    • 1024
Generic MQTT Client

  • Versions Supported

    • v3.1.1
      v3.1

  • QoS Levels

    • 0, 1, 2

  • Authentication Methods

    • Username and password

  • Secure Transmission

    • TLS 1.0
      TLS 1.1
      TLS 1.2

  • Native Capabilities

    • Keep Alive
      Retain Message
      Clean Session
      Will and Testament

  • Moxa Functions

    • Store and Forward
      Custom Payload
      Remote API Invocation
Azure IoT Device

  • Connection Protocols Supported

    • MQTT
      MQTT over WebSockets
      AMQP
      AMQP over WebSockets

  • Authentication Methods

    • Symmetric Key
      X.509 Certificate

  • Azure Direct Methods

    • Reboot
      Software Upgrade
      Remote API Invocation
AWS IoT Core

  • QoS Levels

    • 0,1

  • Authentication Methods

    • X.509 Certificate
      Private Key
      Trusted Root CA

  • Native Capabilities

    • Keep Alive

  • Moxa Functions

    • Store and Forward
      Custom Payload

  • Commands Invokable Via Jobs

    • Reboot
      Software Upgrade
      Remote API Invocation
Modbus RTU/ASCII

  • Mode

    • Master

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    • 256 per port

  • Max. No of Connected Devices

    • 62
Modbus TCP

  • Mode

    • Client (Master)

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Server Connections

    • 64

  • Max. No. of Commands

    • 2048
Power Parameters

  • No. of Power Inputs

    • Redundant dual inputs

  • Input Voltage

    • 12 to 48 VDC

  • Power Connector

    • 4-pin terminal block

  • Power Consumption

    • AIG-301-AZU-LX/T-AZU-LX: 4.8 W
      AIG-301-CN-AZU-LX/T-CN-AZU-LX: 6.0 W
      All Other Models: 8.4 W

  • Input Current

    • AIG-301-AZU-LX/T-AZU-LX: 0.4 A @ 12 VDC
      AIG-301-CN-AZU-LX/T-CN-AZU-LX: 0.5 A @ 12 VDC
      All Other Models: 0.7 A @ 12 VDC
Reliability

  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
Physical Characteristics

  • Housing

    • Metal
      SECC

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)

  • IP Rating

    • IP30

  • Weight

    • AIG-301-AZU-LX/T-AZU-LX: 560 g (1.23 lb)
      AIG-301-CN-AZU-LX/T-CN-AZU-LX: 745 g (1.64 lb)
      All Other Models: 750 g (1.65 lb)

  • Dimensions

    • AIG-301-AZU-LX/T-AZU-LX: 141.5 x 120 x 27 mm (5.7 x 4.72 x 1.06 in)
      All Other Models: 141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in)
Environmental Limits

  • Operating Temperature

    • Standard Temp. Models:
      AIG-301-US-AZU-LX, AIG-301-EU-AZU-LX, AIG-301-APAZULX, AIG-301-CN-AZU-LX: -20 to 70°C (-4 to 158°F)
      AIG-301-AZU-LX: -20 to 85°C (-4 to 185°F)
      Wide Temp. Models:
      AIG-301-T-US-AZU-LX, AIG-301-T-EU-AZU-LX, AIG- 301-TAPAZU-LX, AIG-301-T-CN-AZU-LX: -40 to 70°C (-40 to 158°F))
      AIG-301-T-AZU-LX: –40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Shock

    • IEC 60068-2-27

  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5 to 500 Hz, 1 hr per axis (without USB devices attached)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Safety

    • UL 62368-1
      EN 62368-1

  • Carrier Approvals

    • AT&T
      Verizon
      NCC

  • Green Product

    • RoHS, CRoHS, WEEE

  • Hazardous Locations

    • Class I Division 2, ATEX
MTBF

  • Time

    • AIG-301-AZU-LX/T-AZU-LX: 794,092 hrs
      AIG-301-US-AZU-LX/T-US-AZU-LX, AIG-301-EU-AZU-LX/T-EU-AZU-LX, AIG-301-AP-AZU-LX/T-AP-AZU-LX: 683,818 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
