x86 コンピュータ

当社の産業用グレードのファンレスx86コンピュータは、厳しいテストに合格し、厳しい産業規格に完全準拠しています。そのため、過酷な環境でも長期間にわたり信頼性の高い動作を維持することができ、重工業、変電所、ユーティリティ、輸送、石油およびガス、海上用のアプリケーションに最適です。

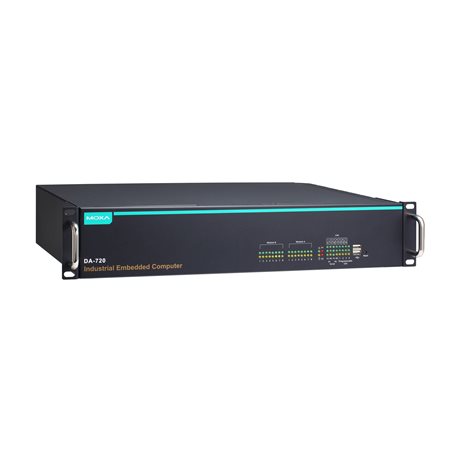

DA-720-C5-DPP-LX
DA-720シリーズ

Rackmount computer with Core i5-6300U, 2.4 GHz, dual-core CPU, with 8 GB mSATA, 4G RAM and Linux Debian 8 64-bit, 14 Gigabit Ethernet ports, 2 isolated RS-232/422/485 ports, 2 PCIe expansion slots, VGA x 1, DVI-D x 1, USB x 4, IEC 61850-3 compliant, -25 to 55°C operating temperature

Computer
  • Graphics Controller

    • Intel® HD Graphics 520
  • System Memory Pre-installed

    • DA-720 LX Series: 4 GB DDR4
      4 GB DDR4
  • System Memory Slot

    • SODIMM DDR4 slot x 2
  • Pre-installed OS

    • DA-720 LX Series: Linux Debian 8 64-bit
      Linux Debian 8 64-bit
  • Supported OS

    • Linux Debian 8 (Linux kernel v4.1)
      Windows 10 Embedded IoT Ent 2016 LTSB High End EPKEA
      Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA
      Note: W10 available by CTOS
  • Storage Slot

    • 2.5-inch HDD/SSD slots x 1
      mSATA slots x 1, internal mini-PCIe socket
  • Storage Pre-installed

    • DA-720 LX Series: 8 GB mSATA
      8 GB mSATA
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 14
  • Serial Ports

    • RS-232/422/485 ports x 2, software-selectable (terminal block)
  • USB 2.0

    • USB 2.0 hosts x 2, type-A connectors (front)
  • USB 3.0

    • USB 3.0 hosts x 2, type-A connectors (rear)
  • Expansion Slots

    • Proprietary PCIe slot x 3
  • Video Input

    • DVI-D x 1, 29-pin DVI-D connectors (female)
      VGA x 1, 15-pin D-sub connector (female)
LED Indicators
  • System

    • Power x 1
      Storage x 1
      Programmable x 4
  • LAN

    • 1 per port (10/100/1000 Mbps)
  • Serial

    • 2 per port (Tx, Rx)
Serial Interface
  • Baudrate

    • 50 bps to 115.2 kbps
  • Connector

    • Terminal block
  • ESD

    • 8 kV (level 4)
  • Isolation

    • 2 kV
  • Serial Standards

    • RS-232/422/485
  • Surge

    • 2 kV: line-to-line
      4 kV: line-to-ground
Serial Signals
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-232

    • TxD, RxD, RTS, CTS, GND
Power Parameters
  • Input Current

    • 0.82 A @ 100 VAC
      0.77 A @ 110 VDC
  • Input Voltage

    • 100 to 240 VAC, 110 to 240 VDC
  • Power Button

    • Reset button (front panel)
      ON/OFF (rear panel)
Physical Characteristics
  • Housing

    • Metal
  • Dimensions (without ears)

    • 440 x 301 x 90 mm (17.32 x 12.20 x 3.54 in)
  • Weight

    • 6,500 g (14.33 lb)
  • Installation

    • 19-inch rack mounting
Environmental Limits
  • Operating Temperature

    • -25 to 55°C (-13 to 131°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-11 DIPs
      IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8: 20 A/m
  • Power Substation

    • IEC 61850-3, IEEE 1613
  • Protection Relay

    • IEC 60255
  • Railway

    • EN 50121-4
  • Safety

    • EN 60950-1, IEC 60950-1, UL 60950-1
  • Shock

    • IEC 60870-2-2, IEC 61850-3 Edition 1.0
  • Vibration

    • IEC 61850-3, IEC 60870-2-2
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 138,319 hrs
  • Standards

    • Telcordia SR332
Warranty
