MOXA

x86 コンピュータ

当社の産業用グレードのファンレスx86コンピュータは、厳しいテストに合格し、厳しい産業規格に完全準拠しています。そのため、過酷な環境でも長期間にわたり信頼性の高い動作を維持することができ、重工業、変電所、ユーティリティ、輸送、石油およびガス、海上用のアプリケーションに最適です。

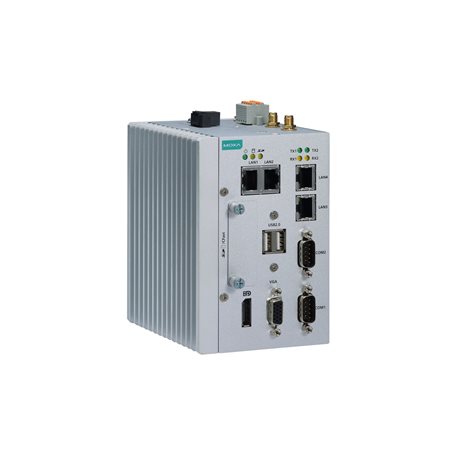

MC-1121-E4-T-W7E
MC-1100シリーズ

x86 embedded computer with Intel Atom® quad-core E3845 processor, 32GB CFast, Windows Embedded Standard 7 pre-installed, 4 GB RAM, VGA, 2 USBs, 4 Gigabit LANs, 2 serial ports, 4 DIs, 4 DOs, 1 SD slot, display port, 1 USIM slot, 1 expansion slot, 12 to 36 VDC power

Computer
  • CPU

    • Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)
  • Graphics Controller

    • Intel® HD Graphics
  • System Memory Pre-installed

    • 4 GB DDR3L
  • System Memory Slot

    • SODIMM DDR3/DDR3L slot x 1
  • Supported OS

    • Linux Debian 8 (Linux kernel v4.1)
      Windows Embedded Standard 7 (WS7E) 64-bit
      Windows 10 Embedded IOT Ent 2016 LTSB
  • Storage Slot

    • CFast slot x 1
      SD slots x 1
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
  • Serial Ports

    • RS-232/422/485 ports x 2, software selectable (DB9 male)
  • USB 2.0

    • USB 2.0 hosts x 2, type-A connectors
  • Digital Input

    • DIs x 4
  • Digital Output

    • DOs x 4
  • Expansion Slots

    • mPCIe slot x 1
  • Video Output

    • DisplayPort x 1
      VGA x 1, 15-pin D-sub connector (female)
  • Number of SIMs

    • 1
  • SIM Format

    • Mini
LED Indicators
  • System

    • Power x 1
      Storage x 1
  • LAN

    • 2 per port (10/100/1000 Mbps)
  • Serial

    • 2 per port (Tx, Rx)
Serial Interface
  • Baudrate

    • 50 bps to 115.2 kbps
  • Connector

    • DB9 male
  • Data Bits

    • 5, 6, 7, 8
  • Flow Control

    • ADDC® (automatic data direction control) for RS-485
      RTS/CTS, XON/XOFF
  • Isolation

    • N/A
  • Parity

    • None, Even, Odd, Space, Mark
Power Parameters
  • Input Voltage

    • 11.4 to 36 VDC
  • Power Connector

    • Terminal block (for DC models)
  • Power Consumption

    • 30 W (max.)
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
Physical Characteristics
  • Housing

    • Metal
  • Dimensions

    • 132 x 122 x 87 mm (5.2 x 4.81 x 3.43 in)
  • Weight

    • 1,340 g (2.95 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -45 to 75°C (-49 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-8 PFMF
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • Hazardous Locations

    • ATEX Zone 2
      Class I Division 2
      IECEx Zone 2
  • Maritime

    • DNV-GL
      IEC 60945
  • Radio Frequency

    • FCC
  • Safety

    • UL 60950-1
Warranty
