MOXA

x86 コンピュータ

当社の産業用グレードのファンレスx86コンピュータは、厳しいテストに合格し、厳しい産業規格に完全準拠しています。そのため、過酷な環境でも長期間にわたり信頼性の高い動作を維持することができ、重工業、変電所、ユーティリティ、輸送、石油およびガス、海上用のアプリケーションに最適です。

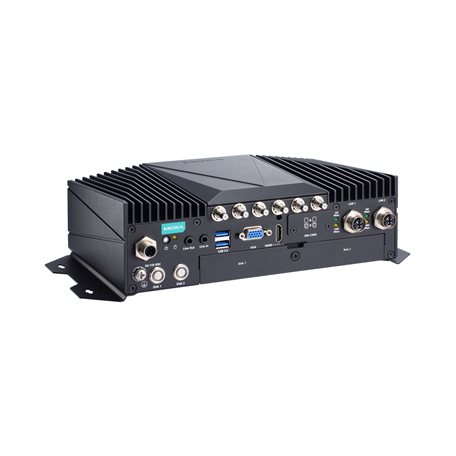

V2406C-KL7-T
V2406Cシリーズ

x86 embedded computer with Intel Core i7-7600U, 4 GB of DDR4 RAM installed, 2 DVIs, 2 LANs, 4 serial ports, 6 DIs, 2 DOs, 3 USB 2.0 ports, 1 backup CFast socket, 1 OS CFast socket, 12 to 48 VDC power, -40 to 70°C operating temperature

Computer
  • CPU

    • Intel® Core™ i7-7600U Processor (4M Cache, up to 2.80 GHz)
  • Storage Slot

    • 2.5-inch HDD/SSD slots x 2
      mSATA slots x 1, internal mini-PCIe socket
  • Supported OS

    • Linux Debian 9
      Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
  • System Memory Slot

    • SODIMM DDR4 slot x 2
  • DRAM

    • 32 GB max
  • Graphics Controller

    • Intel® HD Graphics 620
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
  • Digital Output

    • DOs x 2
  • Serial Ports

    • RS-232/422/485 ports x 4, software selectable (DB9 male)
  • Digital Input

    • DIs x 6
  • USB 3.0

    • USB 3.0 hosts x 4, type-A connectors
  • Audio Input/Output

    • Line in x 1, Line out x 1, 3.5 mm phone jack
  • Video Output

    • VGA x 1, 15-pin D-sub connector (female)
      HDMI x 1, HDMI connector (type A)
Digital Inputs
  • Connector

    • Screw-fastened Euroblock terminal
  • I/O Mode

    • DI
  • Isolation

    • 3k VDC
  • Sensor Type

    • Wet contact (NPN or PNP)
      Dry contact
  • Dry Contact

    • Logic 0: Short to GND
      Logic "1": Open
  • Wet Contact (DI to COM)

    • Logic "1": 10 to 30 VDC
      Logic "0": 0 0 to 3 VDC
Digital Outputs
  • Connector

    • Screw-fastened Euroblock terminal
      10-pin terminal block
  • Current Rating

    • 200 mA per channel
  • I/O Type

    • Sink
  • Voltage

    • 24 to 30 VDC
  • Isolation

    • 3k VDC
LED Indicators
  • System

    • Power x 1
      Storage x 1
  • LAN

    • 2 per port (10/100/1000 Mbps)
  • Serial

    • 2 per port (Tx, Rx)
Serial Interface
  • Baudrate

    • 50 bps to 921.6 kbps
  • Data Bits

    • 5, 6, 7, 8
  • Flow Control

    • RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
  • Input Voltage

    • 24 to 110 VDC
  • Power Connector

    • M12 A-coded male connector
  • Power Consumption (Max.)

    • 70 W (max.)
Physical Characteristics
  • Housing

    • Aluminum
  • IP Rating

    • IP20
  • Dimensions (without ears)

    • 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)
  • Weight

    • 2,700 g (5.95 lb)
  • Installation

    • Wall mounting (standard)
  • Protection

    • PCB conformal coating
      V2406C PCB conformal coating: Available on request
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Railway Fire Protection

    • EN 45545-2
  • EMC

    • EN 55032/35
  • Safety

    • EN 62368-1, IEC 62368-1, UL 62368-1
  • Railway

    • EN 50121-4, EN 50121-3-2, EN 50155:2017
  • Shock

    • IEC 60068-2-27, IEC 61373
  • Vibration

    • IEC 60068-2-64, IEC 61373
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 394,260 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
