アドバンストコントローラおよびI/O

MoxaのアドバンストコントローラおよびI/O製品は、拡張可能な通信と高性能のデータ取得および制御機能により、エネルギー管理、工場機械管理、交通管理、リモート資産管理といった複雑なIIoTアプリケーションを容易に実現できます。またioThinx 4500シリーズのPower Calculatorを使用することで、アプリケーションに必要なパワーモジュールの数を算出できます。

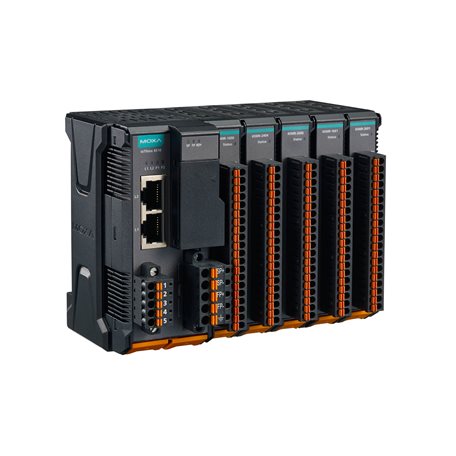

ioThinx 4510-T
ioThinx 4510シリーズ

Advanced I/O, Ethernet network adapter, 3-in-1 serial port(s), -40 to 75°C operating temperature

Input/Output Interface
  • Buttons

    • Reset button
  • Expansion Slots

    • Up to 32 Compatible with the ioThinx 4500 Series (45MR) Modules only
  • Isolation

    • 3k VDC or 2k Vrms
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2, 1 MAC address (Ethernet bypass)
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP/HTTPS), Windows Utility (IOxpress)
  • Industrial Protocols

    • Modbus TCP Server (Slave), RESTful API, SNMPv1/v2c/v3, SNMPv1/v2c/v3 Trap, SNMPv2c/v3 Inform, MQTT
  • Management

    • SNMPv1/v2c/v3, SNMPv1/v2c/v3 Trap, SNMPv2c/v3 Inform, DHCP Client, IPv4, HTTP, UDP, TCP/IP
Serial Interface
  • Connector

    • Spring-type Euroblock terminal
  • Serial Standards

    • RS-232/422/485
  • No. of Ports

    • 1 x RS-232/422 or 2 x RS-485 (2 wire)
  • Baudrate

    • 1200 bps to 115.2 kbps
  • Flow Control

    • RTS/CTS
  • Parity

    • None, Even, Odd
  • Stop Bits

    • 1, 2
  • Data Bits

    • 8
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Serial Software Features
  • Industrial Protocols

    • Modbus RTU Master
System Power Parameters
  • Power Connector

    • Spring-type Euroblock terminal
  • No. of Power Inputs

    • 1
  • Input Voltage

    • 12 to 48 VDC
  • Power Consumption

    • 800 mA @ 12 VDC
  • Over-Current Protection

    • 1 A @ 25°C
  • Over-Voltage Protection

    • 55 VDC
  • Output Current

    • 1 A (max.)
Field Power Parameters
  • Power Connector

    • Spring-type Euroblock terminal
  • No. of Power Inputs

    • 1
  • Input Voltage

    • 12/24 VDC
  • Over-Current Protection

    • 2.5 A @ 25°C
  • Over-Voltage Protection

    • 33 VDC
  • Output Current

    • 2 A (max.)
Physical Characteristics
  • Wiring

    • Serial cable, 16 to 28 AWG
      Power cable, 12 to 26 AWG
  • Strip Length

    • Serial cable, 9 to 10 mm
      Power cable, 12 to 13 mm
  • Housing

    • Plastic
  • Dimensions

    • 42.3 x 99 x 75 mm (1.67 x 3.9 x 2.95 in)
  • Weight

    • 173.5 g (0.382 lb)
  • Installation

    • DIN-rail mounting
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • Up to 4000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • Safety

    • UL 61010-2-201
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 1,451,040 hrs
  • Standards

    • Telcordia SR332
Warranty
