IPカメラ

当社のIPカメラは、堅牢な設計のドーム、ボックス、カメラを選んでいただけます。EN 50155規格に一部準拠しているため、信頼性の高いパフォーマンスと、さまざまなアプリケーションに適した優れた画質を実現できます。

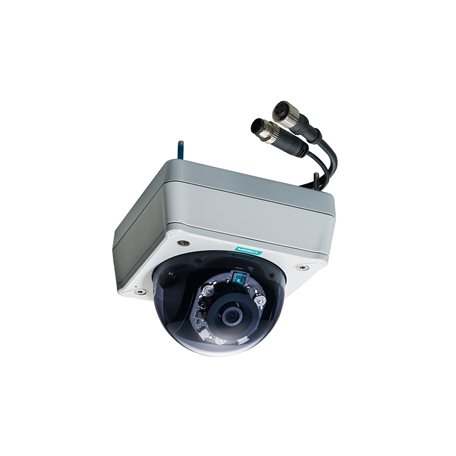

VPort P16-1MP-M12-IR-CAM36
VPort P16-1MP-M12-IRシリーズ

EN50155, HD image, fixed-dome IP camera, PoE, M12 connector, IR, MIC, 1DI, 3.6mm lens, -25 to 55°C operating temperature

Input/Output Interface

  • Digital Input Channels

    • 1

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +1 V for state 0
      Max. input current: 8 mA

  • Connector

    • 5-pin A-coded male M12 connector with 20 cm cable
Ethernet Interface

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    • 1

  • Standards

    • IEEE 802.3af for PoE
Ethernet Software Features

  • Protocols

    • TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS
Security Functions

  • Password

    • User-level password protection

  • Filter

    • IP address

  • Encryption

    • HTTPS
Power Parameters

  • No. of Power Inputs

    • 1

  • Source of Input Power

    • PoE (IEEE 802.3af)

  • Input Current

    • 0.19 A @ 48 VDC
Camera Characteristics

  • Sensor

    • 1/2.7-in HD progressive scan CMOS

  • Lens

    • f=3.6 mm, F1.6, Diagonal 99°, Horizontal 94°, Vertical 47°

  • Minimum Illumination

    • Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
      B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
      Note: 0 lux if IR illuminator is on

  • Camera Angle

    • Pan 350°, Tilt 65° (controlled manually)

  • Day & Night

    • Auto/Color/BW; ICR control

  • Synchronization

    • Internal

  • White Balance

    • ATW/AWB

  • Electronic Shutter

    • Auto, Fixed (1/30 to 1/25000 sec)

  • S/N Ratio

    • Maximum 50 dB (AGC off; DNR on)

  • ICR Control

    • Auto (light sensor control) or DI control

  • IR Illumination

    • IR LED illuminators, 5-meter (max.) effective distance; On/Off controlled manually (night mode) or by the light sensor

  • DNR (digital noise reduction)

    • Built-in 2D/3D DNR

  • WDR (wide dynamic range)

    • 110 dB

  • Flickerless Control

    • Automatic, 50 Hz, 60 Hz modes

  • Image Rotation

    • Flip, Mirror, and 180° rotation

  • Image Setting

    • Manual tuning with saturation, sharpness, and contrast

  • AGC (auto gain control)

    • 2X, 4X, 8X, 16X, 32X, 64X

  • BLC (back light compensation)

    • High/Medium/Low
Video Interface

  • Video Compression

    • H.264 (ISO/IEC 14496-10) or MJPEG

  • Video Output

    • via Ethernet

  • Video Streams

    • 3 independent H.264 or MJPEG video streams

  • Video Resolution and FPS (frames per second)

    •

  • Video Resolution and FPS (frames per second)

    •   NTSC PAL
      Size Max. FPS Size Max. FPS
      QCIF 176 x 112 30 176 x 144 25
      QVGA 320 x 240 30 320 x 240 25
      CIF 352 x 240 30 352 x 288 25
      VGA 640 x 480 30 640 x 480 25
      4CIF 704 x 480 30 704 x 576 25
      Full D1 720 x 480 30 720 x 576 25
      SVGA 800 x 600 30 800 x 600 25
      HD 1280 x 720 30 1280 x 720 25
      WXGA 1280 x 800 30 1280 x 800 25

  • Video Viewing

    • DynaStream™ support for changing the video frame rate automatically
      CBR Pro™ for good image quality in limited bandwidth transmissions
      3 privacy mask areas provided
      Adjustable image size and quality
      Timestamp and text overlay
      OSD (On Screen Display) position adjustable
      Maximum of 5 simultaneous unicast connections, 50 multicast clients
Audio Interface

  • Audio Format

    • Mono, PCM (G.711)

  • Audio Inputs

    • 1 x built-in microphone
Camera Software Development

  • VPort SDK PLUS

    • Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers

  • Video Standards

    • ONVIF Profile S
Camera Alarm Software Features

  • Intelligent Video

    • Camera tampering detection

  • Video Motion Detection

    • 3 independently configurable areas

  • Scheduling

    • Daily repeat timing schedule

  • Imaging

    • JPEG snapshots for pre/trigger/post alarm images

  • Custom Alarms

    • HTTP event servers for setting customized alarm actions

  • Email/FTP Messaging

    • Automatic transfer of stored images via email or FTP as event-triggered actions

  • Pre-Alarm Buffer

    • 12 MB video buffer for JPEG snapshot images
Software Requirements

  • Memory Size

    • 1 GB

  • Operating System

    • Windows 7 or above

  • Browser

    • Internet Explorer 9.x or above

  • Multimedia

    • DirectX 9.0C or above
Physical Characteristics

  • Housing

    • IP66 rain and dust protection
      Metal housing, PC dome cover
      IK10 vandal resistant protection

  • Dimensions

    • 125 x 125 x 120.7 mm (4.92 x 4.92 x 4.8 in)

  • Weight

    • 870 g (1.92 lb)

  • Installation

    • Panel mounting
Environmental Limits

  • Operating Temperature

    • -25 to 55°C (-13 to 131°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Ingress Protection

    • IEC 60529, IP66

  • Salt Spray Test

    • ASTM-B117

  • Vandal Resistance

    • EN 62262, IK10

  • Altitude

    • 2000 m
Standards and Certifications

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Freefall

    • IEC 60068-2-31

  • Railway Fire Protection

    • EN 45545-2

  • Safety

    • UL 60950-1

  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155

  • Railway

    • EN 50155 (complies with a portion of EN 50155 specifications)
MTBF

  • Time

    • 1,052,184 hrs

  • Standards

    • Telcordia SR332
Warranty

  • Warranty Period

    • 5 years
      Note: Limited warranty on moving parts; see Moxa's online warranty policy for details.
