MGate 5101-PBM-MNシリーズ

1ポートPROFIBUS - Modbus TCPゲートウェイ

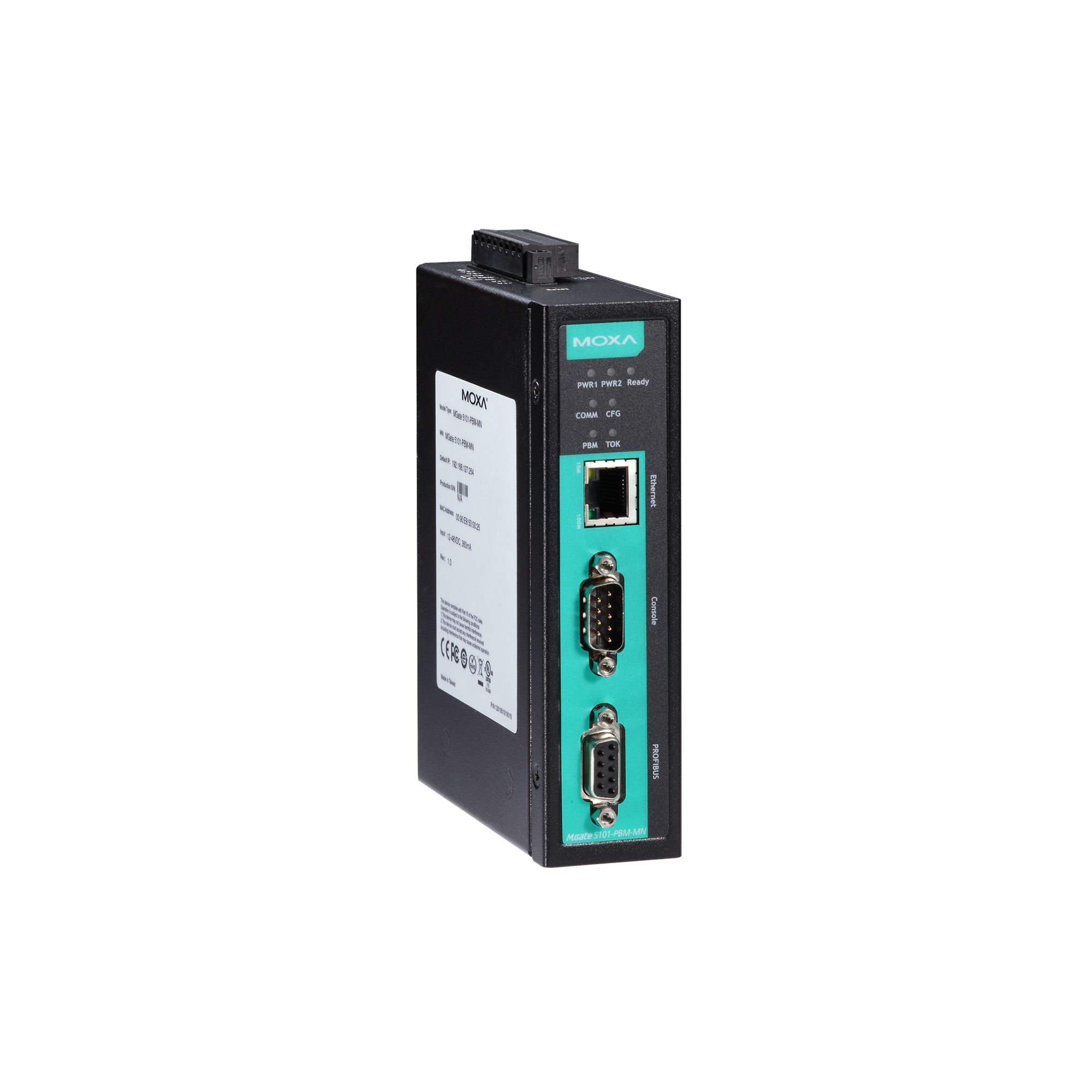

moxa-mgate-5101-pbm-mn-series-image-1-(1).jpg | Moxa

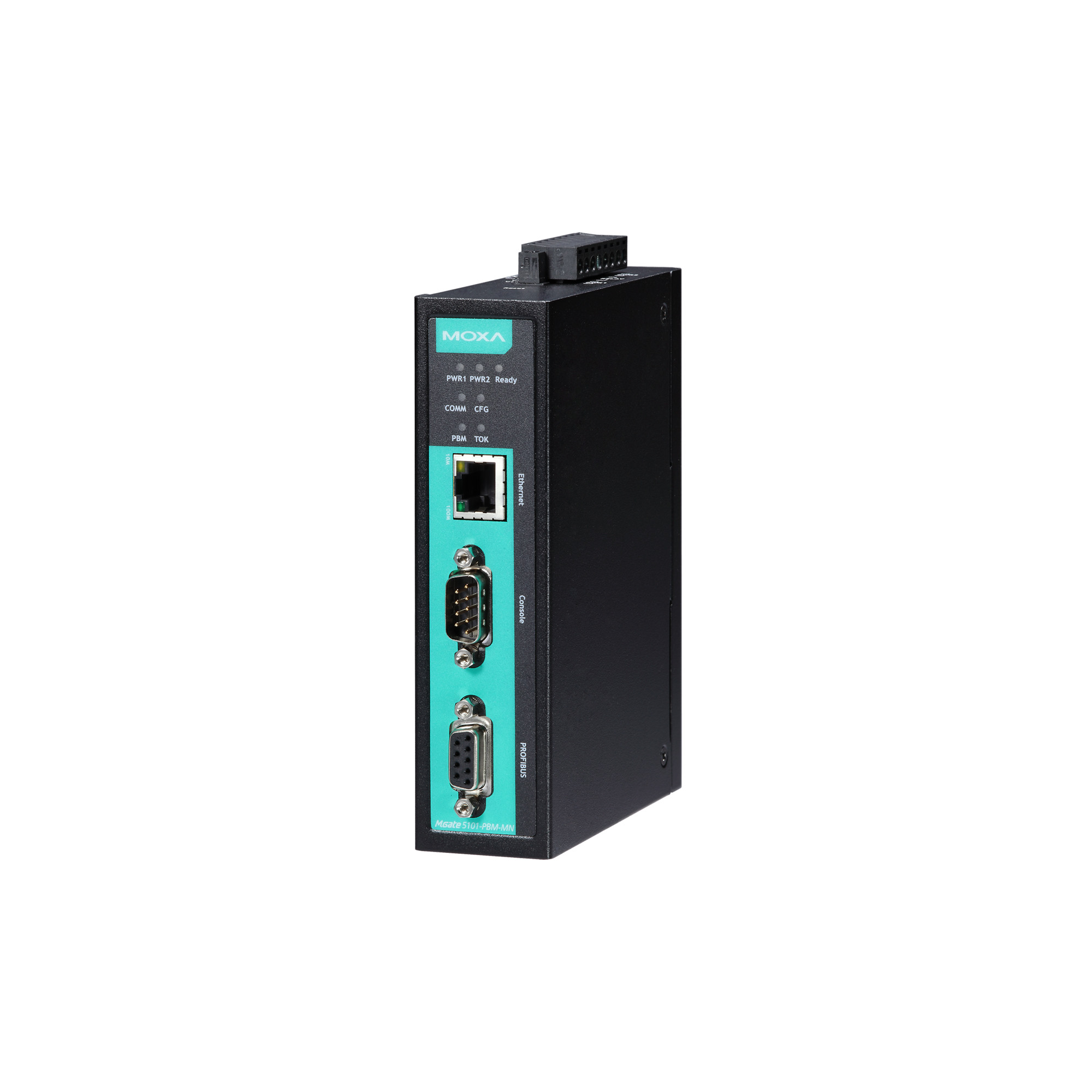

moxa-mgate-5101-pbm-mn-series-image-2-(1).jpg | Moxa

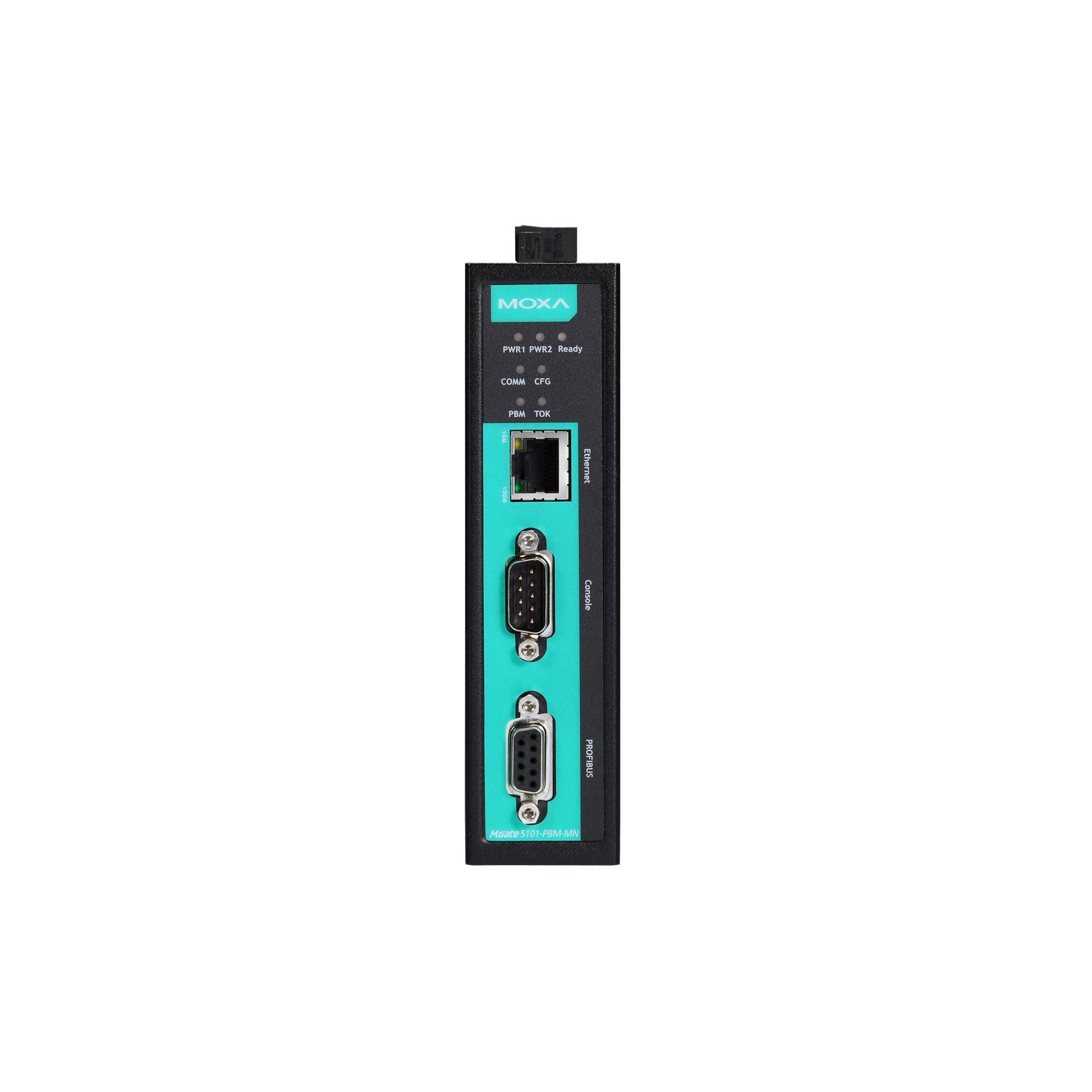

moxa-mgate-5101-pbm-mn-series-image-3-(1).jpg | Moxa

機能と特長

  • PROFIBUSとModbus TCP間のプロトコル変換
  • PROFIBUS DP V1マスターをサポート
  • Modbus TCPクライアント/サーバーをサポート
  • PROFIBUSデバイスの自動スキャンと簡単設定
  • I/Oデータ可視化を実現するWebベースGUI
  • 簡単なトラブルシューティングのための組み込みのトラフィック監視/診断情報
  • メンテナンスを簡素化するためのステータスの監視とフォルトの保護
  • 冗長デュアルDC電源入力および1つのリレー出力をサポート
  • -40~75°Cの幅広い使用温度モデルを使用可能
  • 2 kV絶縁保護付きシリアルポート
  • IEC 62443に基づくセキュリティ機能

認証

  • moxa-atex-certification-logo-image.png | Moxa
  • moxa-iecex-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

MGate 5101-PBM-MNゲートウェイは、PROFIBUSデバイス(PROFIBUSドライブまたは器具類)とModbus TCPホストの間の通信ポータルを提供します。すべてのモデルは頑丈な金属製のケースで保護され、DINレールに取り付け可能で、オプションの内蔵光学絶縁機能を提供します。PROFIBUSとイーサーネットスタータスLEDインジケータは、保守を簡単にするために提供されています。頑丈な設計により、石油/ガス、電力、プロセスオートメーション、ファクトリーオートメーションなどの産業アプリケーションに適しています。

簡単に設定とトラフィック監視ができるWindowsユーティリティ

MGate Managerユーティリティは、使いやすいインターフェースを提供し、設定と操作を可能な限り簡単にします。Moxaの革新的なAutoScan機能は、接続されているすべてのPROFIBUSスレーブデバイスと使用可能なI/Oモジュールを自動的に検出し、ゲートウェイを迅速に設定することができます。その後、Modbus TCPマスター(例:SCADA、PLC)設定を支援する読み取りやすいデータマッピングテーブルが作成されます。また、ユーザーはインポート/エクスポートのメンテナンス機能を設定したり、組み込まれた監視ツールを利用してModbus通信パケットのログを管理したりすることができ、トラブルシューティングに活用できます。

さまざまな保守機能

MGate 5101-PBM-MNは、リモート保守用のWebコンソールとTelnetコンソールを提供します。いずれも、不正アクセスを防止するためのHTTPSやSSHなどの暗号化通信機能をサポートしています。保守用にModbusやPROFIBUSの接続イベントなどのログ機能をファームウェアに搭載しています。各I/Oデータを監視し、Webコンソールからリモートでログを確認することができます。リレー出力アラームは電源のステータスに対して提供されます。保守エンジニアが、トラブルシューティングや保守の際に利用する追加のツールとなっています。

冗長電源入力

MGate 5101-PBM-MNには、信頼性を向上するために、デュアル電源が用意されています。この電源を利用すると、2つのDC電源への同時接続が可能になり、1つの電源が障害を起こしても、操作を継続することができます。高レベルの信頼性により、これらの先進的なPROFIBUSマスター- Modbus TCPゲートウェイは要件の高い産業用アプリケーションにとって最適なソリューションとなっています。

  • 10/100BaseT(X) Ports (RJ45 connector)

    1 (auto MDI/MDI-X connection)

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    Modbus TCP Client (Master), Modbus TCP Server (Slave)

  • Configuration Options

    Web Console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, Telnet Console

  • Management

    ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client

  • Console Port

    RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND), DB9 male (115200, n, 8, 1)

  • Configuration Options

    Serial Console

  • Industrial Protocols

    PROFIBUS DP-V1 Master

  • Mode

    Client (Master), Server (Slave)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Client Connections

    16

  • Max. No. of Server Connections

    32

  • Max. No. of Commands

    100

  • Input Data Size

    1536 bytes

  • Output Data Size

    1536 bytes

  • Industrial Protocols

    PROFIBUS DP

  • No. of Ports

    1

  • Connector

    DB9 female

  • Signals

    PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V

  • Baudrate

    9600 bps to 12 Mbps

  • Isolation

    2 kV (built-in)

  • Mode

    DP-V1 Master

  • Input Data Size

    1536 bytes

  • Output Data Size

    1536 bytes

  • Input Voltage

    12 to 48 VDC

  • Input Current

    365 mA @ 12 VDC

  • Power Connector

    Screw-fastened Euroblock terminal

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)

  • Weight

    500 g (1.10 lb)

  • Operating Temperature

    MGate 5101-PBM-MN: 0 to 60°C (32 to 140°F)
    MGate 5101-PBM-MN-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 60950-1, UL 60950-1

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX, Class I Division 2, IECEx

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6, IEC 60068-2-64

  • Time

    1,082,881 hrs

  • Standards

    Telcordia SR332
