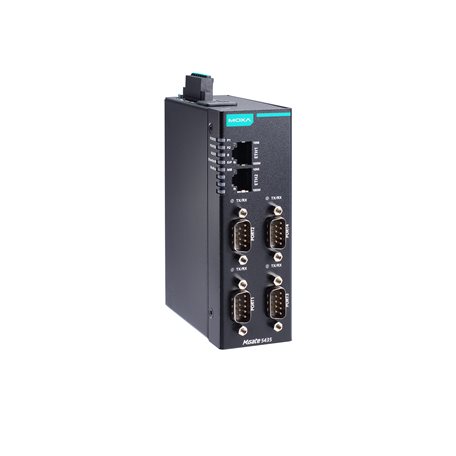

MGate 5435-T
MGate 5135/5435シリーズ

4-port Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
      Auto MDI/MDI-X connection
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Industrial Protocols

    • Modbus TCP Client, EtherNet/IP Adapter
  • Configuration Options

    • Web Console (HTTPS), Device Search Utility (DSU)
  • Management

    • ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, UDP
  • MIB

    • RFC1213, RFC1317
  • Time Management

    • NTP Client
Security Functions
  • Authentication

    • Local database
  • Encryption

    • HTTPS, AES-128, AES-256, SHA-256
  • Security Protocols

    • SNMPv3
      SNMPv2c Trap
      HTTPS (TLS 1.3)
Serial Interface
  • No. of Ports

    • 4
  • Connector

    • DB9 male
  • Serial Standards

    • RS-232/422/485
  • Baudrate

    • 300 bps to 921.6 kbps
  • Data Bits

    • 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 2
  • Flow Control

    • RTS Toggle (RS-232 only), RTS/CTS
  • RS-485 Data Direction Control

    • ADDC (automatic data direction control)
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
      software configurable
  • Terminator for RS-485

    • 120 ohms
      software configurable
  • Isolation

    • 2 kV (built-in)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
  • Industrial Protocols

    • Modbus RTU/ASCII Client
Modbus RTU/ASCII
  • Mode

    • Client
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Server Connections

    • 31
  • Max. No. of Commands

    • 128 per serial port
Modbus TCP
  • Mode

    • Client
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Server Connections

    • 32
  • Max. No. of Commands

    • 128
  • Total Output Data Size

    • 4000 bytes
  • Total Input Data Size

    • 4000 bytes
EtherNet/IP
  • Mode

    • Adapter
  • CIP Objects Supported

    • Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port
  • Max. No. of Scanner Connections

    • 8 (read/write)
  • Input Data Size

    • 496 bytes/connection (total: 3968 bytes) bytes
  • Output Data Size

    • 496 bytes/connection (total: 3968 bytes) bytes
Memory
  • microSD Slot

    • Up to 32 GB (SD 2.0 compatible)
Power Parameters
  • Input Voltage

    • 12 to 48 VDC
  • Input Current

    • 455 mA (max)
  • Power Connector

    • Spring-type Euroblock terminal
Relays
  • Contact Current Rating

    • Resistive load: 2 A @ 30 VDC
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 42 x 90 x 130 mm (1.65 x 3.54 x 5.1 in)
  • Weight

    • 403 g (0.89 lb)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • EN 61010-2-201, UL 61010-2-201
  • EMC

    • EN 61000-6-2/-6-4
  • EMI

    • FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
  • Freefall

    • IEC 60068-2-31
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6, IEC 60068-2-64
MTBF
  • Time

    • 689,989 hrs
  • Standards

    • Telcordia SR332
Warranty
