MGate 5217シリーズ

2ポートModbus RTU/ASCII/TCP - BACnet/IPゲートウェイ

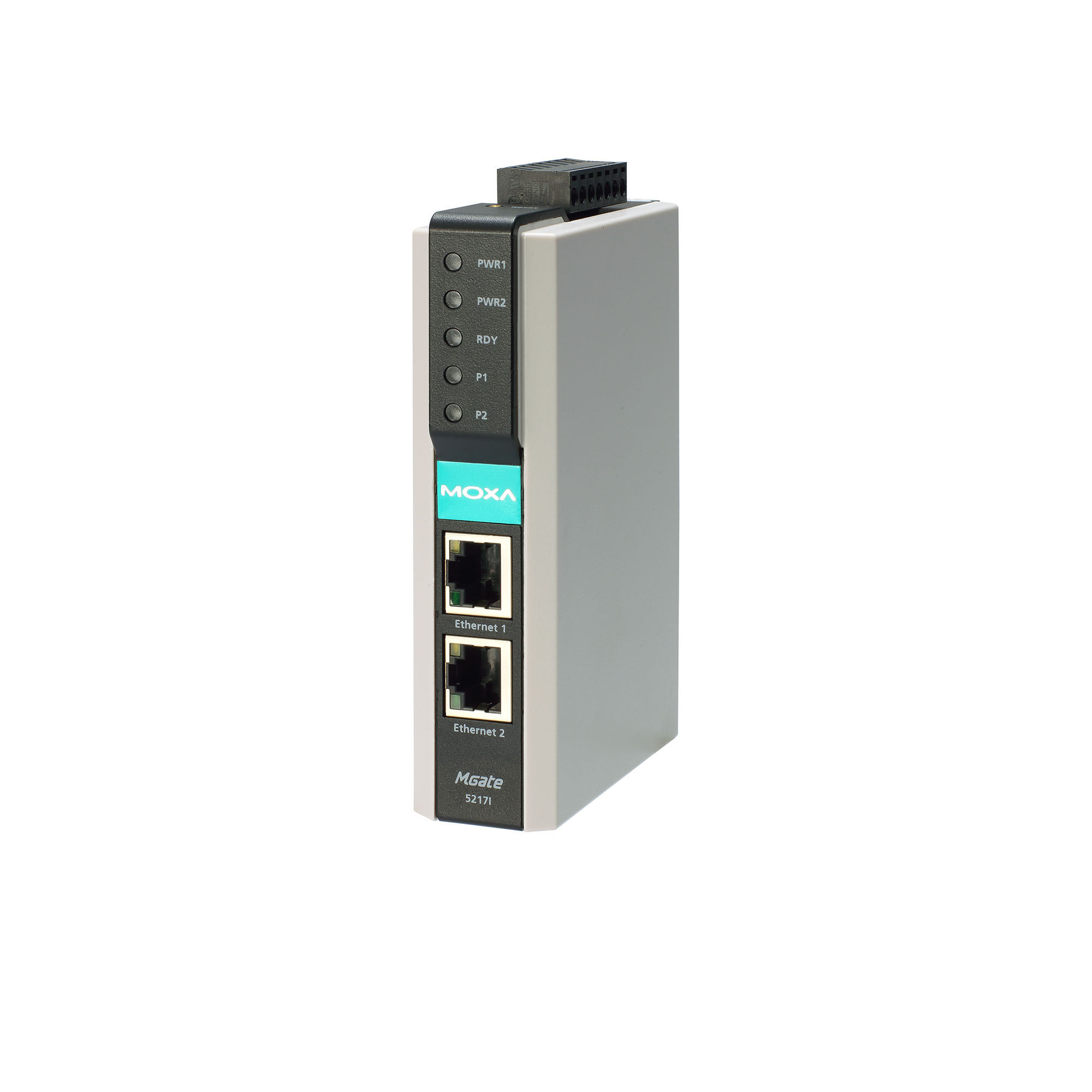

moxa-mgate-5217-series-image-(1).jpg | Moxa

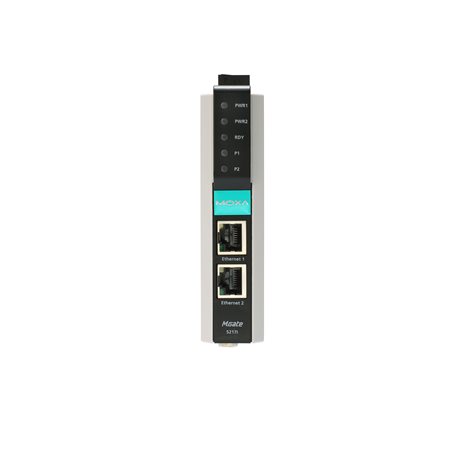

moxa-mgate-5217-series-image-1-(1).jpg | Moxa

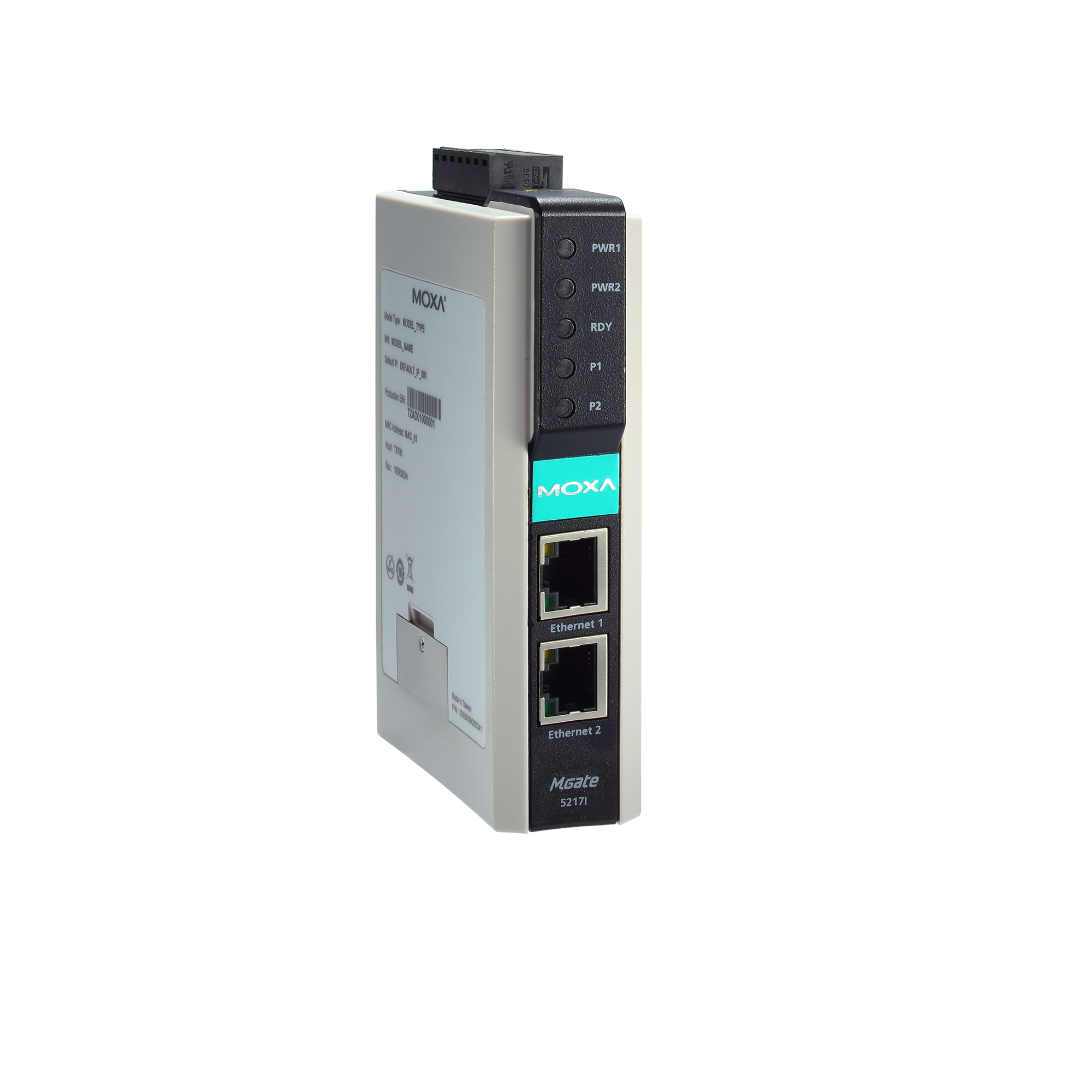

moxa-mgate-5217-series-image-2-(1).jpg | Moxa

機能と特長

  • Modbus RTU/ASCII/TCPクライアントPROFIBUS(マスター)/サーバー(スレーブ)をサポート
  • BACnet/IPサーバー/クライアントをサポート
  • 600点および1200点モデルをサポート
  • 高速データ通信のためのCOVをサポート
  • 各Modbusデバイスを個別のBACnet/IPデバイスとして機能させるように設計された仮想ノードをサポート
  • Excelスプレッドシートを編集することで、ModbusコマンドとBACnet/IPオブジェクトの迅速な構成をサポート
  • 通信トラフィックおよび診断情報を内蔵し、簡単にトラブルシューティングが可能
  • イーサネットカスケードで配線が容易に
  • 動作温度範囲-40~75°Cの産業用設計
  • 2 kV絶縁保護付きシリアルポート
  • デュアルAC/DC電源
  • 5年保証

認証

  • moxa-btl-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

MGate 5217シリーズは、Modbus RTU/ACSII/TCPサーバー(スレーブ)デバイスをBACnet/IP クライアントシステムに、またはBACnet/IPサーバーデバイスをModbus RTU/ACSII/TCPクライアント(マスター)システムに変換できる2ポートBACnetゲートウェイで構成されています。ネットワークのサイズと規模に応じて、600点または1200点のゲートウェイモデルを使用できます。すべてのモデルは堅牢な設計で、DINレールに取り付け可能で、広い温度範囲で動作し、シリアル信号用の2 kV絶縁を内蔵しています。



WebコンソールとExcelスプレッドシートによる簡単な設定

MGate 5217シリーズには、設定を容易にするための直感的なUIデザインが備えられています。これにより、コンピューターに追加のエンジニアリングユーティリティをインストールする代わりに、プロトコル変換モードに簡単にアクセスし、数ステップで設定を完了できます。 さらに、MGateはExcelスプレッドシートをインポートすることでModbusコマンドとBACnet/IPオブジェクトを生成できるため、簡単に編集できます。



ModbusおよびBACnet/IPプロトコルトラフィック監視および診断

MGate 5217ゲートウェイはModbusおよびBACnet/IPプロトコルトラフィック監視および診断をサポートしているため、特に設置段階でのトラブルシューティングが容易になっています。間違ったスレーブIDやレジスタアドレスのなどのソフトウェアパラメータの誤りにより、通信の問題が発生する可能性があります。診断機能では通信状態の確認や数値の表示が一目でわかります。 Modbus/BACnetプロトコルトラフィック監視を使って取得したデータを確認することで、簡単に根本原因を特定することができます。



  • 10/100BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    Modbus TCP Client (Master) / Server (Slave)
    BACnet/IP Server / Client

  • Configuration Options

    Web Console (HTTP/HTTPS)
    Device Search Utility (DSU)
    Telnet Console

  • Management

    ARP
    DHCP Client
    DNS
    HTTP
    HTTPS
    SMTP
    SNMP Trap
    SNMPv1/v2c/v3
    TCP/IP
    Telnet
    UDP
    NTP Client

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client

  • No. of Ports

    2

  • Connector

    DB9 male

  • Serial Standards

    RS-232/422/485

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    None
    Even
    Odd
    Space
    Mark

  • Stop Bits

    1, 2

  • Flow Control

    RTS Toggle (RS-232 only)
    RTS/CTS
    DTR/DSR

  • RS-485 Data Direction Control

    Automatic Data Direction Control (ADDC)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Isolation

    2 kV (built-in)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Industrial Protocols

    Modbus RTU/ASCII Client (Master)
    Modbus RTU/ASCII Server (Slave)

  • Mode

    Client (Master)
    Server (Slave)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 16

  • Max. No. of Commands

    MGate 5217I-600-T: 600
    MGate 5217I-1200-T: 1200

  • Mode

    Client (Master)
    Server (Slave)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 16

  • Max. No. of Server Connections

    32

  • Max. No. of Commands

    MGate 5217I-600-T: 600
    MGate 5217I-1200-T: 1200

  • Mode

    Client
    Server

  • Memory Size

    MGate 5217I-600-T: 600 points
    MGate 5217I-1200-T: 1200 points

  • Supported BACnet Object

    Binary Input
    Binary Output
    Binary Value
    Analog Input
    Analog Output
    Analog Value
    Multi-state Input
    Multi-state Output
    Multi-state Value
    Integer Value
    Positive Integer Value

  • Authentication

    Local database

  • Encryption

    HTTPS
    AES-128
    AES-256
    SHA-256

  • Security Protocols

    SNMPv3
    SNMPv2c Trap
    HTTPS (TLS 1.2)

  • Input Voltage

    24 VAC
    12 to 48 VDC

  • Input Current

    300 mA @ 24 VAC
    510 mA @ 12 VDC

  • Power Connector

    Screw-fastened Euroblock terminal

  • Contact Current Rating

    Resistive load: 1 A @ 30 VDC

  • Housing

    Plastic

  • IP Rating

    IP30

  • Dimensions (without ears)

    29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)

  • Dimensions (with ears)

    29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)

  • Weight

    380 g (0.84 lb)

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Safety

    UL 60950-1
    UL 62368-1
    IEC 60950-1
    IEC 62368-1

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • International Approval

    KC

  • Time

    1,277,500 hrs

  • Standards

    Telcordia Standard SR-332
