Modbus TCPゲートウェイ

MoxaのModbus TCPゲートウェイソリューションは、有線または無線、単一シリアルポートまたは複数シリアルポートのいずれにおいても、Modbus RTU、DNP3、J1939、およびPROFIBUSデバイスをModbus TCPネットワークに接続して、構成、トラブルシューティング、変換を迅速かつ簡単に行えるようにします。

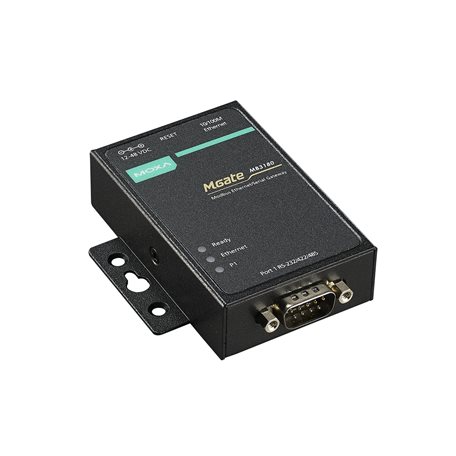

MGate MB3180
MGate MB3180/MB3280/MB3480シリーズ

1-port standard Modbus gateway

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • Auto MDI/MDI-X connection
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Industrial Protocols

    • Modbus TCP Client (Master), Modbus TCP Server (Slave)
  • Management

    • ARP, DHCP Client, DNS, HTTP, HTTPS (MGate MB3180 Excluded), SMTP (MGate MB3180 Excluded), SNMP Trap (MGate MB3180 Excluded), SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client (MGate MB3180 Excluded)
  • MIB

    • RFC1213, RFC1317
  • Time Management

    • NTP Client (MGate MB3180 Excluded)
Serial Interface
  • No. of Ports

    • 1
  • Connector

    • DB9 male
  • Serial Standards

    • RS-232/422/485 (software selectable)
  • Baudrate

    • 50 bps to 921.6 kbps
  • Data Bits

    • 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 2
  • Flow Control

    • DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS
  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485

    • None
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
  • Industrial Protocols

    • Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave
Modbus (Transparent)
  • Max. No. of Client Connections

    • 16
  • Max. No. of Server Connections

    • 32
Power Parameters
  • Input Voltage

    • 12 to 48 VDC
  • Input Current

    • 200 mA @ 12 VDC
  • Power Connector

    • Power jack
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions (with ears)

    • 22 x 75 x 80 mm (0.87 x 2.95 x 3.15 in)
  • Dimensions (without ears)

    • 22 x 52 x 80 mm (0.87 x 2.05 x 3.15 in)
  • Weight

    • 340 g (0.75 lb)
Environmental Limits
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • EN 60950-1, UL 60950-1
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs
MTBF
  • Time

    • 908,440 hrs
  • Standards

    • Telcordia SR332
Warranty
