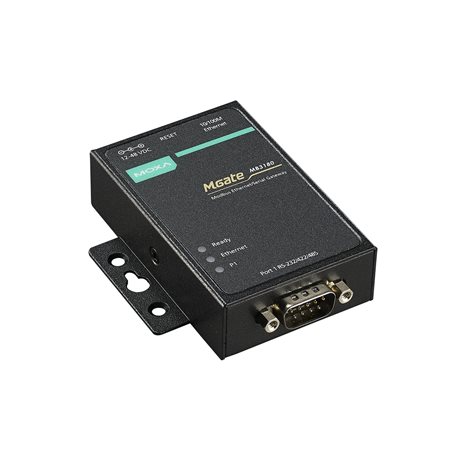

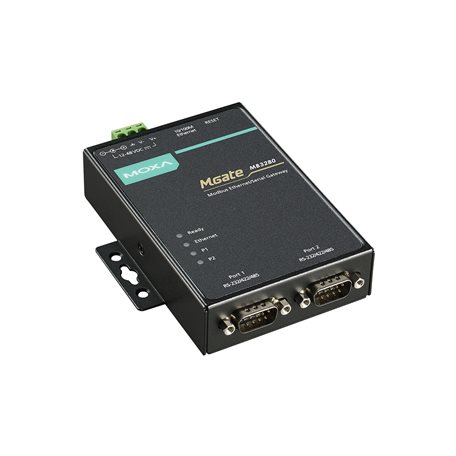

MGate MB3180/MB3280/MB3480シリーズ

1、2、および 4 ポート標準のシリアル - イーサネット Modbus ゲートウェイ

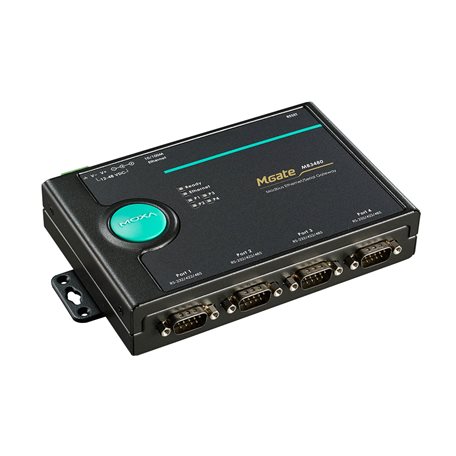

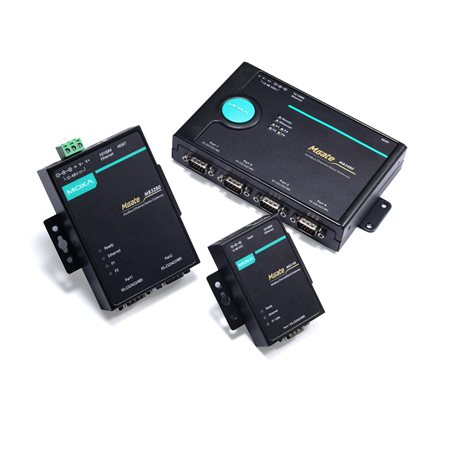

moxa-mgate-mb3180-mb3280-mb3480-series-image-1-(1).jpg | Moxa

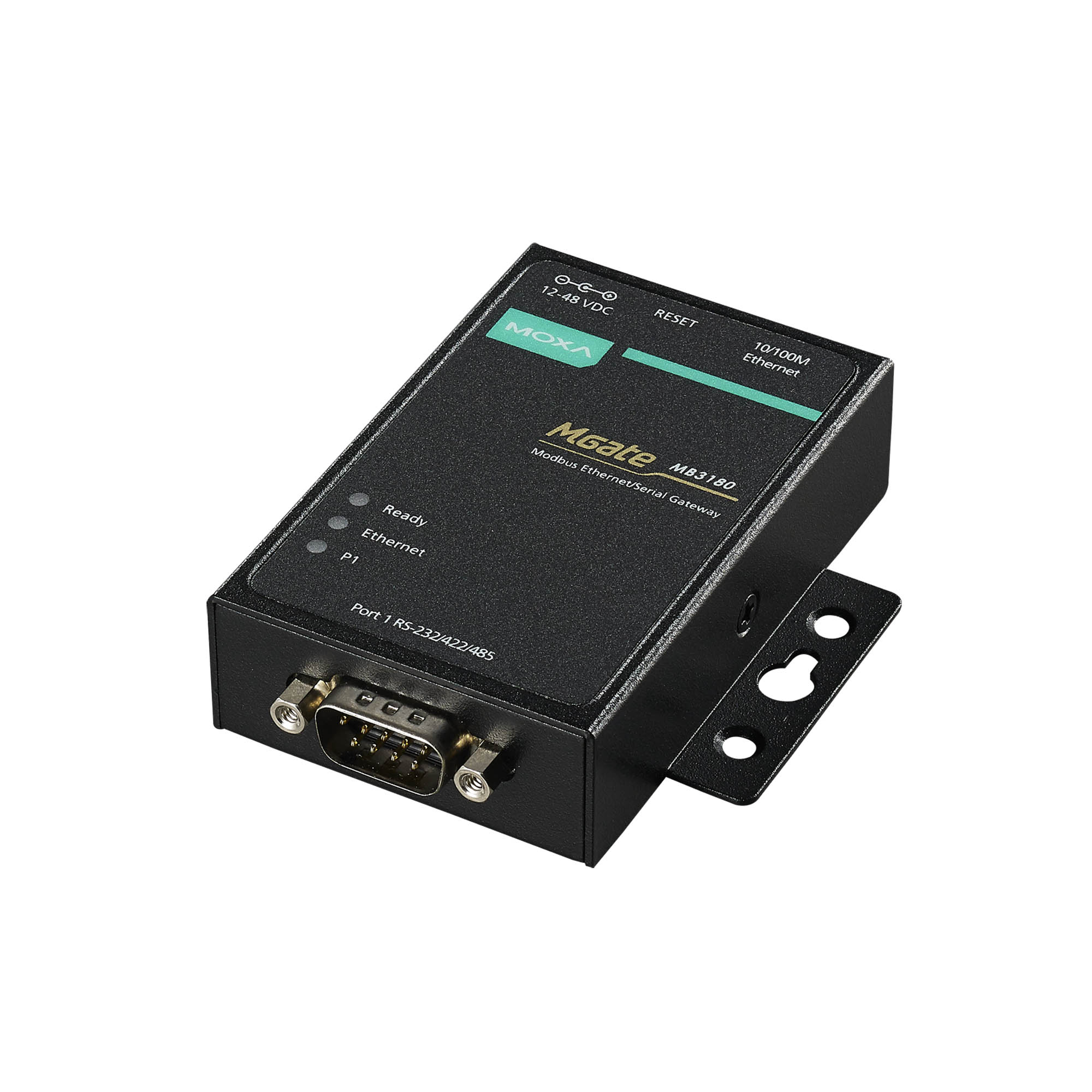

moxa-mgate-mb3180-mb3280-mb3480-series-image-2-(1).jpg | Moxa

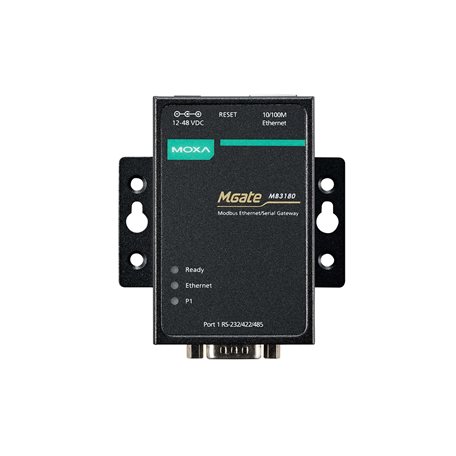

moxa-mgate-mb3180-mb3280-mb3480-series-image-3-(1).jpg | Moxa

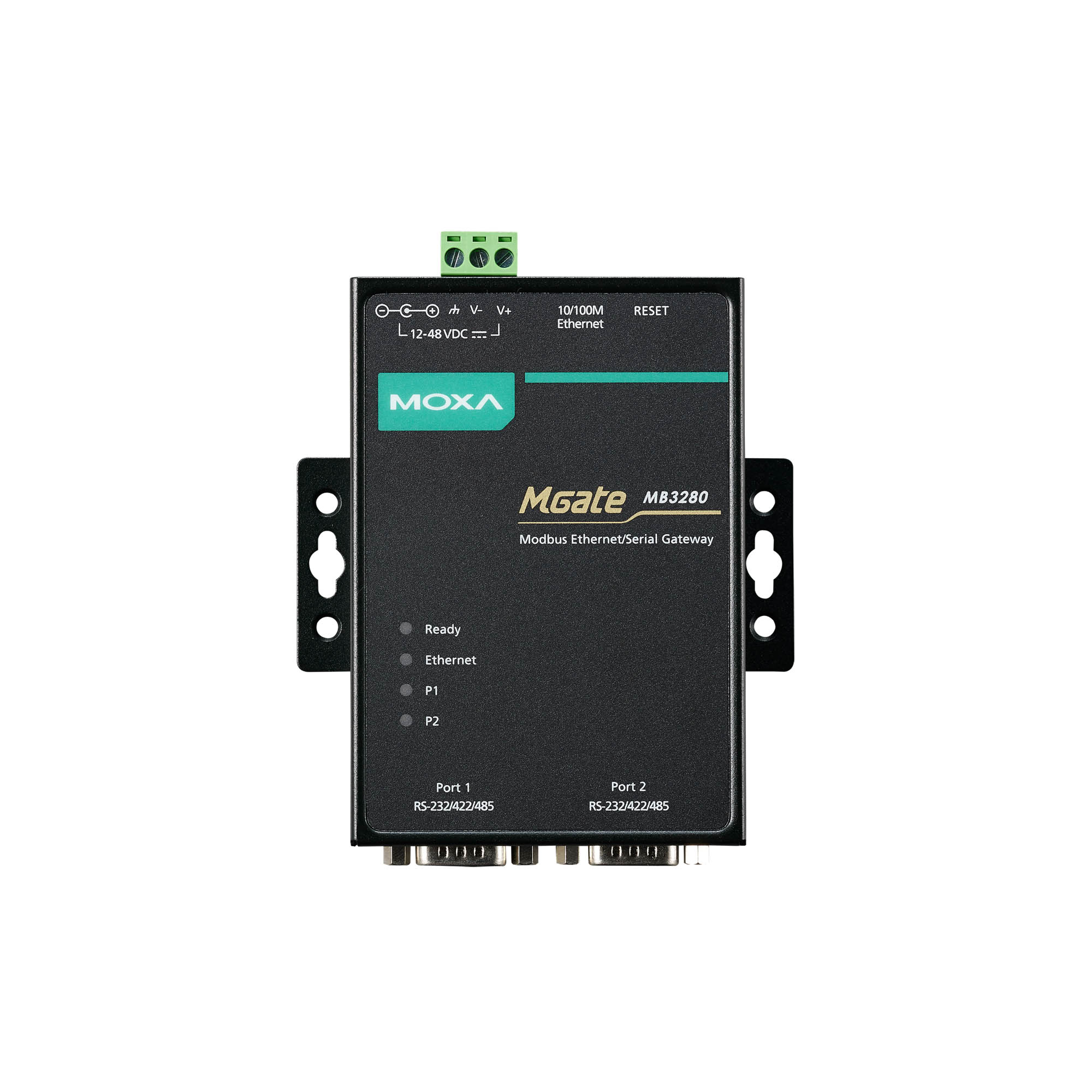

moxa-mgate-mb3180-mb3280-mb3480-series-image-4-(1).jpg | Moxa

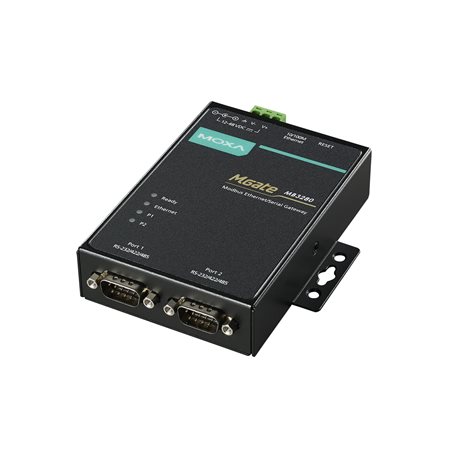

moxa-mgate-mb3180-mb3280-mb3480-series-image-5-(1).jpg | Moxa

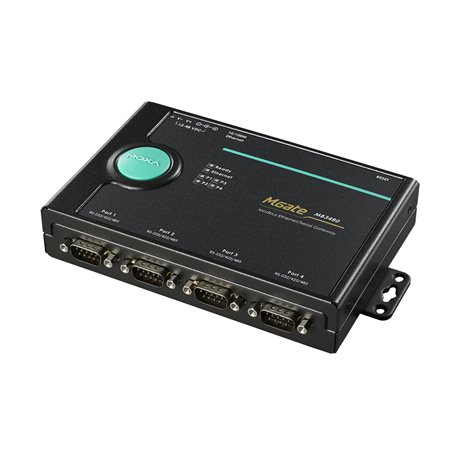

moxa-mgate-mb3180-mb3280-mb3480-series-image-6-(1).jpg | Moxa

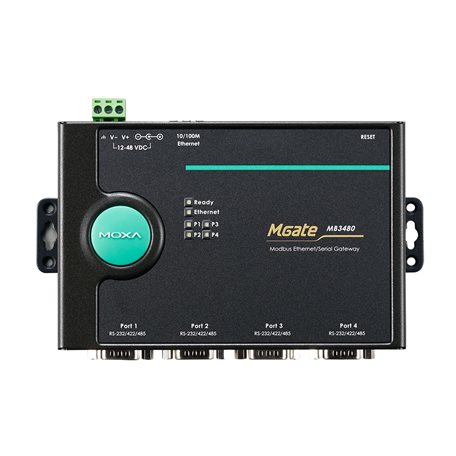

moxa-mgate-mb3180-mb3280-mb3480-series-image-7-(1).jpg | Moxa

機能と特長

  • 自動デバイスルーティングによる簡単設定
  • 柔軟な導入のためにTCPポートまたはIPアドレスによるルートをサポート
  • Modbus TCPとModbus RTU/ASCIIプロトコルの間で変換
  • 1つのイーサネットポートと1、2または4つの4RS-232/422/485ポート
  • 16個の同時TCPマスター、マスターあたり最大32個の同時リクエスト
  • 簡単なハードウェアのセットアップと構成

認証

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

MB3180、MB3280、および MB3480 は、Modbus TCPとModbus RTU/ASCIIプロトコルを変換する標準Modbusゲートウェイです。最大16個の同時Modbus TCPマスターがサポートされ、シリアルポートごとに最大31個のRTU/ASCIIスレーブがサポートされます。RTU/ASCIIマスターの場合、最大32個のTCPスレーブがサポートされます。シリアルポート経由のルーティングは、IPアドレス、TCPポート番号、またはIDマッピングによって制御できます。TCPポートとIPアドレスによるシリアルポートルーティングでは最大4つのTCPクライアント/マスター(MB3280/MB3480モデル)へのアクセスが可能になり、IDマッピングによるルーティングでは最大16のTCPクライアント/マスター(MB3180/MB3270)へのアクセスが可能になります。



標準Modbusネットワーク統合

3つの標準MGate™ モデル(MB3180、MB3280、MB3480)は、Modbus TCPおよびRTU/ASCIIネットワークを簡単に統合できるように設計されています。これらのモデルを使用すると、Modbusシリアルスレーブデバイスを既存のModbus TCPネットワークにシームレスに組み込むことができ、Modbus TCPスレーブをシリアルマスターからアクセスできるようになります。MB3180、MB3280、およびMB3480は、ネットワーク統合を容易にし、カスタマイズ可能で、ほぼすべてのModbusネットワークと互換性のある機能を提供します。



高密度でコスト効率の高いゲートウェイ

MGate™ MB3000ゲートウェイは、高密度のModbusノードを同じネットワークに効果的に接続できます。MB3280は最大62個のシリアルスレーブノードを管理でき、MB3480は最大124個のシリアルスレーブノードを管理できます。各RS-232/422/485シリアルポートは、Modbus RTUまたはModbus ASCII操作と異なるボーレート用に個別に構成できるため、両方のタイプのネットワークを1つのModbusゲートウェイを介してModbus TCPに統合できます。



簡単な設定のための自動デバイスルーティング

Moxaの自動デバイスルーティング機能は、多数のModbusデバイスを構成する必要があるエンジニアが遭遇する多くの問題や不便を解消するのに役立ちます。マウスを1回クリックするだけで、スレーブIDルーティングテーブルを設定し、監視制御およびデータ収集(SCADA)システムからのModbus要求を自動的に検出するようにModbusゲートウェイを構成できます。自動デバイスルーティング機能により、スレーブIDルーティングテーブルを手動で作成する必要がなくなるため、エンジニアは時間とコストを大幅に節約できます。



  • 10/100BaseT(X) Ports (RJ45 connector)

    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    Modbus TCP Client (Master)
    Modbus TCP Server (Slave)

  • Configuration Options

    All models: Web Console (HTTP), Device Search Utility (DSU), MGate Manager, MCC Tool, Telnet Console
    MGate MB3280/MB3480: Web Console (HTTPS)

  • Management

    All models: ARP, DHCP Client, DNS, HTTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP
    MGate MB3280/MB3240: HTTPS, SMTP, SNMP Trap, NTP Client

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client (MGate MB3180 Excluded)

  • Authentication

    Local database

  • Encryption

    HTTPS
    AES-128
    AES-256
    SHA-256

  • Security Protocols

    SNMPv3
    HTTPS (TLS 1.2) (except MGate MB3180)

  • No. of Ports

    MGate MB3180: 1
    MGate MB3280: 2
    MGate MB3480: 4

  • Connector

    DB9 male

  • Serial Standards

    RS-232/422/485 (software-selectable)

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    None
    Even
    Odd
    Space
    Mark

  • Stop Bits

    1, 2

  • Flow Control

    DTR/DSR
    RTS Toggle (RS-232 only)
    RTS/CTS

  • RS-485 Data Direction Control

    ADDC (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    MGate MB3180: None
    MGate MB3280/MB3480: 120 ohms

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Industrial Protocols

    Modbus RTU/ASCII Master
    Modbus RTU/ASCII Slave

  • Max. No. of Client Connections

    16

  • Max. No. of Server Connections

    32

  • Input Voltage

    12 to 48 VDC

  • Input Current

    MGate MB3180: 200 mA @ 12 VDC
    MGate MB3280: 250 mA @ 12 VDC
    MGate MB3480: 365 mA @ 12 VDC

  • Power Connector

    MGate MB3180: Power jack
    MGate MB3280/MB3480: Power jack and terminal block

  • Housing

    Metal

  • IP Rating

    IP30 MGate MB3480の場合、壁取り付けキットに付属の2本のネジを使用してキットをMGateの底部に固定し、MGateを電源入力用の端子ブロックに適切に取り付ける必要があります。

  • Dimensions (with ears)

    MGate MB3180: 22 x 75 x 80 mm (0.87 x 2.95 x 3.15 in)
    MGate MB3280: 22 x 100 x 111 mm (0.87 x 3.94 x 4.37 in)
    MGate MB3480: 35.5 x 102.7 x 181.3 mm (1.40 x 4.04 x 7.14 in)

  • Dimensions (without ears)

    MGate MB3180: 22 x 52 x 80 mm (0.87 x 2.05 x 3.15 in)
    MGate MB3280: 22 x 77 x 111 mm (0.87 x 3.03 x 4.37 in)
    MGate MB3480: 35.5 x 102.7 x 157.2 mm (1.40 x 4.04 x 6.19 in)

  • Weight

    MGate MB3180: 340 g (0.75 lb)
    MGate MB3280: 360 g (0.79 lb)
    MGate MB3480: 740 g (1.63 lb)

  • Operating Temperature

    MGate MB3180: 0 to 55°C (32 to 131°F)
    MGate MB3280: 0 to 60°C (32 to 140°F)
    MGate MB3480: 0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV (MB3180/MB3280)
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 2 kV (MB3480)
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Safety

    MGate MB3180: EN 62368-1, UL 60950-1
    MGate MB3280: IEC/UL 62368-1, IEC/UL 60950-1
    MGate MB3480: IEC/UL 62368-1, IEC 60950-1

  • Time

    MGate MB3180: 2,762,384 hrs
    MGate MB3280: 749,455 hrs
    MGate MB3480: 1,213,993 hrs

  • Standards

    Telcordia SR332
