MGate MB3660シリーズ

8ポートおよび16ポート冗長Modbusゲートウェイ

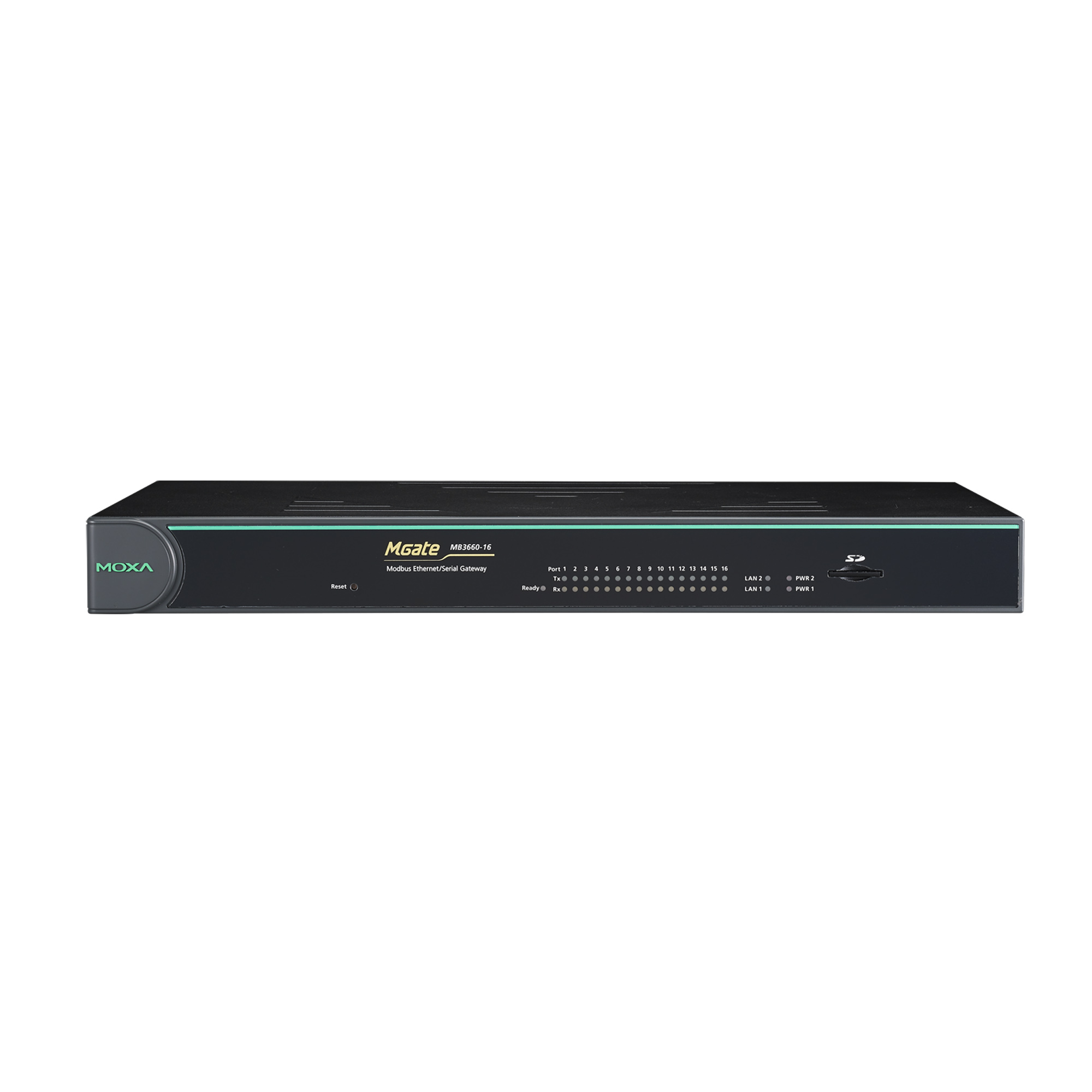

moxa-mgate-mb3660-series-image-1-(1).jpg | Moxa

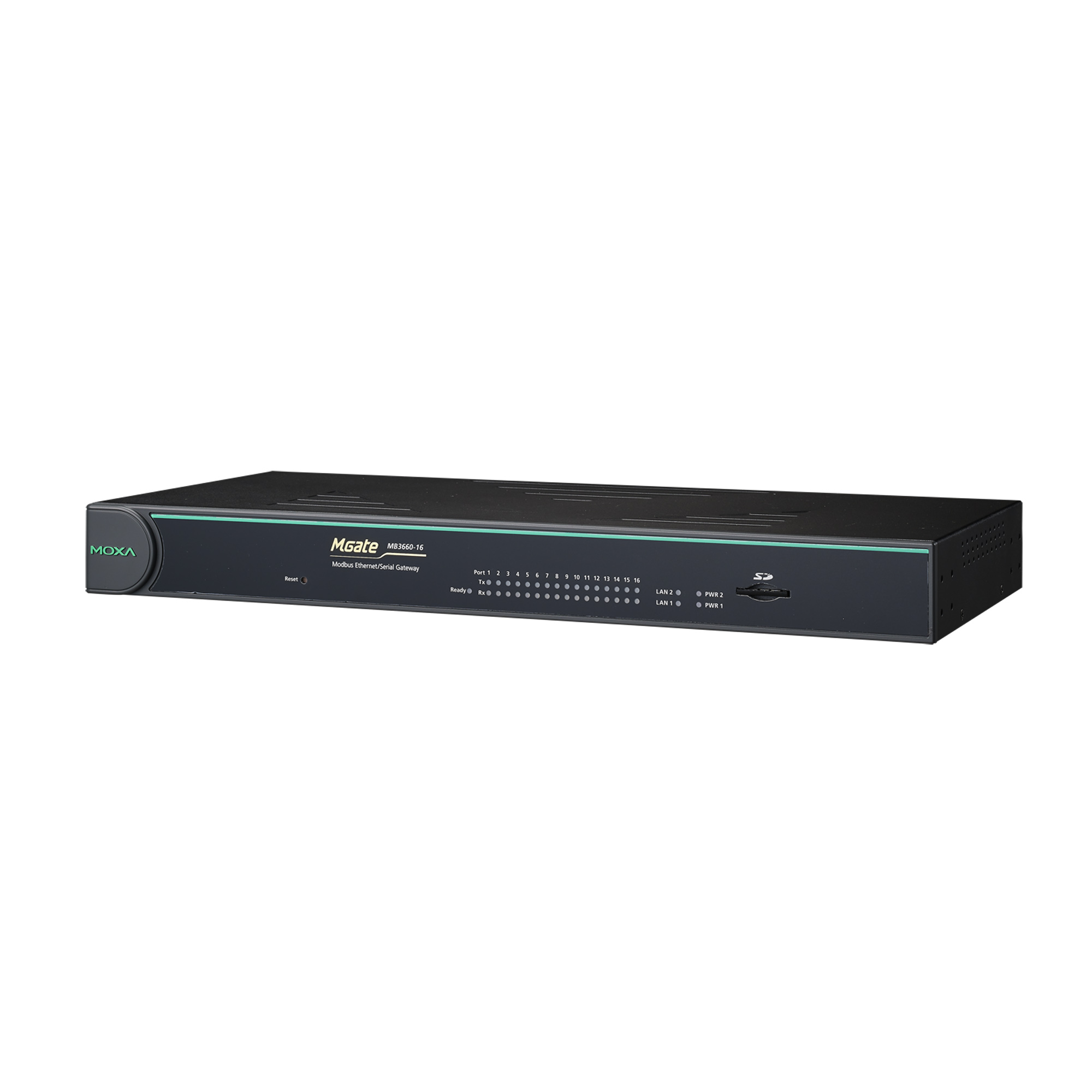

moxa-mgate-mb3660-series-image-2-(1).jpg | Moxa

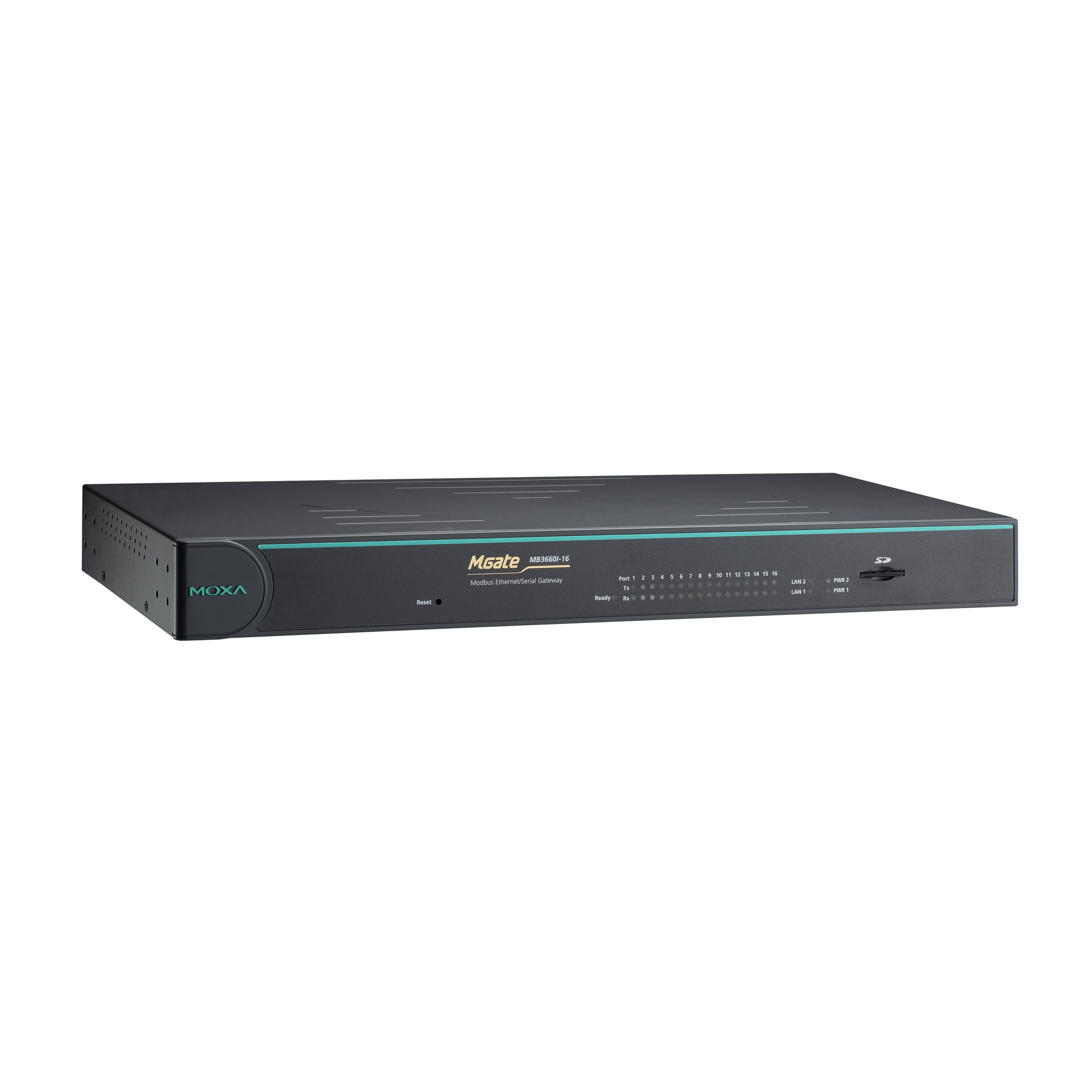

moxa-mgate-mb3660-series-image-3-(1).jpg | Moxa

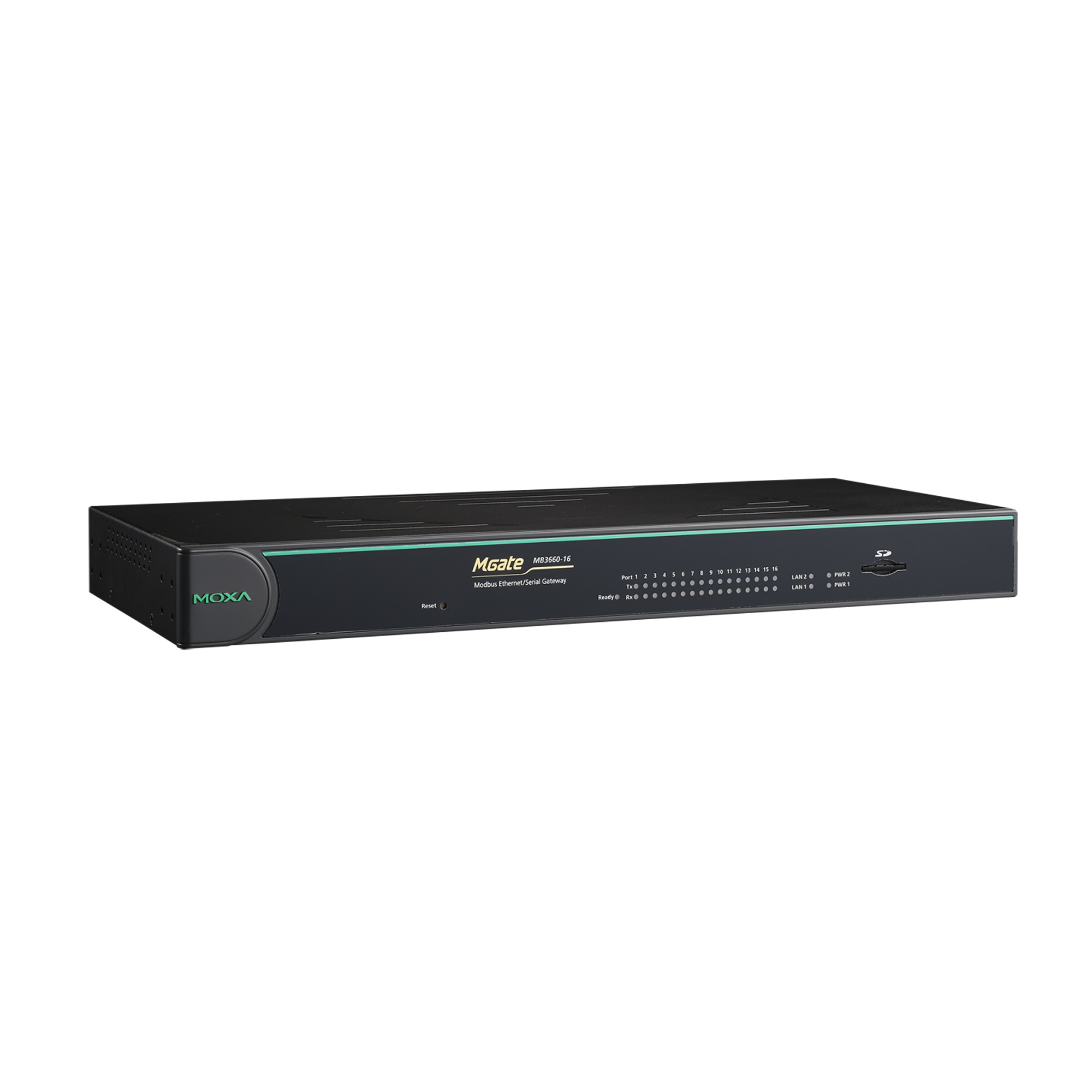

moxa-mgate-mb3660-series-image-4-(1).jpg | Moxa
moxa-mgate-mb3660-series-image-5-(1).jpg | Moxa
moxa-mgate-mb3660-series-image-6-(1).jpg | Moxa

機能と特長

  • 自動デバイスルーティングによる簡単設定
  • 柔軟な導入のためにTCPポートまたはIPアドレスによるルートをサポート
  • システムパフォーマンスを向上させる革新的なコマンド学習
  • シリアルデバイスのアクティブおよびパラレルポーリングによる高パフォーマンスを実現するエージェントモードをサポート
  • ModbusシリアルマスターからModbusシリアルスレーブへの通信をサポート
  • ネットワーク冗長性のために同一IPまたは2つのIPアドレスを設定可能なイーサネットポート2つを搭載
  • 設定のバックアップ/複製とイベントログ用のSDカード
  • 最大256のModbus TCPクライアントがアクセス
  • 最大Modbus 128 TCPサーバーに接続
  • RJ45シリアルインターフェース(「-J」モデル)
  • 2 kV絶縁保護付きシリアルポート(「-I」モデル)
  • 広い電源入力範囲を備えたデュアルVDCまたはVAC電源入力
  • 組み込みのトラフィック監視および診断情報により、トラブルシューティングが容易
  • メンテナンスを簡素化するためのステータスの監視とフォルトの保護

認証

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

MGate MB3660(MB3660-8およびMB3660-16)は、Modbus TCPとModbus RTU/ASCIIプロトコルを変換する標準Modbusゲートウェイです。最大256台のTCPマスター/クライアントデバイスからアクセスでき、128台のTCPスレーブ/サーバーデバイスに接続できます。シリアルポート経由のルーティングは、IPアドレス、TCPポート番号、またはIDマッピングによって制御できます。指定されたTCPポートとIPアドレスによるシリアルポートルーティングでは最大4つのTCPクライアント/マスターへのアクセスが可能になり、IDマッピング(スレーブIDテーブル)によるルーティングでは最大256のTCPクライアント/マスターへのアクセスが可能になります。MGate MB3660絶縁モデルは、変電所アプリケーションに適した2 kV絶縁保護を提供します。MGate MB3660ゲートウェイは、Modbus TCPとRTU/ASCIIネットワークを簡単に統合できるように設計されています。MGate MB3660ゲートウェイは、ネットワーク統合を容易にし、カスタマイズ可能で、ほぼすべてのModbusネットワークと互換性のある機能を提供します。

大規模なModbus導入の場合、MGate MB3660ゲートウェイは、多数のModbusノードを同じネットワークに効率的に接続できます。MB3660シリーズは、8ポートモデルの場合は最大248個のシリアルスレーブノード、16ポートモデルの場合は最大496個のシリアルスレーブノードを物理的に管理できます(Modbus標準では、Modbus IDは1~247のみ定義されています)。 各RS-232/422/485シリアルポートは、Modbus RTUまたはModbus ASCII操作と異なるボーレート用に個別に構成できるため、両方のタイプのネットワークを1つのModbusゲートウェイを介してModbus TCPに統合できます。



革新的なコマンド学習による高いパフォーマンス

MGate MB3660ゲートウェイは、透過モードとエージェントモードの2つの通信モードをサポートしています。透過モードでは、ゲートウェイはModbusコマンドをModbus TCPからModbus RTU/ASCIIへ、またはその逆へ、またはシリアル(マスター)からシリアル(スレーブ)へ変換します。ただし、一度に実行できるModbusプロトコルの要求応答アクションは1つだけなので、各Modbusデバイスは順番を待つ必要があり、パフォーマンスが低下します。

MGate MB3660ゲートウェイは、より優れたパフォーマンスを提供するために、マウスを1回クリックするだけでアクティブ化できる革新的なコマンド学習機能を備えて設計されています。ゲートウェイはアクティブになると、受信したModbusコマンドを学習して記憶し、コマンドを学習すると、エージェントモードであるかのように動作し、関連するModbusデバイスにModbus要求をアクティブに送信します。データはSCADAシステムがアクセスできる別のメモリ空間に保存されるため、SCADAシステムはデータがModbusデバイスを通過するのを待つのではなく、ゲートウェイのメモリから直接Modbus応答データを取得でき、通信パフォーマンスが大幅に向上します。



簡単な設定のための自動デバイスルーティング

Moxaの自動デバイスルーティング機能は、多数のModbusデバイスを構成する必要があるエンジニアが遭遇する多くの問題や不便を解消するのに役立ちます。マウスを1回クリックするだけで、スレーブIDルーティングテーブルを設定し、監視制御およびデータ収集(SCADA)システムからのModbus要求を自動的に検出するようにModbusゲートウェイを構成できます。自動デバイスルーティング機能により、スレーブIDルーティングテーブルを手動で作成する必要がなくなるため、エンジニアは時間とコストを大幅に節約できます。



電源とイーサネットの冗長性を備えたModbusゲートウェイ

複雑なModbusシステムでは、冗長性が非常に重要です。MGate MB3660 Modbusゲートウェイは、電源入力とイーサネット接続の両方の冗長性をサポートします。MGate MB3660ゲートウェイには、電源冗長性のためにデュアルACまたはDC電源入力が組み込まれており、ネットワーク冗長性のためにデュアルイーサネットポート(異なるIPを持つ)が備わっています。さまざまな種類のアプリケーションに対応するために、 デュアルイーサネットポートは次の2つの方法のいずれかで構成できます。

  • 両方のイーサネットポートに同じIPを使用します。この場合、MGate MB3660ゲートウェイは、メインLANに障害が発生すると自動的にバックアップLANに切り替わります。

  • 2つのイーサネットポートごとに異なるIPアドレスを使用します。この場合、Modbusクライアント/マスターは両方のイーサネットポートを使用して、Modbus RTU/ASCIIスレーブデバイスと同時に通信できます。



  • 10/100BaseT(X) Ports (RJ45 connector)

    2 IP addresses
    Auto MDI/MDI-X connection

  • Industrial Protocols

    Modbus TCP Client (Master)
    Modbus TCP Server (Slave)

  • Configuration Options

    Web Console (HTTP/HTTPS)
    Device Search Utility (DSU)
    MCC Tool
    Telnet Console

  • Management

    ARP
    DHCP Client
    DNS
    HTTP
    HTTPS
    SMTP
    SNMP Trap
    SNMPv1/v2c/v3
    TCP/IP
    Telnet
    UDP
    NTP Client
    RADIUS

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client

  • Authentication

    Local database
    RADIUS

  • Encryption

    HTTPS
    AES-128
    AES-256
    SHA-256

  • Security Protocols

    SNMPv3
    HTTPS (TLS 1.2)

  • No. of Ports

    MGate MB3660-8 models: 8
    MGate MB3660-16 models: 16

  • Connector

    MGate MB3660-8/16: DB9 male
    MGate MB3660-8/16-J: RJ45

  • Serial Standards

    RS-232/422/485 (software-selectable)

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Stop Bits

    1, 2

  • Parity

    None
    Even
    Odd
    Space
    Mark

  • Flow Control

    RTS/CTS
    DTR/DSR
    RTS Toggle (RS-232 only)

  • Console Port

    RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

  • Isolation

    2 kV (I models)

  • RS-485 Data Direction Control

    ADDC (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Industrial Protocols

    Modbus RTU/ASCII Master
    Modbus RTU/ASCII Slave

  • Configuration Options

    Serial Console

  • Mode

    Master, Slave

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    256 per serial port

  • Memory Size

    65535 bytes

  • Mode

    Client (Master), Server (Slave)

  • Max. No. of Client Connections

    256

  • Max. No. of Server Connections

    128

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    256

  • Memory Size

    65535 bytes

  • Max. No. of Client Connections

    256

  • Max. No. of Server Connections

    128

  • Input Voltage

    All models: Redundant dual inputs
    AC models: 100 to 240 VAC (50/60 Hz)
    DC models: 20 to 60 VDC (1.5 kV isolation)

  • No. of Power Inputs

    2

  • Power Connector

    Terminal block (for DC models)

  • Power Consumption

    MGate MB3660-8-2AC: 109 mA @ 110 VAC
    MGate MB3660-16-2AC: 141 mA @ 110 VAC
    MGate MB3660-8/16-J-2AC: 235 mA @ 110 VAC
    MGate MB3660I-8/16-2AC: 310 mA @ 110 VAC
    MGate MB3660-8-2DC: 312 mA @ 24 VDC
    MGate MB3660-16-2DC: 494 mA @ 24 VDC

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions (with ears)

    480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)

  • Dimensions (without ears)

    440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)

  • Weight

    MGate MB3660-8-J-2AC: 2600 g (5.73 lb)
    MGate MB3660-16-J-2AC: 2670 g (5.89 lb)
    MGate MB3660-8-2DC: 2684 g (5.92 lb)
    MGate MB3660-8-2AC: 2731 g (6.02 lb)
    MGate MB3660I-8-2AC: 2753 g (6.07 lb)
    MGate MB3660-16-2DC: 2780 g (6.13 lb)
    MGate MB3660I-16-2AC: 2820 g (6.22 lb)
    MGate MB3660-16-2AC: 2830 g (6.24 lb)

  • Operating Temperature

    0 to 60°C (32 to 140°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Safety

    All models excluding "J" models: IEC 62368-1, UL 62368-1, IEC 60950-1, UL 60950-1

  • Freefall

    IEC 60068-2-31

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • Time

    MGate MB3660-8-2AC: 721,988 hrs
    MGate MB3660-8-2DC: 711,978 hrs
    MGate MB3660-8-J-2AC: 616,505 hrs
    MGate MB3660-16-2AC: 495,416 hrs
    MGate MB3660-16-2DC: 490,684 hrs
    MGate MB3660-16-J-2AC: 437,337 hrs
    MGate MB3660I-8-2AC: 429,807 hrs
    MGate MB3660I-16-2AC: 256,208 hrs

  • Standards

    Telcordia SR332
