Moxaの統合シリアルデバイスサーバーソリューションは、マネージドイーサネットスイッチとデバイスサーバーを単一のデバイスに統合し、豊富な機能をオールインワンの設計にまとめています。この設計により、それぞれのデバイスに必要なスペースの一部を使用するだけで複数のプロジェクト要件を満たすことができ、デバイス構成が簡素化されるだけでなく、運用やメンテナンスにかかるコストも削減されます。

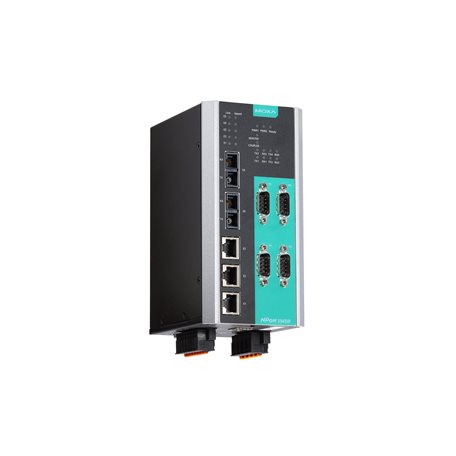

NPort S9450I-2M-SC-HV-T
NPort S9450Iシリーズ

4-port RS-232/422/485 rugged device server, 3 10/100M Ethernet ports, 2 100M multi-mode fiber ports with SC connectors, 88-300 VDC or 85-264 VAC, -40 to 85°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • 2, Resistive load: 1 A @ 24 VDC
  • Digital Input Channels

    • 2
  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +1 V for state 0
      Max. input current: 8 mA
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 3
  • 100BaseFX Ports (multi-mode SC connector)

    • 2
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • Optical Fiber

    •
  • Optical Fiber

  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
Switch Properties
  • IGMP Groups

    • 256
  • Max. No. of VLANs

    • 64
  • Priority Queues

    • 4
  • VLAN ID Range

    • VID 1 to 4094
Ethernet Software Features
  • Configuration Options

    • Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility
  • Management

    • DHCP Client, DHCP Option 82, HTTP, IEC 61850 MMS, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Web Console
  • Filter

    • GMRP, GVRP, IGMP v1/v2
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Android API

    • Android 3.1.x and later
  • Industrial Protocols

    • Modbus TCP Server (Slave), DNP3 TCP Outstation
  • Time Management

    • NTP Server/Client, SNTP
  • MIB

    • Bridge MIB, Device Settings MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RFC1213, RFC1317, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
  • Redundancy Protocols

    • RSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2
  • Security

    • HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH
Serial Interface
  • Connector

    • DB9 male
  • No. of Ports

    • 4
  • Serial Standards

    • RS-232, RS-422, RS-485
  • Operation Modes

    • Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode, Modbus mode, DNP3 mode, DNP3 Raw Socket mode, Disabled
  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • None, RTS/CTS, XON/XOFF
  • Isolation

    • 2 kV
  • Surge

    • 4 kV
  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485

    • 120 ohms
  • Console Port

    • RS-232 (TxD, RxD, GND), 10-pin RJ45 (19200, n, 8, 1)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
DIP Switch Configuration
  • Ethernet Interface

    • Turbo Ring, Master, Coupler, Reserved
Modbus TCP
  • Max. No. of Client Connections

    • 32
  • Max. No. of Server Connections

    • 16
DNP3 (Transparent)
  • Max. No. of Master Connections

    • 16
  • Max. No. of Outstation Connections

    • 32
Power Parameters
  • No. of Power Inputs

    • 2
  • Power Connector

    • 1 removable 5-contact terminal block(s)
  • Reverse Polarity Protection

    • Supported
  • Input Current

    • 80 mA @ 110 VDC
  • Input Voltage

    • 110/220 VAC/VDC (110 to 220 VAC, 110 to 220 VDC)
Physical Characteristics
  • Housing

    • Metal
  • Dimensions

    • 80 x 160 x 109 mm (3.15 x 6.30 x 4.29 in)
  • Weight

    • Product only: 2.54 kg (5.60 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 6 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11
  • Environmental Testing

    • IEC 60068-2-2
      IEC 60068-2-14
  • Power Substation

    • IEC 61850-3, IEEE 1613
  • Hazardous Locations

    • UL/cUL Class I Division 2 Groups A/B/C/D
  • Safety

    • EN 61010-2-201, UL 61010-2-201
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6, IEC 60068-2-64
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 347,436 hrs
  • Standards

    • Telcordia SR332
Warranty
