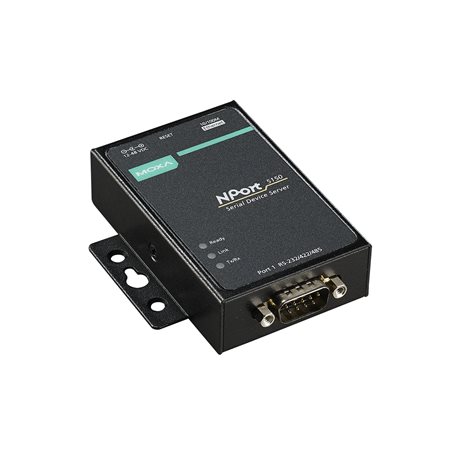

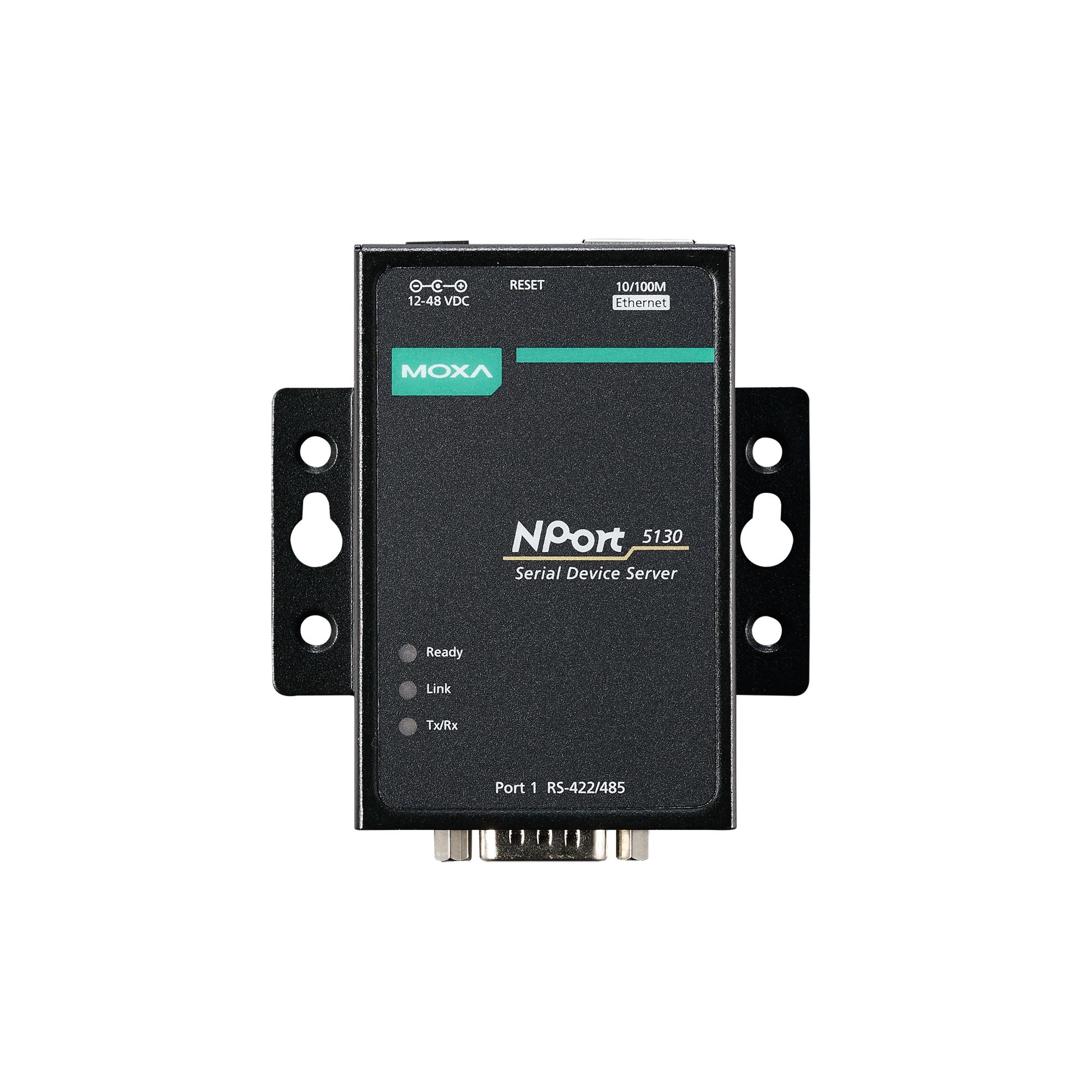

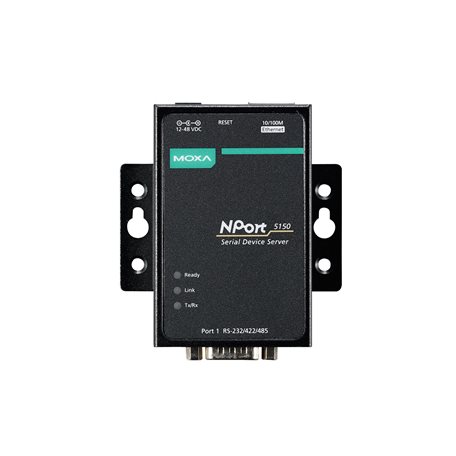

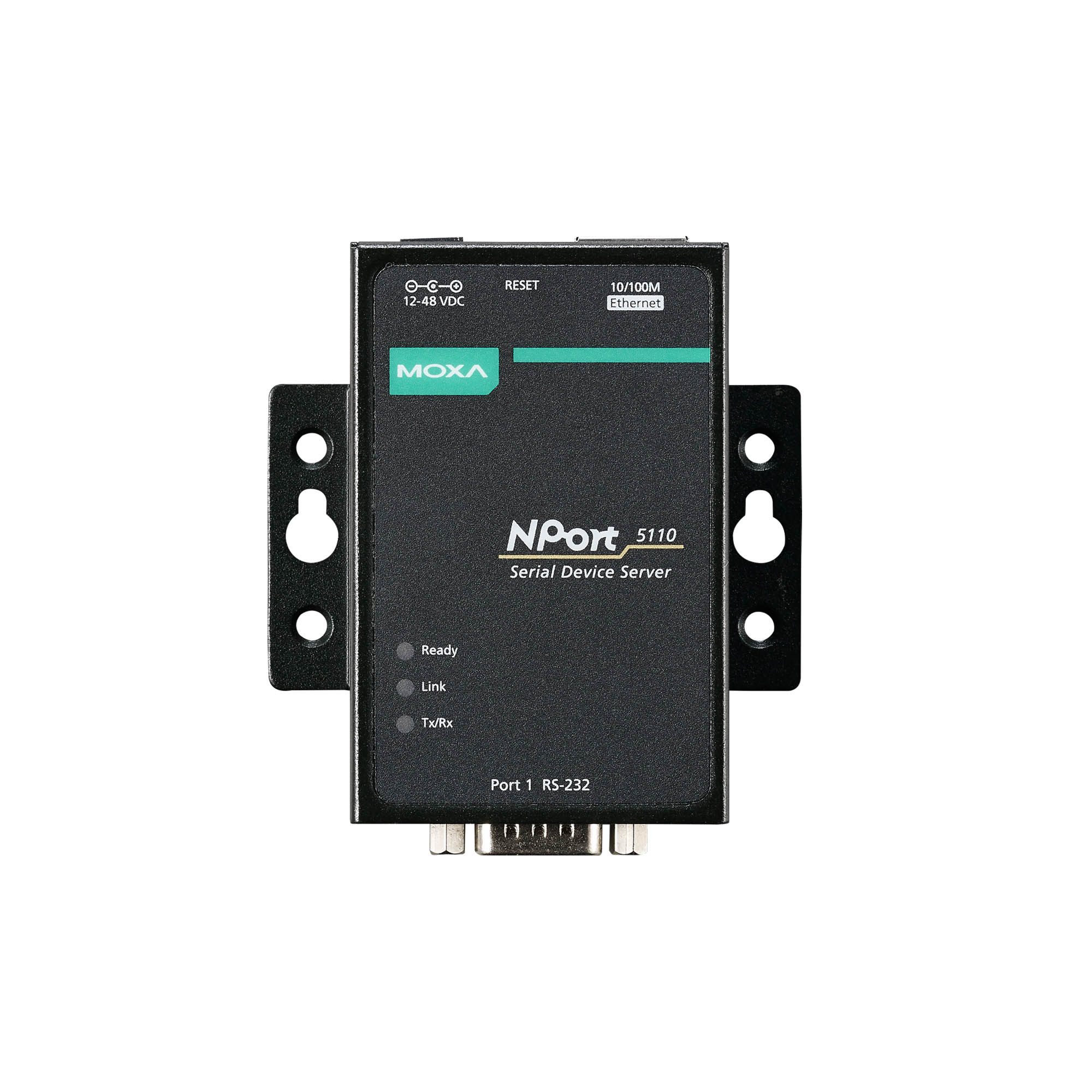

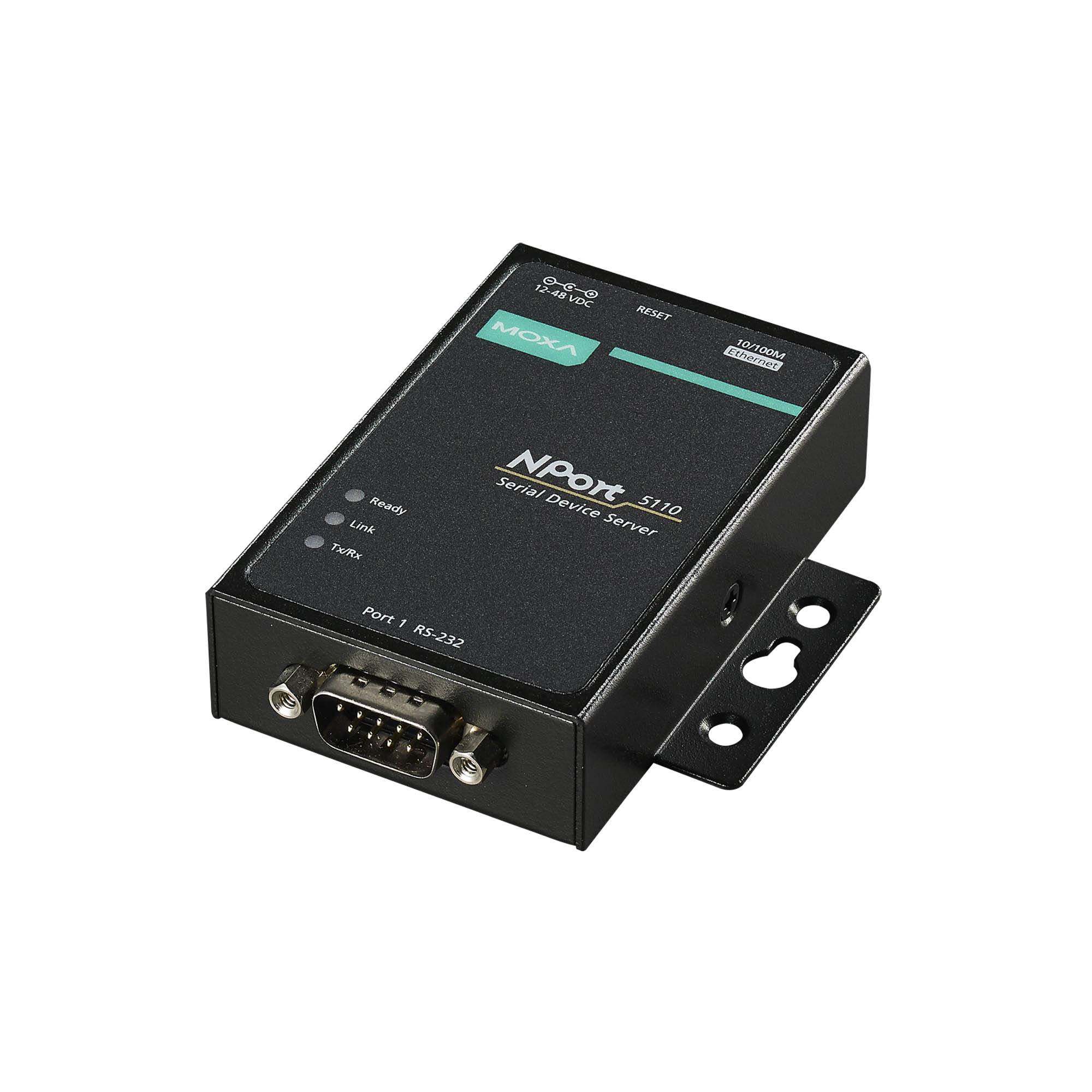

NPort 5100シリーズ

1ポートRS-232/422/485シリアルデバイスサーバー

moxa-nport-5100-series-image-1-(1).jpg | Moxa
moxa-nport-5100-series-image-2-(1).jpg | Moxa
moxa-nport-5100-series-image-3-(1).jpg | Moxa
moxa-nport-5100-series-image-4-(1).jpg | Moxa
moxa-nport-5100-series-image-5-(1).jpg | Moxa
moxa-nport-5100-series-image-6-(1).jpg | Moxa

機能と特長

  • 小型サイズで設置が簡単
  • Windows、LinuxおよびmacOS用のReal COMとTTYドライバー
  • 標準のTCP/IPインターフェースと多様な操作モード
  • 複数のデバイスサーバーを設定するための使いやすいWindowsユーティリティ
  • ネットワーク管理のためのSNMP MIB-II
  • Telnet、Webブラウザ、Windowsユーティリティにより設定
  • 調整可能なRS-485ポート用プルアップ/ダウン抵抗

認証

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

NPort® 5100デバイスサーバーは、シリアルデバイスがただちにネットワークに対応できるように設計されています。小型のサーバーなので、カードリーダーや決済端末などの機器をIPベースのイーサネットLANに接続するのに最適です。NPort 5100デバイスサーバーを使用すると、PCソフトウェアからネットワーク上のどこからでもシリアルデバイスに直接アクセスできます。



コスト効率の最も高いシリアル-イーサネットソリューション

レガシーなシリアルデバイスをイーサネットに接続する場合、シリアルデバイスサーバーを使用することは一般的になっています。デバイスサーバーがコスト効率が良く、便利な機能の広範囲の提供が求められています。NPort® 5100シリーズは、MicrosoftとLinuxオペレーティングシステムをフルサポートし、5年間の保証が付属しており、シリアル-イーサネットコンバータに最適です。



プルアップ/ダウン抵抗による調整可能な終端抵抗

クリティカルな環境の一部では、シリアル信号の反射を防止するために終端抵抗が必要なことがあります。終端抵抗を使用する際は、プルアップ/ダウン抵抗を適切に設定し、電気信号が破損されないようにすることも重要です。すべての環境に汎用の互換性がある抵抗の値のセットがないため、NPort® 5100デバイスサーバーには、各シリアルポートの終端抵抗値とプルアップ/ダウン抵抗値を調整するためのジャンパが付属しています。



標準的なTCP/IPインターフェースと広範囲の動作モード

NPort® 5100デバイスサーバーは、TCPサーバー、TCPクライアント、UDPサーバー/クライアント、ペア接続、またはイーサネットモデムモードに設定でき、標準ネットワークAPI(WinsockやBSDソケットなど)に基づくソフトウェアとの互換性を確保します。



既存のソフトウェアのためのReal COM/TTYドライバー

NPort ® 5100デバイスサーバー付属のReal COM/TTYドライバーを使用すると、COM/TTYポートを介した通信用に設計されたソフトウェアを引き続き使用できます。インストールと設定は簡単で、シリアルデバイスとPCがTCP/IPネットワーク上でシームレスに通信できるようになります。MoxaのReal COM/TTYドライバーを使用すると、ソフトウェアへの投資を節約しながら、シリアルデバイスのネットワーク接続のメリットを活用することができます。



トラブルシューティングが簡単

NPort® 5100デバイスサーバーは、イーサネットを介してすべてのユニットを監視するために使用できるSNMPをサポートします。各ユニットは、ユーザー定義のエラーが発生するときに、SNMPマネージャーにトラップメッセージを自動的に送信するように、構成できます。SNMPマネージャーを使用しないユーザーの場合は、メールのアラートを代わりに送信できます。ユーザーは、MoxaのWindowsユーティリティかWebコンソールを使用して、アラートのトリガーを定義できます。たとえば、ウォームスタート、コールドスタート、パスワードの変更によりアラートをトリガーできます。



  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Serial Console (NPort 5110/5110-T/5150 only), Windows Utility, Telnet Console, Web Console (HTTP)

  • Management

    DHCP Client
    IPv4
    SMTP
    SNMPv1
    Telnet
    DNS
    HTTP
    ARP
    BOOTP
    UDP
    TCP/IP
    ICMP

  • Windows Real COM Drivers

    Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
    Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
    Windows Embedded CE 6.0 and 5.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

  • Fixed TTY Drivers

    macOS versions: 14, 13, 12, 11, and 10.1x
    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Arm®-based Platform Support

    Windows 11
    Linux kernel 6.x, 5.x, and 4.x
    macOS 14, 13, 12, and 11

  • Virtual Machine

    VMWare ESXi (Windows 11/10)
    VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)
    Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)

  • Android API

    Android 3.1.x and later

  • MIB

    RFC1213, RFC1317

  • Authentication

    Local database (password only)

  • Connector

    DB9 male

  • No. of Ports

    1

  • Serial Standards

    NPort 5110/5110-T: RS-232
    NPort 5130: RS-422, RS-485
    NPort 5150: RS-232, RS-422, RS-485

  • Operation Modes

    Disabled
    Ethernet Modem
    Pair Connection
    Real COM
    Reverse Telnet
    TCP Client
    TCP Server
    UDP

  • Baudrate

    NPort 5110/5110-T: 110 bps to 230.4 kbps
    NPort 5130/5150: 50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS (RS-232 only)
    DTR/DSR (RS-232 only)
    XON/XOFF

  • Pull High/Low Resistor for RS-485

    NPort 5130/5150: 1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    NPort 5130/5150: Automatic Data Direction Control (ADDC)

  • RS-232

    NPort 5110: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    NPort 5150: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    NPort 5130: Tx+, Tx-, Rx+, Rx-, GND
    NPort 5150: Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    NPort 5130: Tx+, Tx-, Rx+, Rx-, GND
    NPort 5150: Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    NPort 5130: Data+, Data-, GND
    NPort 5150: Data+, Data-, GND

  • Input Current

    NPort 5110/5110-T: 128 mA @ 12 VDC
    NPort 5130/5150: 200 mA @ 12 VDC

  • Input Voltage

    12 to 48 VDC

  • No. of Power Inputs

    1

  • Source of Input Power

    Power input jack

  • Housing

    Metal

  • Installation

    Desktop
    DIN-rail mounting (with optional kit)
    Wall mounting

  • Dimensions (with ears)

    75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)

  • Dimensions (without ears)

    52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)

  • Weight

    340 g (0.75 lb)

  • Operating Temperature

    Standard models: 0 to 55°C (32 to 131°F)
    Wide temp. models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Safety

    EN 62368-1
    IEC 62368-1
    UL 60950-1

  • Time

    NPort 5110/5110-T: 3,126,448 hrs
    NPort 5130: 2,836,863 hrs
    NPort 5150: 2,736,202 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR
