MOXA

ターミナルサーバー

Moxaのターミナルサーバーは、ネットワークへの信頼できるターミナル接続を確立するために必要となる特別な機能とセキュリティ機能を備えており、ターミナル、モデム、データスイッチ、メインフレームコンピュータ、POSデバイスなどのさまざまなデバイスを接続して、ネットワークホストやネットワーク処理で利用可能にします。

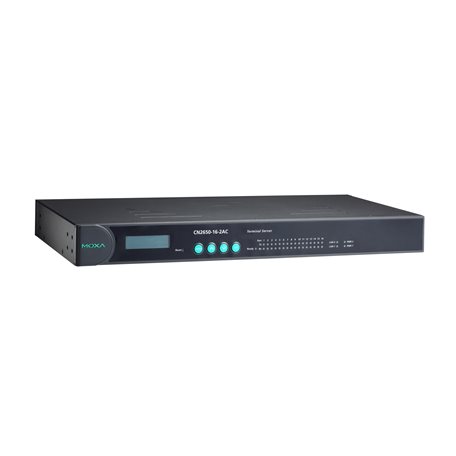

CN2650I-16
CN2600シリーズ

Dual-LAN terminal server with 16 RS-232/422/485 ports and 2 kV optical isolation

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • Serial Console, Telnet Console, Device Search Utility (DSU), Windows Utility, Web Console (HTTP/HTTPS)
  • Management

    • ARP, BOOTP, DDNS, DHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, ICMP, SLIP
  • MIB

    • MIB-II
  • Security

    • HTTPS/SSL, RADIUS, SSH, PAP, CHAP
  • Unicast Routing

    • RIPV1/V2, Static Route
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Android API

    • Android 3.1.x and later
Serial Interface
  • Connector

    • DB9 male
  • No. of Ports

    • 16
  • Serial Standards

    • RS-232, RS-422, RS-485
  • Operation Modes

    • Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Terminal mode, Reverse Telnet mode, PPP mode, DRDAS mode, Redundant COM mode, Disabled
  • Baudrate

    • 50 bps to 921.6 kbps
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • None, RTS/CTS, DTR/DSR, XON/XOFF
  • Isolation

    • 2 kV
  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485

    • 120 ohms
  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • No. of Power Inputs

    • 1
  • Input Current

    • 130 mA @ 110 VAC
  • Input Voltage

    • 100 to 240 VAC (47 to 63 Hz)
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics
  • Housing

    • Metal
  • Installation

    • 19-inch rack mounting
  • Dimensions (with ears)

    • 480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in)
  • Dimensions (without ears)

    • 440 x 198 x 45.5 mm (17.32 x 7.80 x 1.77 in)
  • Weight

    • 4,046 g (8.92 lb)
Environmental Limits
  • Operating Temperature

    • 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included)

    • 0 to 55°C (32 to 131°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11
  • Safety

    • UL 62368-1
  • Vibration

    • IEC 60068-2-6
  • Freefall

    • IEC 60068-2-32
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 248,837 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
