MOXA

ターミナルサーバー

Moxaのターミナルサーバーは、ネットワークへの信頼できるターミナル接続を確立するために必要となる特別な機能とセキュリティ機能を備えており、ターミナル、モデム、データスイッチ、メインフレームコンピュータ、POSデバイスなどのさまざまなデバイスを接続して、ネットワークホストやネットワーク処理で利用可能にします。

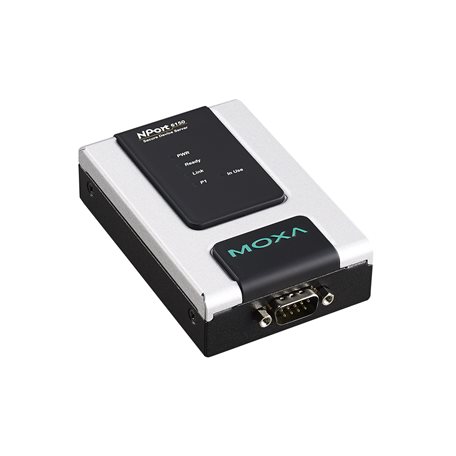

NPort 6150-T
NPort 6100/6200シリーズ

1-port RS-232/422/485 secure device server, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • Optical Fiber

    •
  • Optical Fiber

Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP/HTTPS), Serial Console, Telnet/SSH Console, Windows Utility
  • Management

    • ARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, PPPOE, SMTP, SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
  • Android API

    • Android 3.1.x and later
  • MIB

    • MIB-II
  • Time Management

    • SNTP Client
  • Unicast Routing

    • RIPV1/V2, Static Route
  • Authentication

    • Local Account Accessibility, RADIUS, TACACS+
Serial Interface
  • Connector

    • DB9 male
  • No. of Ports

    • 1
  • Serial Standards

    • RS-232, RS-422, RS-485
  • Secure Operation Modes

    • Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH
  • Standard Operation Modes

    • Disabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP
  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Flow Control

    • RTS/CTS, DTR/DSR, XON/XOFF
  • Parity

    • None, Even, Odd, Space, Mark
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)
  • Terminator for RS-485

    • 120 ohms
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Current

    • 285 mA @ 12 to 48 VDC
  • Input Voltage

    • 12 to 48 VDC
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics
  • Housing

    • Metal
  • Dimensions (with ears)

    • 90 x 100.4 x 29 mm (3.54 x 3.95 x 1.1 in)
  • Dimensions (without ears)

    • 67 x 100.4 x 29 mm (2.64 x 3.95 x 1.1 in)
  • Weight

    • 190 g (0.42 lb)
  • Installation

    • Desktop, DIN-rail mounting (with optional kit), Wall mounting
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11
  • Traffic Control

    • NEMA TS2
  • Vibration

    • IEC 60068-2-6
  • Freefall

    • IEC 60068-2-34
  • Safety

    • UL 60950-1, UL 62368-1
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 1,934,102 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
