セルラーゲートウェイ

MoxaのLTEゲートウェイにより、高性能の長距離ネットワークアプリケーションを効率的かつ簡単に実装することができます。当社のLTEゲートウェイは、通信チャネルを簡単に構成および保護することができ、スマートなリモート管理が可能で、接続の信頼性を高めることができます。

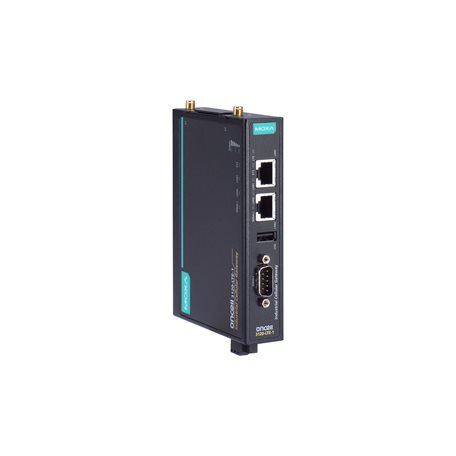

OnCell 3120-LTE-1-AU-T
OnCell 3120-LTE-1シリーズ

Industrial LTE Cat 1 cellular gateway, B3/B5/B8/B28, 1 x RS232/422/485 serial port, 2 x 10/100BaseT(X) RJ45 ports, -30 to 70°C operating temperature

Cellular Interface
  • Cellular Standards

    • LTE CAT-1, HSPA, UMTS, EDGE, GPRS, GSM
  • LTE Data Rate

    • 10 MHz bandwidth: 10.2 Mbps DL, 5.2 Mbps UL
  • HSPA Data Rates

    • 7.2 Mbps DL, 5.76 Mbps UL
  • Band Options (AU)

    • LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz)
      UMTS/HSPA 2100 MHz / 850 MHz / 900 MHz
  • No. of SIMs

    • 2
  • Cellular Antenna Connectors

    • 2 SMA female
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
USB Interface
  • No. of USB Ports

    • 1
  • USB Connector

    • USB Type A
  • USB Standards

    • USB 2.0
Serial Interface
  • No. of Ports

    • 1
  • Connector

    • DB9 male
  • Serial Standards

    • RS-232/422/485
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Baudrate

    • 75 bps to 921.6 kbps
  • Console Port

    • RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Ethernet Software Features
  • Management

    • OnCell Central Manager, GuaranLink, DHCP server, DDNS, ARP, Telnet, TCP/IP, UDP, SMTP, Remote SMS Control, Syslog, SNMPv1/v2c/v3, Serial Console, Telnet Console, Web Console, Wireless Search Utility
  • Firewall

    • Filter: MAC, IP protocol, port-based, Access IP list
  • Routing

    • NAT, Port forwarding
  • Security

    • HTTPS
  • Time Management

    • SNTP Client
IPsec VPN
  • Authentication

    • PSK/X.509/RSA
  • Encryption

    • DES, 3DES, AES, MD5, SHA-1, DH2, DH5
  • Concurrent VPN Tunnels

    • 5
OpenVPN
  • OpenVPN

    • OpenVPN (client and server), Tunnel mode (routing) and TAP mode (bridge)
  • Encryption

    • Blowfish CBC, DES CBC, DES-EDE3 CBC, AES-128/192/256 CBC
  • Concurrent VPN Tunnels

    • 5
Power Parameters
  • Input Current

    • 0.8 A (max.)
  • Input Voltage

    • 9 to 36 VDC
  • Power Consumption

    • 5 W (typ.)
  • Power Connector

    • Terminal block
  • Reverse Polarity Protection

    • Supported
  • Power Button

    • Reset button
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 128.5 x 26 x 89.1 mm (5.06 x 1.02 x 3.51 in)
  • Weight

    • 550 g (1.22 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -30 to 70°C (-22 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24, EN 61000-6-2/-6-4
  • EMI

    • CISPR 22, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-6 CS: 10 V; 150 kHz to 80 MHz
      IEC 61000-4-8: 30 A/m
      IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  • Freefall

    • IEC 60068-2-32
  • Hazardous Locations

    • ATEX, IECEx, Class I Division 2
  • Radio Frequency

    • FCC, PTCRB
  • Cellular Standards

    • EN 301489-1/17
      EN 301511
      EN 301908-1
      AS/CA S042
      EN 62311(MPE SAR)
  • Safety

    • UL 60950-1, UL 62368-1
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 585,775 hrs
  • Standards

    • Telcordia SR332
Warranty
