レイヤ2マネージドスイッチ

Moxaのレイヤ2マネージドスイッチは、IEC 62443規格に基づく産業用グレードの信頼性、ネットワーク冗長性、およびセキュリティ機能を備えています。当社は、鉄道アプリケーション向けのEN 50155規格、パワーオートメーションシステム向けのIEC 61850-3、インテリジェント交通システム向けのNEMA TS2など、複数の業界認証を受けた、業界固有の堅牢な製品を提供しています。

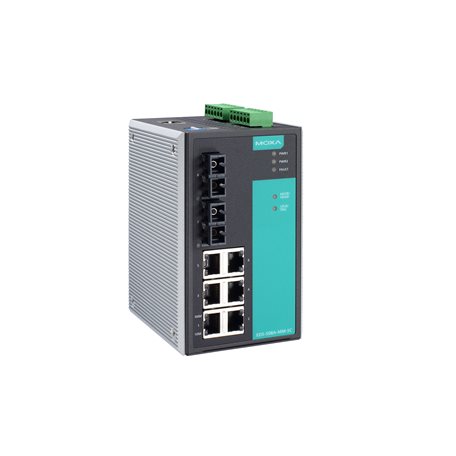

EDS-508A-SS-SC-80
EDS-508Aシリーズ

Managed Ethernet switch with 6 10/100BaseT(X) ports, 2 100BaseFX single-mode ports with SC connectors for 80 km transmission, 0 to 60°C operating temperature

Input/Output Interface

  • Alarm Contact Channels

    • 2, Relay output with current carrying capacity of 1 A @ 24 VDC

  • Digital Input Channels

    • 2

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA

  • Buttons

    • Reset button
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 6
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection

  • 100BaseFX Ports, Single-Mode SC Connector, 80 km

    • 2

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.1X for authentication
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1p for Class of Service
      IEEE 802.3x for flow control
      IEEE 802.3ad for Port Trunk with LACP

  • Optical Fiber

    •

  • Optical Fiber

    •   100BaseFX
      Multi-Mode Single-Mode (40 km) Single-Mode (80 km)
      Fiber Cable Type OM1 50/125 µm G.652 G.652
      800 MHz x km
      Typical Distance 4 km 5 km 40 km 80 km
      Wave-
      length      		 Typical (nm) 1300 1310 1550
      TX Range (nm) 1260 to 1360 1280 to 1340 1530 to 1570
      RX Range (nm) 1100 to 1600 1100 to 1600 1100 to 1600
      Optical Power TX Range (dBm) -10 to -20 0 to -5 0 to -5
      RX Range (dBm) -3 to -32 -3 to -34 -3 to -34
      Link Budget (dB) 12 29 29
      Dispersion Penalty (dB) 3 1 1
      Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.
      Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Ethernet Software Features

  • Filter

    • 802.1Q VLAN, Port-based VLAN, IGMP v1/v2, GVRP, GMRP

  • Industrial Protocols

    • EtherNet/IP, Modbus TCP

  • Management

    • IPv4/IPv6, SNMPv1/v2c/v3, LLDP, Port Mirror, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, RARP, RMON, SMTP, SNMP Inform, Syslog, Telnet, TFTP

  • MIB

    • MIB-II, Bridge MIB, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    • STP, MSTP, RSTP, LACP, Link Aggregation, Turbo Chain, Turbo Ring v1/v2

  • Security

    • HTTPS/SSL, TACACS+, Port Lock, RADIUS, SSH

  • Time Management

    • NTP Server/Client, SNTP, IEEE 1588v2 PTP (software-based)
Switch Properties

  • IGMP Groups

    • 256

  • MAC Table Size

    • 8 K

  • Max. No. of VLANs

    • 64

  • Packet Buffer Size

    • 1 Mbits

  • Priority Queues

    • 4

  • VLAN ID Range

    • VID 1 to 4094
LED Interface

  • LED Indicators

    • PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port), MSTR/HEAD, CPLR/TAIL
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration

  • Ethernet Interface

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters

  • Connection

    • 2 removable 6-contact terminal block(s)

  • Input Voltage

    • 12/24/48 VDC, Redundant dual inputs

  • Operating Voltage

    • 9.6 to 60 VDC

  • Input Current

    • 0.30 A @ 24 VDC

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)

  • Weight

    • 1040 g (2.3 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1, UL 508

  • Hazardous Locations

    • ATEX, Class I Division 2

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-6

  • Freefall

    • IEC 60068-2-31
MTBF

  • Time

    • 1,043,909 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
