ioThinx 4500シリーズ(45MR)モジュール

ioThinx 4500シリーズ用モジュール

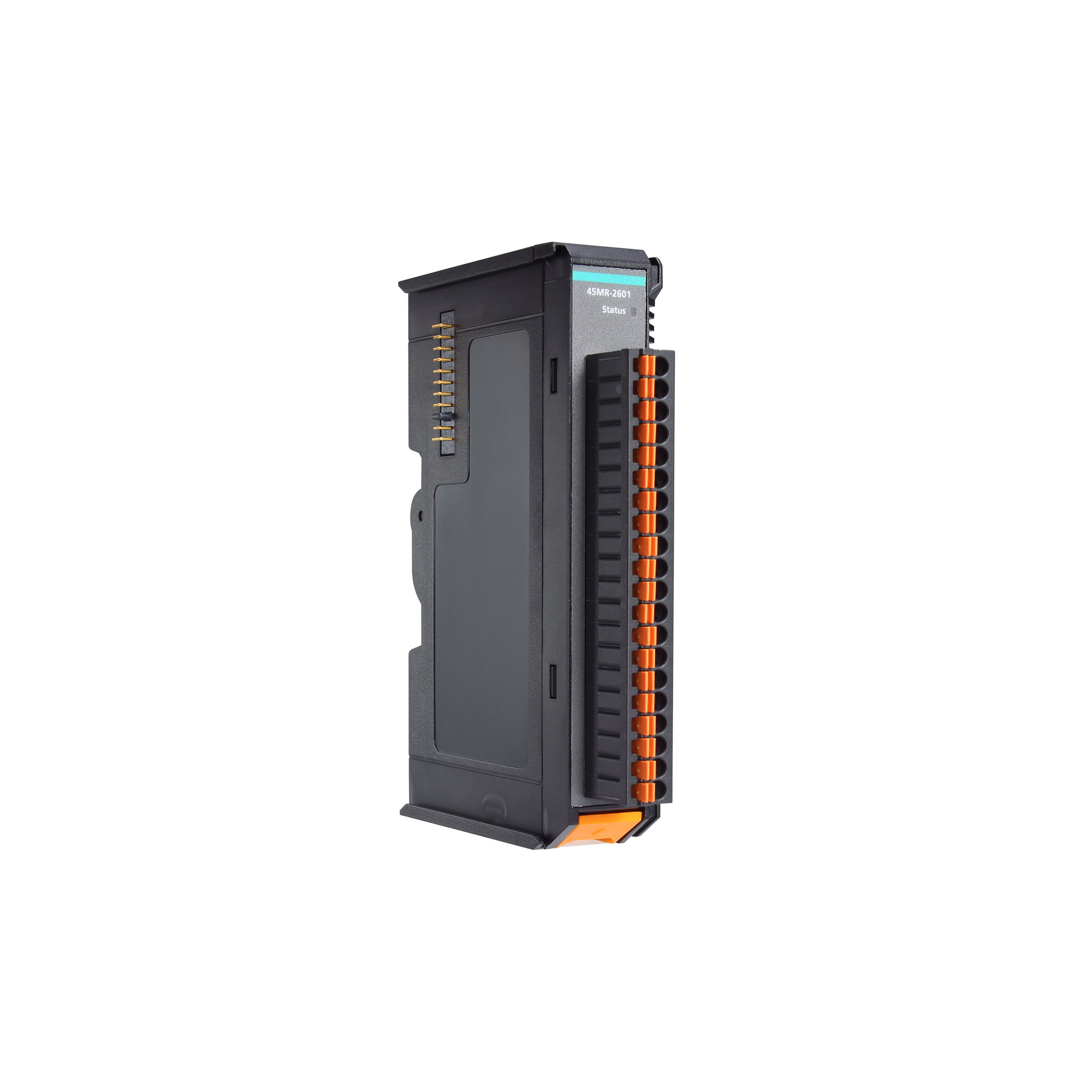

moxa-iothinx-4500-series-45mr-modules-image-(1).jpg | Moxa
moxa-iothinx-4500-series-45mr-modules-image-1-(1).jpg | Moxa

特徴および利点

  • 簡単な工具不要の取り付けと取り外し
  • I/Oチャネル用の内蔵LEDインジケータ
  • 広い動作温度範囲:-40~75°C(-40~167°F)

認証

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

営業担当者に連絡

製品紹介

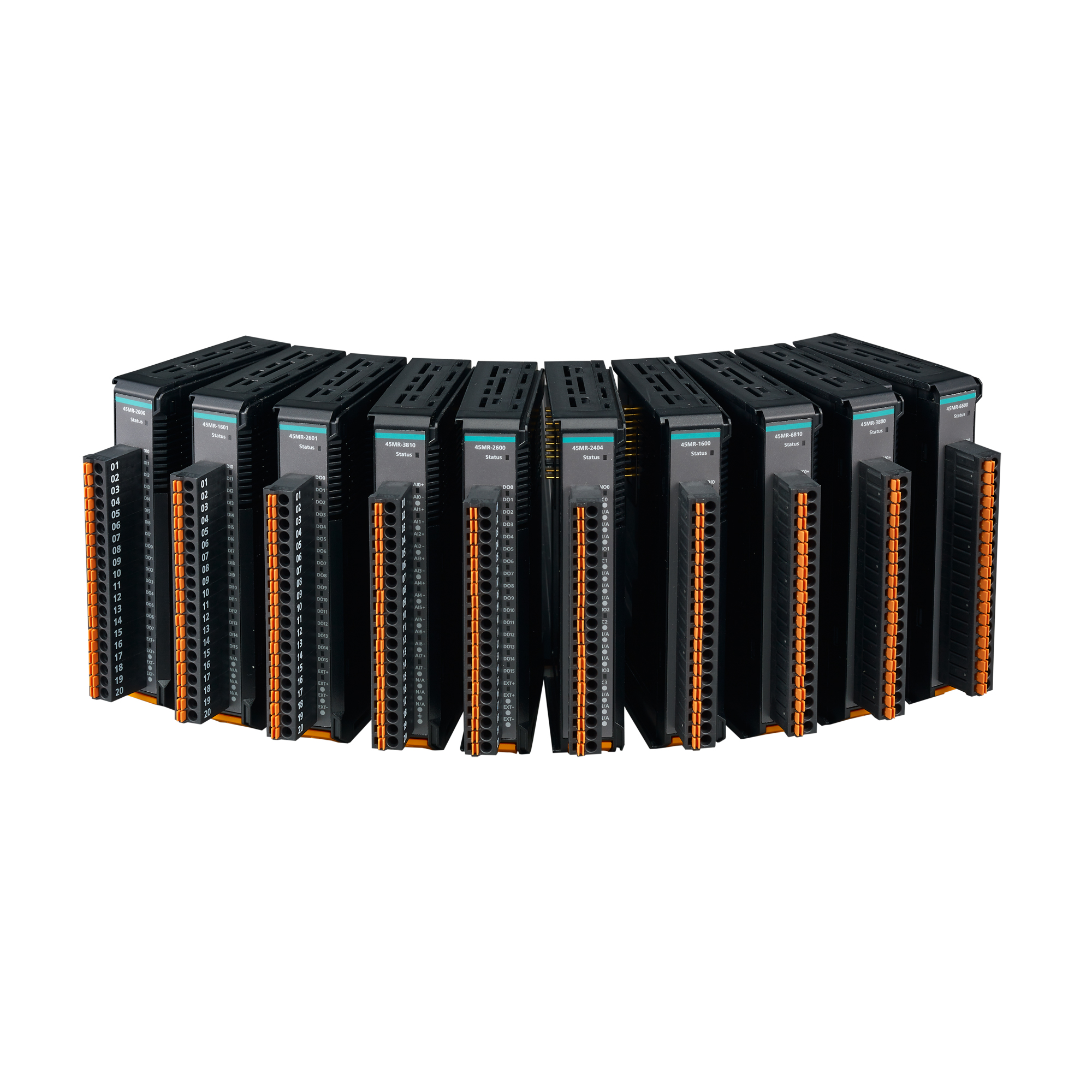

MoxaのioThinx 4500シリーズ(45MR)モジュールには、DI/O、AI、リレー、RTD、およびその他のI/Oタイプが用意されており、ユーザーは広範囲の選択肢から選択でき、ターゲットアプリケーションに最も適したI/Oの組み合わせを選択することができます。 独自のメカニカル設計により、ハードウェアの取り付けと取り外しは工具なしで簡単に行うことができ、モジュールのセットアップと交換に必要な時間を大幅に短縮できます。

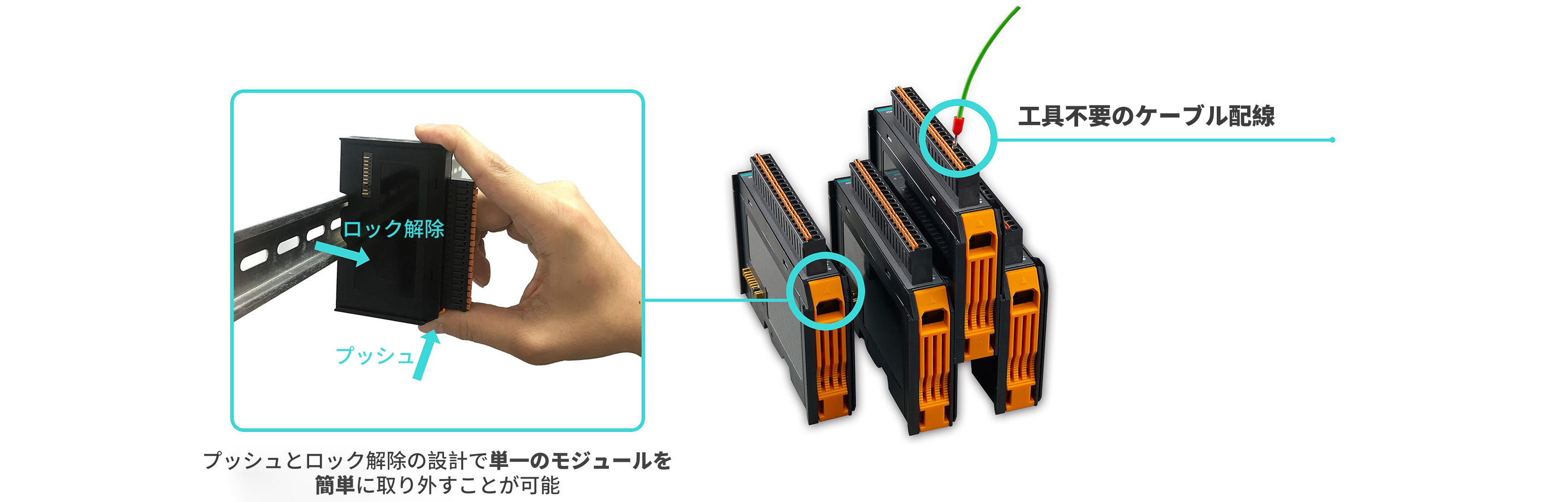

簡単な工具不要の取り付けと取り外し

ioThinx 4500シリーズのユニークなメカニカル設計により、取り付けや取り外しに必要な時間を短縮化することができます。実際のところ、ドライバーや他の工具は、ハードウェアのどの部分の取り付けにも必要ありません。DINレールへデバイスを取り付けるときも、通信およびI/O信号の取得のいずれの配線を行うときも、必要ありませんす。さらに、ioThinxをDINレールから取り外すときにも工具は必要ありません。DINレールからすべてのモジュールを取り外すのも、ラッチ/リリースタブを使用して簡単に行うことができます。

  • Digital Input Channels

    45MR-1600 Series: 16
    45MR-1601 Series: 16
    45MR-2606 Series: 8

  • Digital Output Channels

    45MR-2600 Series: 16
    45MR-2601 Series: 16
    45MR-2606 Series: 8

  • Analog Input Channels

    45MR-3800 Series: 8
    45MR-3810 Series: 8

  • Relay Channels

    45MR-2404 Series: 4

  • Analog Output Channels

    45MR-4420 Series: 4

  • RTD Channels

    45MR-6600 Series: 6

  • Thermocouple Channels

    45MR-6810 Series: 8

  • Isolation

    3k VDC or 2k Vrms

  • Connector

    Spring-type Euroblock terminal

  • Sensor Type

    Dry contact
    Wet contact (NPN or PNP)

  • I/O Mode

    45MR-1600/1601 Series: DI or event counter (only supports the first 4 channels)
    45MR-2606 Series: DI or event counter (only supports the first 2 channels)

  • Dry Contact

    On: short to FP+/FP-
    Off: open

  • Wet Contact (DI to FP-)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Wet Contact (DI to FP+)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Counter Frequency

    1 kHz

  • Digital Filtering Time Interval

    Software configurable

  • Connector

    Spring-type Euroblock terminal

  • I/O Type

    45MR-2600 Series: Sink
    45MR-2601/2606 Series: Source

  • I/O Mode

    45MR-2600/2601 Series: DO or pulse output (only supports the first 4 channels)
    45MR-2606 Series: DO or pulse output (only supports the first 2 channels)

  • External Power

    12/24 VDC

  • Pulse Output Frequency

    1 kHz

  • Over-Voltage Protection

    45 VDC

  • Over-Temperature Shutdown

    175°C (typical), 150°C (min.)

  • Current Rating

    500 mA per channel

  • Connector

    Spring-type Euroblock terminal

  • Type

    Form A (N.O.) power relay

  • I/O Mode

    DO

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC
    Resistive load: 2 A @ 250 VAC

  • Relay On/Off Time

    10 ms (max.)

  • Initial Insulation Resistance

    1000 mega-ohms (min.) @ 500 VDC

  • Mechanical Endurance

    5,000,000 operations

  • Electrical Endurance

    400,000 operations @ 2 A resistive load

  • Contact Resistance

    100 milli-ohms (max.)

  • Connector

    Spring-type Euroblock terminal

  • I/O Mode

    Voltage/Current

  • I/O Type

    Differential

  • Resolution

    16 bits

  • Input Range

    45MR-3800 Series: 0 to 20 mA, 4 to 20 mA, 4 to 20 mA (burnout detection)
    45MR-3810 Series: 0 to 10 VDC or -10 to 10 VDC

  • Over-Voltage Protection

    -25 to +30 VDC (power on)
    -35 to +35 VDC (power off)

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 and 75°C

  • Sampling Rate

    All channels: 100 samples/sec
    Per channel: 12.5 samples/sec
    Single channel: 100 samples/sec

  • Input Impedance

    45MR-3800 Series: 120 ohms
    45MR-3810 Series: 10 mega-ohms (min.)

  • Connector

    Spring-type Euroblock terminal

  • I/O Mode

    Voltage/Current

  • Output Range

    0 to 10 VDC
    0 to 20 mA
    4 to 20 mA

  • Resolution

    12-bit

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Load (Current Mode)

    Internal power: 500 ohms (max.)

  • Load (Voltage Mode)

    1000 ohms (min.)

  • Connector

    Spring-type Euroblock terminal

  • Sensor Type

    PT50, PT100, PT200, PT500 (-200 to 850°C)
    PT1000 (-200 to 350°C)
    JPT100, JPT200, JPT500 (-200 to 640°C)
    JPT1000 (-200 to 350°C)
    NI100, NI200, NI500 (-60 to 250°C)
    NI1000 (-60 to 150°C)
    NI120 (-80 to 260°C)

  • Resistance Type

    310, 620, 1250, and 2200 ohms

  • Input Connection

    2- or 3-wire

  • Sampling Rate

    All channels: 12 samples/sec
    Per channel: 2 samples/sec

  • Resolution

    0.1°C or 0.1 ohms

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 and 75°C

  • Input Impedance

    625 kilo-ohms (min.)

  • Connector

    Spring-type Euroblock terminal

  • Sensor Type

    J, K, T, E, R, S, B, N

  • Millivolt Type

    ±19.532 mV
    ±39.062 mV
    ±78.126 mV

  • Resolution

    16 bits

  • Millivolt Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 and 75°C

  • Sampling Rate

    All channels: 12 samples/sec
    Per channel: 1.5 samples/sec

  • Input Impedance

    1 mega-ohms (min.)

  • Mode

    45MR-7820 Series: 0, 12/24 VDC

  • Channels

    45MR-7820 Series: 8

  • Power Connector

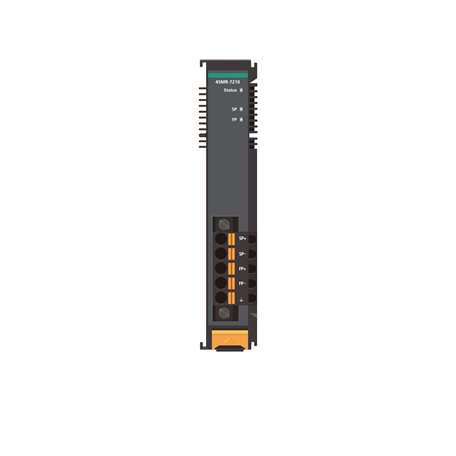

    45MR-7210: Spring-type Euroblock terminal
    45MR-7210-T: Spring-type Euroblock terminal

  • Over-Current Protection

    45MR-7210: 1 A @ 25°C
    45MR-7210-T: 1 A @ 25°C

  • No. of Power Inputs

    45MR-7210: 1
    45MR-7210-T: 1

  • Input Voltage

    45MR-7210: 12 to 48 VDC, 45MR-7210-T: 12 to 48 VDC

  • Power Consumption

    45MR-7210: 800 mA @ 12 VDC
    45MR-7210-T: 800 mA @ 12 VDC

  • Output Current

    45MR-7210: 1 A (max.)
    45MR-7210-T: 1 A (max.)

  • Over-Voltage Protection

    45MR-7210-T: 55 VDC
    45MR-7210: 55 VDC

  • Power Connector

    45MR-7210: Spring-type Euroblock terminal
    45MR-7210-T: Spring-type Euroblock terminal

  • No. of Power Inputs

    45MR-7210: 1
    45MR-7210-T: 1

  • Output Current

    45MR-7210: 2 A (max.)
    45MR-7210-T: 2 A (max.)

  • Input Voltage

    45MR-7210: 12/24 VDC, 45MR-7210-T: 12/24 VDC

  • Over-Current Protection

    45MR-7210: 2.5 A @ 25°C
    45MR-7210-T: 2.5 A @ 25°C

  • Over-Voltage Protection

    45MR-7210-T: 33 VDC
    45MR-7210: 33 VDC

  • System Power

    45MR-1600 Series: 59.4 mA @ 3.3 VDC
    45MR-1601 Series: 59.4 mA @ 3.3 VDC
    45MR-2404 Series: 44 mA @ 3.3 VDC
    45MR-2600 Series: 57.2 mA @ 3.3 VDC
    45MR-2601 Series: 63.8 mA @ 3.3 VDC
    45MR-2606 Series: 62.7 mA @ 3.3 VDC
    45MR-3800 Series: 197.3 mA @ 3.3 VDC
    45MR-3810 Series: 187 mA @ 3.3 VDC
    45MR-4420 Series: 44 mA @ 3.3 VDC
    45MR-6600 Series: 131.7 mA @ 3.3 VDC
    45MR-6810 Series: 148.1 mA @ 3.3 VDC
    45MR-7210 Series: 45m A @ 24 VDC

  • Field Power

    45MR-1600 Series: 19.3 mA @ 12 VDC
    45MR-1601 Series: 19.3 mA @ 12 VDC
    45MR-2404 Series: 31.2 mA @ 12 VDC
    45MR-2606 Series: 15.4 mA @ 12 VDC
    45MR-4420 Series: 220.2 mA @ 12 VDC
    45MR-1600 Series: 25.3 mA @ 24 VDC
    45MR-1601 Series: 25.3 mA @ 24 VDC
    45MR-2404 Series: 24.7 mA @ 24 VDC
    45MR-2606 Series: 18.7 mA @ 24 VDC
    45MR-4420 Series: 122.3 mA @ 24 VDC

  • Housing

    Plastic

  • Dimensions

    19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)

  • Weight

    45MR-1600 Series: 77 g (0.17 lb)
    45MR-1601 Series: 77.6 g (0.171 lb)
    45MR-2404 Series: 88.4 g (0.195 lb)
    45MR-2600 Series: 77.4 g (0.171 lb)
    45MR-2601 Series: 77 g (0.17 lb)
    45MR-2606 Series: 77.4 g (0.171 lb)
    45MR-3800 Series: 79.8 g (0.176 lb)
    45MR-3810 Series: 79 g (0.175 lb)
    45MR-4420 Series: 79 g (0.175 lb)
    45MR-6600 Series: 78.7 g (0.174 lb)
    45MR-6810 Series: 78.4 g (0.173 lb)
    45MR-7210 Series: 77 g (0.17 lb)
    45MR-7820 Series: 73.6 g (0.163 lb)

  • Installation

    DIN-rail mounting

  • Wiring

    I/O cable, 18 to 24 AWG

  • Strip Length

    I/O cable, 9 to 10 mm

  • Operating Temperature

    Standard Models: -20 to 60°C (-4 to 140°F)
    Wide Temp.Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing) The relays of the 45MR-2404 Series may malfunction when operating in high condensation environments below 0°C.

  • Altitude

    Up to 4000 meters Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Safety

    UL 61010-2-201 (except 45MR-4420 Series & 45MR-7210 Series)

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    45MR-1600 Series: 661,247 hrs
    45MR-1601 Series: 661,247 hrs
    45MR-2404 Series: 1,955,805 hrs
    45MR-2600 Series: 647,334 hrs
    45MR-2601 Series: 660,179 hrs
    45MR-2606 Series: 638,652 hrs
    45MR-3800 Series: 2,085,426 hrs
    45MR-3810 Series: 2,478,459 hrs
    45MR-4420 Series: 1,450,453 hrs
    45MR-6600 Series: 2,291,755 hrs
    45MR-6810 Series: 1,649,892 hrs
    45MR-7210 Series: 2,550,077 hrs
    45MR-7820 Series: 256,886,914 hrs

  • Standards

    Telcordia SR332

  • Warranty Period

    All models except 45MR-2404 Series: 5 years
    45MR-2404 Series: 2 years Because of the limited lifetime of power relays, products that use this component are covered by a 2-year warranty.

  • Details

ソフトウェア、ファームウェア、ドライバー

フィルター

名前 種類 バージョン オペレーティングシステム リリーズ日
IOxpress Configuration Utility
5.0 MB
ユーティリティ v2.4.0
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2012
2019年6月4日 2019年6月4日 リリースノート

サポートドキュメント

名前 種類 言語 バージョン リリーズ日
Manual for ioThinx 4500 Series (45MR) Modules
8.3 MB
マニュアル 英語 v3.0 2020年1月6日 2020年1月6日
ioThinx 4500シリーズ(45MR)モジュールデータシート
6.0 MB
データシート 日本語 v4.0 2019年11月21日 2019年11月21日
QIG for ioThinx 4500 Series (45MR) Modules
668.7 KB
QIG (クイックインストールガイド) 英語 v1.1 2019年7月29日 2019年7月29日
2D CAD for ioThinx 4500 Series (45MR) Modules (45MR_7210)
427.0 KB
2D CAD 英語 2019年4月8日 2019年4月8日
2D CAD for ioThinx 4500 Series (45MR) Modules
410.2 KB
2D CAD 英語 2018年11月28日 2018年11月28日

利用可能なモデル (26)

画像を表示

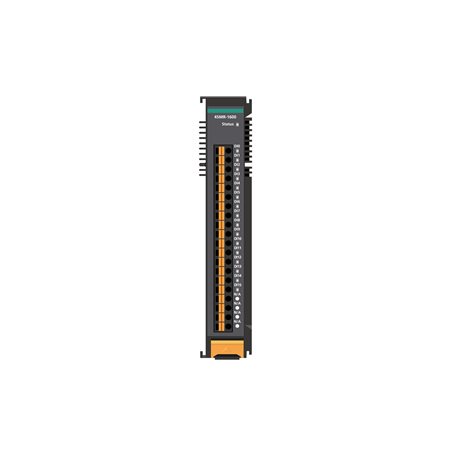

moxa-45mr-1600-image.jpg | Moxa45MR-1600moxa-45mr-1600-t-image.jpg | Moxa45MR-1600-Tmoxa-45mr-1601-image.jpg | Moxa45MR-1601moxa-45mr-1601-t-image.jpg | Moxa45MR-1601-T
Input/Output Interface16 x DI16 x DI16 x DI16 x DI
Digital InputPNP
12/24VDC
PNP
12/24VDC
NPN
12/24 VDC
NPN
12/24 VDC
Digital Output
Relay
Analog Input Type
Analog Output Type
Power
Operating Temp.-20 to 60°C-40 to 75°C-20 to 60°C-40 to 75°C
見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る
moxa-45mr-2600-image.jpg | Moxa45MR-2600moxa-45mr-2600-t-image.jpg | Moxa45MR-2600-Tmoxa-45mr-2601-image.jpg | Moxa45MR-2601moxa-45mr-2601-t-image.jpg | Moxa45MR-2601-T
Input/Output Interface16 x DO16 x DO16 x DO16 x DO
Digital Input
Digital OutputSink
12/24 VDC
Sink
12/24 VDC
Source
12/24 VDC
Source
12/24 VDC
Relay
Analog Input Type
Analog Output Type
Power
Operating Temp.-20 to 60°C-40 to 75°C-20 to 60°C-40 to 75°C
見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る
moxa-45mr-2606-image.jpg | Moxa45MR-2606moxa-45mr-2606-t-image.jpg | Moxa45MR-2606-Tmoxa-45mr-2404-image.jpg | Moxa45MR-2404moxa-45mr-2404-t-image.jpg | Moxa45MR-2404-T
Input/Output Interface8 x DI, 8 x DO8 x DI, 8 x DO4 x Relay4 x Relay
Digital InputPNP
12/24VDC
PNP
12/24VDC
Digital OutputSource
12/24 VDC
Source
12/24 VDC
RelayForm A
30 VDC/250 VAC, 2 A
Form A
30 VDC/250 VAC, 2 A
Analog Input Type
Analog Output Type
Power
Operating Temp.-20 to 60°C-40 to 75°C-20 to 60°C-40 to 75°C
見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る
moxa-45mr-7820-image.jpg | Moxa45MR-7820moxa-45mr-7820-t-image.jpg | Moxa45MR-7820-Tmoxa-45mr-3800-image.jpg | Moxa45MR-3800moxa-45mr-3800-t-image.jpg | Moxa45MR-3800-T
Input/Output Interface8 x field power output8 x field power output8 x AI8 x AI
Digital Input
Digital Output
Relay
Analog Input Type0 to 20 mA
4 to 20 mA
0 to 20 mA
4 to 20 mA
Analog Output Type
Power8 x FP+
8 x FP-
8 x FP+
8 x FP-
Operating Temp.-20 to 60°C-40 to 75°C-20 to 60°C-40 to 75°C
見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る

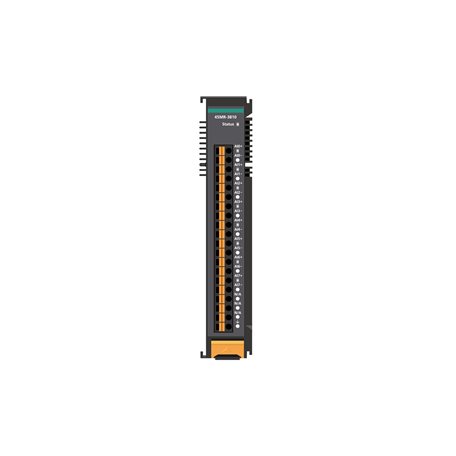

moxa-45mr-3810-image.jpg | Moxa45MR-3810moxa-45mr-3810-t-image.jpg | Moxa45MR-3810-Tmoxa-45mr-6600-image.jpg | Moxa45MR-6600moxa-45mr-6600-t-image.jpg | Moxa45MR-6600-T
Input/Output Interface8 x AI8 x AI6 x RTD6 x RTD
Digital Input
Digital Output
Relay
Analog Input Type-10 to 10 VDC
0 to 10 VDC
-10 to 10 VDC
0 to 10 VDC
RTDRTD
Analog Output Type
Power
Operating Temp.-20 to 60°C-40 to 75°C-20 to 60°C-40 to 75°C
見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る
moxa-45mr-6810-image.jpg | Moxa45MR-6810moxa-45mr-6810-t-image.jpg | Moxa45MR-6810-Tmoxa-45mr-7210-image.jpg | Moxa45MR-7210moxa-45mr-7210-t-image.jpg | Moxa45MR-7210-T
Input/Output Interface8 x TC8 x TC1 x system power input
1 x field power input
1 x system power input
1 x field power input
Digital Input
Digital Output
Relay
Analog Input TypeTCTC
Analog Output Type
Power1 x SP+
1 x SP-
1 x FP+
1 x FP-
1 x FP GND
1 x SP+
1 x SP-
1 x FP+
1 x FP-
1 x FP GND
Operating Temp.-20 to 60°C-40 to 75°C-20 to 60°C-40 to 75°C
見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る見積りに追加バッグを見る

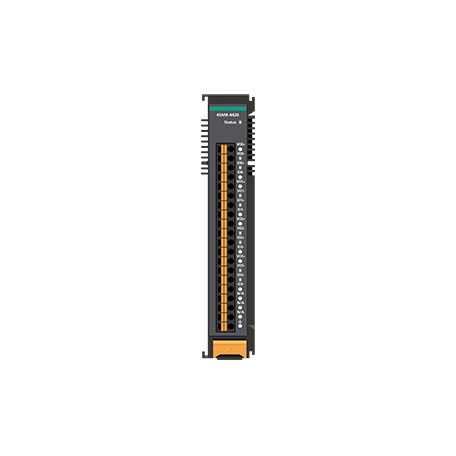

moxa-45mr-4420-image.jpg | Moxa45MR-4420moxa-45mr-4420-t-image.jpg | Moxa45MR-4420-T
Input/Output Interface4 x AO4 x AO
Digital Input
Digital Output
Relay
Analog Input Type
Analog Output Type0 to 10 V
0 to 20 mA
4 to 20 mA
0 to 10 V
0 to 20 mA
4 to 20 mA
Power
Operating Temp.-20 to 60°C-40 to 75°C
見積りに追加バッグを見る見積りに追加バッグを見る
バッグに追加

ioThinx 4500シリーズ(45MR)モジュール

45MR-1600

moxa-45mr-1600-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-1600-T

moxa-45mr-1600-t-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-1601

moxa-45mr-1601-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-1601-T

moxa-45mr-1601-t-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-2404

moxa-45mr-2404-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-2404-T

moxa-45mr-2404-t-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-2600

moxa-45mr-2600-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-2600-T

moxa-45mr-2600-t-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-2601

moxa-45mr-2601-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-2601-T

moxa-45mr-2601-t-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-2606

moxa-45mr-2606-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-2606-T

moxa-45mr-2606-t-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-3800

moxa-45mr-3800-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-3800-T

moxa-45mr-3800-t-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-3810

moxa-45mr-3810-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-3810-T

moxa-45mr-3810-t-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-4420

moxa-45mr-4420-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-4420-T

moxa-45mr-4420-t-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-6600

moxa-45mr-6600-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-6600-T

moxa-45mr-6600-t-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-6810

moxa-45mr-6810-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-6810-T

moxa-45mr-6810-t-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-7210

moxa-45mr-7210-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-7210-T

moxa-45mr-7210-t-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-7820

moxa-45mr-7820-image.jpg | Moxa

Buy online from our distributors

ioThinx 4500シリーズ(45MR)モジュール

45MR-7820-T

moxa-45mr-7820-t-image.jpg | Moxa

Buy online from our distributors
