ラギッドコントローラおよびI/O

鉄道/風力発電/海上アプリケーションでは、過酷な環境であっても、システムの信頼性と安定性が求められます。当社の堅牢なコントローラおよびI/O製品は、汎用性の高いデータ収集および制御機能を備えるとともに、極限条件下での使用に耐えられるように設計されています。

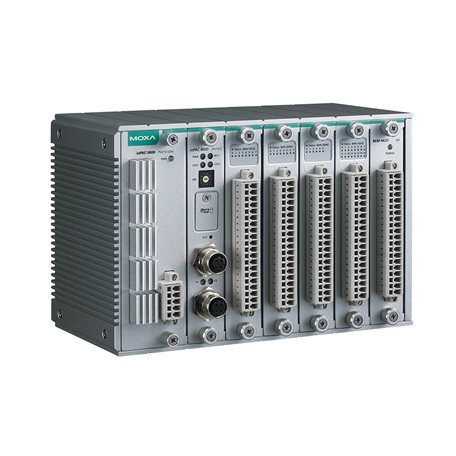

ioPAC 8600-CPU30-RJ45-C-T
ioPAC 8600シリーズ

Rugged controller, 1 GHz CPU, 2-port RJ45 Ethernet, C/C++, -40 to 75°C operating temperature

Computer
  • CPU

    • 32-bit Cortex-A8 1 GHz CPU
  • OS

    • Real-time Linux (PREEMPT_RT)
  • Clock

    • Real-time clock with capacitor backup
Memory
  • eMMC

    • 4 GB (1.7 GB reserved for the user)
  • SDRAM

    • 512 MB
  • SPI-NVRAM

    • 128 KB
  • microSD Slot

    • Up to 32 GB (SD 2.0 compatible) For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.
Control Logic
  • Language

    • C/C++
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • RJ45 version: 2, 1 MAC address (Ethernet bypass) or 2 MAC addresses, jumper selectable
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • v
  • Industrial Protocols

    • Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), SNMPv1/v2c Trap, SNMPv1/v2c/v3
  • Management

    • BOOTP, IPv4, SMTP, UDP
  • Security

    • SSH
  • Time Management

    • SNTP
Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
Modbus RTU/ASCII
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16
  • Mode

    • Master, Slave
Modbus TCP
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16
  • Mode

    • Master, Slave
Power Parameters
  • Power Connector

    • Spring-type Euroblock terminal
  • No. of Power Inputs

    • 2
  • Input Voltage

    • 24 to 110 VDC
  • Power Consumption

    • 223 mA @ 24 VDC
Physical Characteristics
  • Housing

    • Metal
  • Installation

    • Wall mounting (with optional kit)
  • Wiring

    • Power cable, 14 to 28 AWG
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • EMC

    • EN 55032/24, EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Railway

    • EN 50121-4, EN 50155
  • Safety

    • UL 508
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 1,358,656 hrs
  • Standards

    • Telcordia SR332
Warranty
