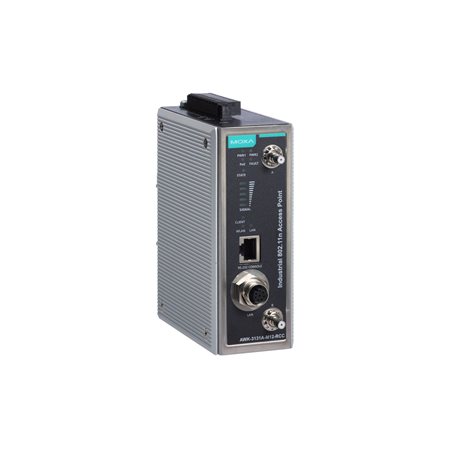

AWK-3131A-M12-RCC-EU-CT-T
AWK-3131A-RCCシリーズ

802.11n railway onboard indoor single radio access point/client, IP30, EU band, conformal coating, -40 to 75°C operating temperature

WLAN Interface

  • WLAN Standards

    • 802.11a/b/g/n
      802.11i Wireless Security

  • Modulation Type

    • DSSS
      OFDM
      802.11b: CCK @ 11/5.5 Mbps
      802.11b: DQPSK @ 2 Mbps
      802.11b: DBPSK @ 1 Mbps
      802.11a/g: 64QAM @ 54/58 Mbps
      802.11a/g: 16QAM @ 36/24 Mbps
      802.11a/g: QPSK @ 18/12 Mbps
      802.11a/g: BPSK @ 9/6 Mbps
      802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps

  • Frequency Band for EU (20 MHz operating channels)

    • 2.412 to 2.472 GHz (13 channels)
      5.180 to 5.240 GHz (4 channels)
      5.260 to 5.320 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
      5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

  • Wireless Security

    • SSID broadcast enable/disable
      WEP encryption (64-bit and 128-bit)
      WPA/WPA2-Personal
      WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)

  • Transmission Rate

    • 802.11b: 1 to 11 Mbps
      802.11a/g: 6 to 54 Mbps
      802.11n: 6.5 to 300 Mbps

  • Transmitter Power for 802.11a

    • 23±1.5 dBm @ 6 to 24 Mbps
      21±1.5 dBm @ 36 Mbps
      20±1.5 dBm @ 48 Mbps
      18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (5 GHz)

    • 23±1.5 dBm @ MCS0 20 MHz
      20±1.5 dBm @ MCS1 20 MHz
      20±1.5 dBm @ MCS2 20 MHz
      20±1.5 dBm @ MCS3 20 MHz
      19±1.5 dBm @ MCS4 20 MHz
      18±1.5 dBm @ MCS5 20 MHz
      18±1.5 dBm @ MCS6 20 MHz
      18±1.5 dBm @ MCS7 20 MHz
      23±1.5 dBm @ MCS8 20 MHz
      20±1.5 dBm @ MCS9 20 MHz
      20±1.5 dBm @ MCS10 20 MHz
      20±1.5 dBm @ MCS11 20 MHz
      19±1.5 dBm @ MCS12 20 MHz
      19±1.5 dBm @ MCS13 20 MHz
      18±1.5 dBm @ MCS14 20 MHz
      18±1.5 dBm @ MCS15 20 MHz
      23±1.5 dBm @ MCS0 40 MHz
      20±1.5 dBm @ MCS1 40 MHz
      20±1.5 dBm @ MCS2 40 MHz
      20±1.5 dBm @ MCS3 40 MHz
      19±1.5 dBm @ MCS4 40 MHz
      18±1.5 dBm @ MCS5 40 MHz
      18±1.5 dBm @ MCS6 40 MHz
      18±1.5 dBm @ MCS7 40 MHz
      23±1.5 dBm @ MCS8 40 MHz
      20±1.5 dBm @ MCS9 40 MHz
      20±1.5 dBm @ MCS10 40 MHz
      20±1.5 dBm @ MCS11 40 MHz
      19±1.5 dBm @ MCS12 40 MHz
      19±1.5 dBm @ MCS13 40 MHz
      18±1.5 dBm @ MCS14 40 MHz
      18±1.5 dBm @ MCS15 40 MHz

  • Transmitter Power for 802.11b

    • 26±1.5 dBm @ 1 Mbps
      26±1.5 dBm @ 2 Mbps
      26±1.5 dBm @ 5.5 Mbps
      25±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g

    • 23±1.5 dBm @ 6 to 24 Mbps
      21±1.5 dBm @ 36 Mbps
      19±1.5 dBm @ 48 Mbps
      18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz)

    • 23±1.5 dBm @ MCS0 20 MHz
      21±1.5 dBm @ MCS1 20 MHz
      21±1.5 dBm @ MCS2 20 MHz
      21±1.5 dBm @ MCS3 20 MHz
      20±1.5 dBm @ MCS4 20 MHz
      19±1.5 dBm @ MCS5 20 MHz
      18±1.5 dBm @ MCS6 20 MHz
      18±1.5 dBm @ MCS7 20 MHz
      23±1.5 dBm @ MCS8 20 MHz
      21±1.5 dBm @ MCS9 20 MHz
      21±1.5 dBm @ MCS10 20 MHz
      21±1.5 dBm @ MCS11 20 MHz
      20±1.5 dBm @ MCS12 20 MHz
      19±1.5 dBm @ MCS13 20 MHz
      18±1.5 dBm @ MCS14 20 MHz
      18±1.5 dBm @ MCS15 20 MHz
      23±1.5 dBm @ MCS0 40 MHz
      20±1.5 dBm @ MCS1 40 MHz
      20±1.5 dBm @ MCS2 40 MHz
      20±1.5 dBm @ MCS3 40 MHz
      19±1.5 dBm @ MCS4 40 MHz
      19±1.5 dBm @ MCS5 40 MHz
      18±1.5 dBm @ MCS6 40 MHz
      17±1.5 dBm @ MCS7 40 MHz
      23±1.5 dBm @ MCS8 40 MHz
      20±1.5 dBm @ MCS9 40 MHz
      20±1.5 dBm @ MCS10 40 MHz
      20±1.5 dBm @ MCS11 40 MHz
      20±1.5 dBm @ MCS12 40 MHz
      19±1.5 dBm @ MCS13 40 MHz
      18±1.5 dBm @ MCS14 40 MHz
      17±1.5 dBm @ MCS15 40 MHz

  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    • Typ. -90 @ 6 Mbps
      Typ. -88 @ 9 Mbps
      Typ. -88 @ 12 Mbps
      Typ. -85 @ 18 Mbps
      Typ. -81 @ 24 Mbps
      Typ. -78 @ 36 Mbps
      Typ. -74 @ 48 Mbps
      Typ. -74 @ 54 Mbps
      Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.

  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    • Typ. -88 dBm @ MCS0 20 MHz
      Typ. -85 dBm @ MCS1 20 MHz
      Typ. -82 dBm @ MCS2 20 MHz
      Typ. -79 dBm @ MCS3 20 MHz
      Typ. -76 dBm @ MCS4 20 MHz
      Typ. -71 dBm @ MCS5 20 MHz
      Typ. -70 dBm @ MCS6 20 MHz
      Typ. -69 dBm @ MCS7 20 MHz
      Typ. -95 dBm @ MCS8 20 MHz
      Typ. -91 dBm @ MCS9 20 MHz
      Typ. -87 dBm @ MCS10 20 MHz
      Typ. -80 dBm @ MCS11 20 MHz
      Typ. -78 dBm @ MCS12 20 MHz
      Typ. -74 dBm @ MCS13 20 MHz
      Typ. -72 dBm @ MCS14 20 MHz
      Typ. -71 dBm @ MCS15 20 MHz
      Typ. -84 dBm @ MCS0 40 MHz
      Typ. -81 dBm @ MCS1 40 MHz
      Typ. -77 dBm @ MCS2 40 MHz
      Typ. -75 dBm @ MCS3 40 MHz
      Typ. -71 dBm @ MCS4 40 MHz
      Typ. -67 dBm @ MCS5 40 MHz
      Typ. -64 dBm @ MCS6 40 MHz
      Typ. -63 dBm @ MCS7 40 MHz
      Typ. -90 dBm @ MCS8 40 MHz
      Typ. -85 dBm @ MCS9 40 MHz
      Typ. -82 dBm @ MCS10 40 MHz
      Typ. -81 dBm @ MCS11 40 MHz
      Typ. -77 dBm @ MCS12 40 MHz
      Typ. -73 dBm @ MCS13 40 MHz
      Typ. -71 dBm @ MCS14 40 MHz
      Typ. -68 dBm @ MCS15 40 MHz
      Note Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.

  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    • Typ. -93 dBm @ 1 Mbps
      Typ. -93 dBm @ 2 Mbps
      Typ. -93 dBm @ 5.5 Mbps
      Typ. -88 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    • Typ. -88 dBm @ 6 Mbps
      Typ. -86 dBm @ 9 Mbps
      Typ. -85 dBm @ 12 Mbps
      Typ. -85 dBm @ 18 Mbps
      Typ. -85 dBm @ 24 Mbps
      Typ. -82 dBm @ 36 Mbps
      Typ. -78 dBm @ 48 Mbps
      Typ. -74 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    • Typ. -89 dBm @ MCS0 20 MHz
      Typ. -85 dBm @ MCS1 20 MHz
      Typ. -85 dBm @ MCS2 20 MHz
      Typ. -82 dBm @ MCS3 20 MHz
      Typ. -78 dBm @ MCS4 20 MHz
      Typ. -74 dBm @ MCS5 20 MHz
      Typ. -72 dBm @ MCS6 20 MHz
      Typ. -70 dBm @ MCS7 20 MHz
      Typ. -95 dBm @ MCS8 20 MHz
      Typ. -90 dBm @ MCS9 20 MHz
      Typ. -87 dBm @ MCS10 20 MHz
      Typ. -83 dBm @ MCS11 20 MHz
      Typ. -80 dBm @ MCS12 20 MHz
      Typ. -74 dBm @ MCS13 20 MHz
      Typ. -71 dBm @ MCS14 20 MHz
      Typ. -69 dBm @ MCS15 20 MHz
      Typ. -87 dBm @ MCS0 40 MHz
      Typ. -83 dBm @ MCS1 40 MHz
      Typ. -83 dBm @ MCS2 40 MHz
      Typ. -80 dBm @ MCS3 40 MHz
      Typ. -76 dBm @ MCS4 40 MHz
      Typ. -73 dBm @ MCS5 40 MHz
      Typ. -69 dBm @ MCS6 40 MHz
      Typ. -67 dBm @ MCS7 40 MHz
      Typ. -93 dBm @ MCS8 40 MHz
      Typ. -88 dBm @ MCS9 40 MHz
      Typ. -85 dBm @ MCS10 40 MHz
      Typ. -82 dBm @ MCS11 40 MHz
      Typ. -78 dBm @ MCS12 40 MHz
      Typ. -73 dBm @ MCS13 40 MHz
      Typ. -69 dBm @ MCS14 40 MHz
      Typ. -67 dBm @ MCS15 40 MHz

  • WLAN Operation Mode

    • Access point, Client, Client-Router, Sniffer

  • Antenna Connectors

    • QMA
Ethernet Interface

  • PoE Ports (10/100/1000BaseT(X), M12 A-coded 8-pin female connector)

    • 1

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3ab for 1000BaseT
      IEEE 802.3af for PoE
      IEEE 802.1Q for VLAN Tagging

  • 10/100/1000BaseT(X) Ports (M12 A-coded 8-pin female connector)

    • 1, M12 A-coded 8-pin female connector, 10/100/1000BaseT(X) auto negotiation speed, F/H duplex mode, auto MDI/MDI-X connection
Ethernet Software Features

  • Management

    • General: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, DHCP
      AP-only: ARP, BOOTP, DHCP

  • Security

    • RADIUS
Firewall

  • Filter

    • MAC/IP Protocol/Port-based
Serial Interface

  • Console Port

    • RS-232 (RJ45-type)
LED Interface

  • LED Indicators

    • PWR1, PWR2, PoE, FAULT, STATE, SIGNAL, Client, WLAN, LAN
Input/Output Interface

  • Digital Inputs

    • 2
      +13 to +30 V for state 1
      +3 to -30 V for state 0
      Max. input current: 8 mA

  • Alarm Contact Channels

    • Relay output with current carrying capacity of 1 A @ 24 VDC

  • Buttons

    • Reset button
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 52.9 x 151.9 x 127.4 mm (2.08 x 5.98 x 5.02 in)

  • Weight

    • 850 g (1.87 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)

  • Protection

    • PCB conformal coating
Power Parameters

  • Input Current

    • 0.67 A @ 12 VDC, 0.17 A @ 48 VDC

  • Input Voltage

    • 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet

  • Power Connector

    • 1 removable 10-contact terminal block(s)

  • Power Consumption

    • Maximum 8.03 W

  • Reverse Polarity Protection

    • Supported
Environmental Limits

  • Operating Temperature

    • Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class B

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Railway

    • EN 50155, EN 50121-4

  • Railway Fire Protection

    • EN 45545-2

  • Radio

    • EN 300 328, EN 301 893, MIC, FCC ID SLE-WAPN008, IDA

  • Safety

    • UL 60950-1, IEC 60950-1, EN 60950-1 (LVD)
MTBF

  • Time

    • 742,649 hrs

  • Standards

    • Telcordia SR332
Warranty
